4-Bedroom, 3844 Sq Ft Country Plan with Walk In Closet

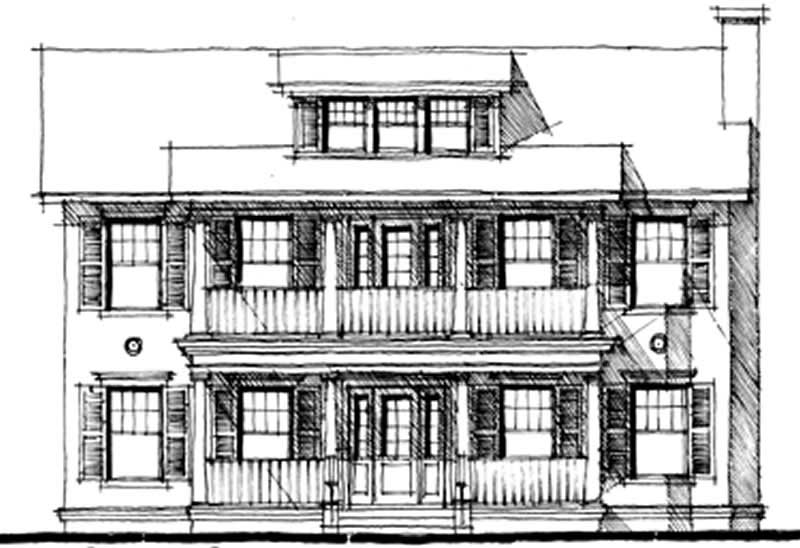

Front elevation of Country home (ThePlanCollection: House Plan #116-1066)

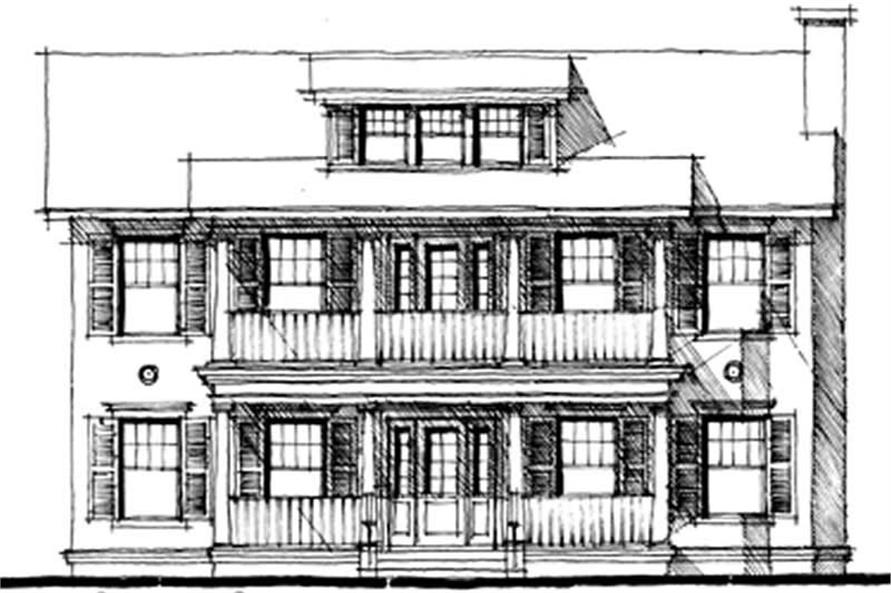

4-Bedroom, 3844 Sq Ft Country Home Plan - 116-1066 - Main Exterior

About Plan # 116-1066

About Plan # 116-1066

3844 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 46' 0" WIDTH 101' 0" DEPTH 2 GARAGE BAY

The classic low-country front porches and shed dormer create a comfortable, yet impressive entry to this Charleston-style home. The most unique feature of this home are the 4 separate suites. The master suite has views to the front of the house and is closest to the main living rooms in the house. Suite 2 is completely separate from the main house and functions well for a guest/in-law suite.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

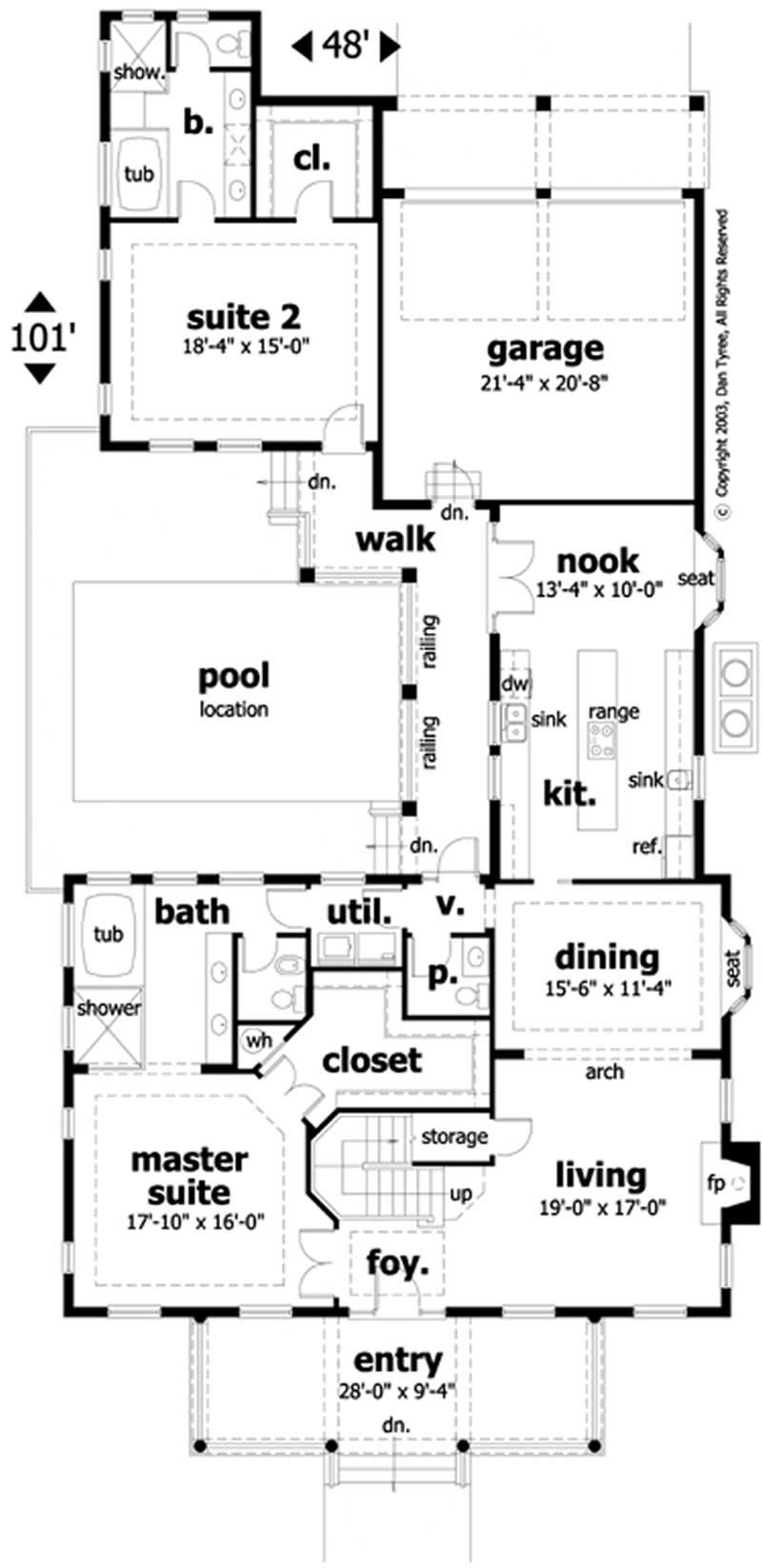

Home Plan: #116-1066 Floor Plan First Story - first s Floor Plan First Story of Country Plan #116-1066

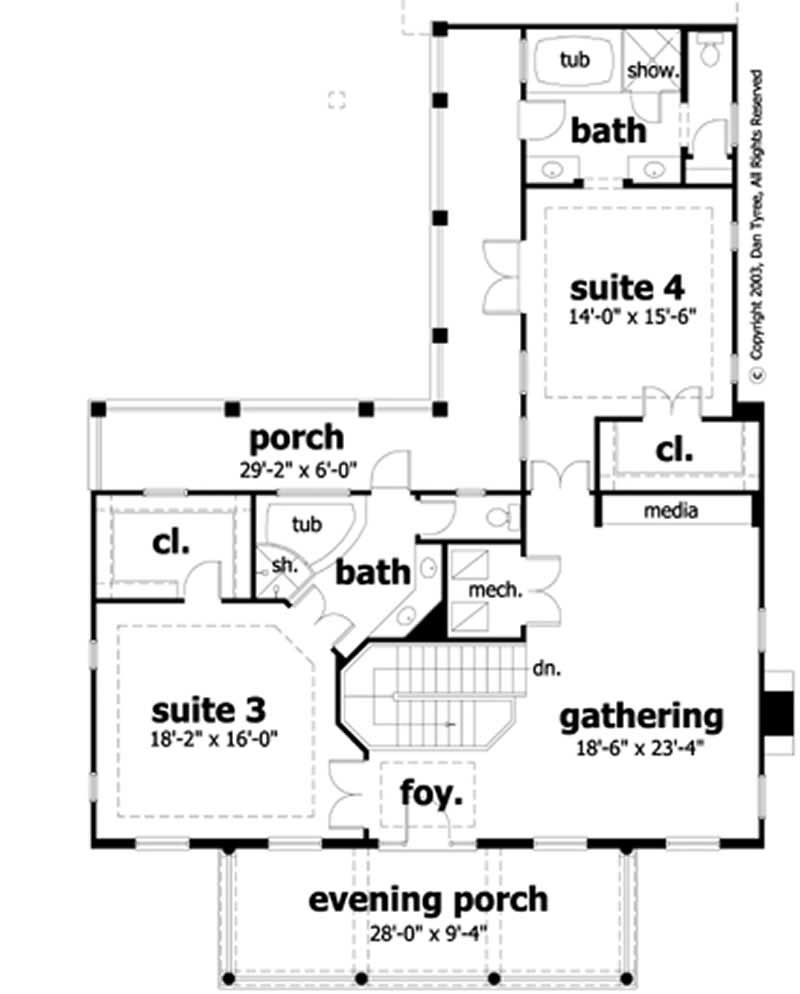

#116-1066 Floor Plan Second Story - second s Floor Plan Second Story of Country Plan #116-1066
