4-Bedroom, 1993 Sq Ft Cape Cod Plan with Fireplace

About House Plan #105-1008

1993

Sq Ft

4

Bedrooms

2

Baths

0

Half Baths

2

Cars

2

Stories

42' 0'

Width

49

Depth

Starting at$530.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

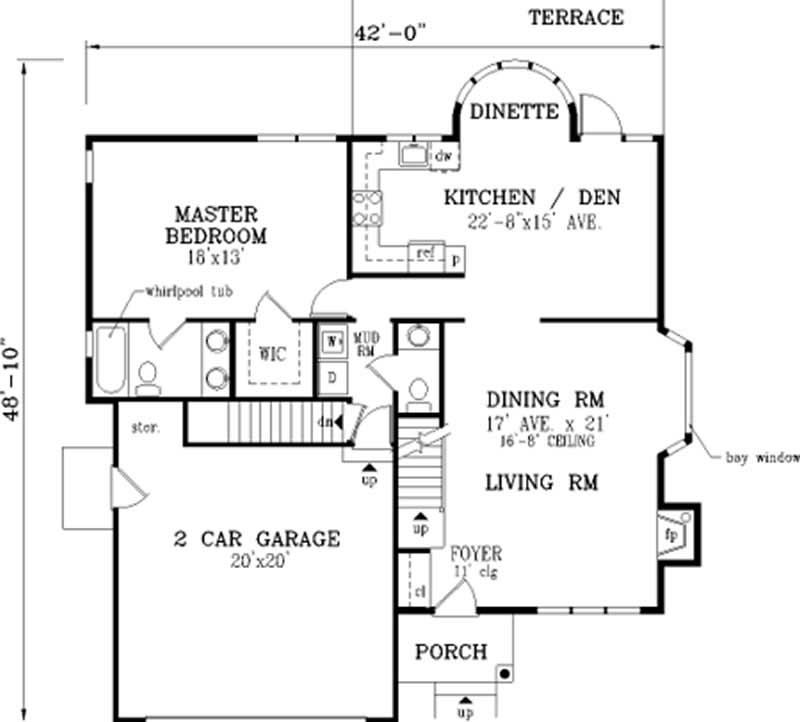

FIRST FLOOR PLAN

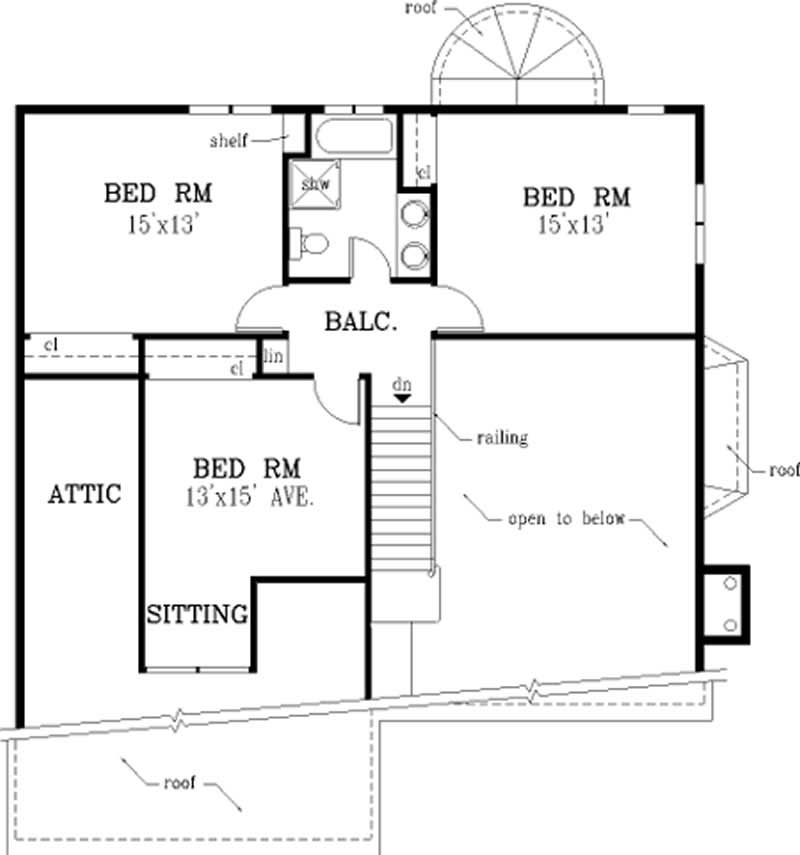

SECOND FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

This dreamy two-story features an open living and dining area with ceilings sloping to some sixteen feet. The living room is warmed by a fireplace, while the dining room boasts a beautiful bay window. To the rear is another open area formed by the U-shaped kitchen, den and bayed dinette overlooking the terrace. Also on the main floor is the master bedroom with private bathroom and whirlpool tub, while upstairs are three more bedrooms and another full bath.

Home Details

Summary

Plan #:105-1008

Starting at:$530.00

Floors:2

Bedrooms:4

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1993 Sq. Ft.

First Floor:1186 Sq. Ft.

Second Floor:807 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Traditional Cape Cod

Exterior Wall Material

Wood Siding

Special Feature

FireplaceDining Room

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Elevations

Sections - Include structural design & specifications

Kitchen cabinet elevations

Floor Plan

Roof Plan

Typical wall section

Construction & Specification notes

Special detail sections

Plumbing riser diagram

Window and door sizes

Structural design joists and beams

Electrical Layout

Special Notes

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Framing layouts with beam sizes and location

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
