4-Bedroom, 5726 Sq Ft Luxury Plan with Butler's Pantry

Front elevation of Luxury home (ThePlanCollection: House Plan #153-1817)

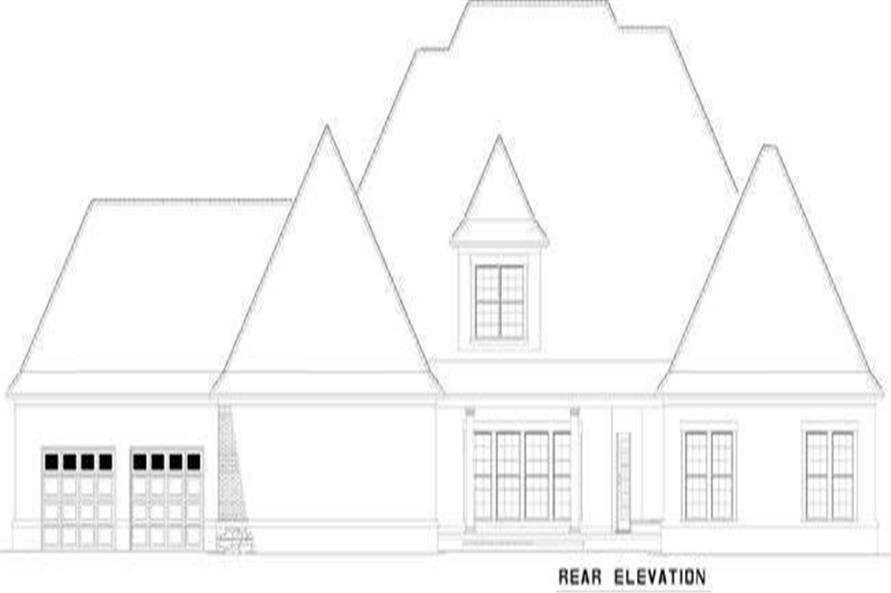

153-1817: Home Plan Rear Elevation
4-Bedroom, 5726 Sq Ft Luxury Home Plan - 153-1817 - Main Exterior
153-1817: Home Plan Rear Elevation

About Plan # 153-1817

About Plan # 153-1817

2 FLOOR 105' 0" WIDTH 103' 4" DEPTH 4 GARAGE BAY

This luxurious manor home has so many impressive features.  Starting with the main floor:

  • Front Entry with 12-inch columns
  • Foyer with French doors to Study
  • Study with built-in desk and cabinets
  • Dining Room with 10-inch columns and Butler's Pantry
  • Great Room with built-ins and fireplace
  • Wet Bar and Wine Closet
  • Kitchen with island work area including warming drawer, ample counter space, appliance garage (toaster, can opener storage), walk-in pantry, and open to Breakfast Room
  • Breakfast Room with bay window area open to Sitting Area with access to Rear Covered Porch
  • Master Suite with 11 ft box ceiling plus Master Bath with split vanities, appliance garage for hairdryer and curling iron, etc., two walk-in closets, whirlpool tub, glass shower, and ample storage areas
  • Guest Room with walk-in closet including drawers and private bath access
  • Rear Covered Porch with outdoor fireplace and grill
  • Mud Room with builtin bench
  • Office with window seat and ample desk space
  • Laundry with sink, freezer area, and builtin ironing board

Not to be outdone, the upper floor includes:

  • Two Computer Centers plus Home Theater/Game Room with media center, builtins, and kitchenette
  • Bedroom 2 is the second master suite boasting a window seat with storage and a private bath with a whirlpool tub and walk-in closet with storage.
  • Bedroom 3 with private bath and walk-in closet
  • Cedar Closet

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

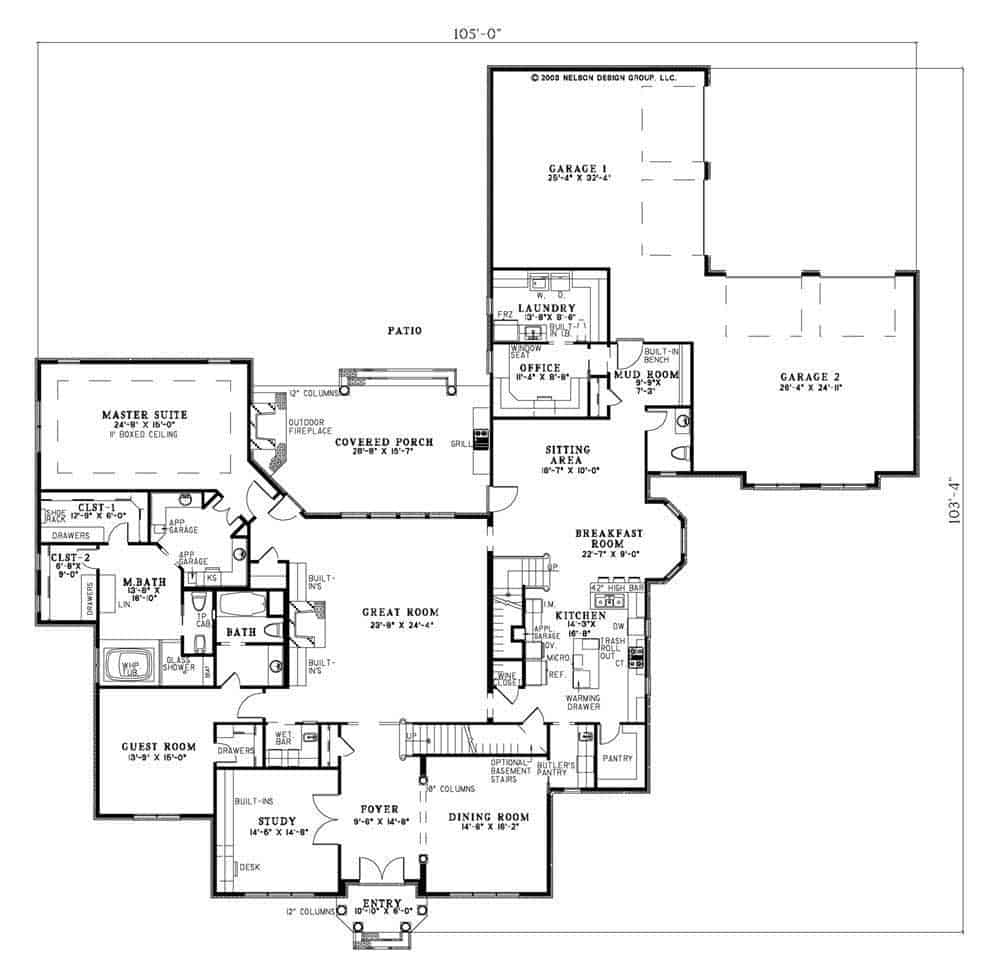

Home Plan: #153-1817 Floor Plan First Story - first story Main Level of Luxury Plan #153-1817

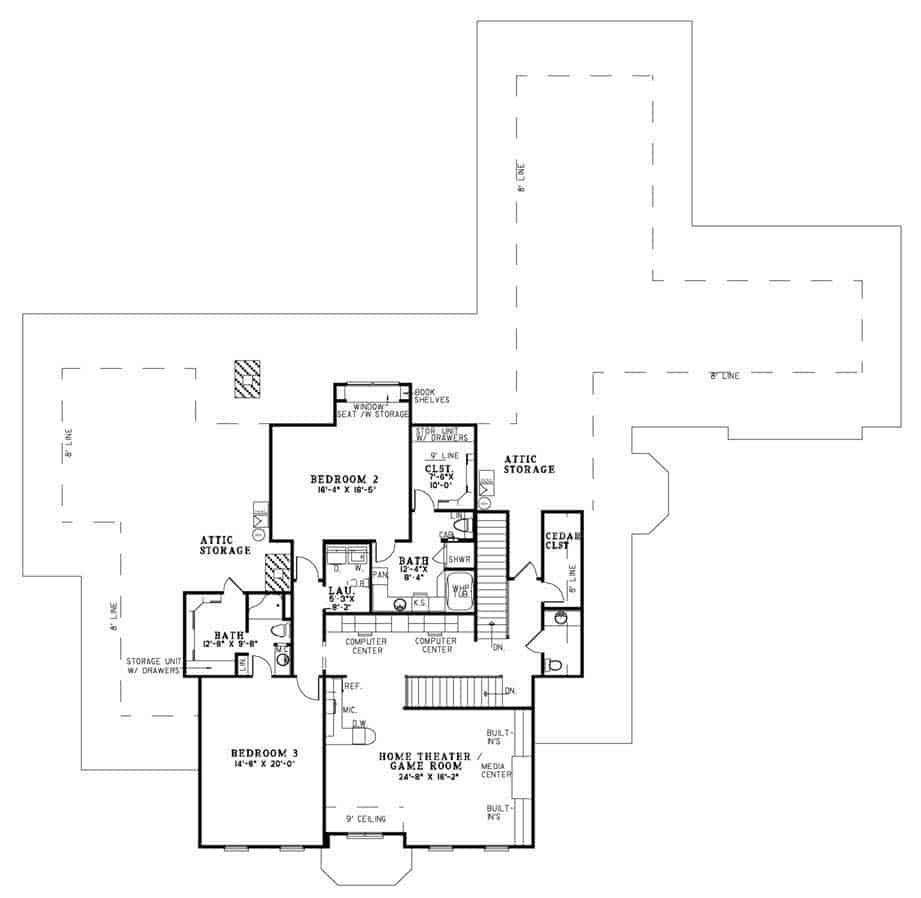

#153-1817 Floor Plan Second Story - second story Upper Level of Luxury Plan #153-1817
Home Plan: #153-1817 Floor Plan First Story - first story Main Level of Luxury Plan #153-1817
#153-1817 Floor Plan Second Story - second story Upper Level of Luxury Plan #153-1817
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1817
Full Baths:
Half Baths:

Square Footage

Heated Sq Feet:
Main Floor:
Upper Floor:
Unfinished Sq Ft:
Garage :
Porch :


105' 0"
103' 4"
Ridge Height:
37' 2"

Architectural Styles


Roof Pitch


Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Guest Room
Home Office
Mud Room
Game Room
Main Level Laundry
Home Theater

Garage Type

Attached Garage

Exterior Wall Framing


Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Two or More Master Suites
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any que


A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
