Front Elevation of this Concrete Block/ ICF Design House (#132-1391) at The Plan Collection.
REAR ELEVATION
3-Bedroom, 1849 Sq Ft Concrete Block/ ICF Design House Plan - 132-1391 - Front Exterior
REAR ELEVATION

About Plan # 132-1391

About Plan # 132-1391

1849 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 44' 0" WIDTH 22' 0" DEPTH 0 GARAGE BAY
*Insulated Concrete Form Construction *Country Style *Main Level Master Suite *Walk-In Closet In And Double Sinks In Master Bathroom *Main Level Laundry Room *Jack And Jill Bathroom Upstairs *Upper Level Open To Below

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

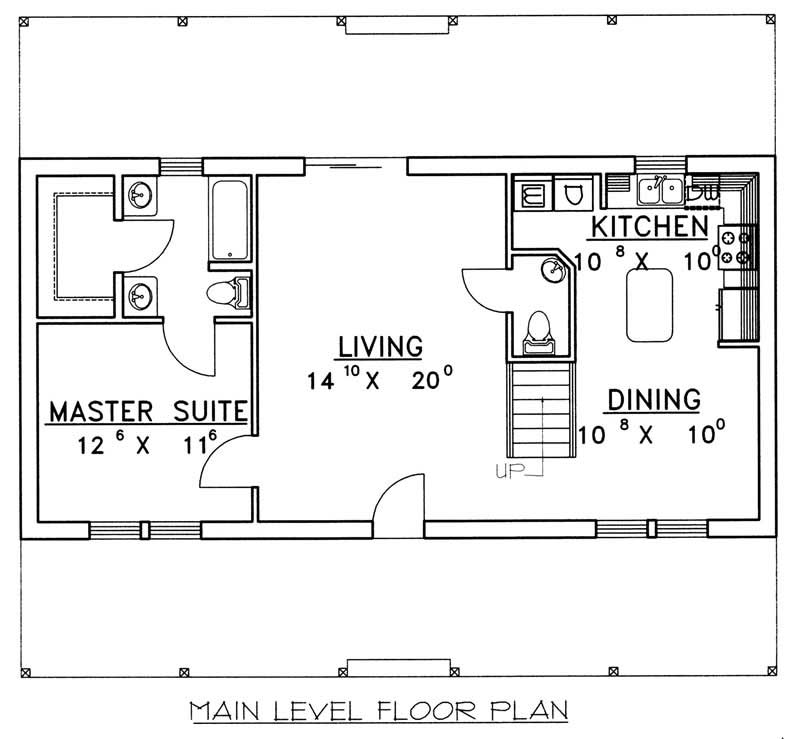

Home Plan: #132-1391 Floor Plan First Story - first level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1391

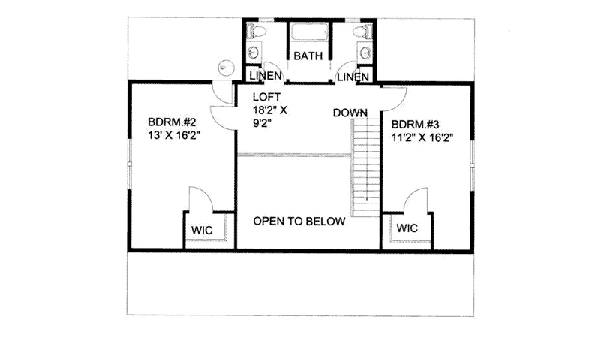

#132-1391 Floor Plan Second Story - upper level Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1391
Home Plan: #132-1391 Floor Plan First Story - first level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1391
#132-1391 Floor Plan Second Story - upper level Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1391
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
