13-Bedroom, 13890 Sq Ft Concrete Block/ ICF Design Plan with Walk-in Pantry

This image shows the front elevation for these Luxury House Plans.
Home Plan Front Elevation
13-Bedroom, 13890 Sq Ft Concrete Block/ ICF Design Home Plan - 132-1231 - Main Exterior
Home Plan Front Elevation

About Plan # 132-1231

About Plan # 132-1231

13890 SQUARE FEET 13 BEDROOMS 13 FULL BATH 0 HALF BATH
3 FLOOR 180' 0" WIDTH 162' 0" DEPTH 5 GARAGE BAY

I would like to break this Luxury House Plan down into individual square footages. The main level is 5477 Sq. Ft., the live in/upper level is 6062 Sq. Ft., the Daylight/Raquetball area is 6800 Sq. Ft., the Pool area is 5647 Sq. Ft., the Aprtments A and B are 2351 Sq. Ft., the main garage/shop are 2852 Sq. Ft., and the lower shop is 828 Sq. Ft.

Each plan set includes the following:

  • FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
  • FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
  • ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
  • ELECTRICAL LAYOUT
  • FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

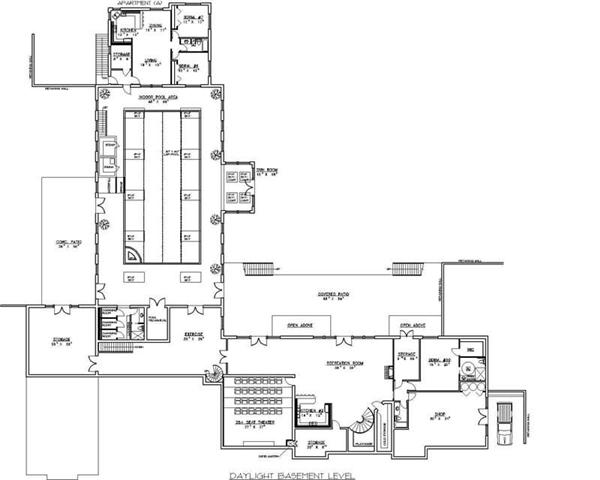

Home Plan: #132-1231 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1231
#132-1231 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1231

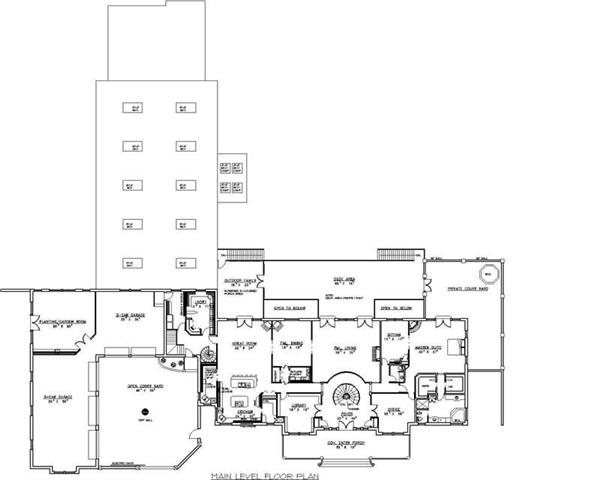

#132-1231 Floor Plan First Story - first story Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1231

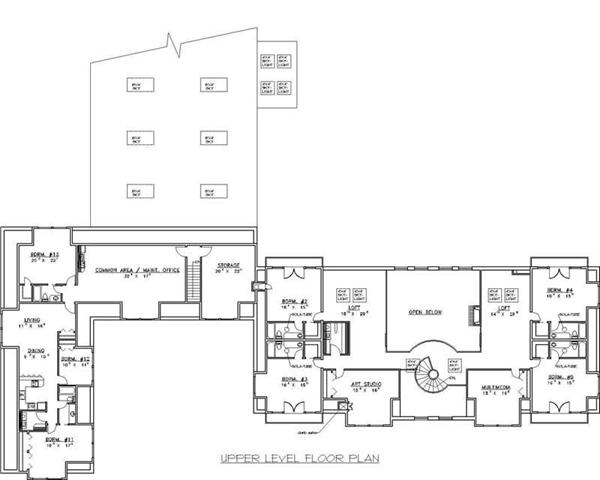

#132-1231 Floor Plan Second Story - second story Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1231
Home Plan: #132-1231 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1231
#132-1231 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1231
#132-1231 Floor Plan First Story - first story Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1231
#132-1231 Floor Plan Second Story - second story Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1231
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1231
Floors:
3
Bedrooms:
13
Full Baths:
13

Square Footage

Heated Sq Feet:
13890
Main Floor:
5477
Upper Floor:
6062
Third Floor:
2351
Unfinished Sq Ft:
Lower Floor:
6800
Bonus Room:
5647
Garage :
2852

Dimensions

Width:
180' 0"
Depth:
162' 0"
Ridge Height:
46'1' 0"

Architectural Styles

Concrete Block/ ICF Design
Craftsman
European
In-Law Suite
Luxury

Exterior Wall Material

Brick
Vinyl Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Special Feature

Apartment
Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Guest Room
Home Office
Home Theater
In Home Gym
Library
Loft
Main Level Laundry
Media Room
Mother in law apartment
Storage
Swimming Pool
Workshop

Garage Type

Attached Garage
Courtyard Entry

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.

PRICING OPTIONS

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
