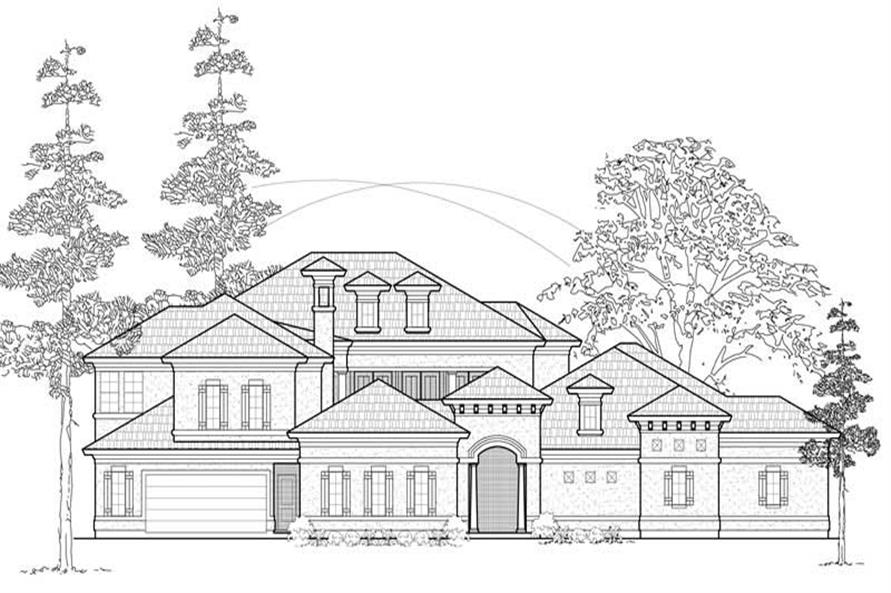

4-Bedroom, 4552 Sq Ft Luxury Home Plan - 134-1143 - Main Exterior

About Plan # 134-1143

About Plan # 134-1143

4552 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 103' 0" WIDTH 97' 0" DEPTH 4 GARAGE BAY
GMLD-552 is a luxurious Mediterranean villa with an enclosed courtyard and lavish features. This sprawling floor plan creates a very open feel that spans both interior and exterior spaces.

Each plan set includes the following:

  • 1/4 scale elevations
  • Fully dimensioned floor plans
  • Foundation footprint
  • Roof plan and section details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

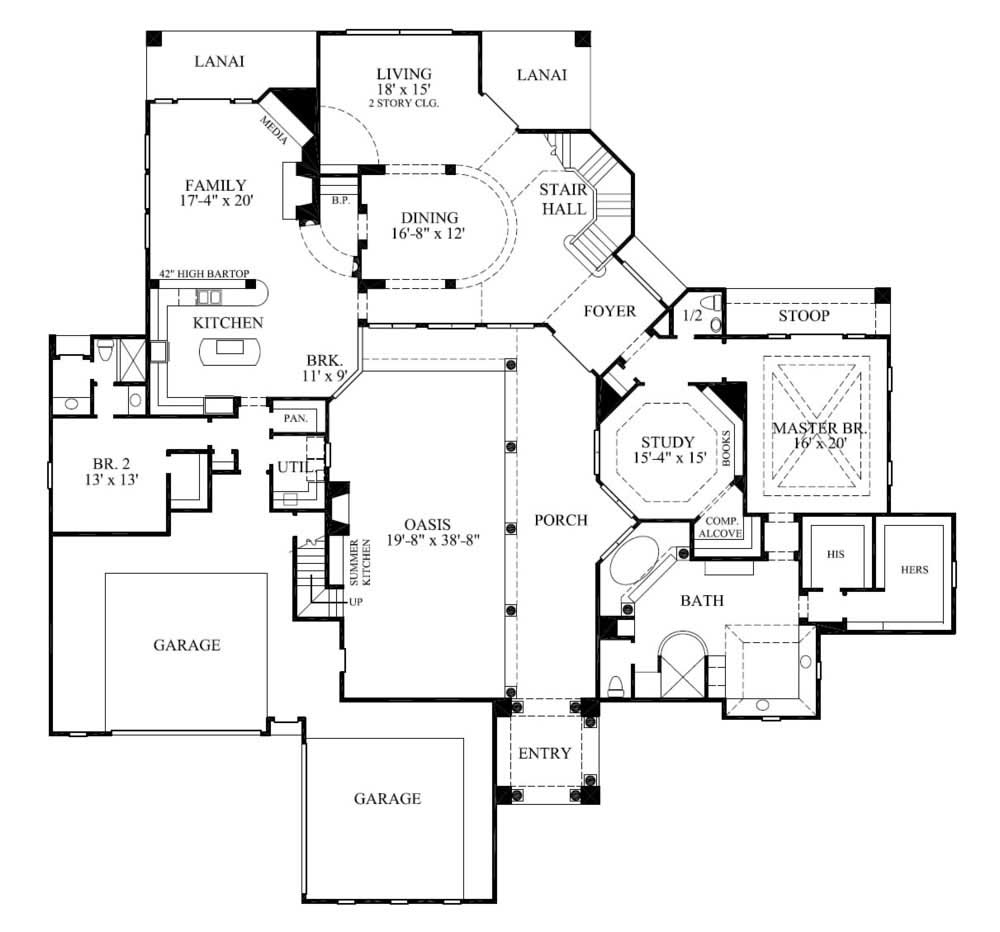

Home Plan: #134-1143 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #134-1143

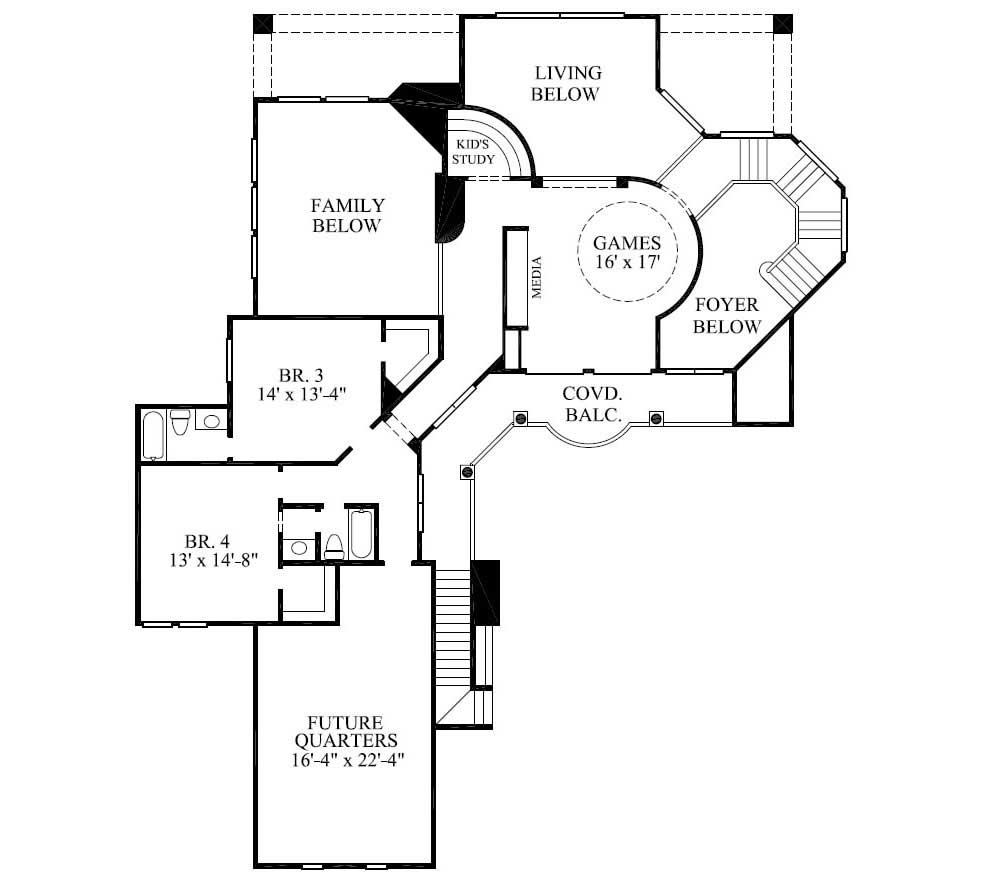

#134-1143 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #134-1143
Home Plan: #134-1143 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #134-1143
