Multi-Level home (ThePlanCollection: Plan #191-1034)

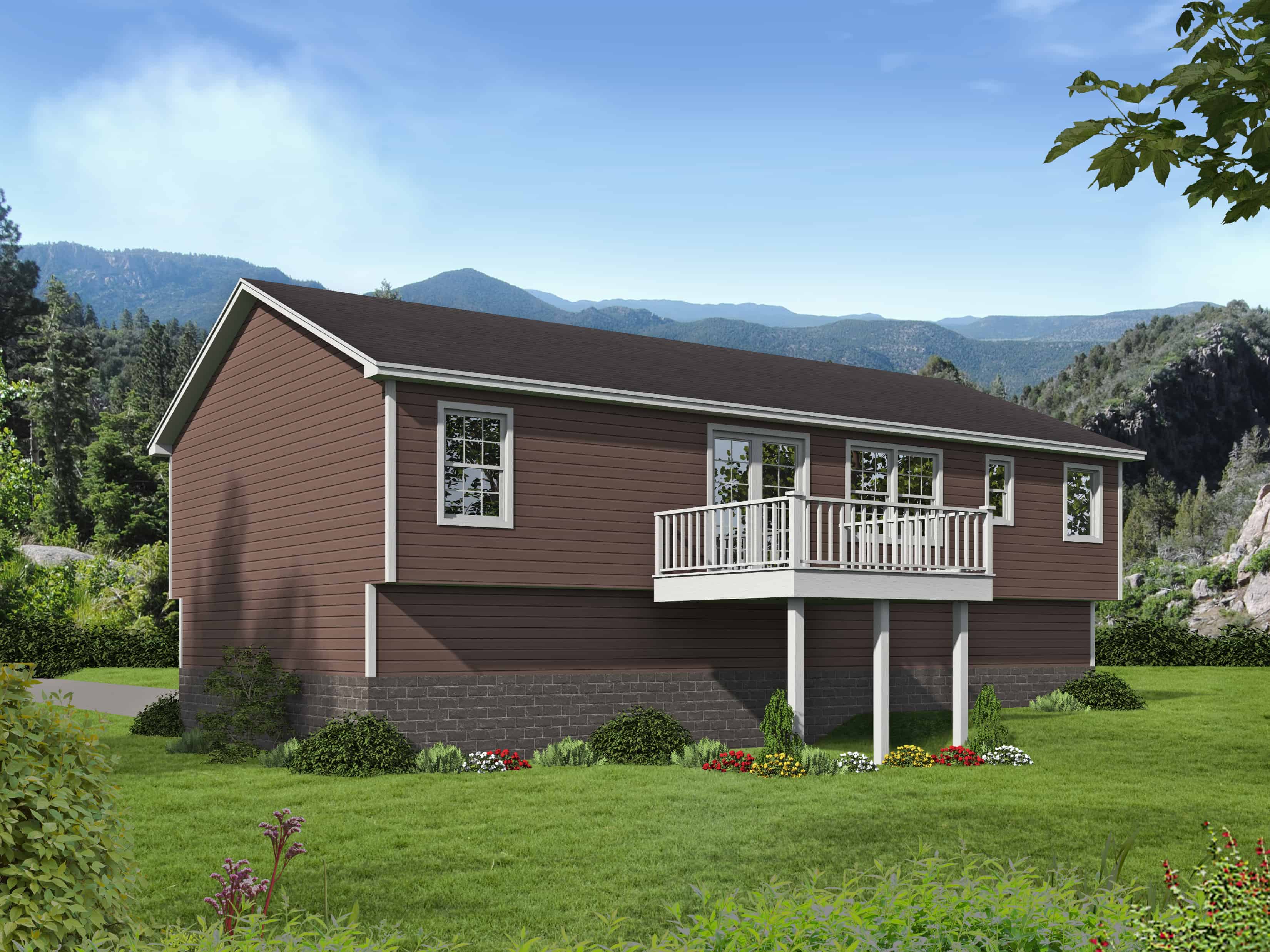

191-1034: Home Other Image-Rear View

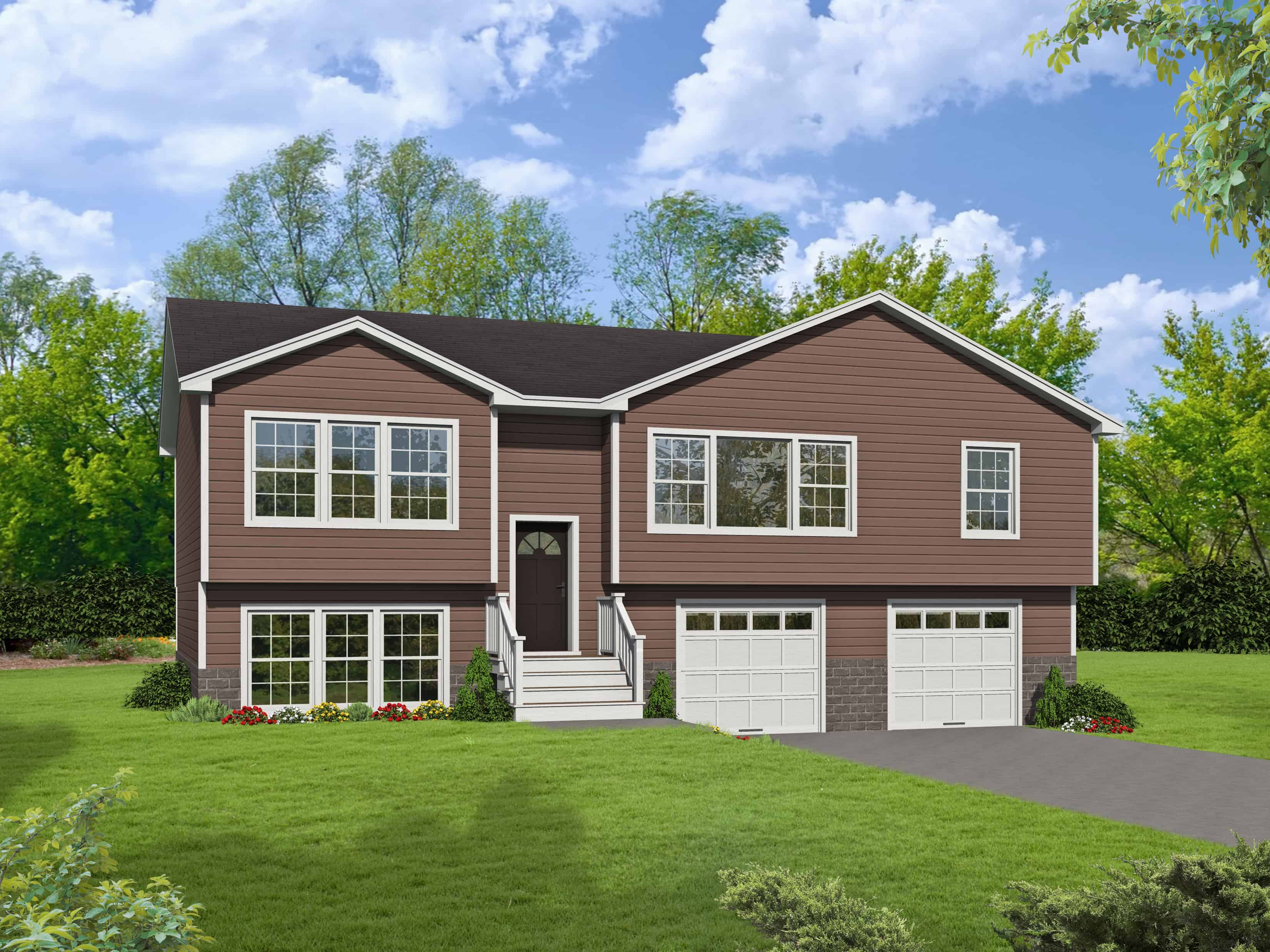

3-Bedroom, 1951 Sq Ft Multi-Level House - Plan #191-1034 - Front Exterior
191-1034: Home Other Image-Rear View

About Plan # 191-1034

About Plan # 191-1034

1951 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1.5 FLOOR 48' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY

This Contemporary Split-Level style home is sure to suit a growing family with its superb design both inside and out. The modest porch provides its incoming residents a highly anticipated welcome to an open floor plan interior and a large family/recreation/game room on the lower level. The enchanting 1.5-story floor plan has 1951 square feet of fully conditioned living space and includes 3 bedrooms.



Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

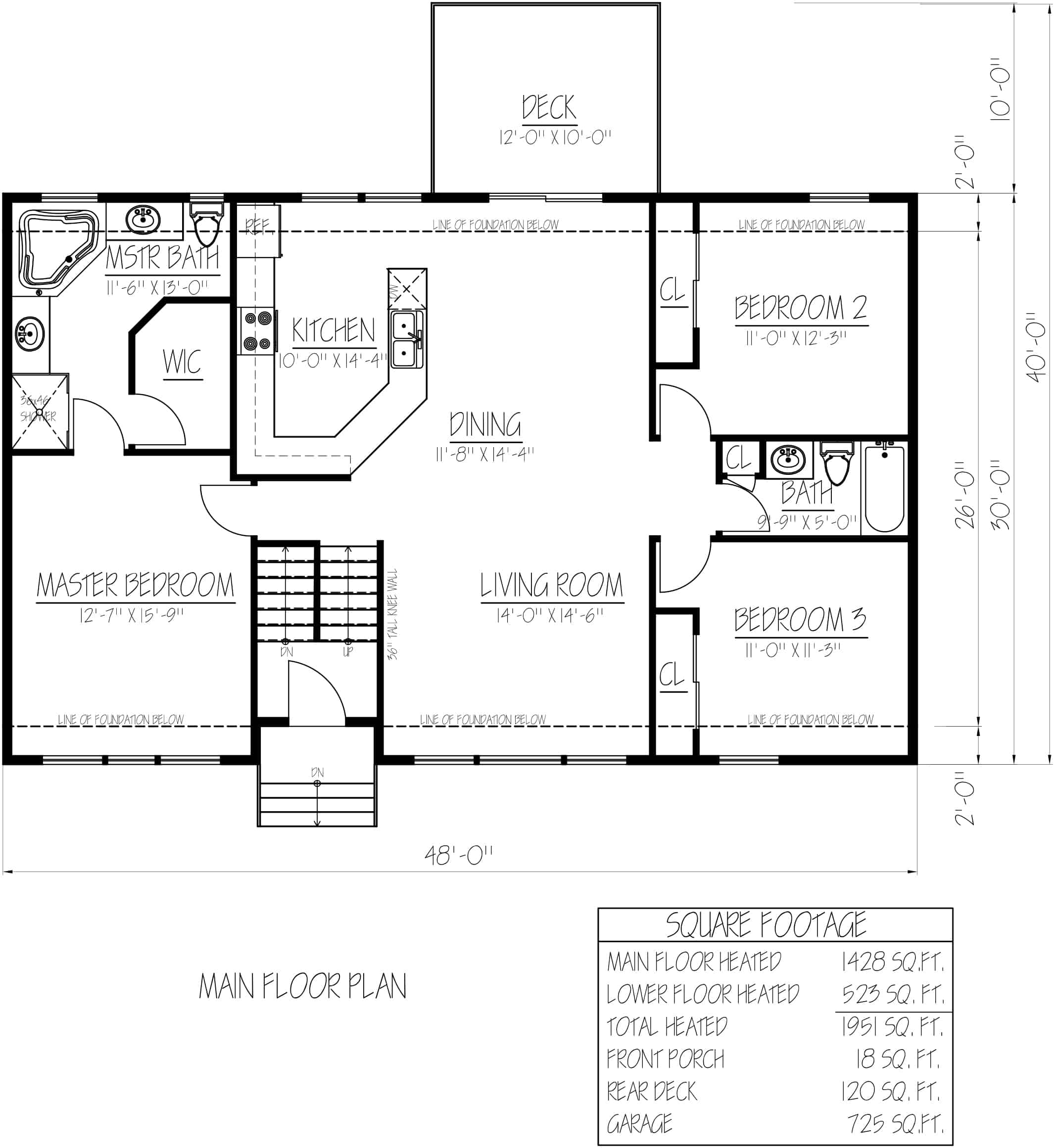

Home Plan: #191-1034 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #191-1034

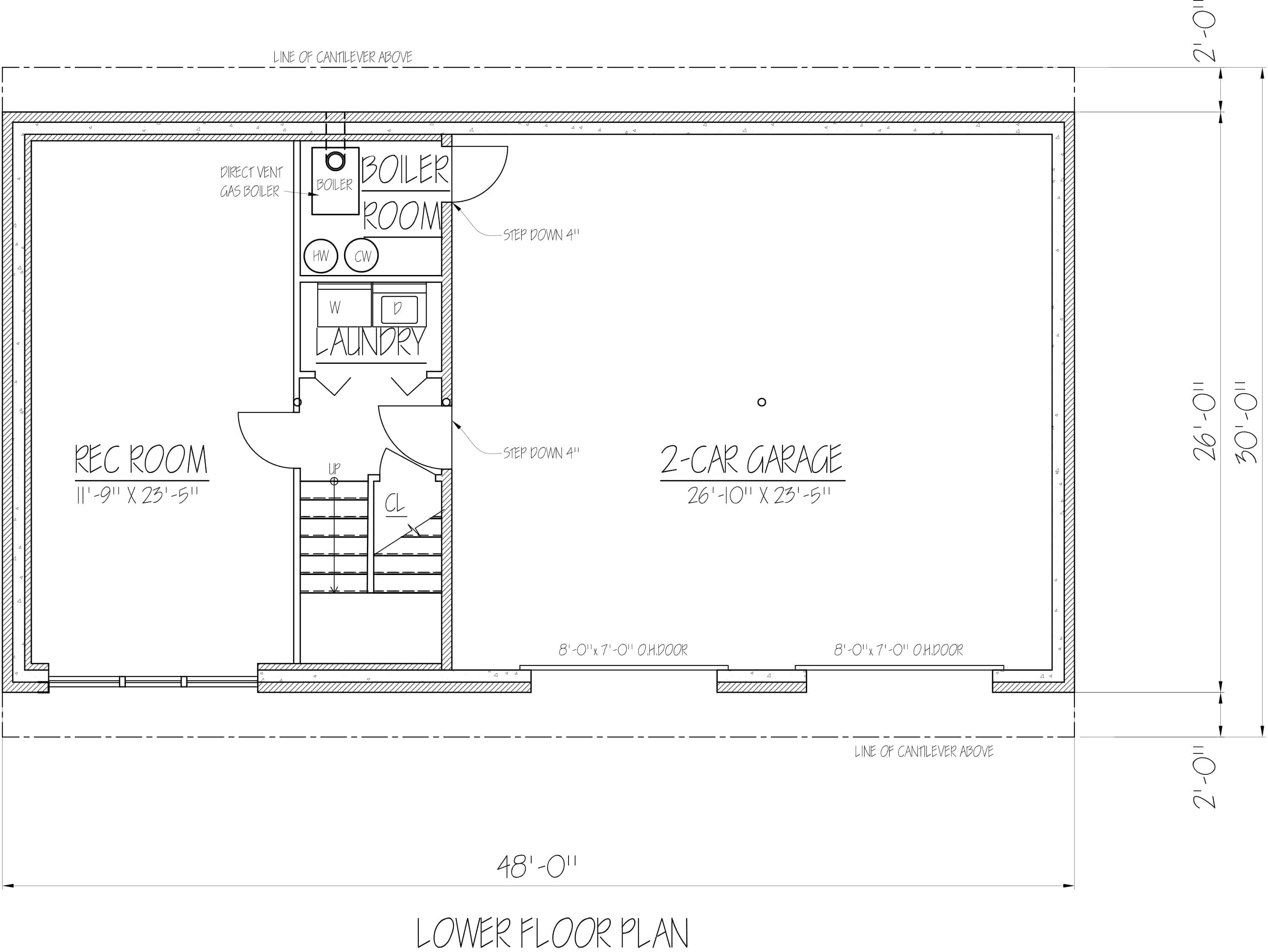

#191-1034 Floor Plan Basement - lower level Floor Plan Basement of Contemporary Plan #191-1034
Home Plan: #191-1034 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #191-1034
#191-1034 Floor Plan Basement - lower level Floor Plan Basement of Contemporary Plan #191-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 191-1034
Floors:
1.5
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1951
Main Floor:
1428
Lower Floor:
523
Unfinished Sq Ft:
Garage :
725
Porch :
138

Dimensions

Width:
48' 0"
Depth:
30' 0"
Ridge Height:
24' 2"

Architectural Styles

Colonial
Country
Contemporary
Multi-Level
1 1/2 Story

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

5/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Mud Room
Family Room
Game Room
Open Floor Plan

Garage Type

Attached Garage
Under Main Floor Entry

Exterior Wall Framing

2x6

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Sundeck
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE! You must purchase a PDF or CAD package if purchasing an additional build license or unlimited license option.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
