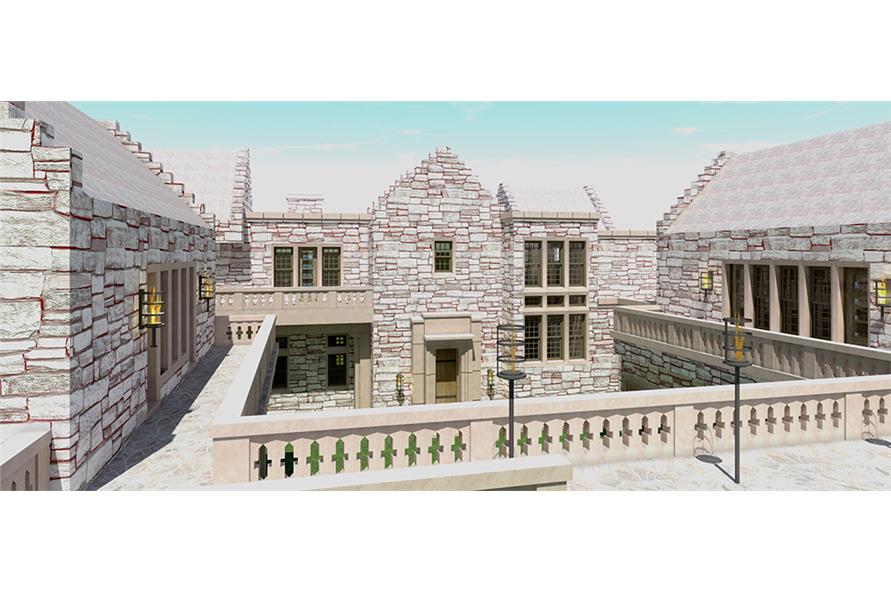

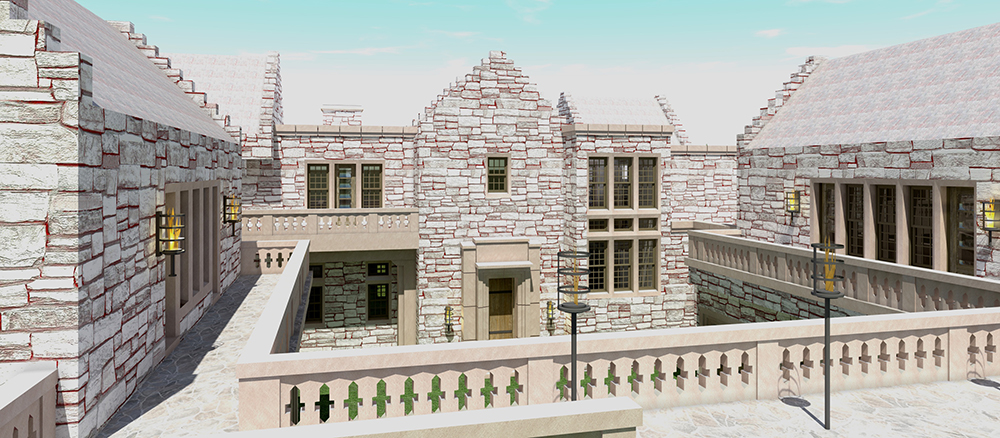

116-1108: Home Other Image-Front Door

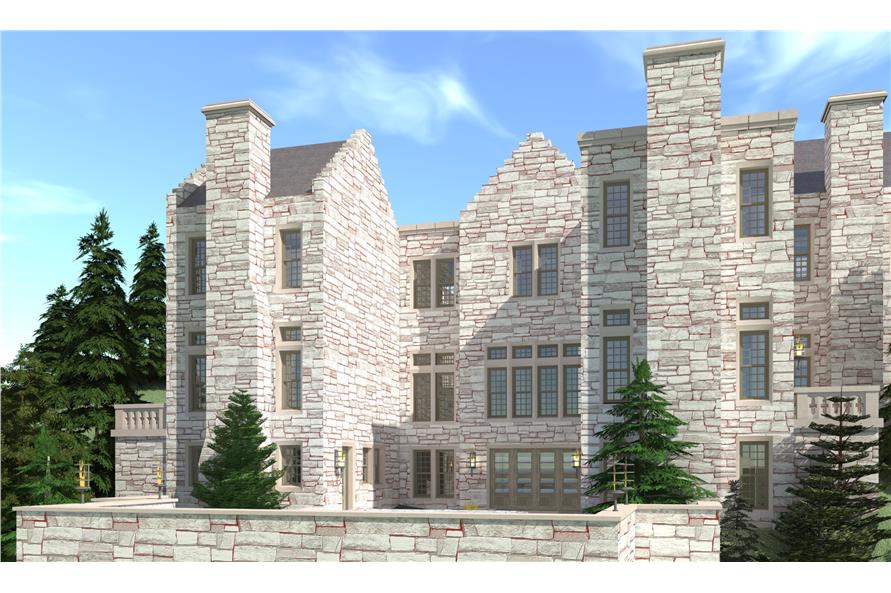

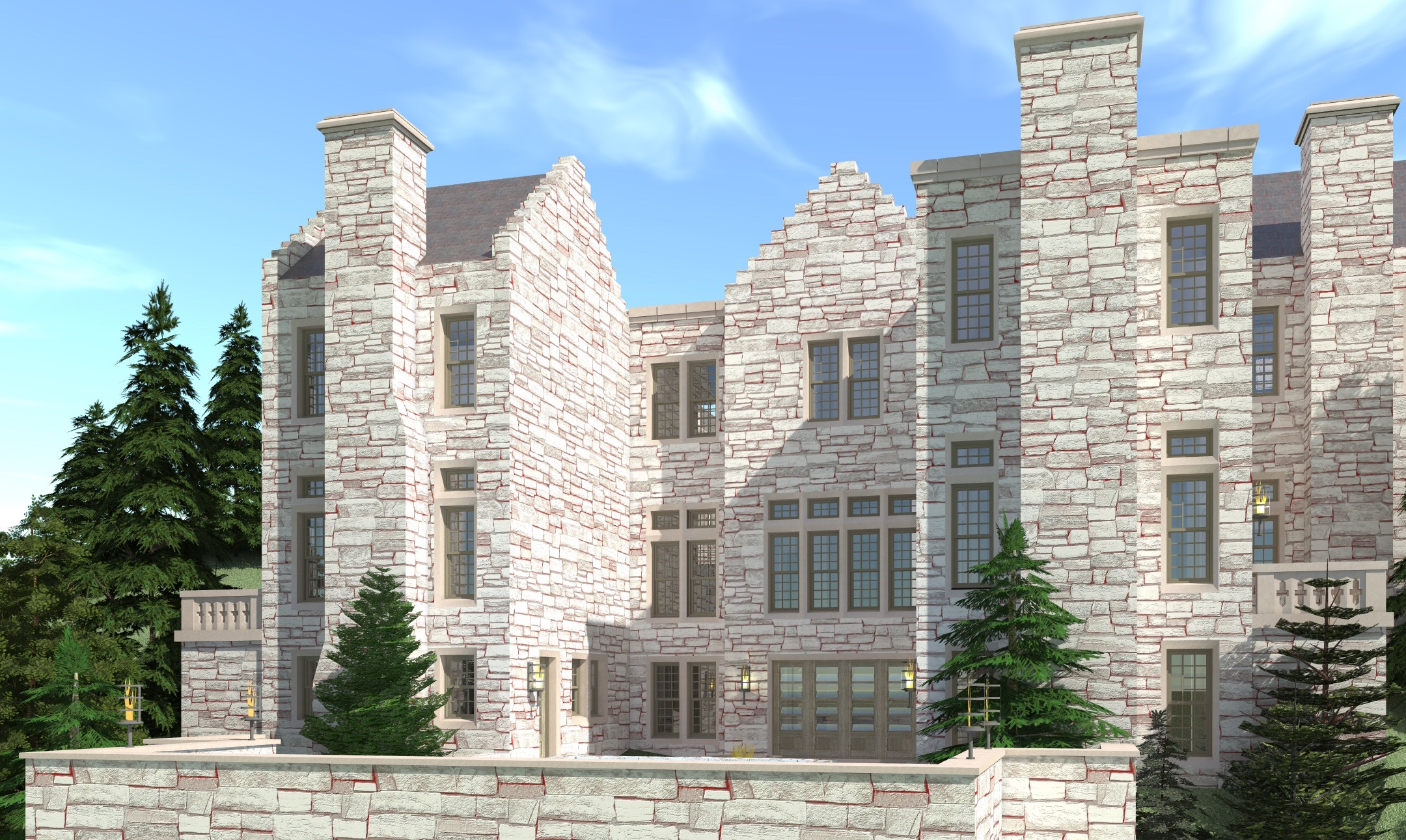

116-1108: Home Other Image-Front View

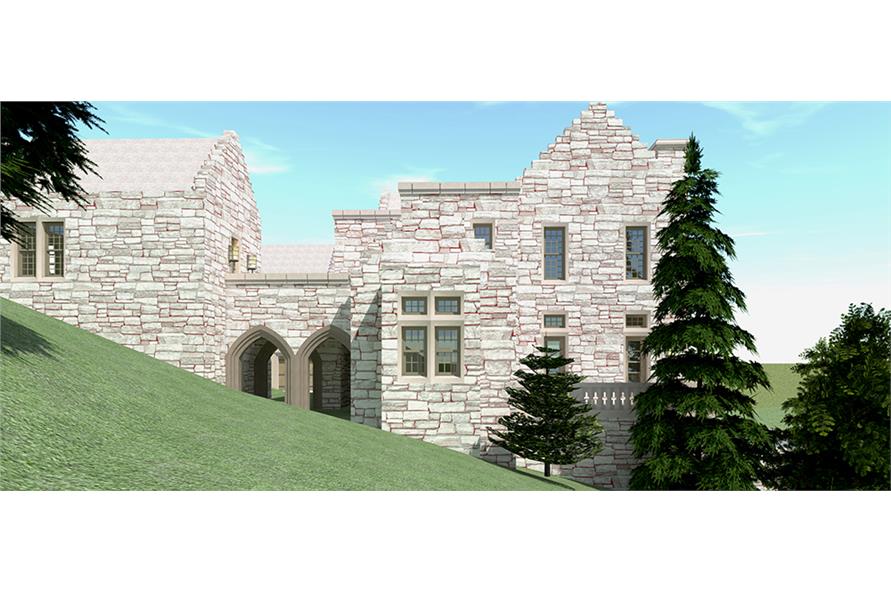

116-1108: Home Other Image-Side View

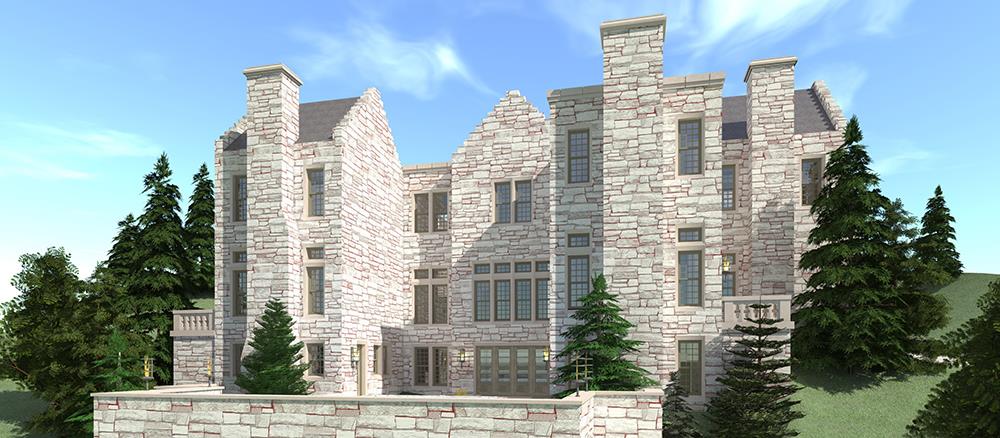

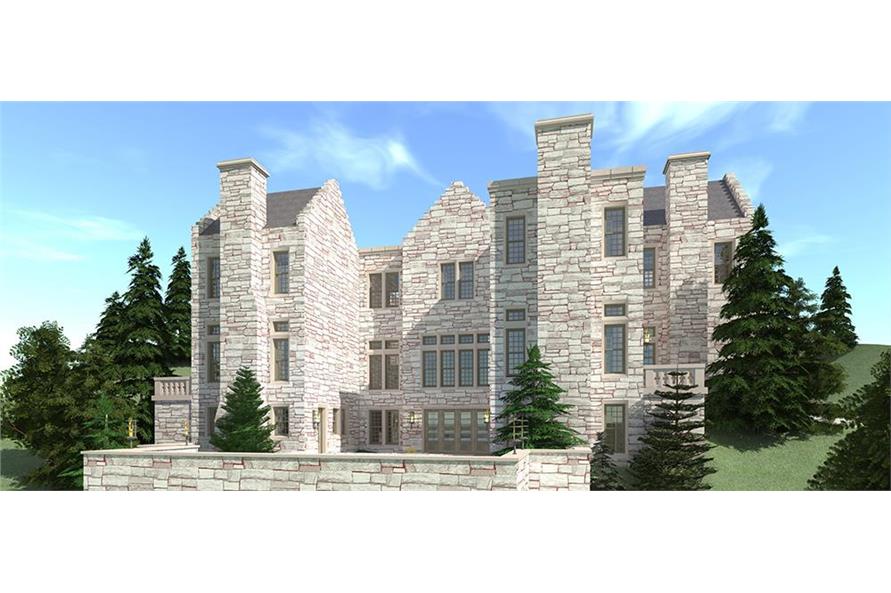

116-1108: Home Other Image-Rear View
6-Bedroom, 9465 Sq Ft Castle Plan - 116-1108 - Front Exterior
116-1108: Home Other Image-Front Door
116-1108: Home Other Image-Front View
116-1108: Home Other Image-Side View
116-1108: Home Other Image-Rear View

About Plan # 116-1108

About Plan # 116-1108

9465 SQUARE FEET 6 BEDROOMS 6 FULL BATH 3 HALF BATH
2 FLOOR 109' 0" WIDTH 111' 0" DEPTH 6 GARAGE BAY

A man's home is his castle - in this case, literally! Approach the castle from one of two gates to gain access to the courtyard. The Gothic courtyard is farmed by the impressive "main manor" of the castle on one side, a colonnade on the opposite side, and connected to the rest of the castle by two facing buildings which are designed for parking six cars.

Enter through the door of the manor home and into the foyer and the dramatic design of this castle with its 14-foot ceilings in the main rooms. The foyer faces the dining room — the heart of any historic castle design. The plan though does embrace modern living with an open floor plan for the main areas. The open-concept kitchen is steps from the dining room and the living area. On the "north" end of the main floor is the stairwell foyer connecting the main floor to the second floor and the walk-out basement.

Just beyond the stairwell foyer is the main floor master suite with 12-foot ceilings. The master bedroom includes a fireplace. There are his-and-her walk-in closets. The master bathroom has his-and-her sink vanities, a tub, a huge shower, and two water closets.

Looking to entertain? This castle plan has it all. The lower level boasts a large sitting area, a hearth room, and a secondary kitchen. There is also another master suite on this level with a private bath and walk-in closet. This level is designed so you can walk out of the castle to your own outdoor living space.

Walk up to the second floor — or take the elevator. The main manor house on this level has 10-foot ceilings and includes three more master suites each with its own full bathroom and a walk-in closet. From this level, exit from one end to the "north watch" and walk over to the office that is located above the north garage. From the other side of the manor, exit to the "south watch" and walk over to the in-law suite apartment which includes a living area, full bathroom, a bedroom, and a small kitchen.

The walls are double 2x6 construction faced with stone.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #116-1108 Floor Plan First Story - main level Floor Plan First Story of Historic Plan #116-1108
#116-1108 Floor Plan Second Story - upper level Floor Plan Second Story of Historic Plan #116-1108

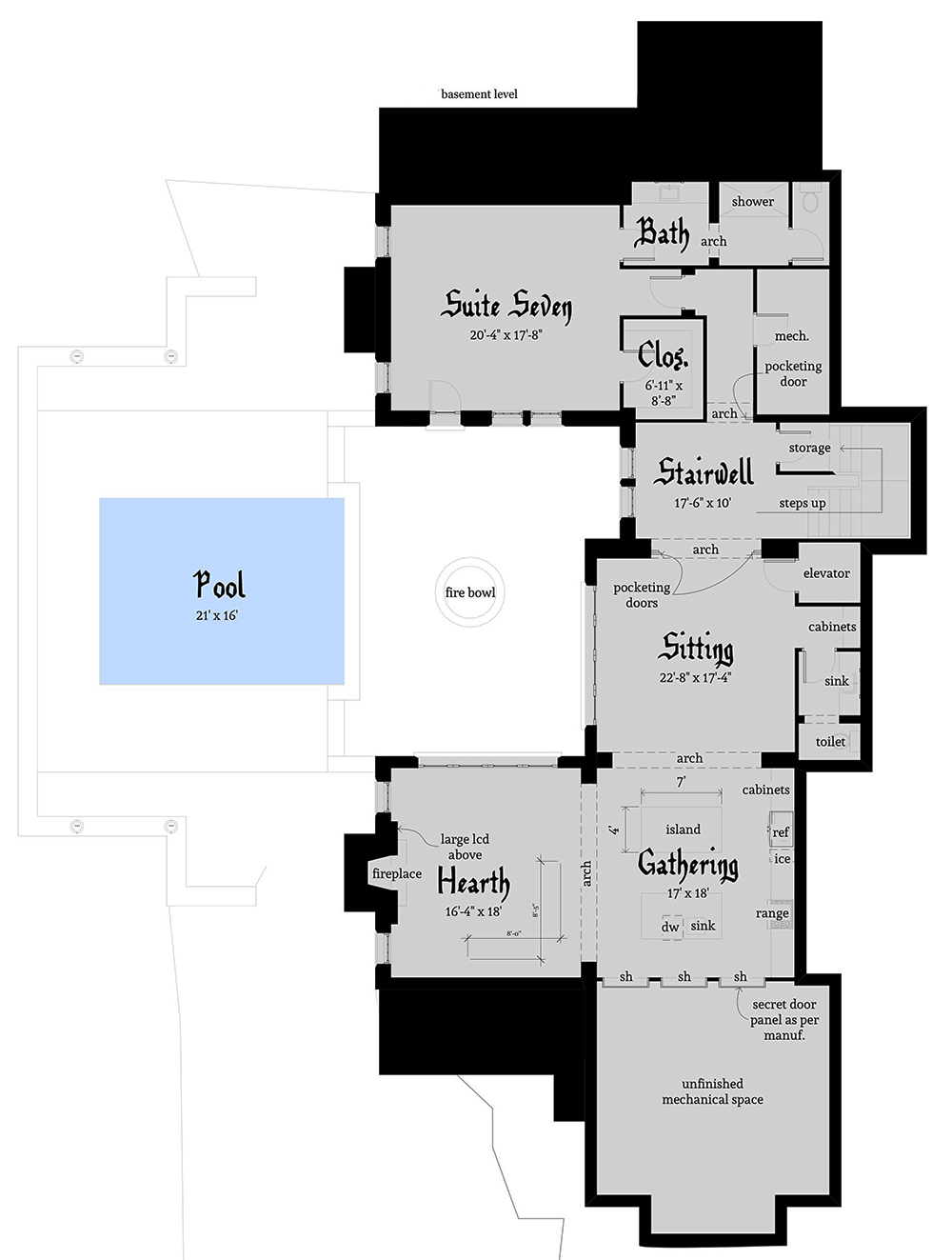

#116-1108 Floor Plan Basement - lower level Floor Plan Basement of Historic Plan #116-1108
