3-Bedroom, 1600 Sq Ft Acadian Plan with His & Her Walk-in Closets

Acadian home (ThePlanCollection: Plan #142-1063)

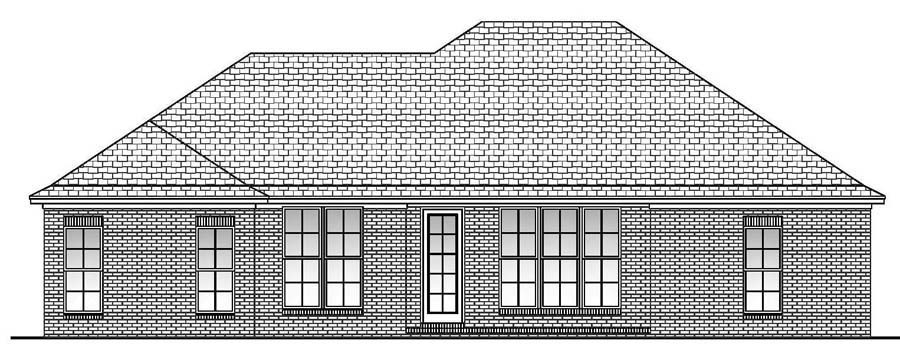

142-1063: Home Plan Rear Elevation
3-Bedroom, 1600 Sq Ft Acadian House - Plan #142-1063 - Front Exterior
142-1063: Home Plan Rear Elevation

About Plan # 142-1063

About Plan # 142-1063

1600 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 55' 8" WIDTH 64' 6" DEPTH 2 GARAGE BAY

This floor plan is a beautiful mix of design and functionality providing the most efficient use of space possible in a 1,600 square foot home. The spacious great room is open with views to the rear porch, allowing natural light to flood the home. The kitchen and dining area open to the great room creating the feeling of a much larger space. The split bedroom layout includes 3 bedrooms and two baths.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

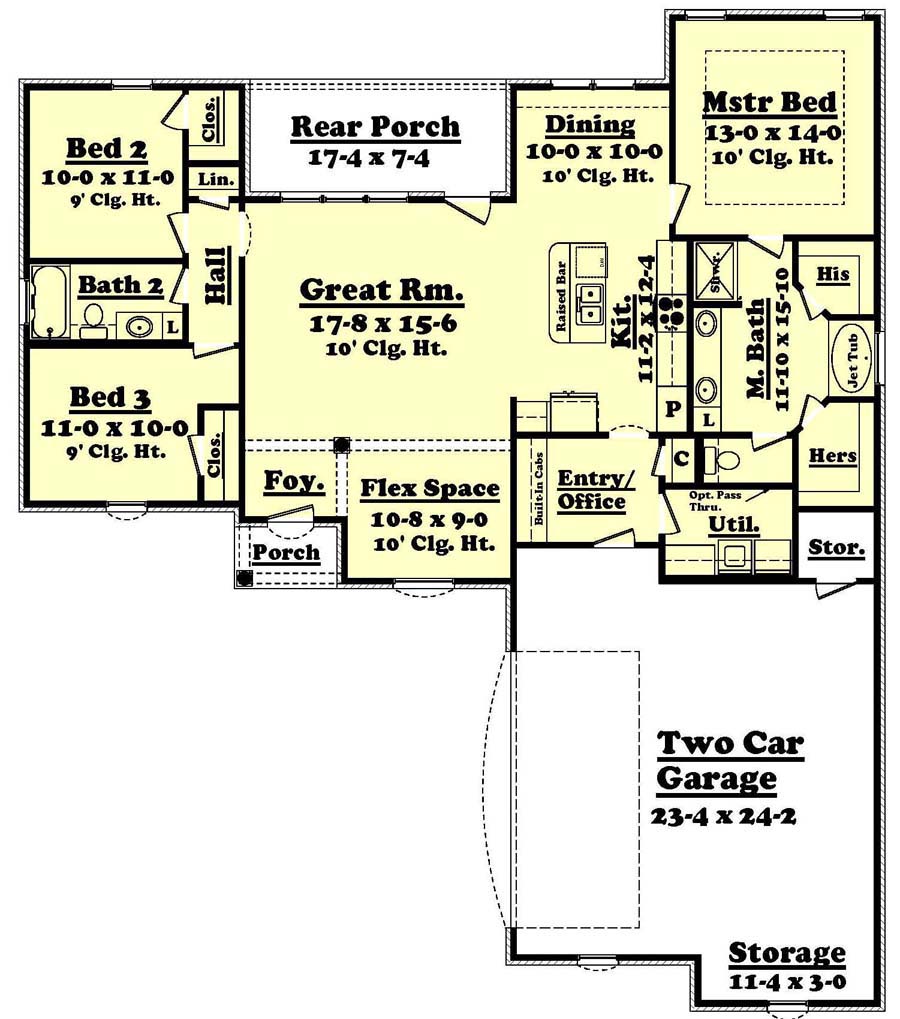

Home Plan: #142-1063 Floor Plan First Story - main level Floor Plan First Story of Acadian Plan #142-1063

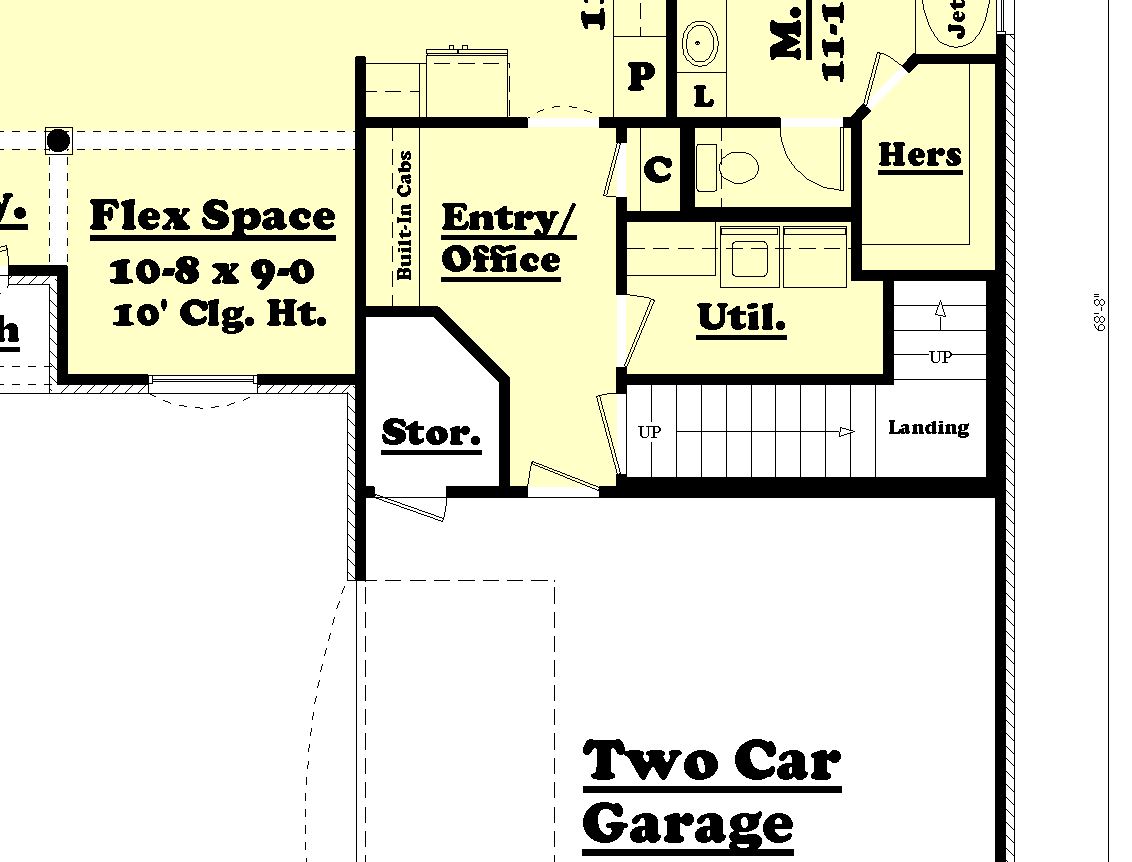

#142-1063 Floor Plan Basement - basement Floor Plan Basement of Acadian Plan #142-1063
Home Plan: #142-1063 Floor Plan First Story - main level Floor Plan First Story of Acadian Plan #142-1063
#142-1063 Floor Plan Basement - basement Floor Plan Basement of Acadian Plan #142-1063
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1063
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1600
Main Floor:
1600
Unfinished Sq Ft:
Main Floor:
61
Garage :
610
Porch :
154

Dimensions

Width:
55' 8"
Depth:
64' 6"
Ridge Height:
20' 9"

Architectural Styles

Acadian
European
French
Ranch
Small House Plans
Traditional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Family Room
Home Office
L-Shaped
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please Note: Ordering 2x6 Exterior Wall Framing option will require an additional 5 business days before plan can be shipped.


PLEASE NOTE! On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
