3-Bedroom, 2792 Sq Ft Cape Cod Plan with Sundeck
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #140-1045
2792
Sq Ft
3
Bedrooms
3
Baths
0
Half Baths
2
Cars
2
Stories
84' 10'
Width
54
DepthStarting at$945.00What's included
STEP 1
How much will it cost to build?
Estimate your costs based on your location and materials.
Free Cost Instant Estimator
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans

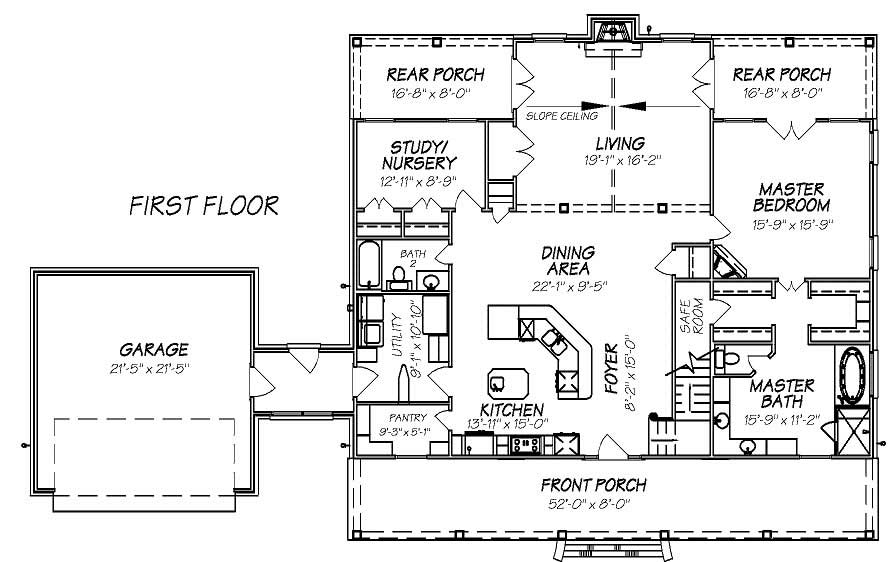

Share PlansFloor Plan First Story

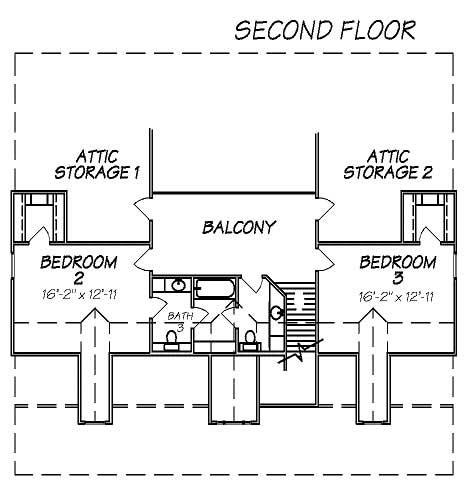

Floor Plan Second Story
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
House Plan Description
This House Plan is called HPD-B2025, and it may seem very traditional and straight-forward; but it has a very unique character. The attention to detail is what makes HPD-B2025 truly great. Check it out!
Home Details
Summary
Plan #:140-1045
Starting at:$945.00
Floors:2
Bedrooms:3
Full Baths:3
Half Baths:0
Garage:
Square Footage
Heated Area:2792 Sq. Ft.
First Floor:1934 Sq. Ft.
Second Floor:858 Sq. Ft.
Unheated Area:
Dimensions
Width:84' 10''
Depth:54' 10''
Architectural Styles
Exterior Wall Material
BrickWood Siding
Roofing Type
Gable/Dormer
Roofing Material
Asphalt Shingles
Roof Pitch
10/12
Ceiling Height
9 Foot Ceiling8 Foot Ceiling
Special Feature
FireplaceDining RoomMud RoomMain Level LaundrySplit BathroomStorageDenVaulted CeilingsBalcony
Garage Type
Attached GarageFront Entry
Fireplaces
Two Fireplaces
Building Lot Type
Flat Site
Kitchen Features
Kitchen IslandNook/Breakfast AreaWalk-in PantryPeninsula/Eating BarEat-In Kitchen
Porches and Exterior Features
Covered Front PorchCovered Rear Porch
Master Suite Features
Main Floor MasterFireplace in MasterMaster BathroomWalk In ClosetPrivate Deck
How much will it cost to build?
Estimate your costs based on your location and materials.
-OR-
What's the differnce?
What’s Included
Most plan sets include the following:
FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.GENERAL NOTESFOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.FRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.What’s Not Included
These items are NOT included:
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Window Specifications to e provided by ManufacturerAdditional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
