6-Bedroom, 4757 Sq Ft Modern Plan with Porte-Cochere

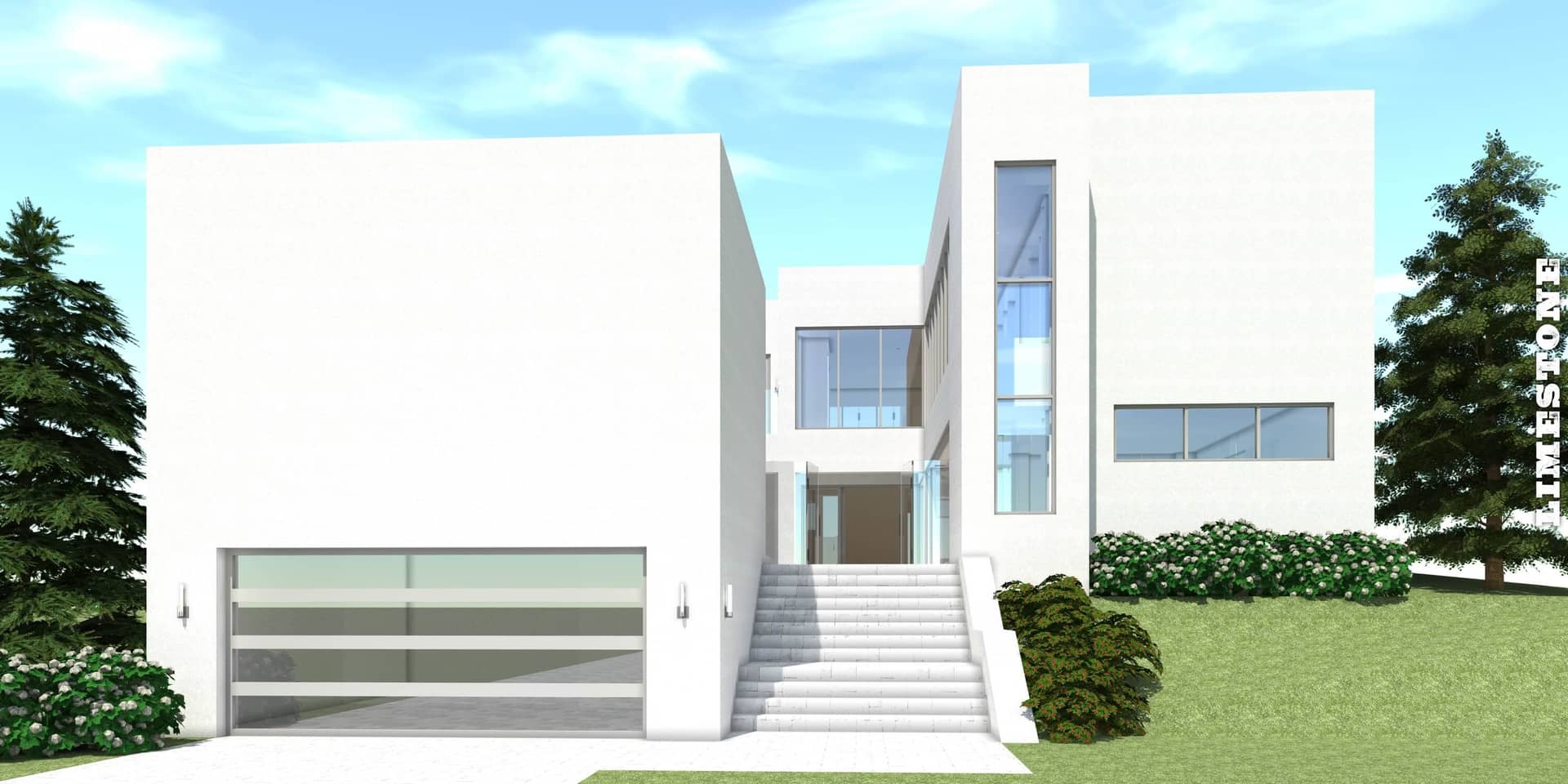

This is a computer rendering of the this Modern House Plan.

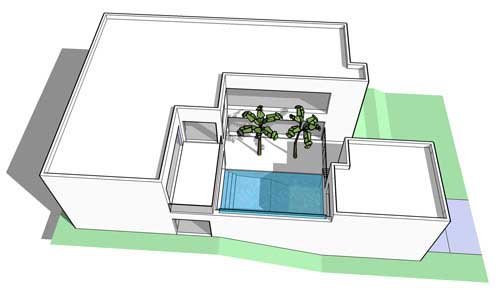

Home Plan Upper Right
Home Plan Upper Left

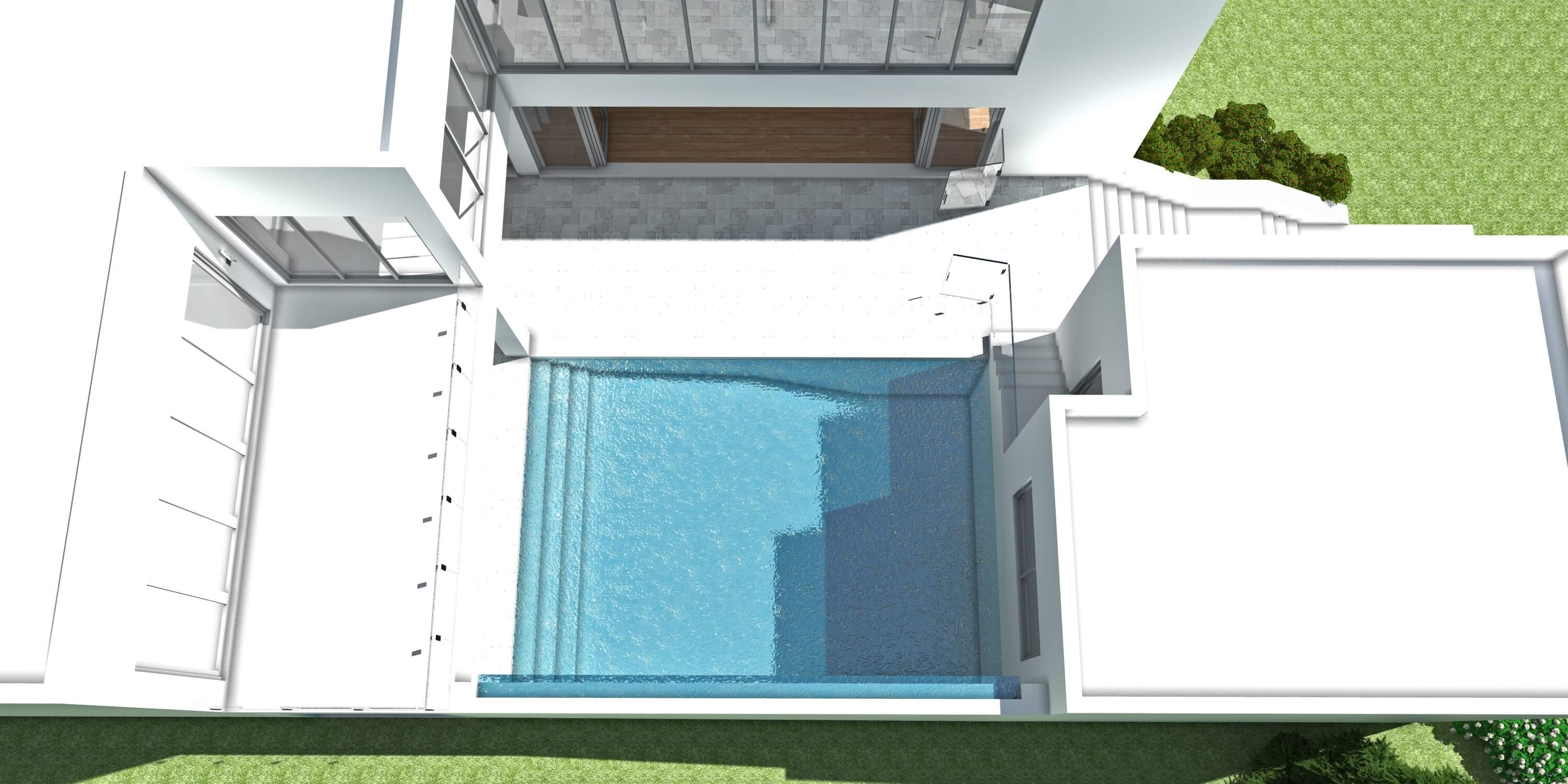

116-1067: Home Plan Rendering-Pool

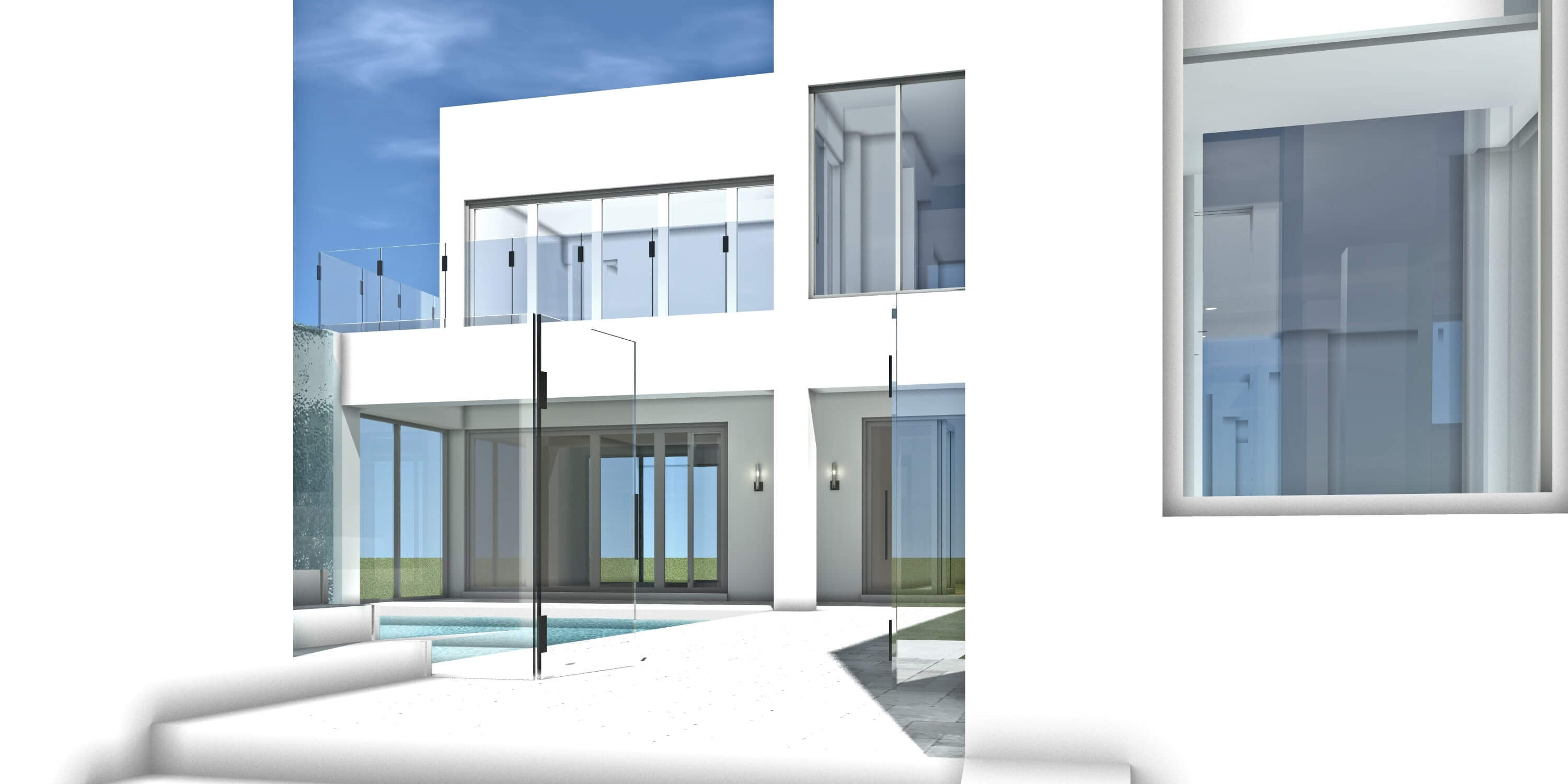

116-1067: Home Plan Rendering-Pool

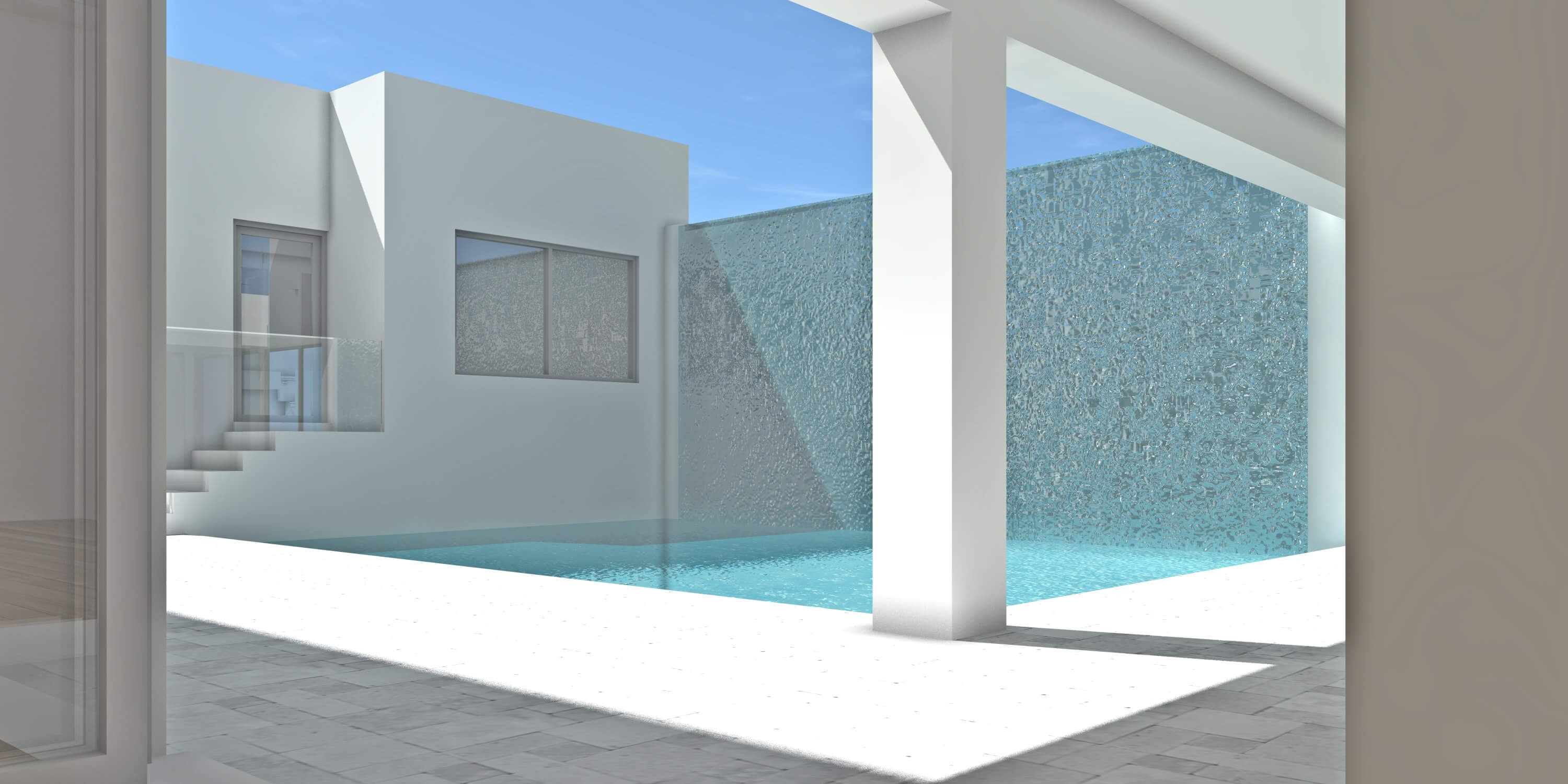

116-1067: Home Plan Rendering
6-Bedroom, 4757 Sq Ft Modern Home Plan - 116-1067 - Main Exterior

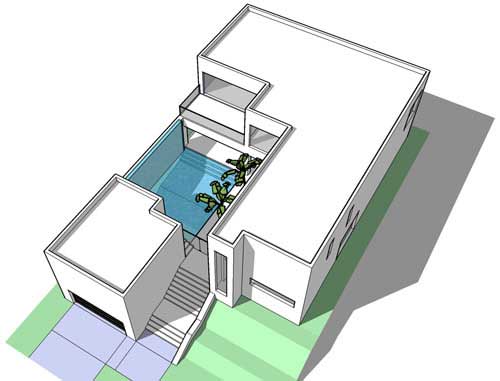

Home Plan Upper Right
Home Plan Upper Left
116-1067: Home Plan Rendering-Pool
116-1067: Home Plan Rendering-Pool
116-1067: Home Plan Rendering

About Plan # 116-1067

About Plan # 116-1067

4757 SQUARE FEET 6 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 53' 0" WIDTH 89' 0" DEPTH 2 GARAGE BAY

Step into the new age with this luxury modern house plan! The home comes with an overwhelming amount of amenities. Inspired by the coastal homes of the Caribbean and southern California, the home’s front steps lead you to a courtyard with its relaxing pool and gentle waterfall wall. A covered terrace provides plenty of space for outdoor entertaining. Glass walls surround much of the courtyard and can be folded bringing the outdoors inside. The folding door system allows for maximum sunlight to enter the home and bring maximum relaxing sensation throughout the home.

Inside, an open concept floor plan is prominent smoothly connecting the living and dining areas. The spacious kitchen has a large island with seating next to the double-height family theatre. A large guest room and full bath complete the first floor.  Upstairs, the master suite has a private deck, huge walk-in closet and a private bathroom with double vanities. A sitting area, three more bedrooms and two baths complete the second floor. Above the garage with its own entrance is an additional bedroom with its own bathroom. In total, this plan has 4757 living sq ft, 6 bedrooms, and 5 bathrooms. Exceptional luxury touches include a screening wall, multiple linen closets, washer / dryer on both floors, and an elevator!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

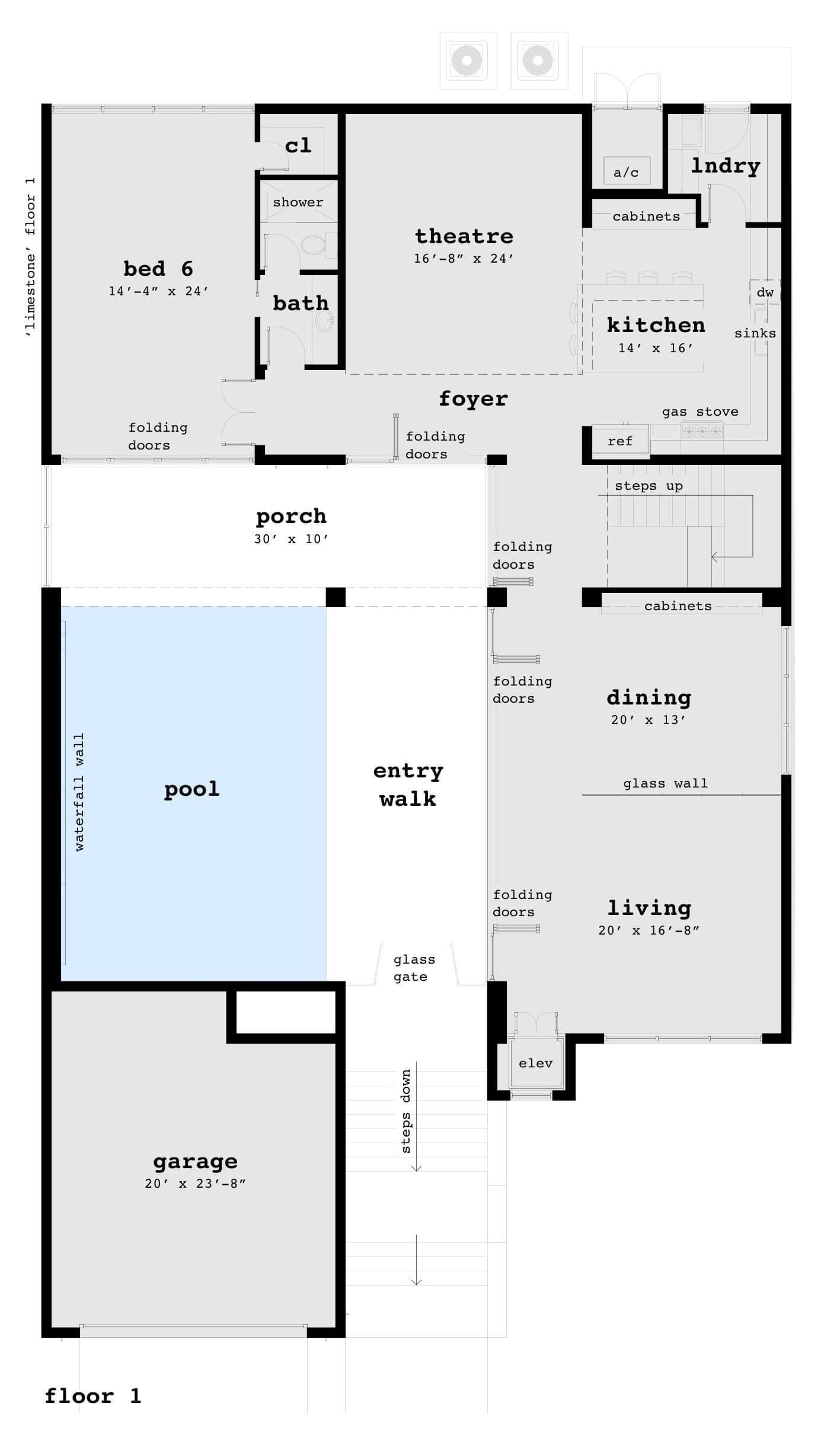

Home Plan: #116-1067 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1067

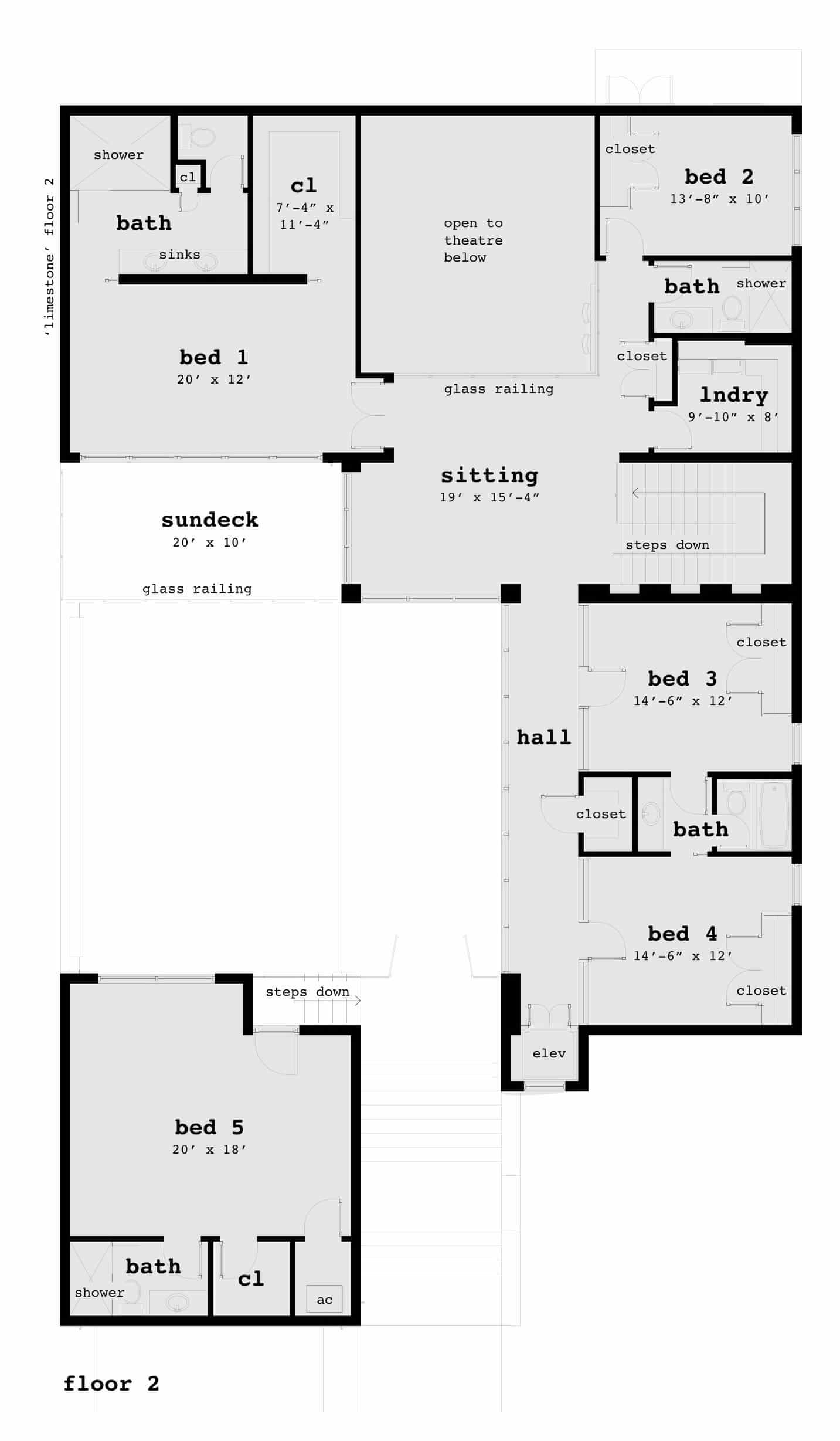

#116-1067 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1067
Home Plan: #116-1067 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1067
#116-1067 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1067
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1067
Floors:
2
Bedrooms:
6
Full Baths:
5
Garage :
2

Square Footage

Heated Sq Feet:
4757
Main Floor:
2226
Upper Floor:
2531
Unfinished Sq Ft:

Dimensions

Width:
53' 0"
Depth:
89' 0"
Ridge Height:
32' 0"

Architectural Styles

Beachfront
Modern

Exterior Wall Material

Stucco

Roofing Type

Flat

Roofing Material

Other Composites

Roof Pitch

Other

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Elevator
Game Room
Guest Room
Home Theater
Main Level Laundry
Second Level Laundry
Split Bathroom
Swimming Pool

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x8

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Sundeck

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
