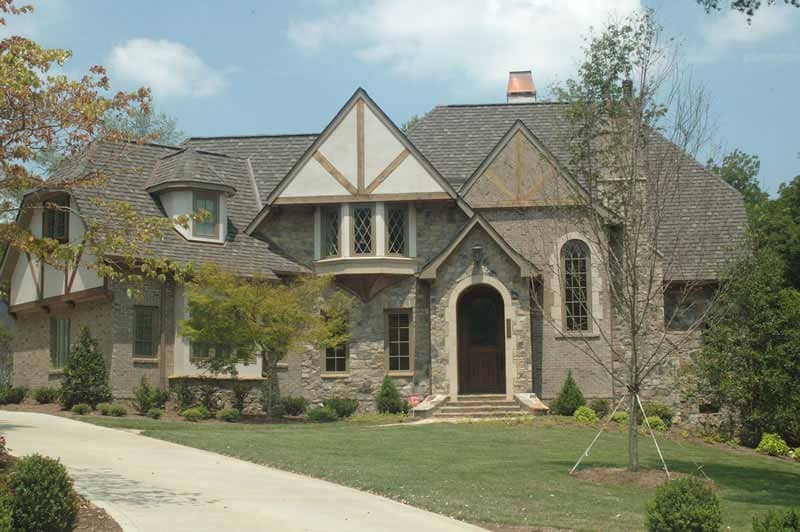

Front elevation of Tudor home (ThePlanCollection: House Plan #127-1034)
127-1034: Home Plan Rear Elevation
127-1034: Home Other Image-Front View
4-Bedroom, 5796 Sq Ft European Home Plan - 127-1034 - Main Exterior
127-1034: Home Plan Rear Elevation
127-1034: Home Other Image-Front View

About Plan # 127-1034

About Plan # 127-1034

5796 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 89' 2" WIDTH 93' 1" DEPTH 4 GARAGE BAY

this impressive Tudor-style manor features elegance in a fairly open floor plan. The covered entry brings you in past the spiral staircase and formal dining room, into the gallery and great room beyond. The kitchen and informal dining area are to the left and the garage is beyond. A large fireplace warms the space and makes a great centerpiece. The master suite is secluded to the right with a gorgeous master bath and plenty of closet space. The quiet study is secluded behind the stairs and features a fireplace of its own. The upper floor is packed with more bedrooms, a media room, a game room, and a separate bonus room above the garage.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

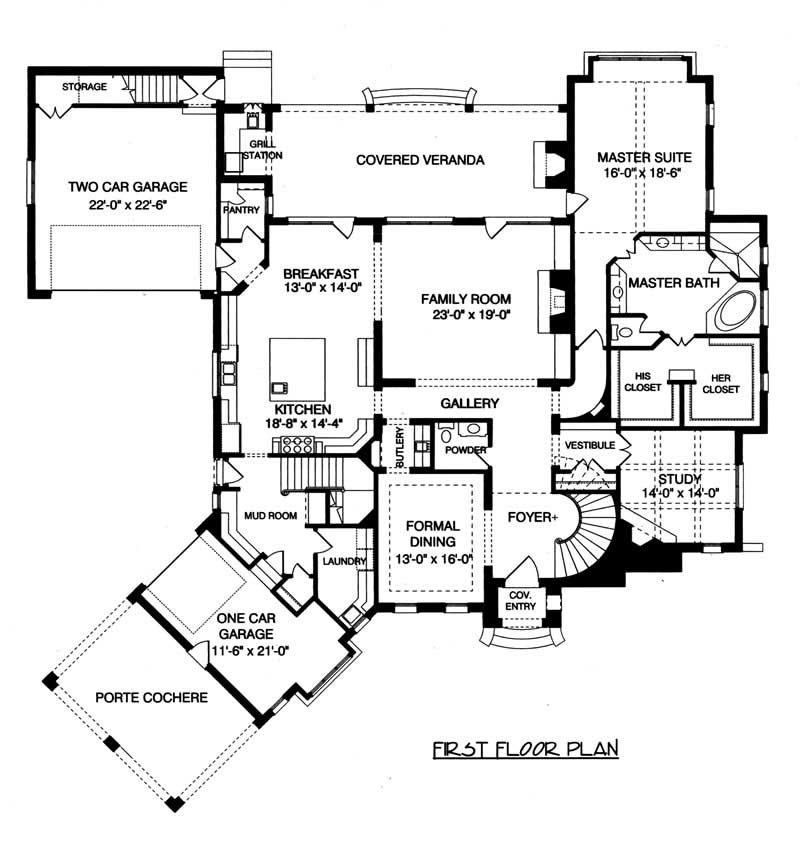

Home Plan: #127-1034 Floor Plan First Story - main level Floor Plan Main Level of Tudor Plan #127-1034

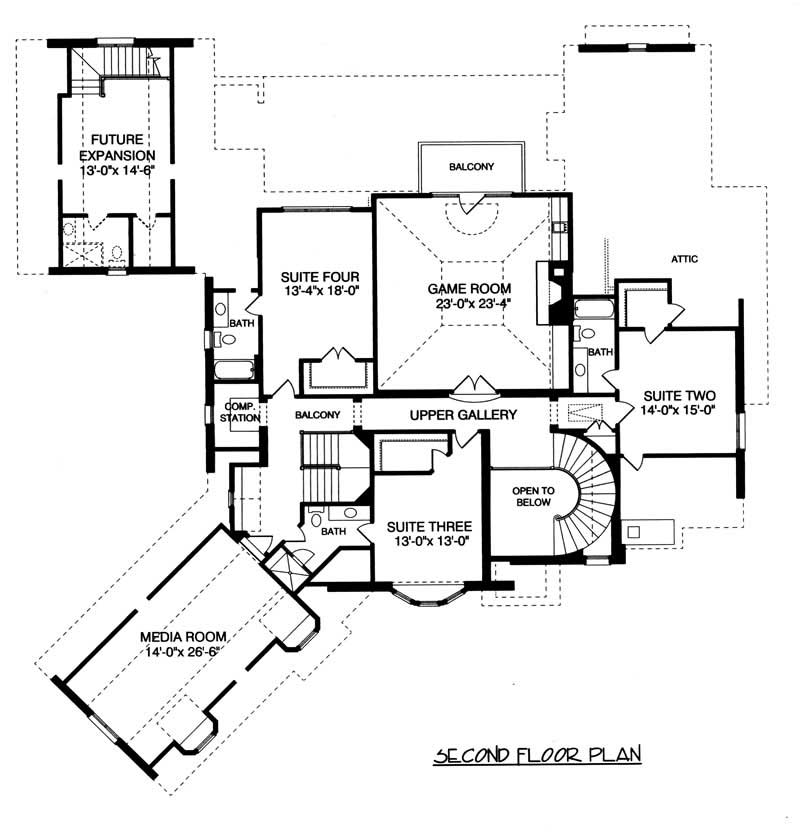

#127-1034 Floor Plan Second Story - upper level Floor Plan Upper Level of Tudor Plan #127-1034
Home Plan: #127-1034 Floor Plan First Story - main level Floor Plan Main Level of Tudor Plan #127-1034
#127-1034 Floor Plan Second Story - upper level Floor Plan Upper Level of Tudor Plan #127-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1034
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
1

Square Footage

Heated Sq Feet:
5796
Main Floor:
3331
Upper Floor:
2465
Unfinished Sq Ft:

Dimensions

Width:
89' 2"
Depth:
93' 1"
Ridge Height:
36' 0"

Architectural Styles

European
Luxury
Tudor
Historic

Exterior Wall Material

Brick
Rock/Stone
Wood Siding

Roofing Type

Hip

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Bonus Room
Game Room
Main Level Laundry
Media Room
Color Photos
Color Photos

Garage Type

Attached Garage
Carport
Courtyard Entry
Side Entry

Fireplaces

Four Fireplaces

Exterior Wall Framing

2x6
2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen

Porches and Exterior Features

Covered Rear Porch
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom

Additional Notes from Designer

NO MODS currently as of 2/9/2021

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
