About Plan # 107-1193

About Plan # 107-1193

4210 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 44' 10" WIDTH 82' 10" DEPTH 2 GARAGE BAY

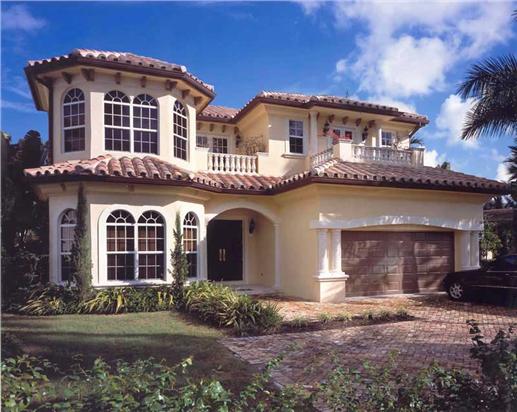

Home Plan #107-1193 is a two story Mediterranean style home with 5 bedrooms and a 2 car garage. This home plan also has a den, a covered lanai, and a balcony.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #107-1193 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #107-1193
#107-1193 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1193
Home Plan: #107-1193 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #107-1193
#107-1193 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1193
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1193
Floors:
2
Bedrooms:
5
Full Baths:
4

Square Footage

Heated Sq Feet:
4210
Main Floor:
2329
Upper Floor:
1881
Unfinished Sq Ft:

Dimensions

Width:
44' 10"
Depth:
82' 10"

Architectural Styles

Mediterranean

Roof Pitch

Other

Garage Type

Attached Garage
Front Entry

Building Lot Type

Narrow Lot Design

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
