2450 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 48' 0" WIDTH 56' 0" DEPTH 2 GARAGE BAY
This two-story home features an eye-catching combination of brick, and siding exterior. Upon entering the foyer, you will take pleasure in the wide-open space the house provides. The kitchen opens into the nook, great for a relaxing early morning breakfast. The copious feel of the living, family, and dining room are great for social gatherings, or comfortable nights around the fireplace. Upstairs you'll find the spacious master bedroom with a large bathroom, and walk in closet, perfect for getting in and out of hassle free.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

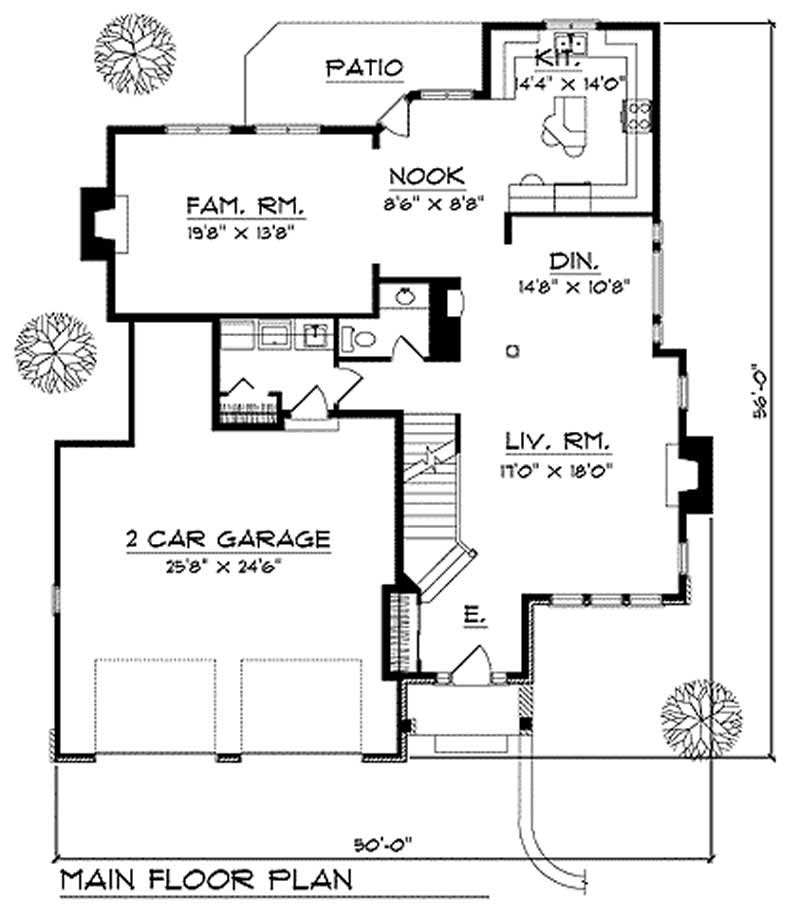

Home Plan: #101-1049 Floor Plan First Story - main Floor Plan First Story of Multi-Level Plan #101-1049

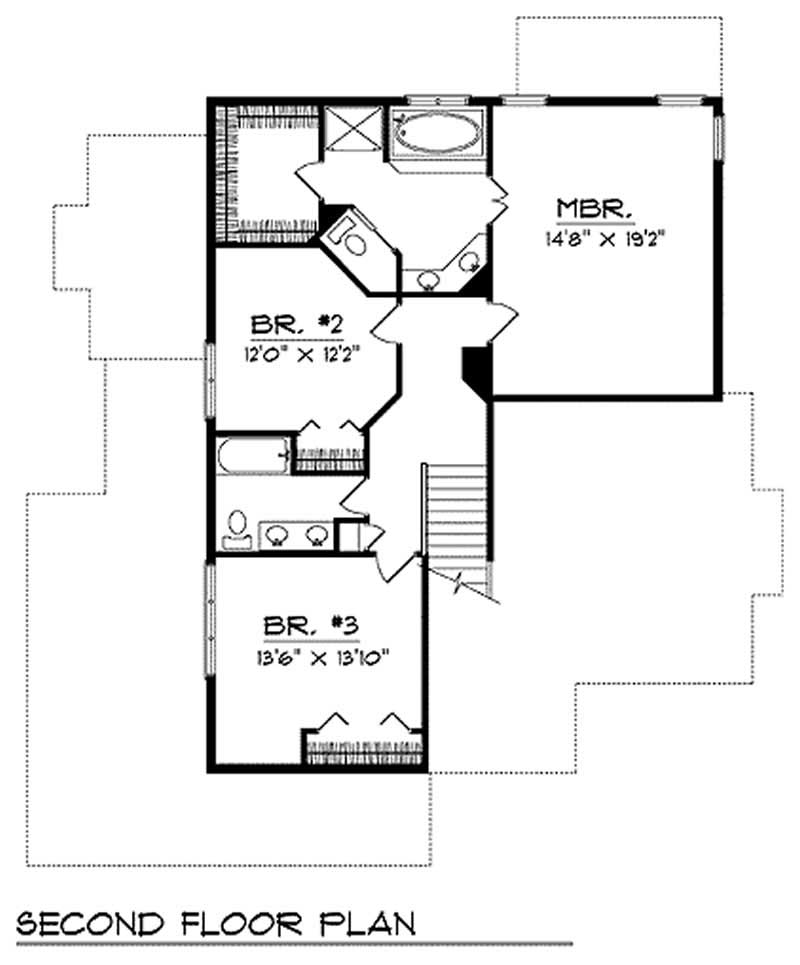

#101-1049 Floor Plan Second Story - second Floor Plan Second Story of Multi-Level Plan #101-1049
