3-Bedroom, 2578 Sq Ft Colonial Plan with Covered Front Porch

Main image for house plan # 17017
3-Bedroom, 2578 Sq Ft Colonial House Plan - 101-1746 - Front Exterior

About Plan # 101-1746

About Plan # 101-1746

2578 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 63' 8" WIDTH 50' 0" DEPTH 3 GARAGE BAY
It’s the small details such as window boxes and shutters that gives this Mediterranean-inspired design its charm. A formal den with step ceiling is located to your left as you enter, and a powder room to your right. Directly ahead, you’ll find a spacious great room graced by a fireplace and built-ins and a wall of French doors that leads to an expansive covered porch. The kitchen overlooks the dining room and features an eat-in island. The master suite is located upstairs along with two additional bedrooms and Jack and Jill bath. Other amenities include art niches, a large laundry with lockers and an outside fireplace in the covered porch area. A three-stall, split garage features two side-load stalls, one front load stall and lots of storage space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.

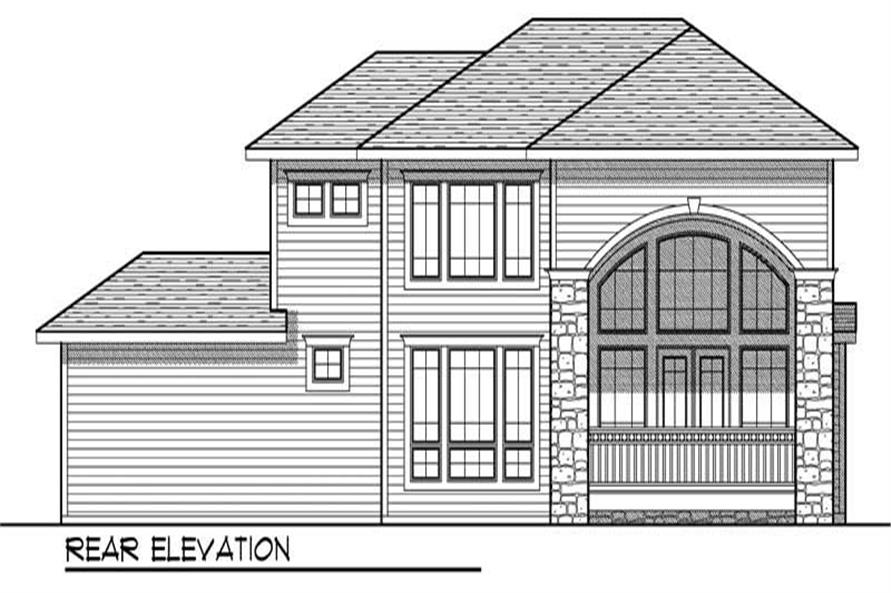

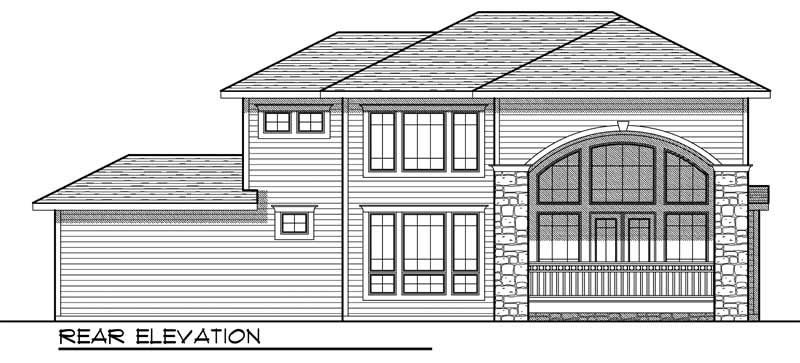

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

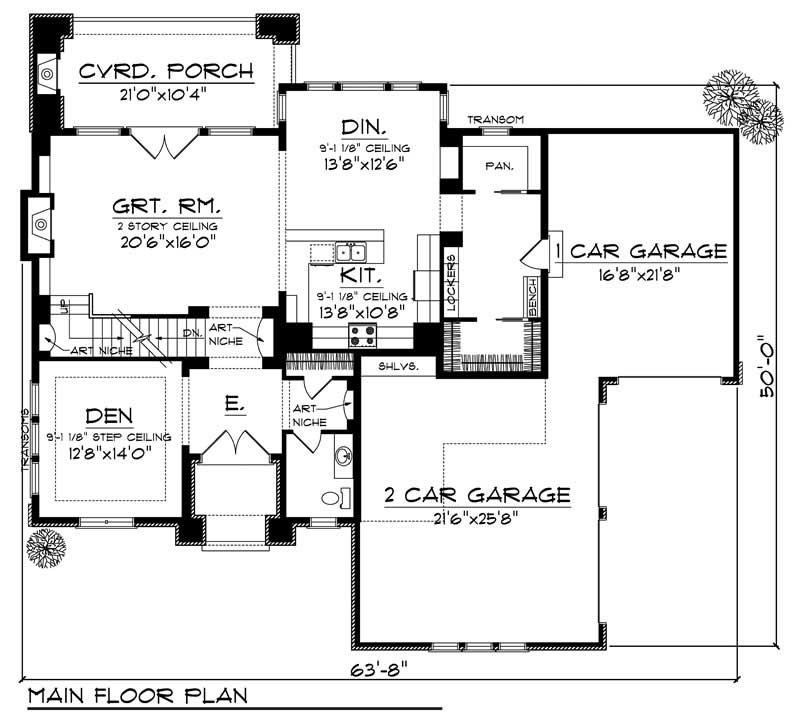

Home Plan: #101-1746 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #101-1746

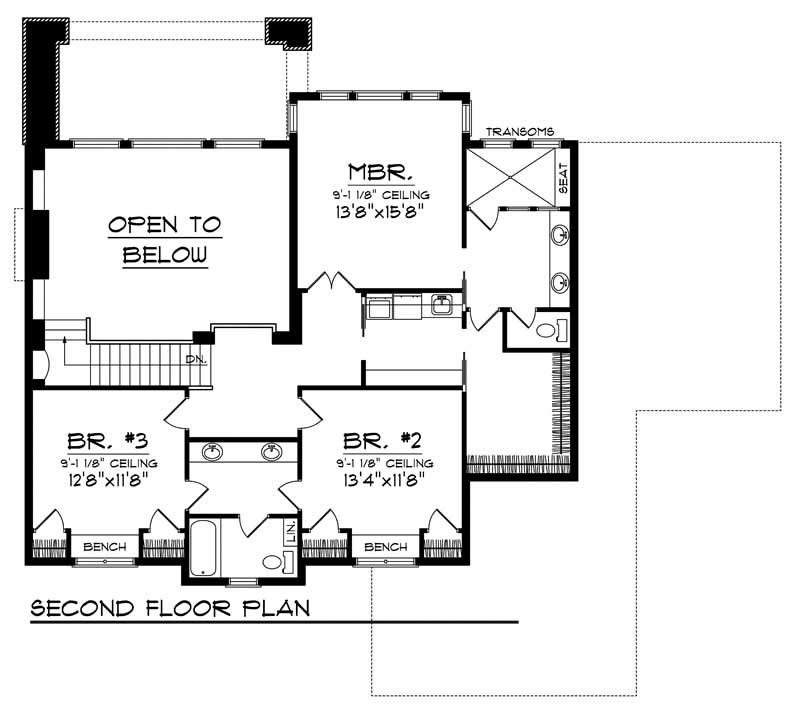

#101-1746 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #101-1746
Home Plan: #101-1746 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #101-1746
#101-1746 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #101-1746
