3-Bedroom, 1764 Sq Ft Ranch Plan with Peninsula/Eating Bar
Related House Plans
| 1764 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 66' 0" WIDTH | 48' 0" DEPTH | 3 GARAGE BAY |
*9' ceilings through-out home *his/her walk-in closets with gun safe in his *Jacuzzi tub *walk-in pantry *3-way fireplace *bay window *raised bar *hearth room *covered porch *optional finish basement with rec room, two beds, and one bath.
Each plan set includes the following:

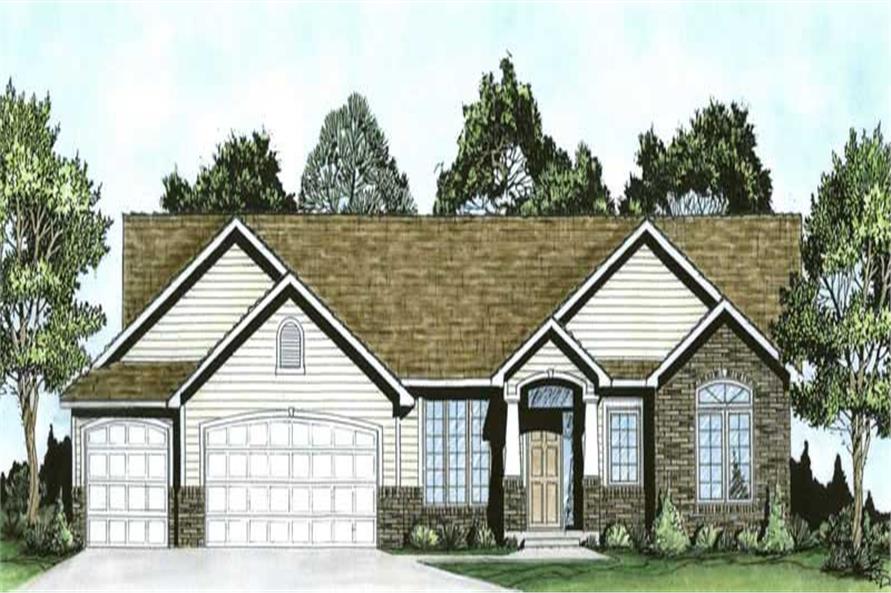

- Front, Side & Rear Elevations

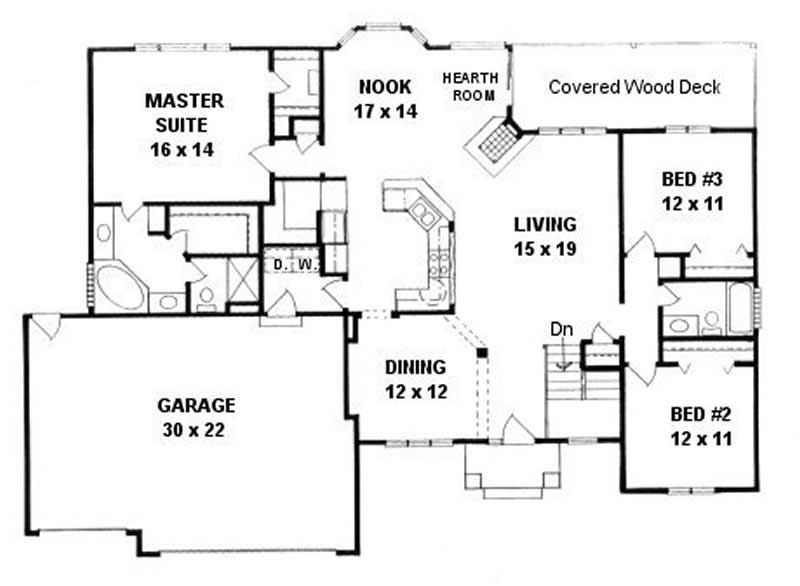

- Floor Plan
- Foundation Plan
- Roof Plan (Birdseye view)
- Electrical Layout (location of outlets, switches - it does not have wiring schematics)
- Cabinet Details
- Wall Section
- Stair Details
- Building Cross Section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
