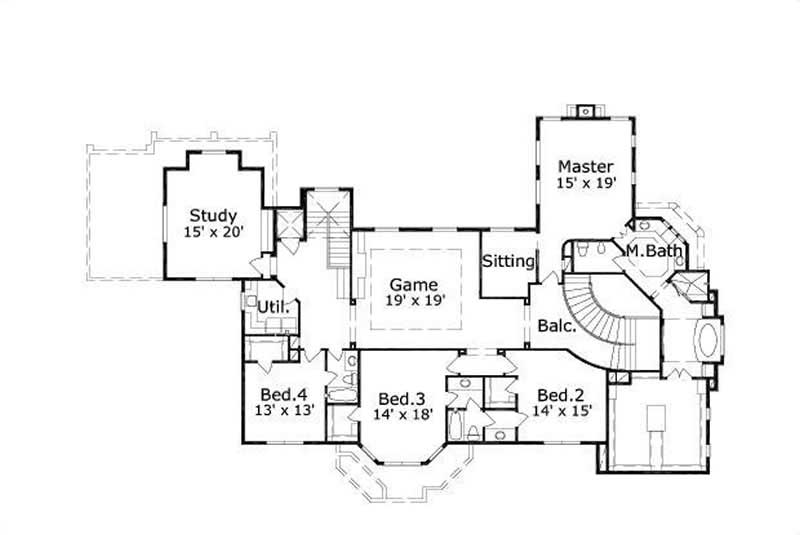

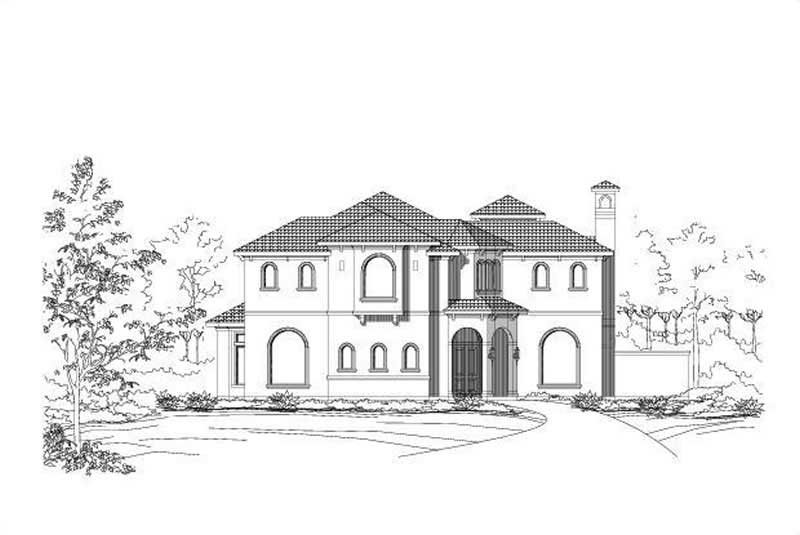

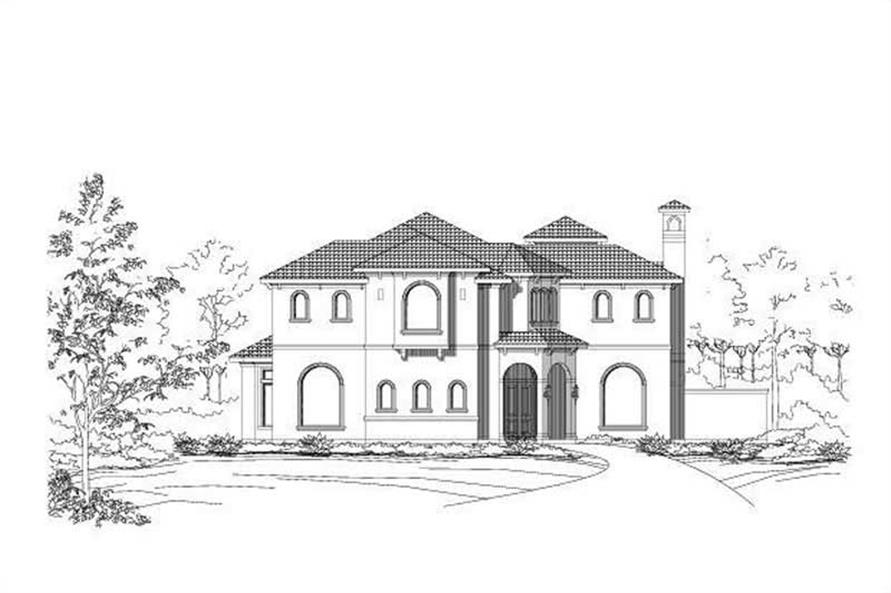

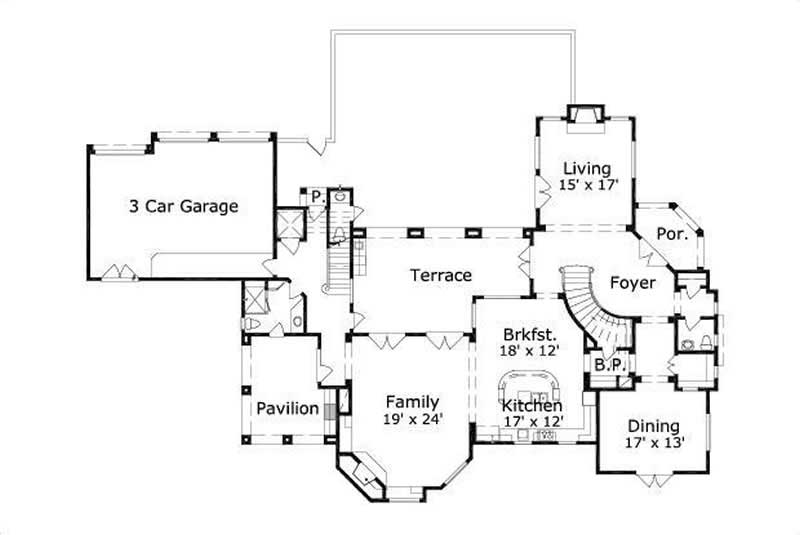

Luxury Home Plans #40105 are two story mediterranean homeplans with stucco exterior and 5644 total living square feet. It has 4 bedrooms, 4 baths, and a straight in side load 3 car garage. This house plan also has 2 living areas, 2 dining areas, a butler pantry, a covered pavillion, a covered side porch, an optional pool bath, a wine closet, a corner lot, a covered rear porch, a master with sitting area, and an outdoor kitchen.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
