4-Bedroom, 3499 Sq Ft Luxury Plan with Kitchen Island

Main image for house plan # 15114

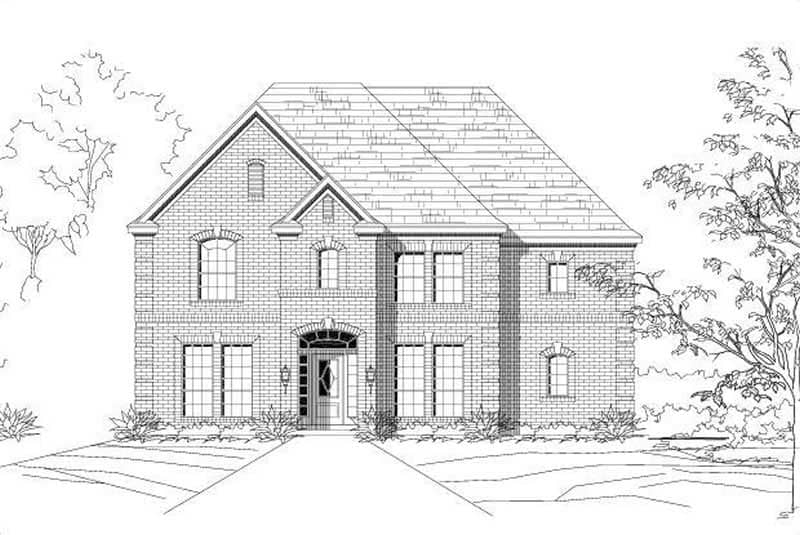

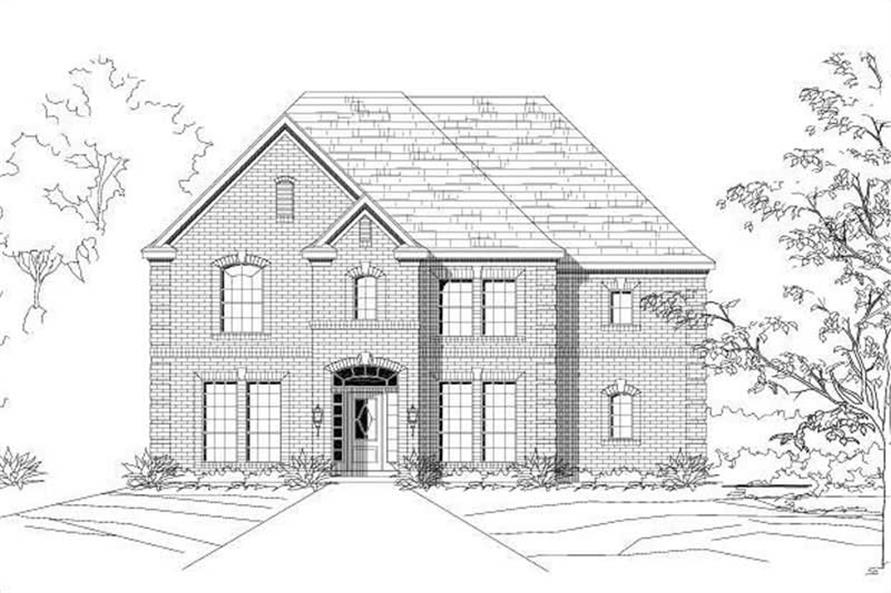

4-Bedroom, 3499 Sq Ft Luxury House Plan - 156-1884 - Front Exterior

About Plan # 156-1884

About Plan # 156-1884

3499 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 47' 0" WIDTH 43' 0" DEPTH 0 GARAGE BAY
House Plan #20884 is a two story traditional bric home with 3499 total living square feet. This home plan has 4 bedrooms and 3 bathrooms along with having 1 living area and 2 dining areas. It also has many special features, some of them include a butler pantry, a theater/media room, and a covered rear porch.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

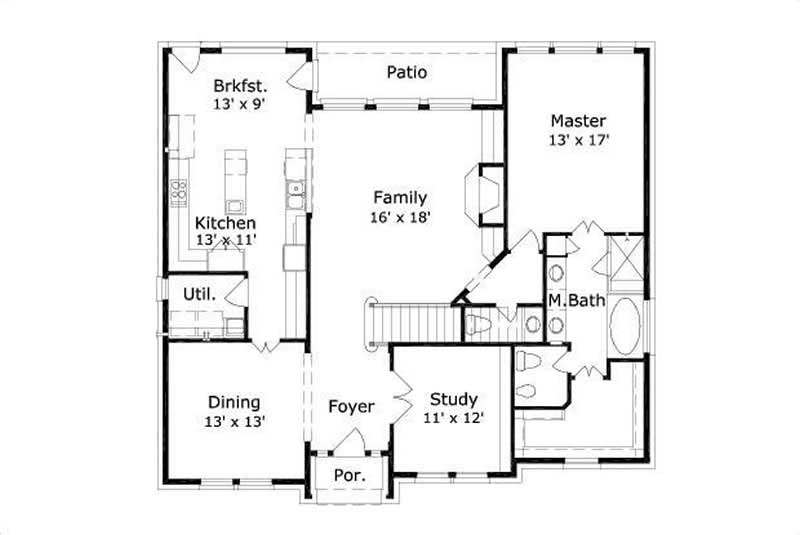

Home Plan: #156-1884 Floor Plan First Story - first Floor Plan First Story of Luxury Plan #156-1884

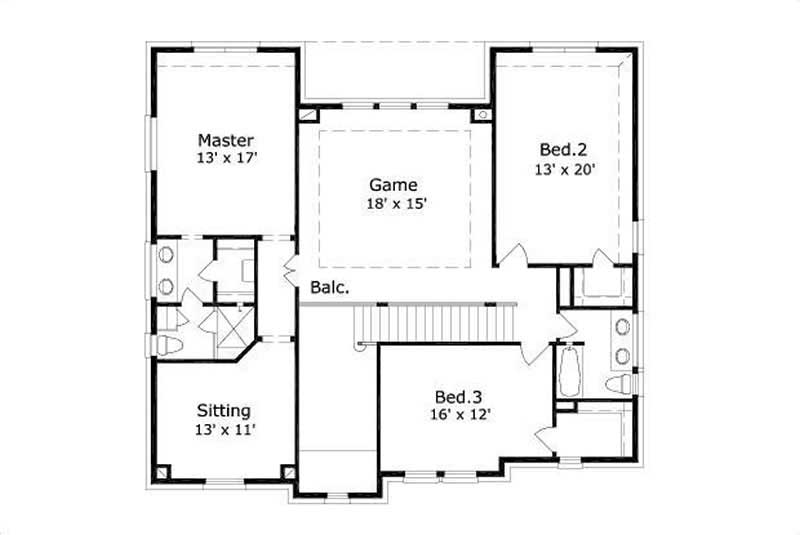

#156-1884 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #156-1884
Home Plan: #156-1884 Floor Plan First Story - first Floor Plan First Story of Luxury Plan #156-1884
#156-1884 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #156-1884
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-1884
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3499
Main Floor:
1820
Upper Floor:
1679
Unfinished Sq Ft:

Dimensions

Width:
47' 0"
Depth:
43' 0"
Ridge Height:
33' 0"

Architectural Styles

Texas Style
Traditional

Exterior Wall Material

Brick

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Media Room

Porches and Exterior Features

Covered Rear Porch

Additional Notes from Designer

Please Note: CAD files may take up to 3 business days to receive - please contact us for availability.
