2-Bedroom, 1734 Sq Ft Ranch Home Plan - 101-1674 - Main Exterior

About Plan # 101-1674

About Plan # 101-1674

1734 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 38' 0" WIDTH 59' 0" DEPTH 2 GARAGE BAY
This comfortable ranch home makes use of all square footage to create an affordable home that is comfortable and warming. Upon entry, guests are greeted by a vaulted living room with a warming hearth; the vaulted ceiling runs to the island kitchen and bayed dining area as well, creating splendid continuity. The master suite is found on the left and enjoys a private spa bath and covered-porch access. The second bedroom is found at the front of the home away from the master for maximum privacy for mom and dad. Upstairs, a loft provides a great spot for a media room or library.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

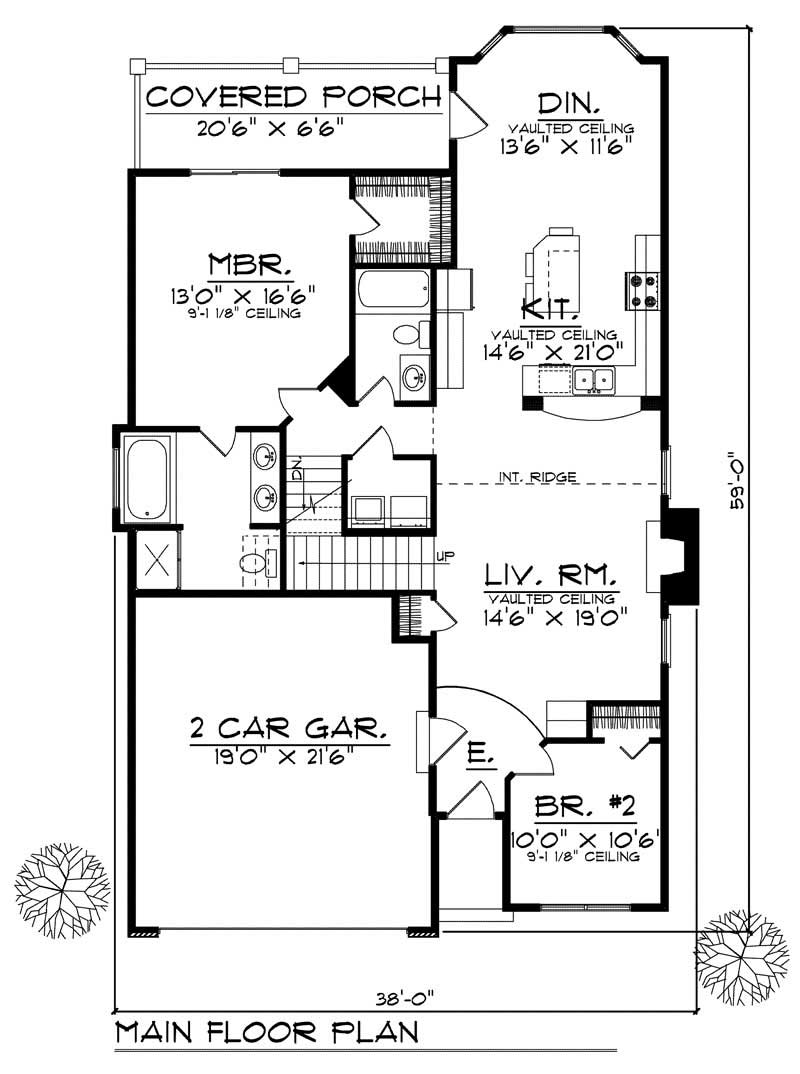

Home Plan: #101-1674 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1674

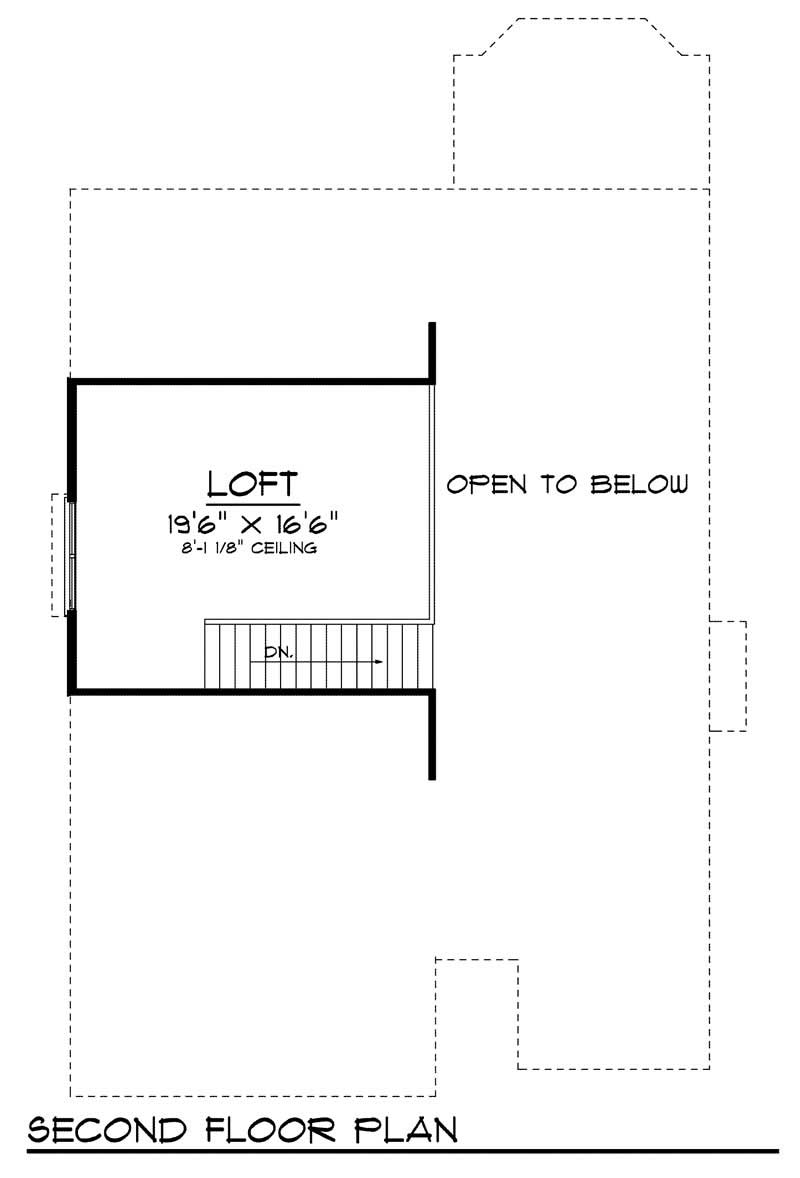

#101-1674 Floor Plan Second Story - second Floor Plan Second Story of Ranch Plan #101-1674
Home Plan: #101-1674 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1674
#101-1674 Floor Plan Second Story - second Floor Plan Second Story of Ranch Plan #101-1674
