4-Bedroom, 3730 Sq Ft Ranch House Plan - 101-1695 - Front Exterior

About Plan # 101-1695

About Plan # 101-1695

3730 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 69' 0" WIDTH 62' 0" DEPTH 3 GARAGE BAY
A bay window and column flanked entry give this home a lasting impression. From the minute you step into the entry, you’ll enjoy details like the French doors that open into the living room and the dining room defined by a tray ceiling and arches. The great room is an ideal gathering place, with a raised ceiling, lots of light and a warming fireplace. A snack bar in the kitchen supplements the breakfast nook/sun room. The right wing holds the master suite and includes a pampering bath complete with Jacuzzi tub. The lower level is expandable, accommodating two bedrooms, a den, a recreation room with a wet bar and extra storage.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

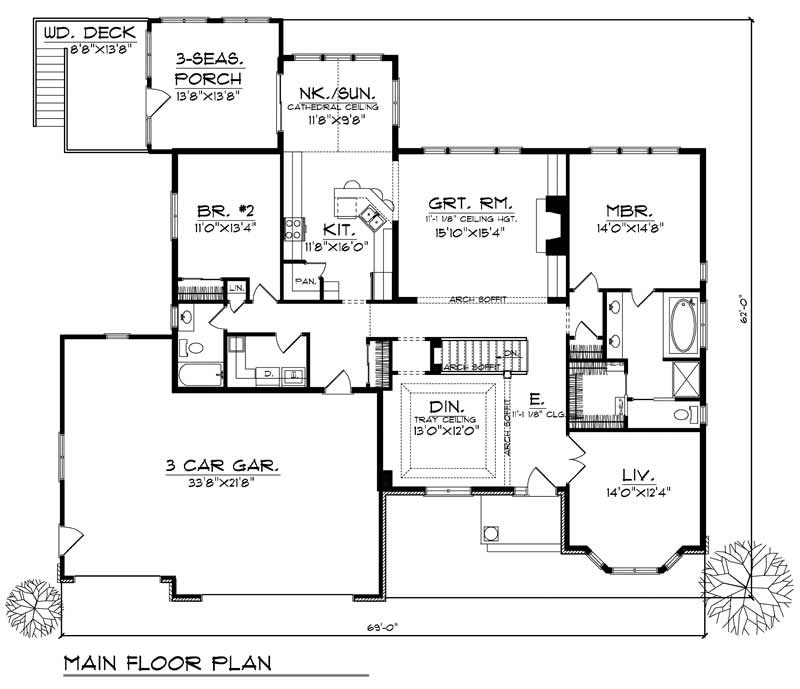

Home Plan: #101-1695 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1695
Home Plan: #101-1695 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1695
