3-Bedroom, 1984 Sq Ft European Plan with Courtyard

Main image for house plan # 13334

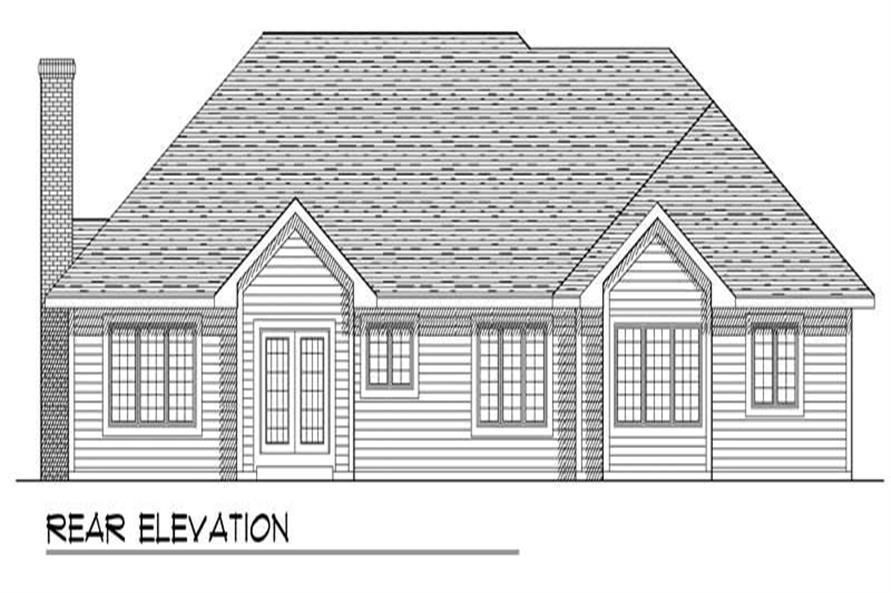

REAR ELEVATION
3-Bedroom, 1984 Sq Ft European Home Plan - 101-1758 - Main Exterior
REAR ELEVATION

About Plan # 101-1758

About Plan # 101-1758

1984 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 69' 4" WIDTH 46' 0" DEPTH 2 GARAGE BAY
This three-bedroom ranch offers elegant rooms designed for formal entertaining as well as plenty of casual living space for your family. The formal living and dining rooms are open and gracefully shaped by columns and soffits at their boundaries. The family room, by contrast, is private and cozy, offering a fireplace perfect for warming cool evenings. The island kitchen has access to either the formal dining room or a sunny breakfast nook, perfect for relaxing over breakfast. The two-car garage provides access to the home through the laundry room, which is a great place to store muddy shoes. The master bedroom offers an extra-large walk-in closet, a box bay window, a whirlpool tub and a double vanity. The other two bedrooms share a full bath and the third bedroom could be easily converted to a striking den with a cathedral ceiling and an arch-top window.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

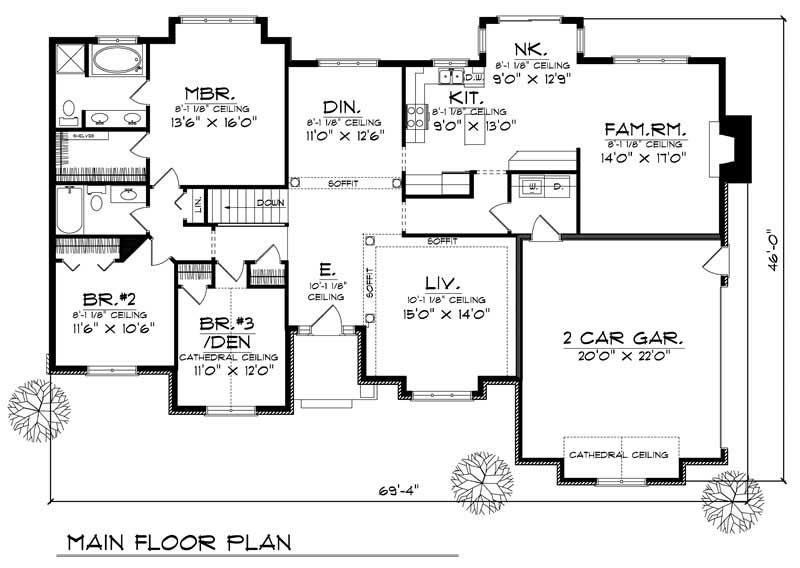

Home Plan: #101-1758 Floor Plan First Story - main Floor Plan First Story of European Plan #101-1758
