3-Bedroom, 1600 Sq Ft Ranch Plan with Interior Photos

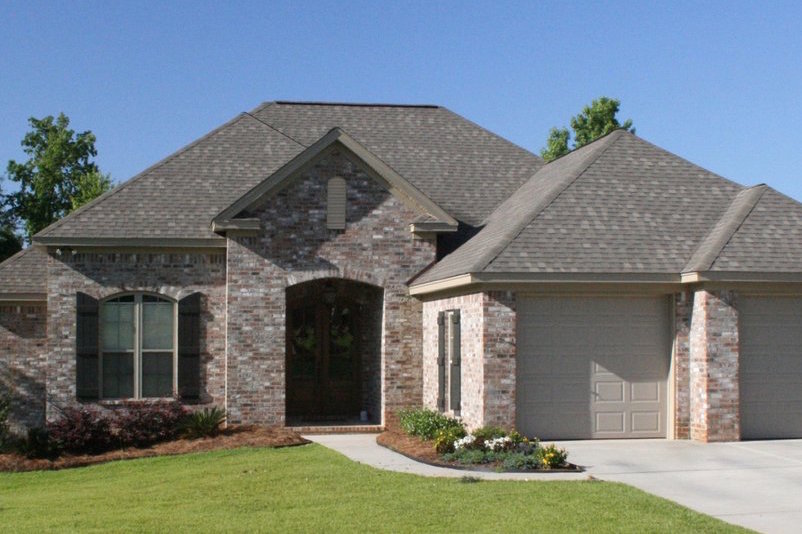

Front photo of Country home plan (House Plan #142-1049)

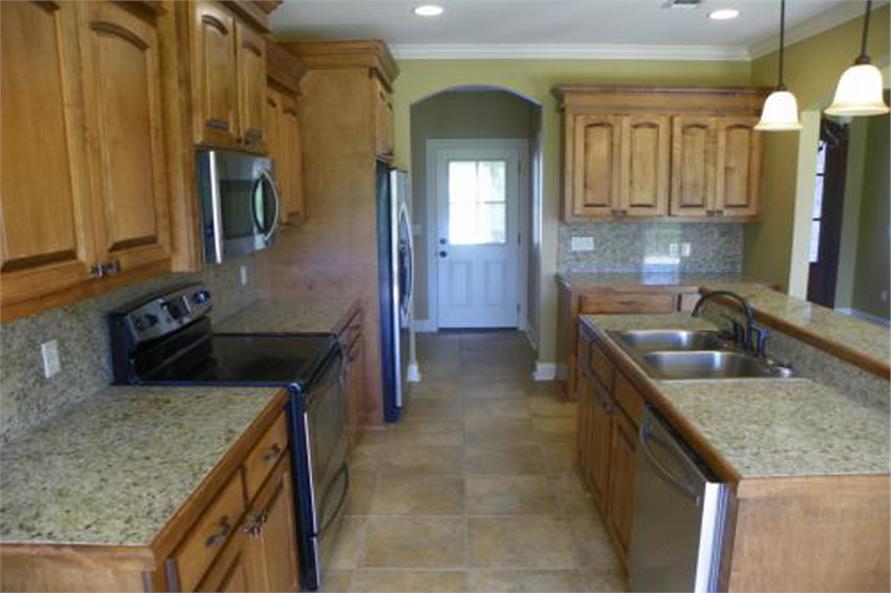

142-1049 kitchen

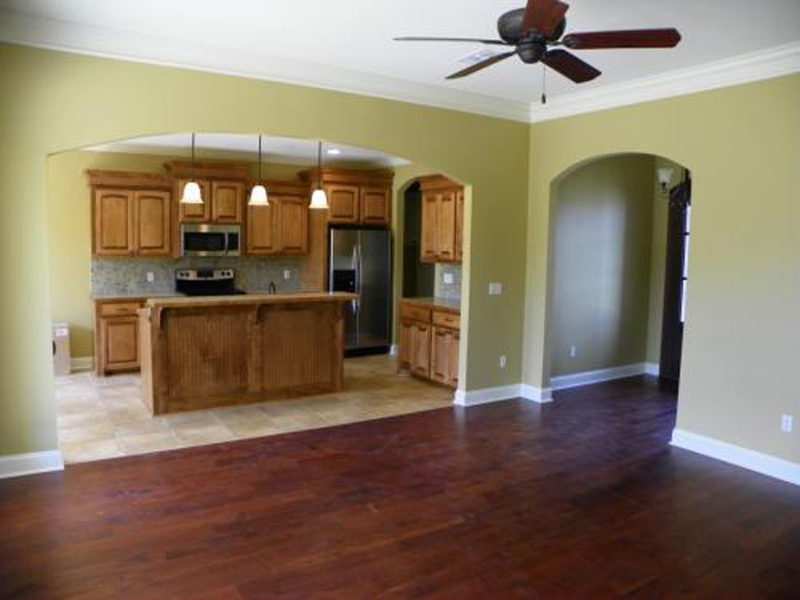

142-1049 dining room

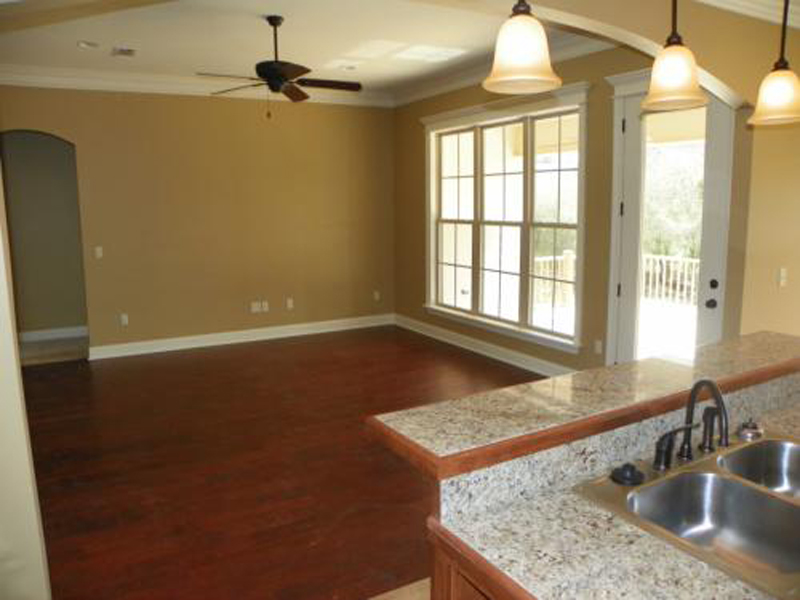

142-1049 Living Room

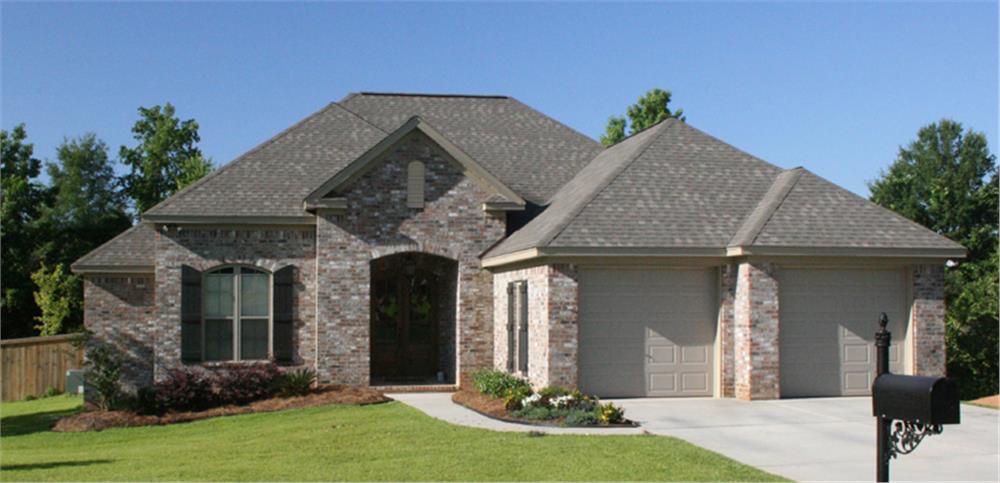

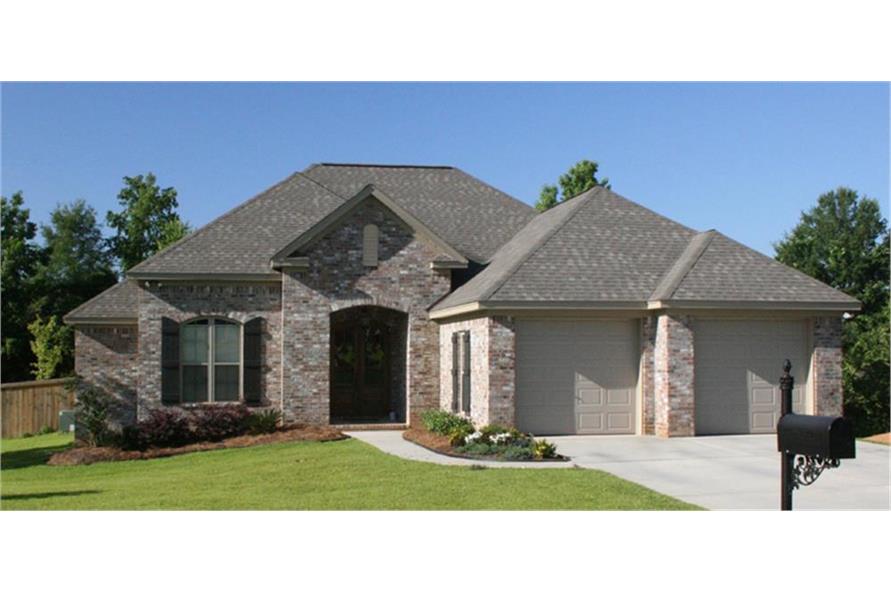

142-1049: Home Exterior Photograph
3-Bedroom, 1600 Sq Ft Country Home Plan - 142-1049 - Main Exterior
142-1049 kitchen
142-1049 dining room
142-1049 Living Room
142-1049: Home Exterior Photograph

About Plan # 142-1049

About Plan # 142-1049

1600 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 4" WIDTH 59' 8" DEPTH 2 GARAGE BAY

An affordable house design with all the comforts a home should have with 1600 living square feet, 3 bedrooms and 2 full baths. Step through the double door front entry to the lovely foyer. This leads to the spacious open floor plan layout allowing you and your guests to taken in the beauty of the home at once. The large great room is the first to enchant your eyes with views to the rear porch and beyond. Right off the great room is the gourmet kitchen with island and raised eating bar. Adjacent to both the kitchen and great room is the dining area which enjoys views to the rear of the home.

Split from the other bedrooms, the master suite is inviting with such luxury details as a tray ceiling. The master bath offers privacy with a water closet and relaxation with a garden tub waiting for you after a long day. There is a separate shower and massive walk-in closet.

Other features include a walk-in pantry, mud room with lockers, a storage closet and workbench in the two-car, attached garage. With all this and more, this home is perfect for you and your family.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #142-1049 Floor Plan First Story - main level Floor Plan First Story of Country Plan #142-1049
Home Plan: #142-1049 Floor Plan First Story - main level Floor Plan First Story of Country Plan #142-1049
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1049
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1600
Main Floor:
1600
Unfinished Sq Ft:
Garage :
587

Dimensions

Width:
54' 4"
Depth:
59' 8"
Ridge Height:
23' 7"

Architectural Styles

Acadian
Country
Florida Style
French
Ranch
Southern

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

9/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Interior Photos
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage
Workshop

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Rear Porch
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!
