3-Bed, 1731 Sq Ft Ranch with Unfinished Basement

California Ranch house design (ThePlanCollection: Plan #177-1035)

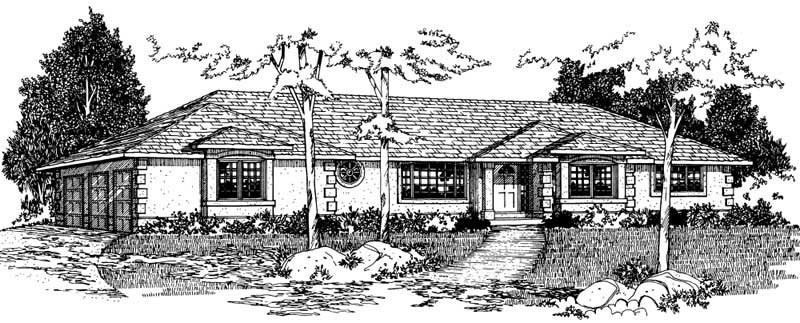

FRONT ELEVATION

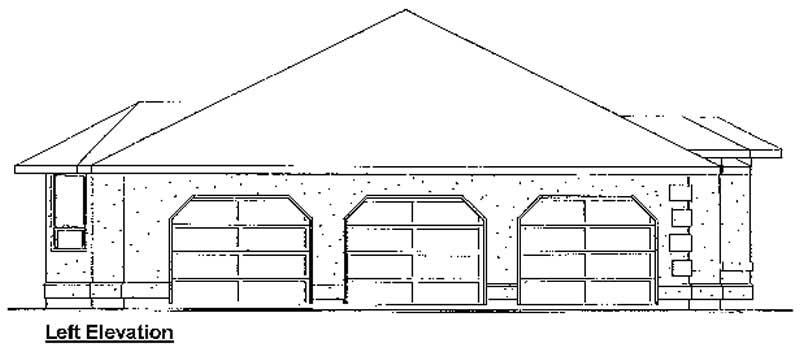

LEFT ELEVATION

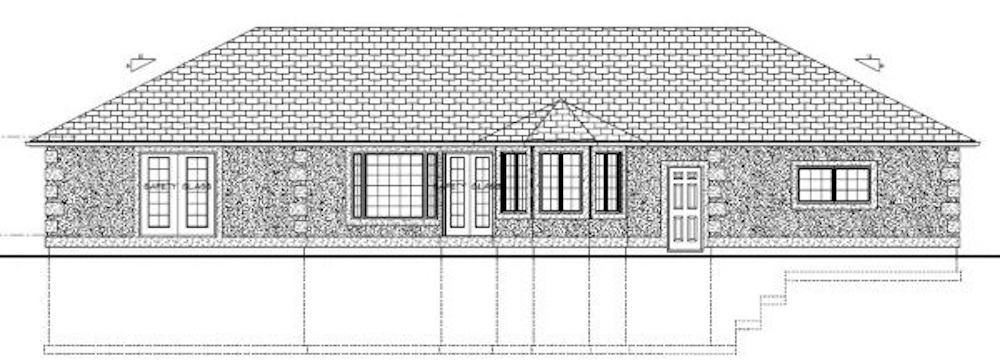

177-1035: Home Plan Rear Elevation

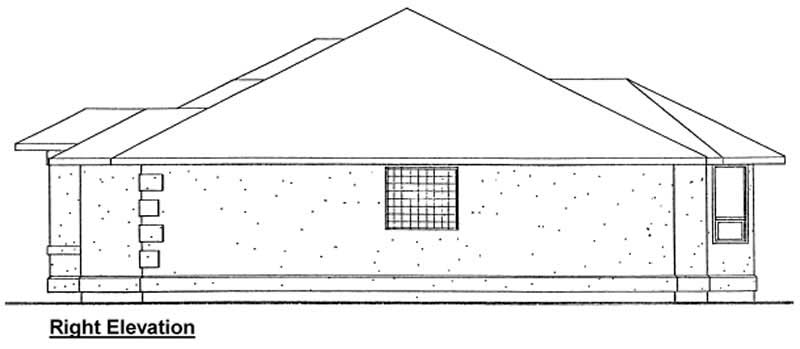

RIGHT ELEVATION
3-Bedroom, 1731 Sq Ft Craftsman House - Plan #177-1035 - Front Exterior
FRONT ELEVATION
LEFT ELEVATION
177-1035: Home Plan Rear Elevation
RIGHT ELEVATION

About Plan # 177-1035

About Plan # 177-1035

1731 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 74' 0" WIDTH 45' 0" DEPTH 3 GARAGE BAY

This appealing Ranch style home with Contemporary design characteristics (Plan #177-1035) has over 1700 square feet of heated and cooled living space. The attractive 1-story home's floor plan includes 3 bedrooms and
• Corner fireplace in the Great Room
• Large kitchen island with raised breakfast bar
• Bedroom with double French doors that could also serve as an office
• Rear covered patio for outdoor entertaining
• 9-foot-high ceiling in the garage

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

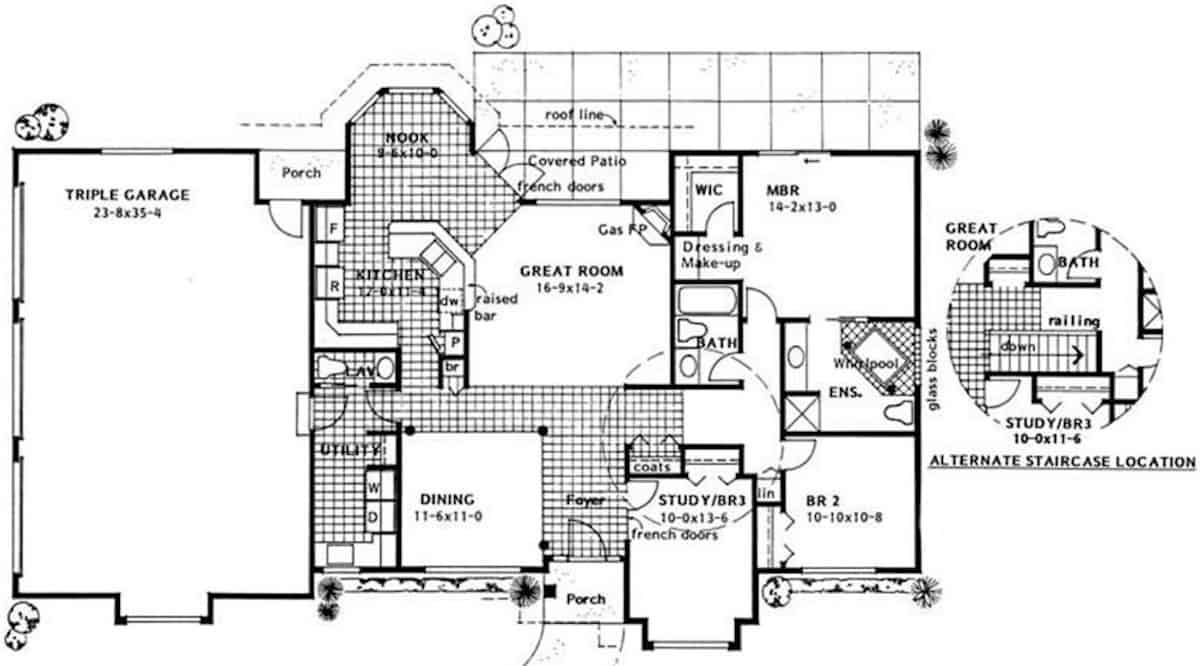

Home Plan: #177-1035 Floor Plan First Story - main level Main Level of Ranch Plan #177-1035
Home Plan: #177-1035 Floor Plan First Story - main level Main Level of Ranch Plan #177-1035
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1035
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
1731
Main Floor:
1731
Unfinished Sq Ft:
Garage :
888

Dimensions

Width:
74' 0"
Depth:
45' 0"
Ridge Height:
17' 3"

Architectural Styles

Ranch
Contemporary
Prairie
Transitional
California Style
Small House Plans

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Dining Room
Home Office
Family Room
Main Level Laundry
Storage
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
Corner Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Rear Porch
Portico
Covered Rear Patio

Master Suite Features

Main Floor Master
