3-Bedroom, 1878 Sq Ft Country Plan with Second Floor Master

Main image for house plan # 11246

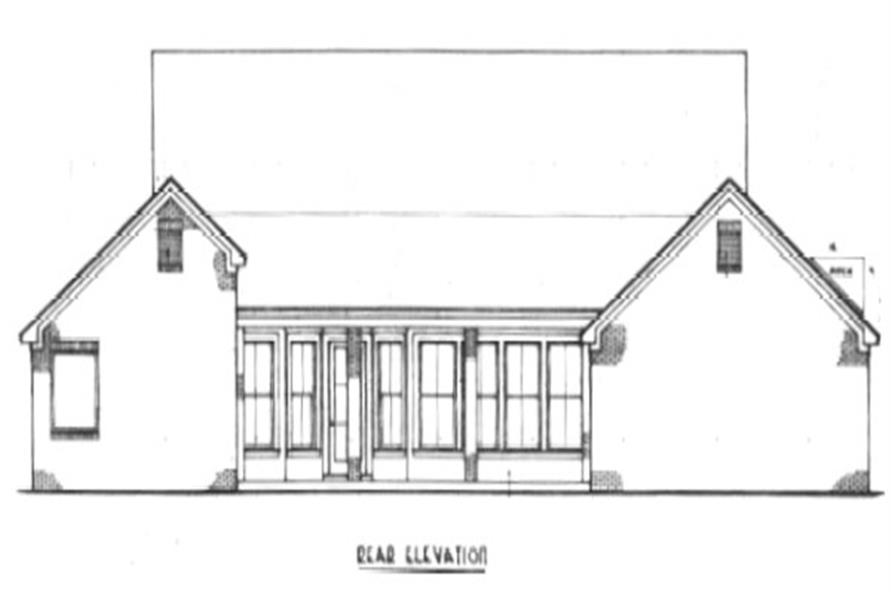

174-1062: Home Plan Rear Elevation

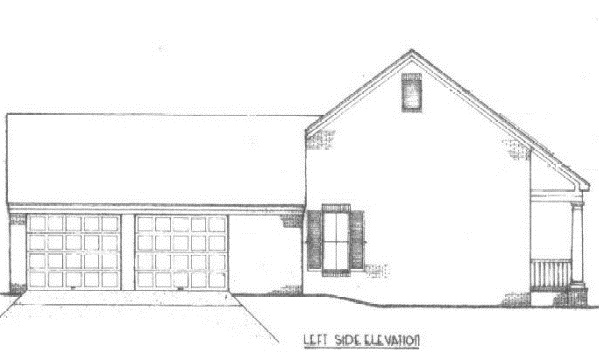

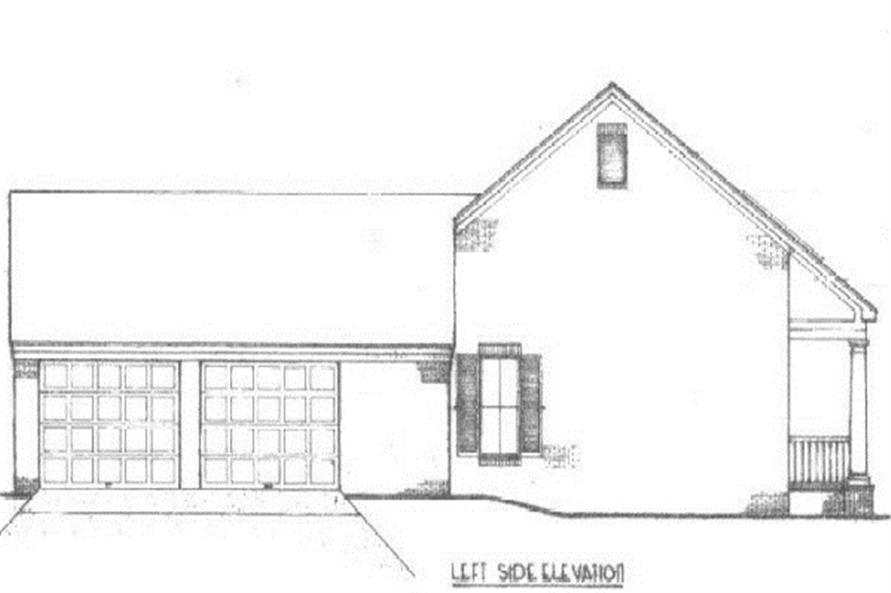

174-1062: Home Plan Left Elevation

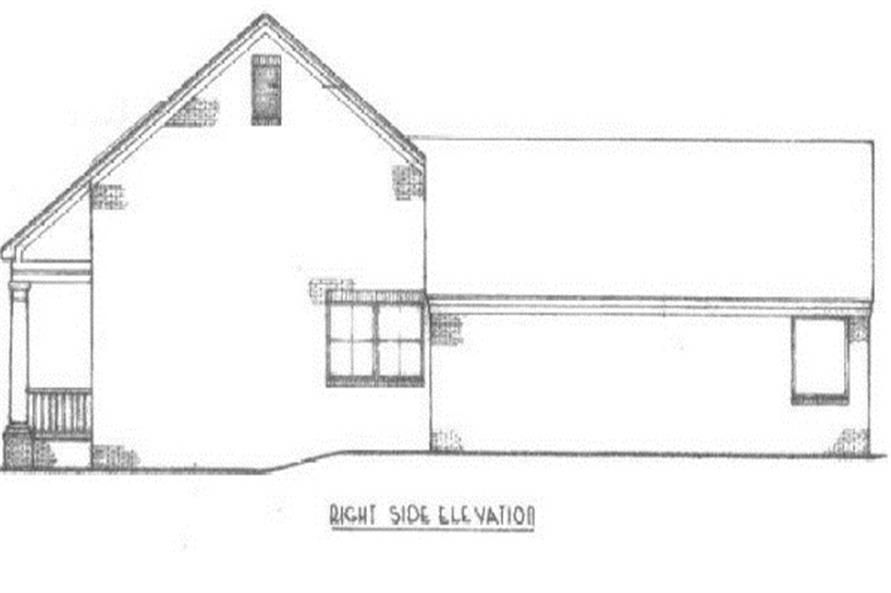

174-1062: Home Plan Right Elevation
3-Bedroom, 1878 Sq Ft Country Home Plan - 174-1062 - Main Exterior
174-1062: Home Plan Rear Elevation
174-1062: Home Plan Left Elevation
174-1062: Home Plan Right Elevation

About Plan # 174-1062

About Plan # 174-1062

1878 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 68' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

This single story Traditional/Country/Ranch Style House Plan has 1878 square feet of total living area. Some of the prominent features of this house plan include its beautiful front and rear covered porches and symmetrical design. Inside, one cannot help but be drawn to the beautiful Living Room with its fireplace and access to the Dining Room, Eating Room, and Kitchen. A great layout for a great house.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Cabinet elevations are also included.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

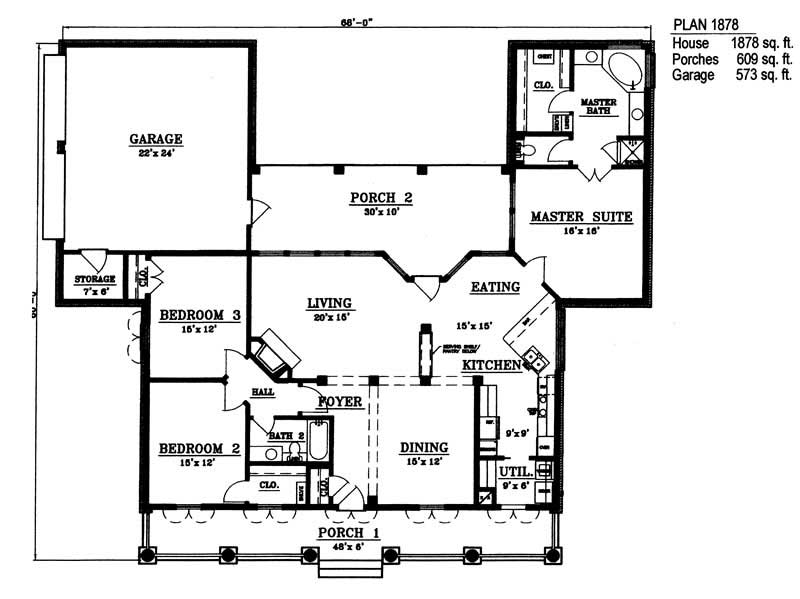

Home Plan: #174-1062 Floor Plan First Story - first Floor Plan First Story of Country Plan #174-1062
Home Plan: #174-1062 Floor Plan First Story - first Floor Plan First Story of Country Plan #174-1062
