FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
ROOF PLAN: BIrd's-eye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics. Shown right on the floor plan.

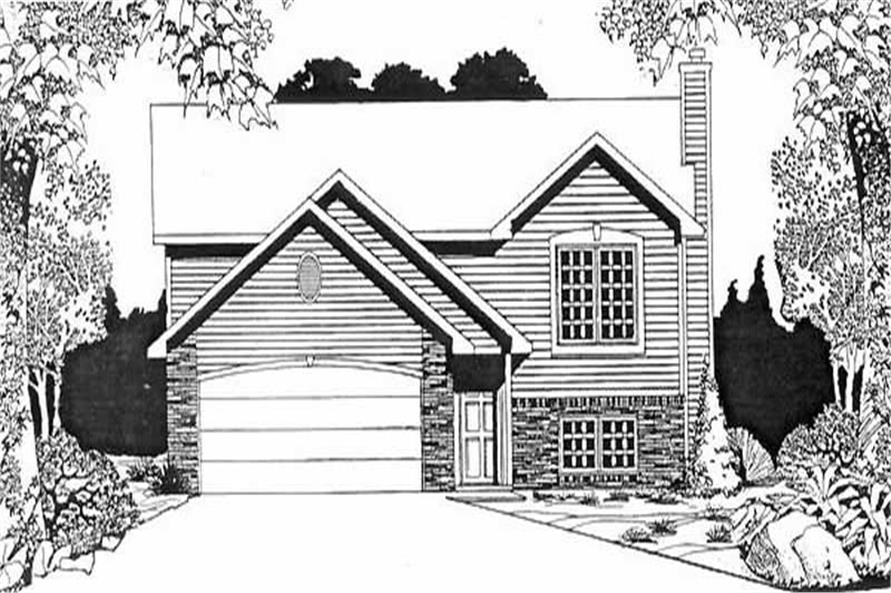

FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and building cross section. Also includes stair details and cabinet details.
These items are NOT included:
Architectural or Engineering Stamp - handled locally if required.
Site Plan - handled locally when required.
Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
Energy calculations - handled locally when required.
Order a Cost-to-Build Report and get
$100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Heated Sq Feet:
Unfinished Sq Ft:
Small House Plans
Exterior Wall Material
8 Foot Ceiling
Building Lot Type
Narrow Lot Design
Additional Notes from Designer
PLEASE NOTE: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions!
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.
All sales of house plans, modifications, and other products found on this site are
final. No refunds or exchanges can be given once your order has begun the fulfillment
process. Please see our
for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the
local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints.
For more detailed information, please review the floor plan images herein carefully.
