2-Bedroom, Small Ranch Style House with Fireplace

Front elevation of Country home (ThePlanCollection: House Plan #141-1184)
141-1184: Home Plan Rear Elevation
2-Bedroom, 800 Sq Ft Country Home - Plan #141-1184 - Main Exterior
141-1184: Home Plan Rear Elevation

About Plan # 141-1184

About Plan # 141-1184

800 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 30' 0" WIDTH 36' 0" DEPTH 0 GARAGE BAY

They say the best things come in small packages, and this tiny floor plan makes no exception! Charm radiates throughout the cozy floor layout of this tiny ranch house. When you walk into the small house, it brings upon a sense of nostalgia and reminds you of what it feels like to be home.

Here you’ll spend chilly winter nights chatting it up by the warmth of the fireplace or warm summer evenings enjoying the screened-in back porch. This home plan may be on the smaller side, but it offers plenty of space for you and your family to connect and enjoy each other’s company. Unlike some small ranch house plans, this home is far from cramped! The tiny cottage house features two nicely-sized bedrooms, along with plenty of closet space and quick access to the laundry room and bathroom. The kitchen was also designed to offer the perfect cooking triangle between stove, sink, and refrigerator.

The home’s smaller size required the designers be creative about where essential features of the floor plan and home would live, such as the HVAC system. Because space for this equipment is limited, the HVAC will need to be installed in the attic. We also recommend an energy-efficient tankless water heater - which can be mounted almost anywhere, including on the exterior walls - as part of the new home plan. Not only is a tankless water heater the perfect size for this tiny floor plan, but the savings on your next energy bill will have you convincing all your friends to convert to tankless. You’ll love the open feeling of this small house plan!

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

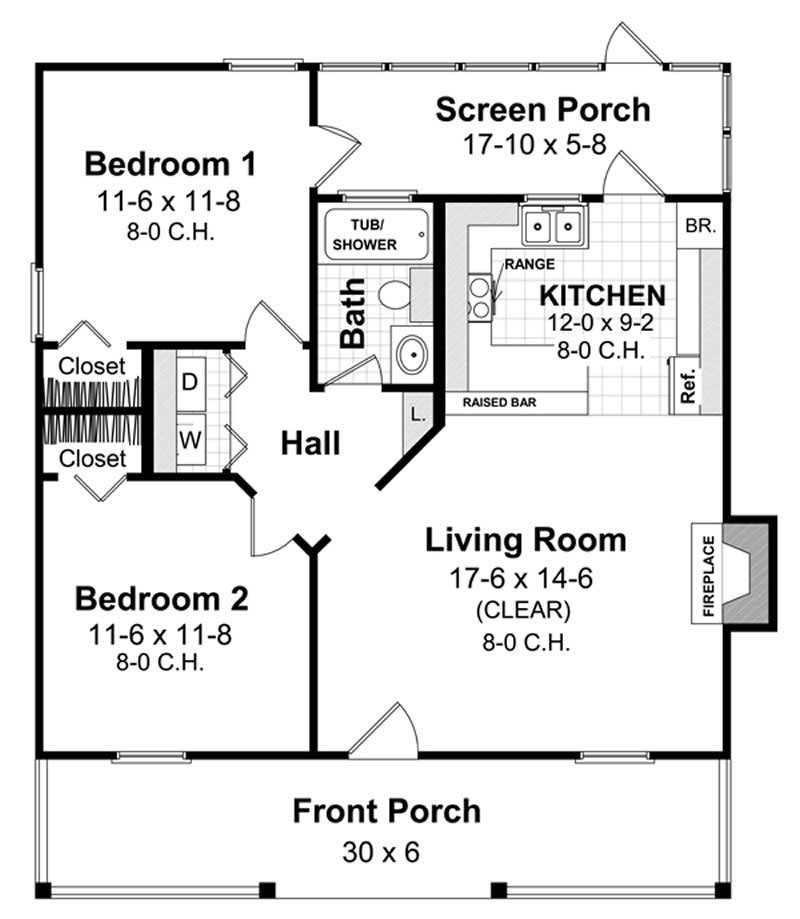

Home Plan: #141-1184 Floor Plan First Story - first story Floor Plan First Story of Country Plan #141-1184
