5-Bedroom, 7419 Sq Ft Contemporary Plan with Dramatic Views

Contemporary rustic home (ThePlanCollection: Plan #205-1000)

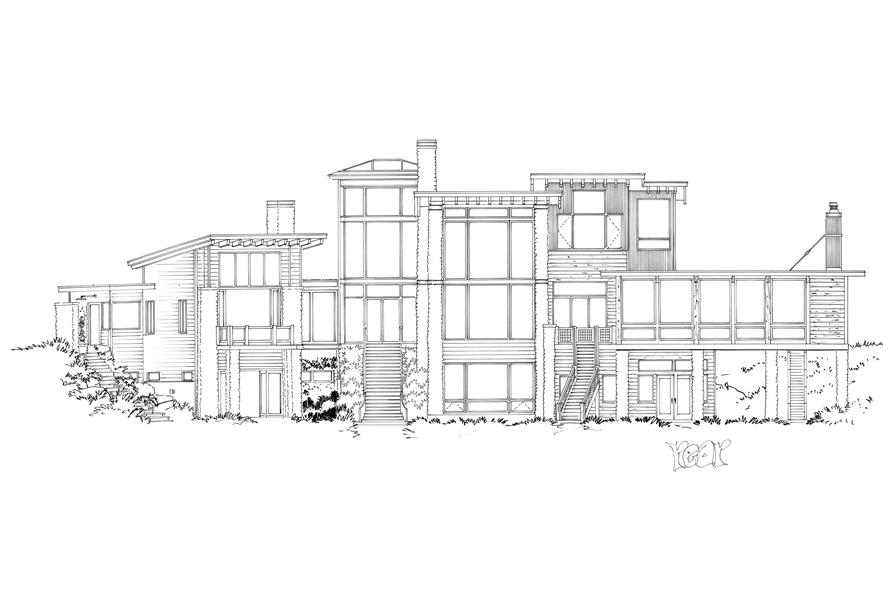

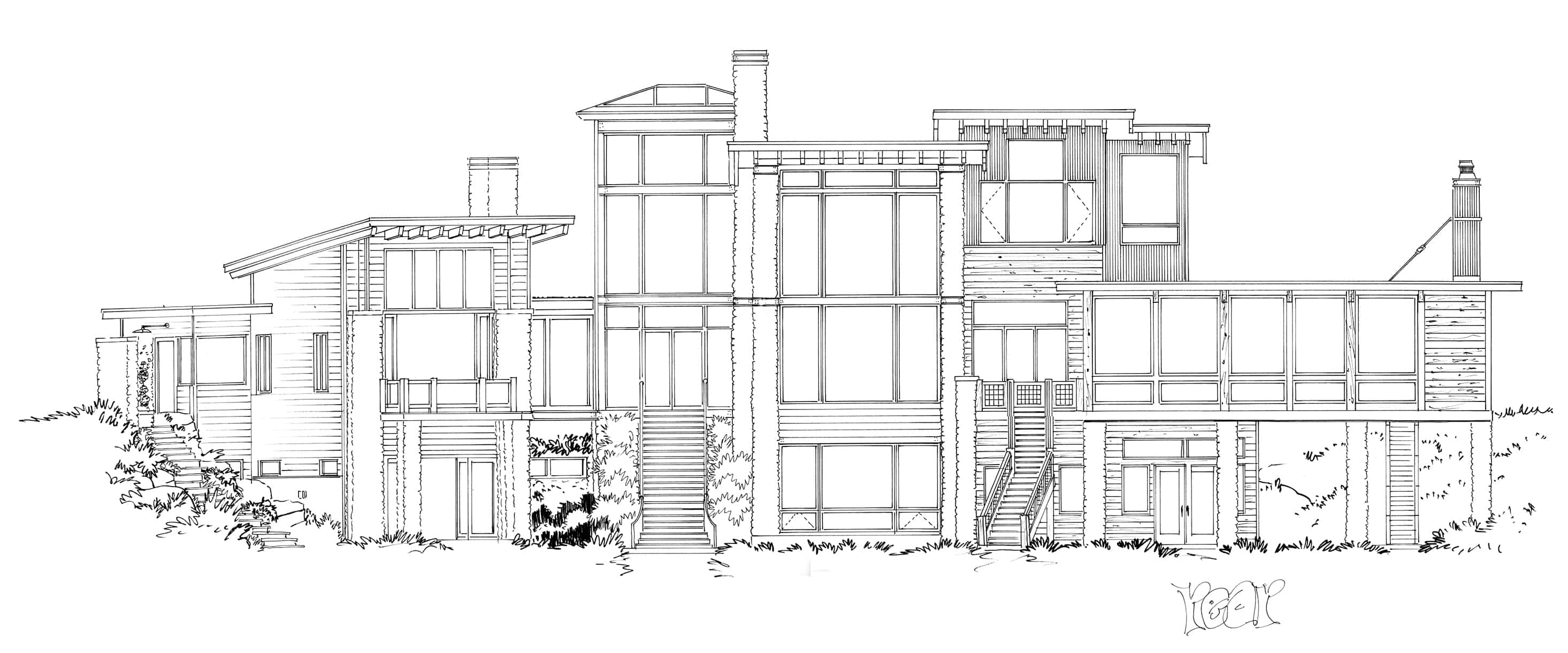

205-1000: Home Plan Rear Elevation

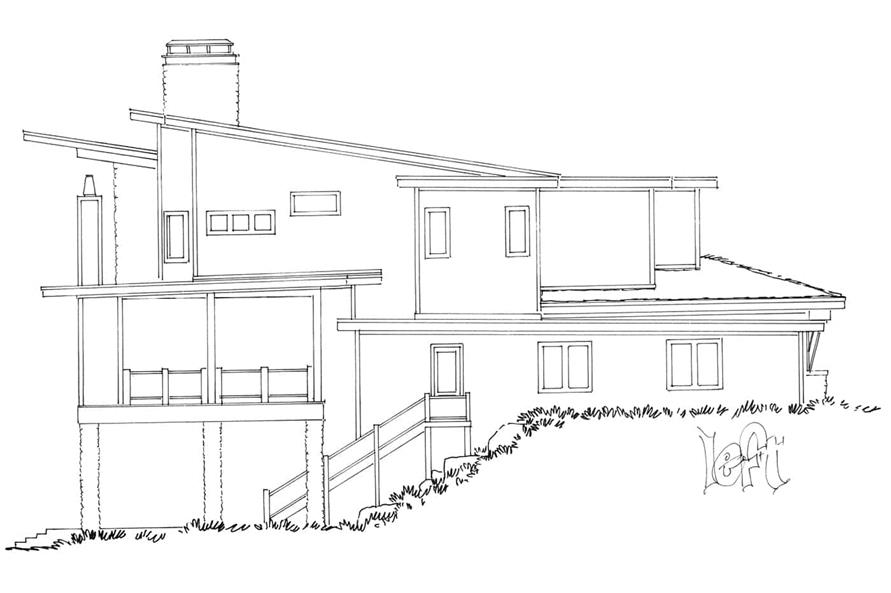

205-1000: Home Plan Left Elevation

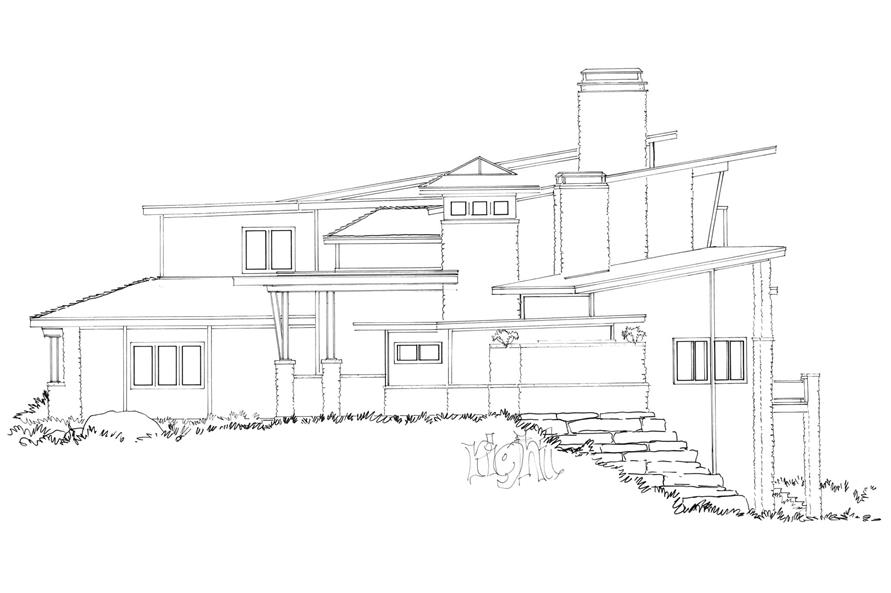

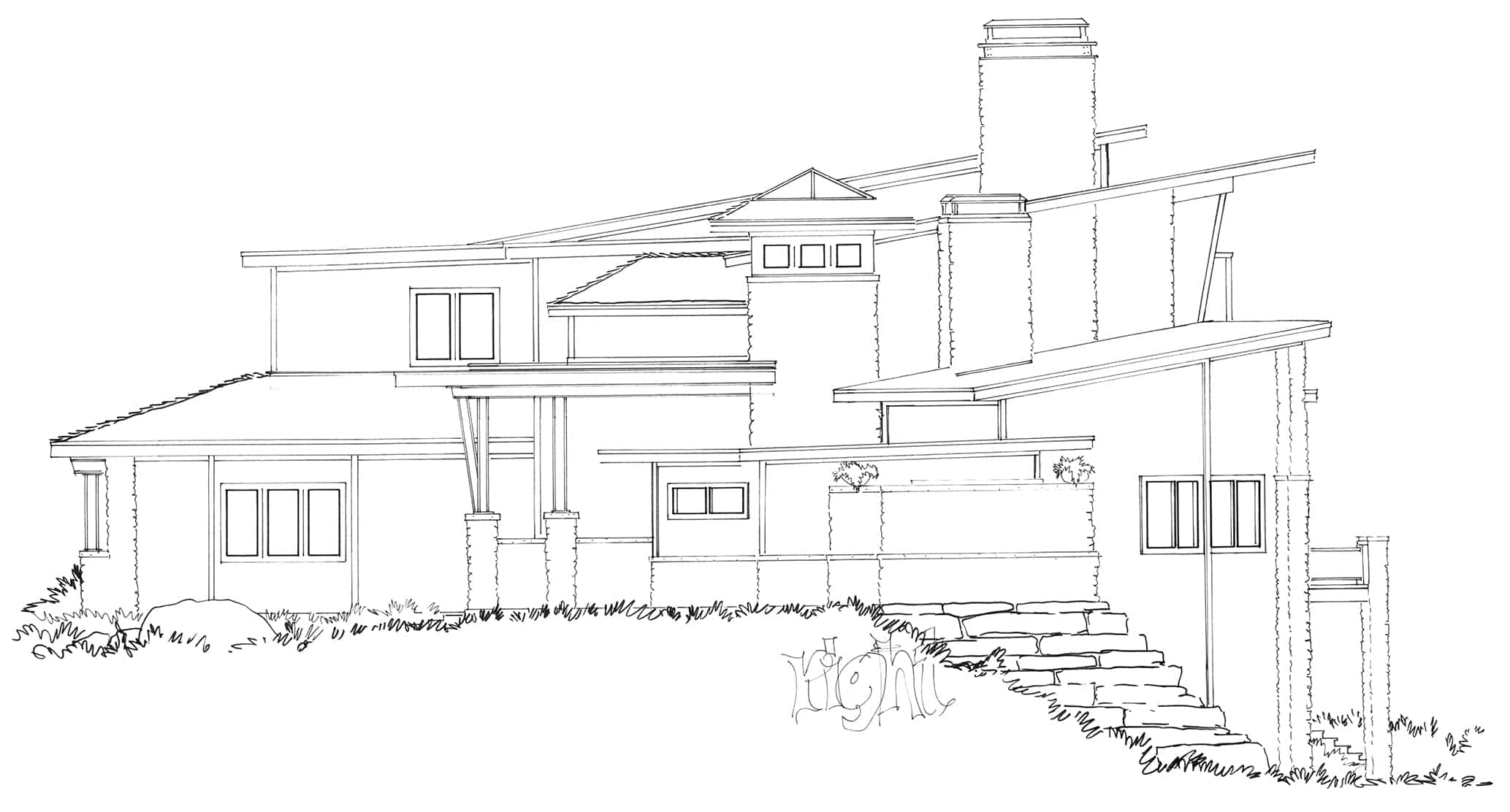

205-1000: Home Plan Right Elevation
205-1000: Home Interior Photograph-Living Room
205-1000: Home Interior Photograph-Kitchen: Kitchen Island

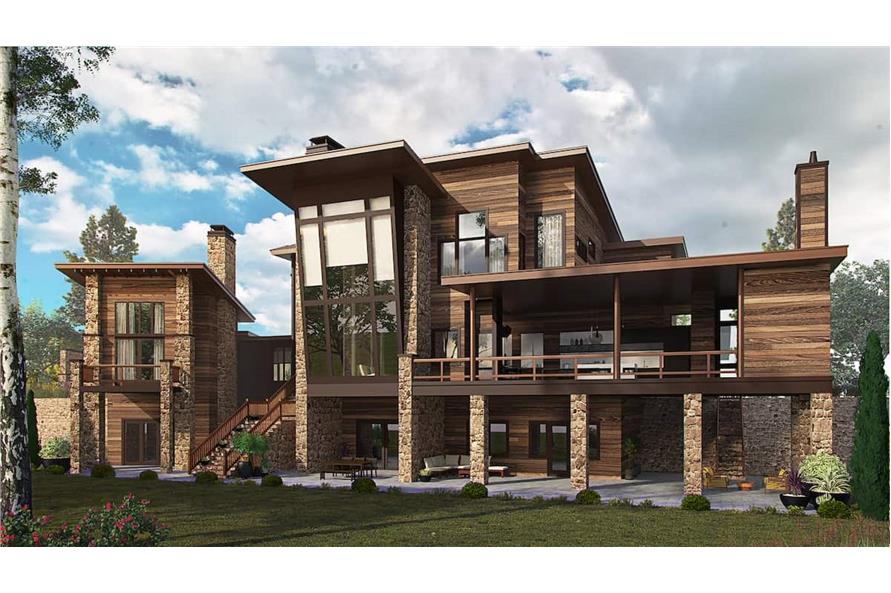

205-1000: Home Plan Rendering-Rear View

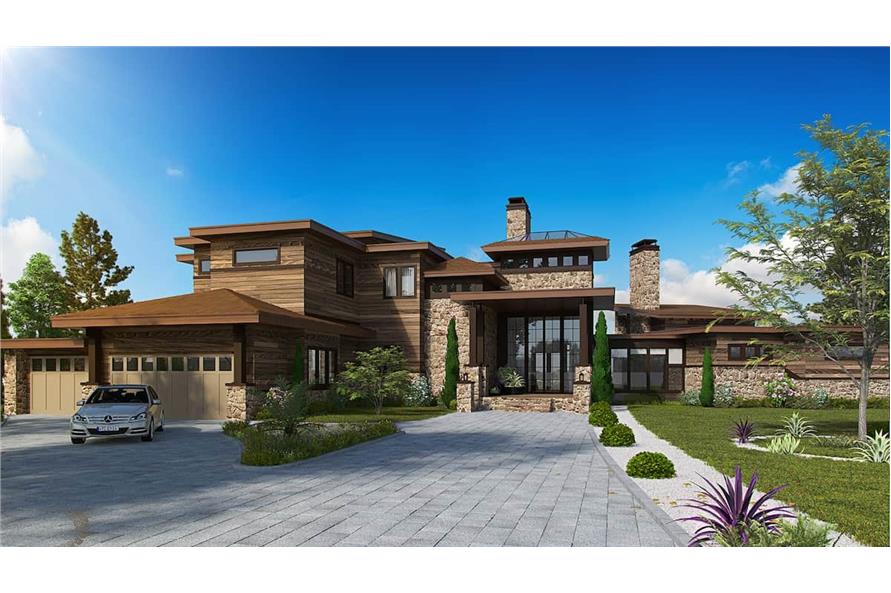

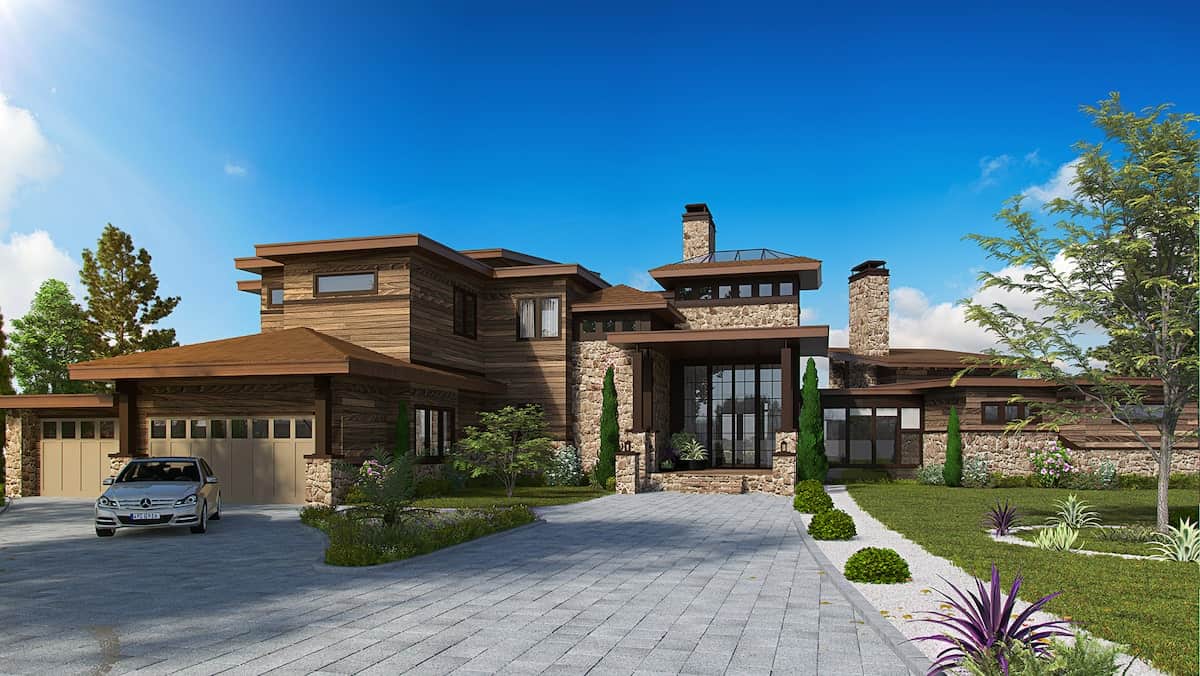

5-Bedroom, 7419 Sq Ft Contemporary House - Plan #205-1000 - Front Exterior
205-1000: Home Plan Rear Elevation
205-1000: Home Plan Left Elevation
205-1000: Home Plan Right Elevation
205-1000: Home Interior Photograph-Living Room
205-1000: Home Interior Photograph-Kitchen: Kitchen Island
205-1000: Home Plan Rendering-Rear View

About Plan # 205-1000

About Plan # 205-1000

7419 SQUARE FEET 5 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 88' 0" WIDTH 83' 5" DEPTH 3 GARAGE BAY

This luxurious Contemporary style house is a spectacular sight during daytime and equally fascinating – if not more so – during night time. A brilliant achievement of architectural design is displayed in the house with a total heated area of 7,419 square feet – with a master bedroom suite wing on the left and a finished daylight/walkout basement. Also, it's a car lover's dream house, with its oversize 1,523-square-foot 3-car garage, which has an ample amount of storage and workshop space.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION DETAILS: Dimensioned plan detailing the location of footings and other construction elements with details.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF FRAMING
  • FLOOR FRAMING
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

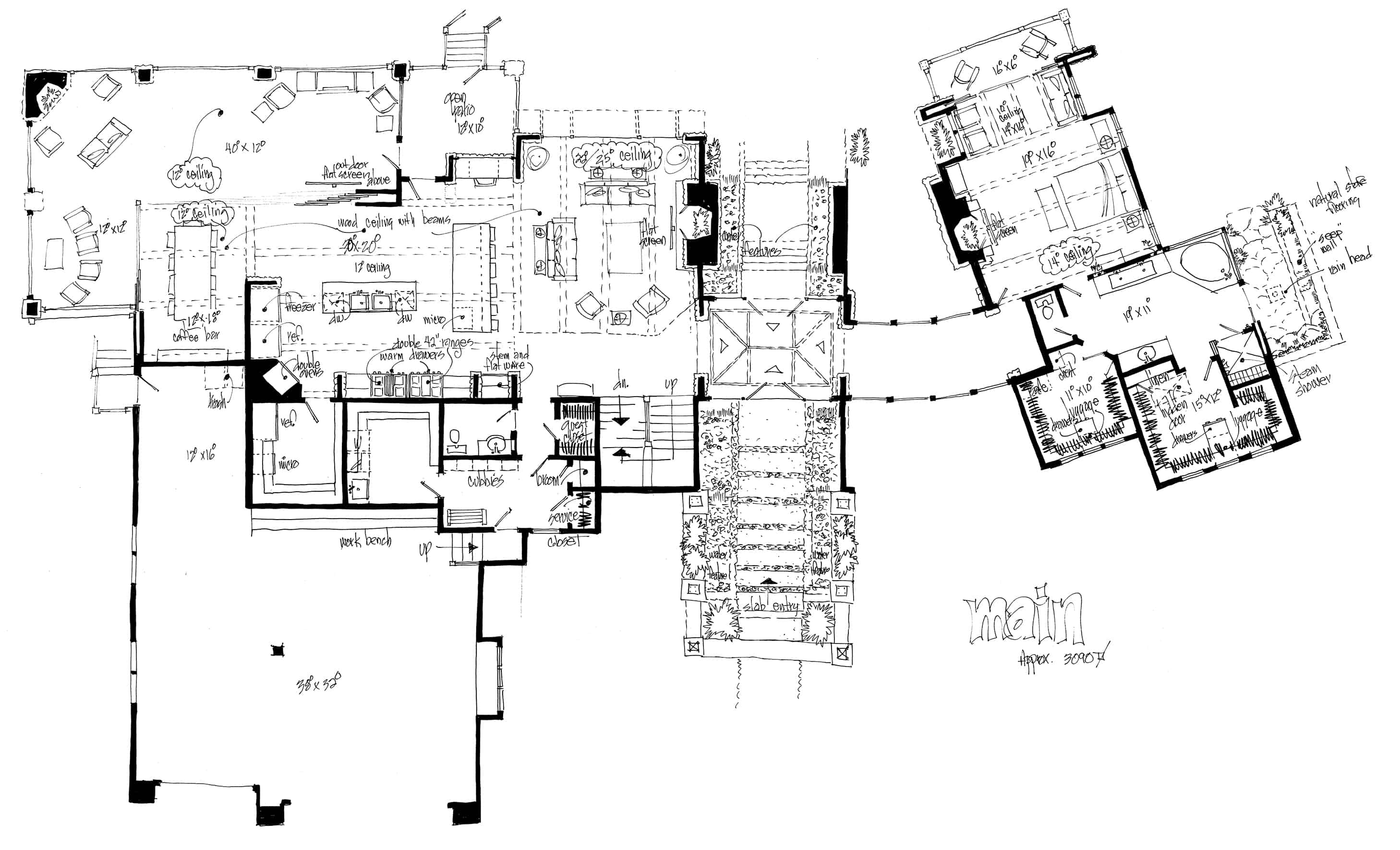

Home Plan: #205-1000 Floor Plan First Story - main level Main Level of Contemporary Plan #205-1000

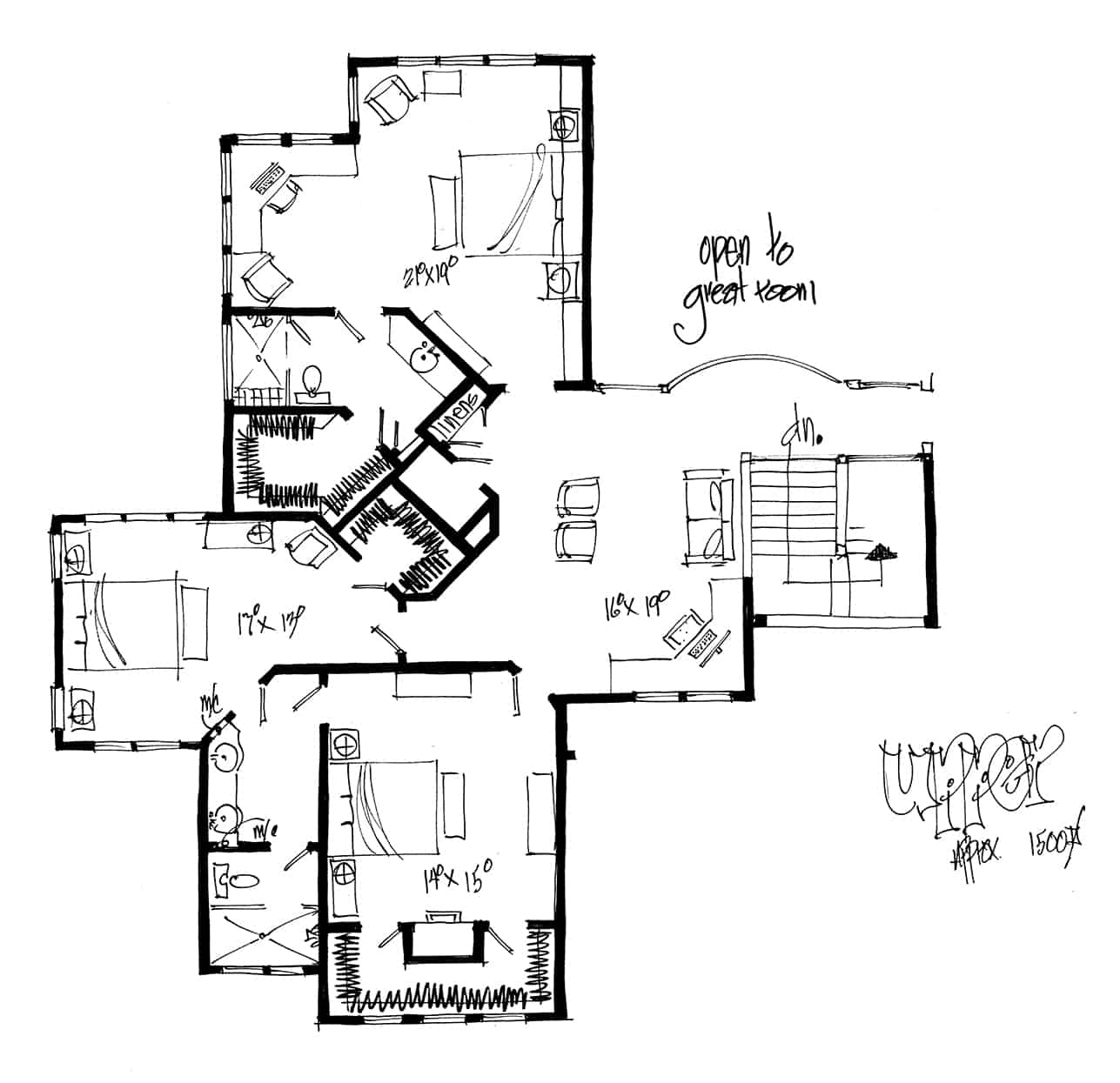

#205-1000 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #205-1000

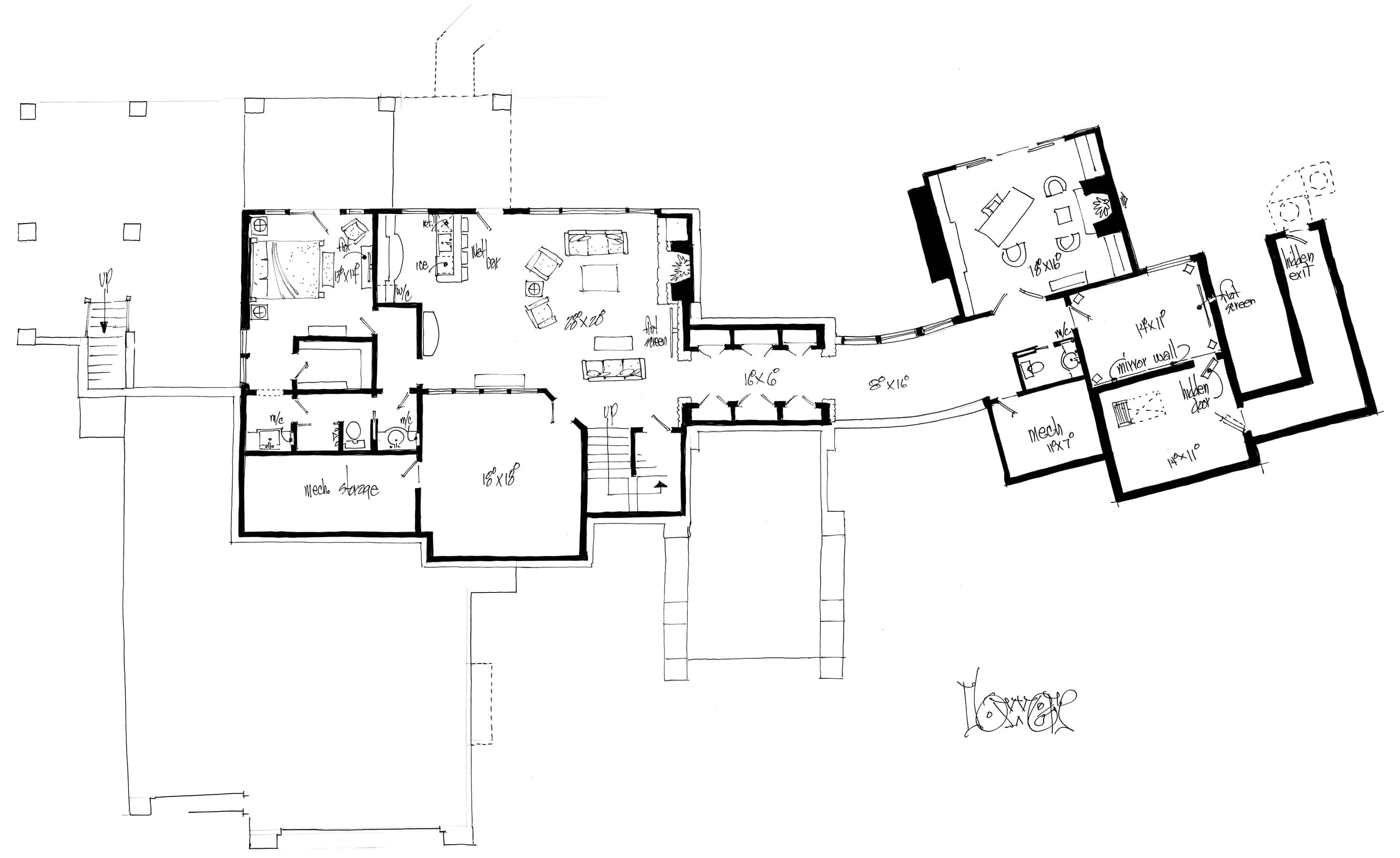

#205-1000 Floor Plan Basement - lower level Floor Plan Basement of Modern Plan #205-1000
