5-Bedroom, 6041 Sq Ft Luxury Plan with Covered Front Porch

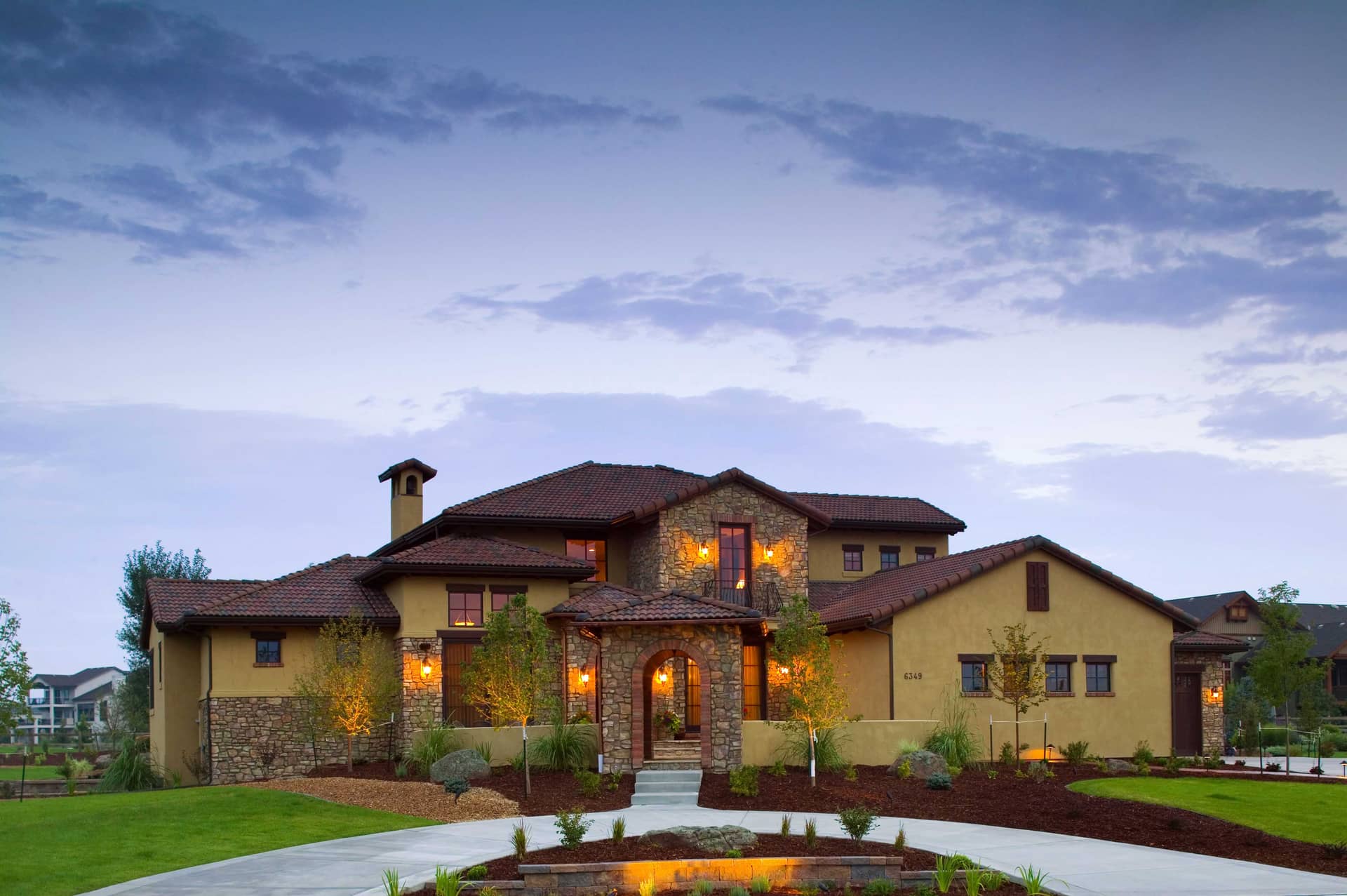

Luxury Plans RF-1180 color photo.
5-Bedroom, 6041 Sq Ft Luxury House Plan - 161-1026 - Front Exterior

About Plan # 161-1026

About Plan # 161-1026

6041 SQUARE FEET 5 BEDROOMS 4 FULL BATH 3 HALF BATH
2 FLOOR 109' 0" WIDTH 79' 0" DEPTH 4 GARAGE BAY

This is an exceptional Rustic Tuscan exterior and a large interior floor plan, spanning out 6041 total living square feet! The main floor plan has a large courtyard at the front and a patio in the back. The main level also has a master suite and the living and dining areas. The basement includes a media room, guest suite, billiards, and a wine cellar. The upper floor plan has 3 bedrooms. These Luxury Plans have it all!

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

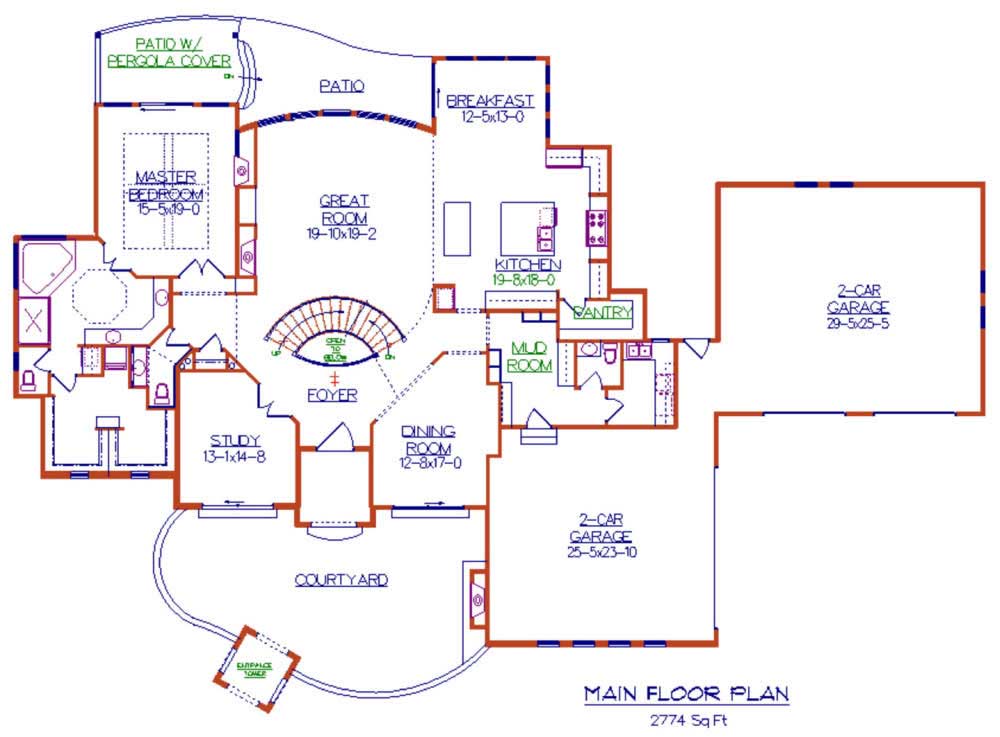

Home Plan: #161-1026 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #161-1026

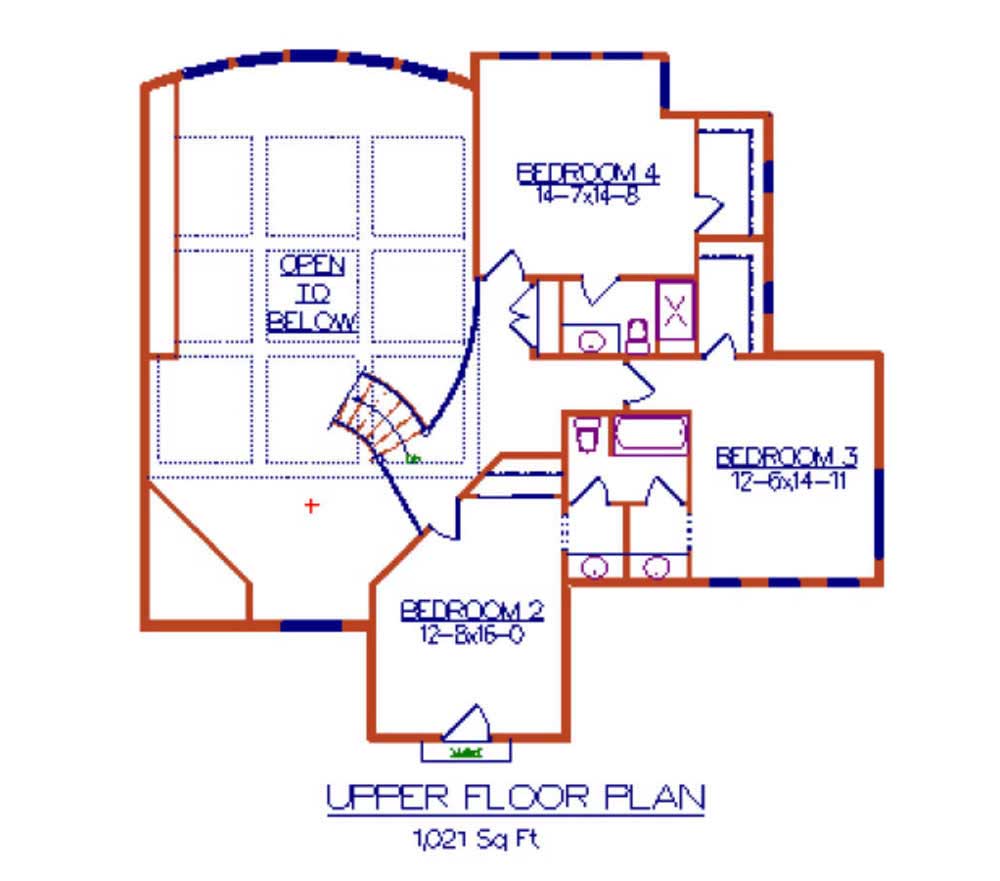

#161-1026 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #161-1026

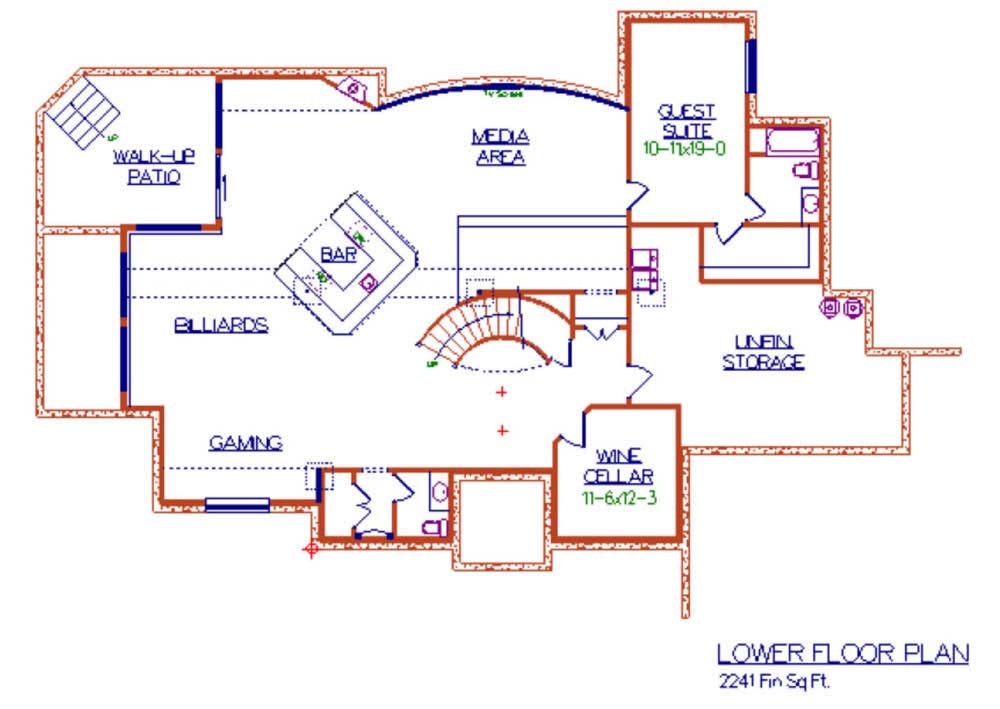

#161-1026 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #161-1026
Home Plan: #161-1026 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #161-1026
#161-1026 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #161-1026
#161-1026 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #161-1026
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 161-1026
Floors:
2
Bedrooms:
5
Full Baths:
4
Half Baths:
3

Square Footage

Heated Sq Feet:
6041
Main Floor:
2777
Upper Floor:
1023
Unfinished Sq Ft:
Lower Floor:
2241

Dimensions

Width:
109' 0"
Depth:
79' 0"
Ridge Height:
28' 0"

Architectural Styles

Luxury
Tuscan

Exterior Wall Material

Brick
Rock/Stone

Roofing Material

Tiles

Roof Pitch

5/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Game Room
Guest Room
Home Office
Library
Media Room
Mother in law apartment
Split Bathroom
Storage
Wine Cellar

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Courtyard

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! This designer's plans do NOT come with framing!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
