5-Bedroom, 5613 Sq Ft Craftsman Plan with Covered Front Porch

Front elevation of Craftsman home (ThePlanCollection: House Plan #161-1047)

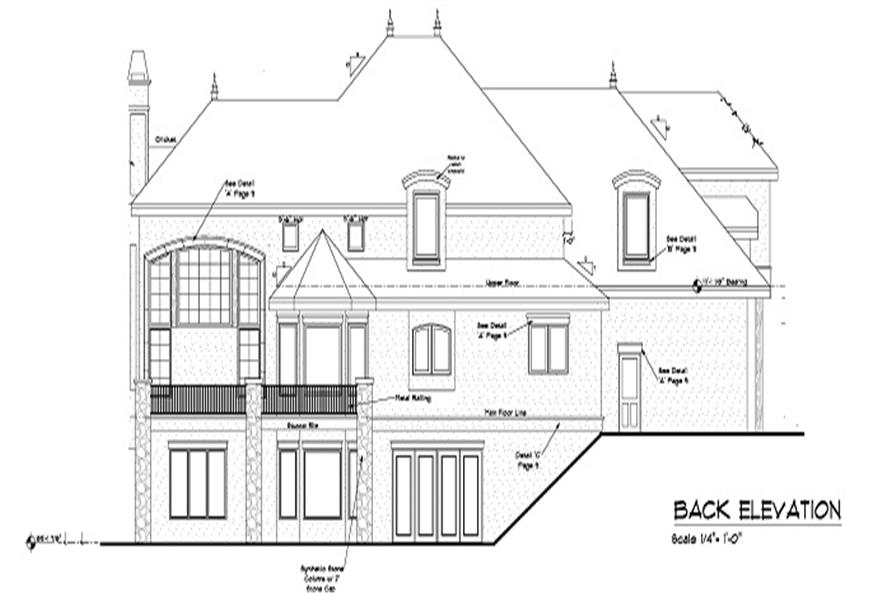

161-1047: Home Plan Rear Elevation

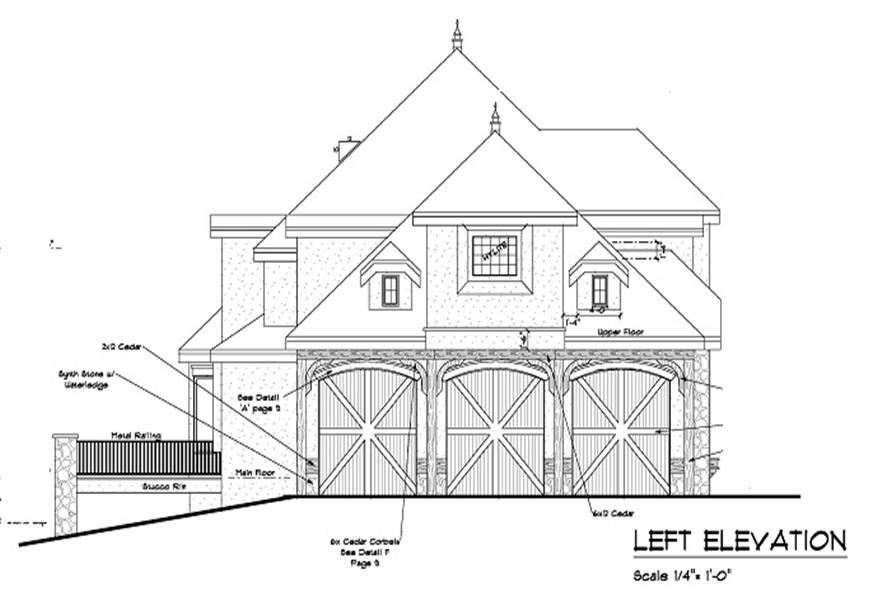

161-1047: Home Plan Left Elevation

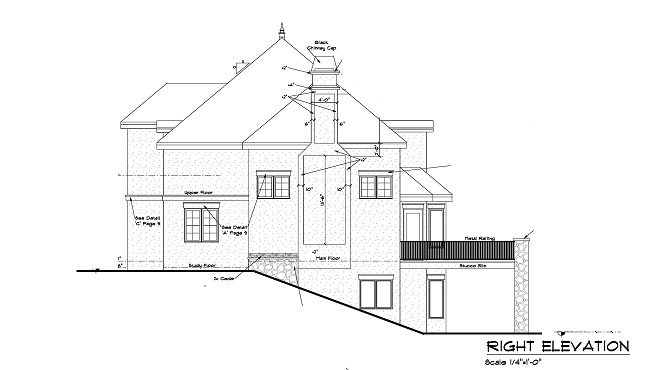

161-1047: Home Plan Right Elevation
5-Bedroom, 5613 Sq Ft Craftsman Home Plan - 161-1047 - Main Exterior
161-1047: Home Plan Rear Elevation
161-1047: Home Plan Left Elevation
161-1047: Home Plan Right Elevation

About Plan # 161-1047

About Plan # 161-1047

5613 SQUARE FEET 5 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 83' 0" WIDTH 60' 6" DEPTH 3 GARAGE BAY

The English Provincial home plans are two story, Craftsman, Luxury house plans with 5613 total living square feet. These homeplan have a total of 5 bedrooms, 4 bathrooms, and a 3 car garage. As you enter these beautiful houseplans you enter into the foyer. Straight ahead is the kitchen and nook area. To the right of the kitchen is the family room.The basement floor plan has a large rec. room, a bar, one bedroom, and storage space. The second floor plan has 4 bedrooms including the master bedroom and bath as well as the guest room. This beautiful Craftsman style house plan is perfect for whatever your home needs may be!

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

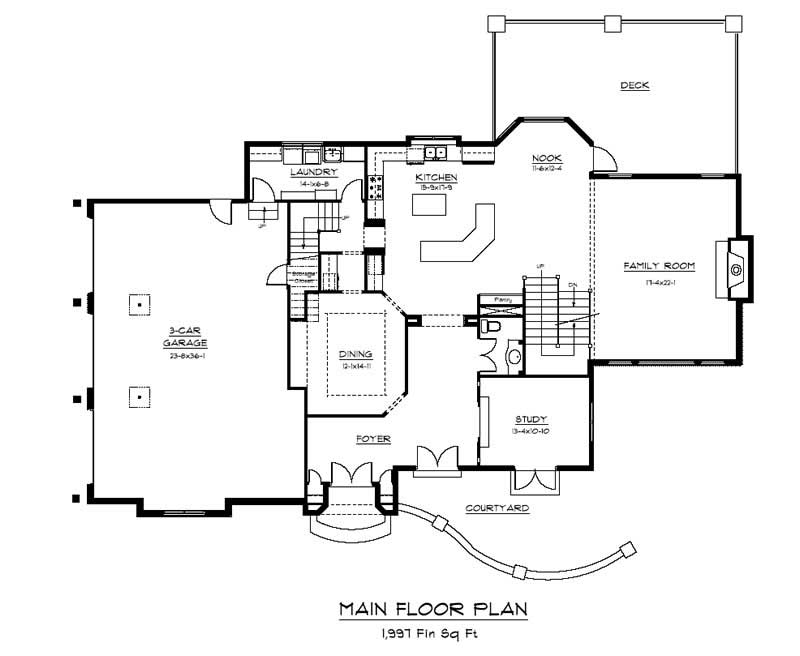

Home Plan: #161-1047 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #161-1047

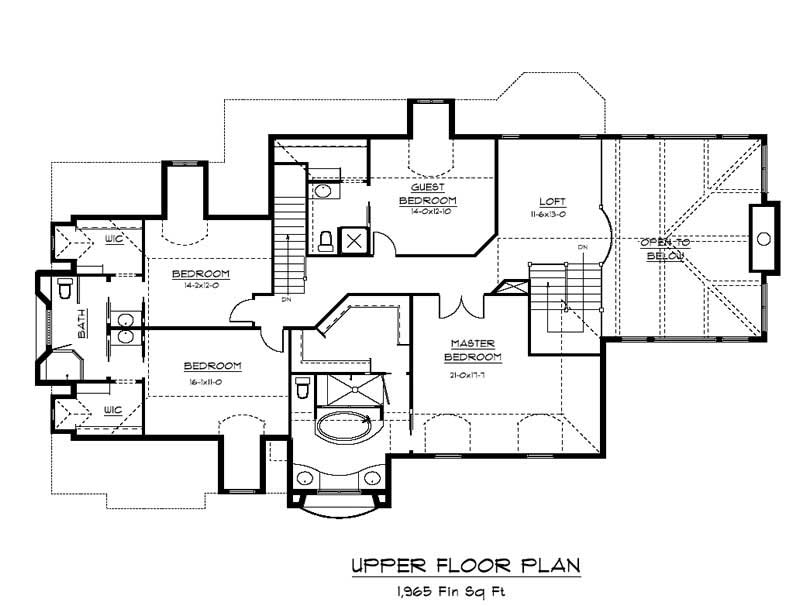

#161-1047 Floor Plan Second Story - second level Floor Plan Second Story of Craftsman Plan #161-1047

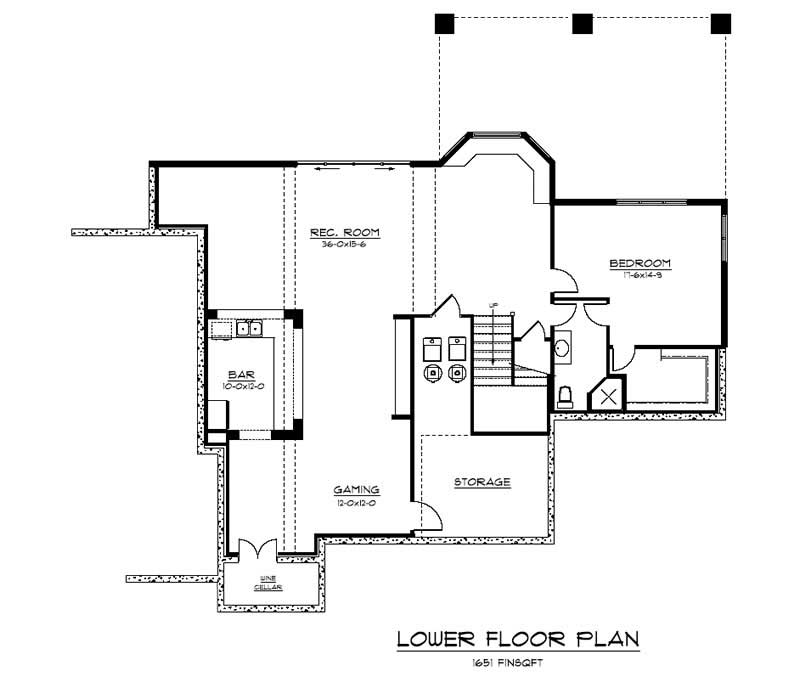

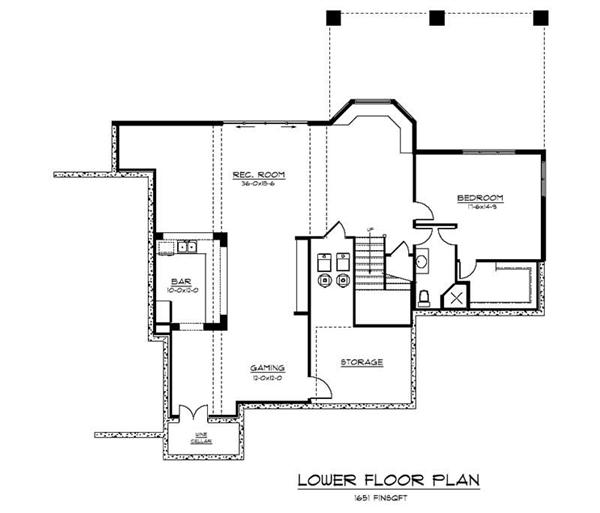

#161-1047 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #161-1047
