4-Bedroom, 7350 Sq Ft French Plan with Split Master Bedroom

Front elevation of French home (ThePlanCollection: House Plan #120-2593)

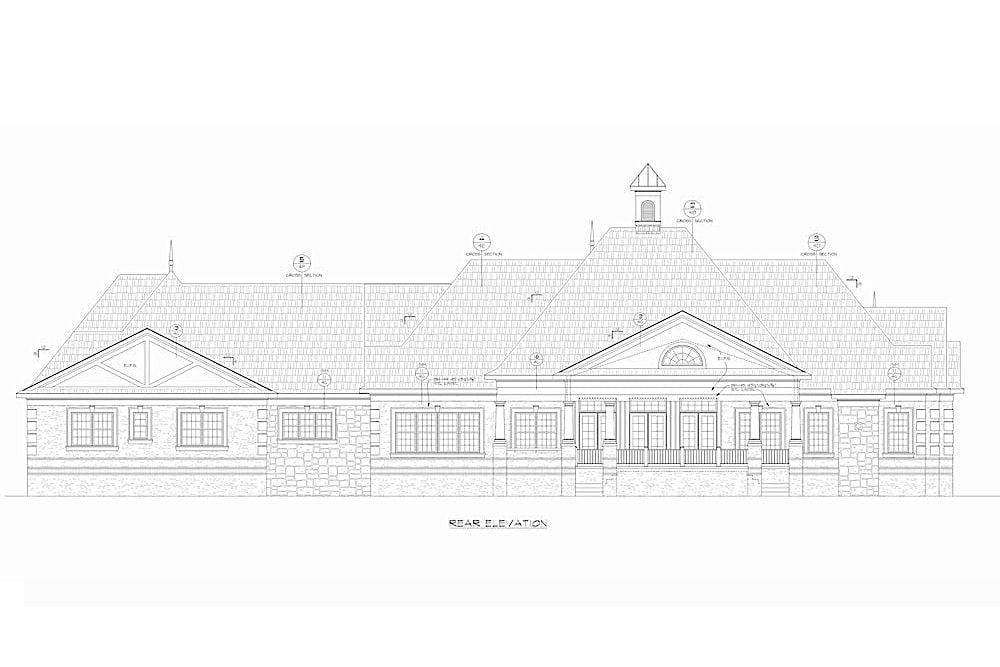

120-2593: Home Plan Rear Elevation

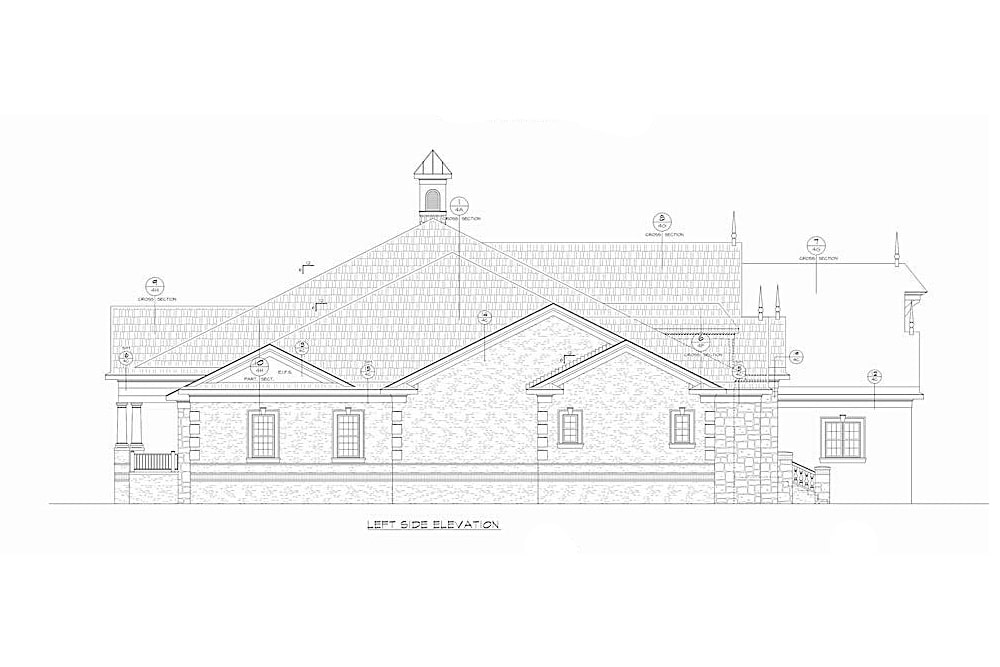

120-2593: Home Plan Left Elevation

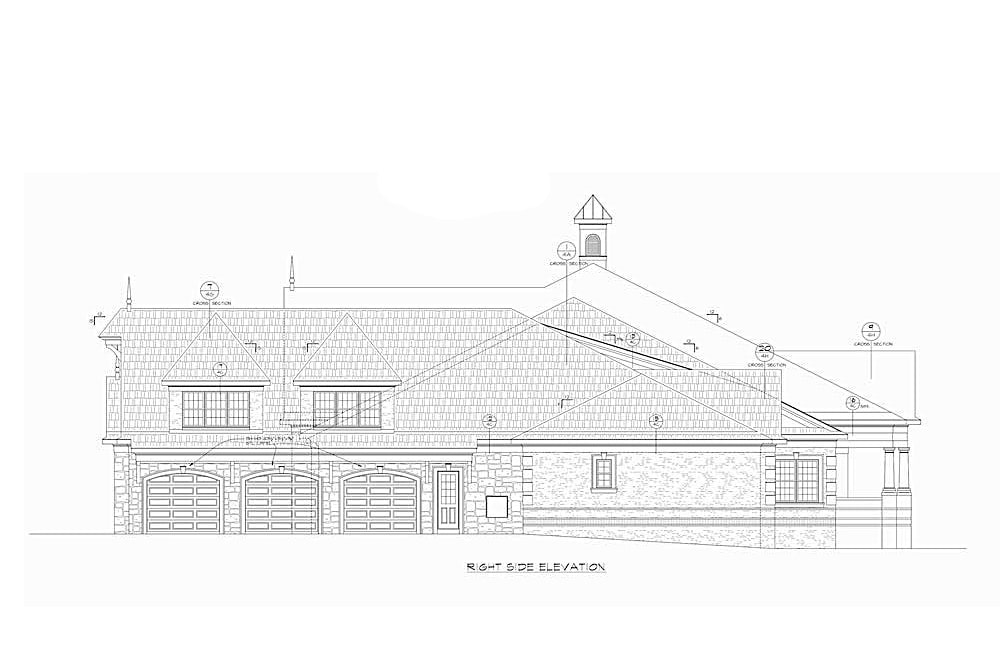

120-2593: Home Plan Right Elevation
4-Bedroom, 7350 Sq Ft French Home Plan - 120-2593 - Main Exterior
120-2593: Home Plan Rear Elevation
120-2593: Home Plan Left Elevation
120-2593: Home Plan Right Elevation

About Plan # 120-2593

About Plan # 120-2593

7350 SQUARE FEET 4 BEDROOMS 4 FULL BATH 3 HALF BATH
1 FLOOR 134' 0" WIDTH 108' 0" DEPTH 3 GARAGE BAY

This lovely French style home with Southern influences (House Plan #120-2593) has 7350 square feet of living space. The 1 story floor plan includes 4 bedrooms, 4 baths and 3 half baths.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

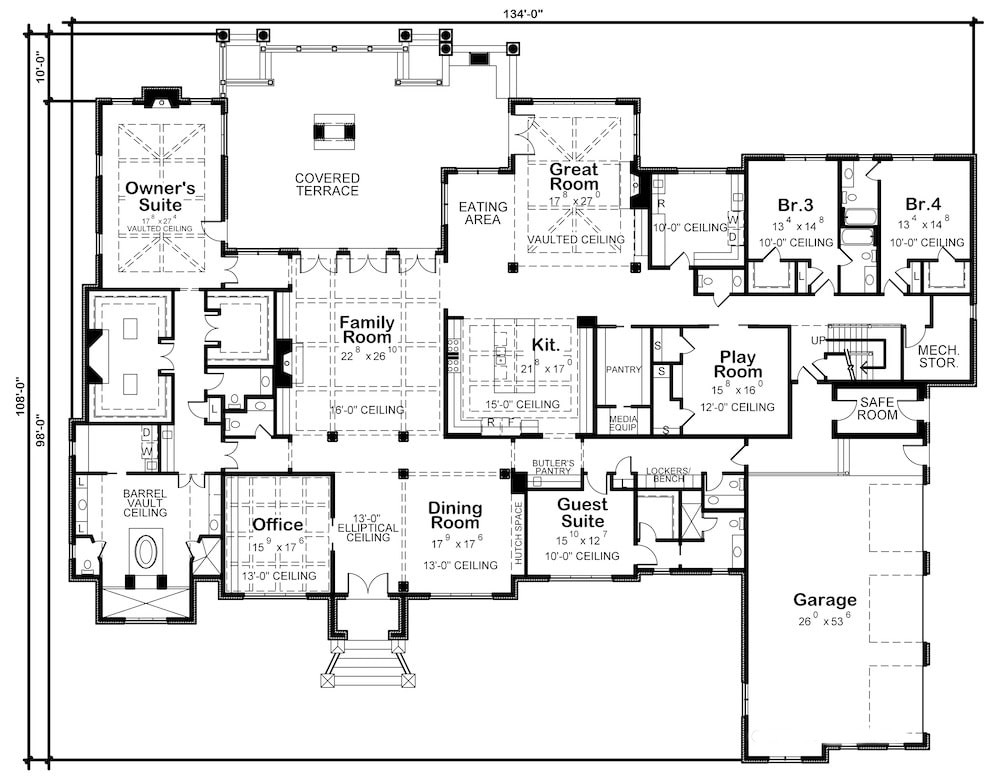

Home Plan: #120-2593 Floor Plan First Story - main level Floor Plan Main Level of French Plan #120-2593
