4-Bedroom, 8095 Sq Ft Craftsman Plan with Amazing Master Suite

Color photo of Craftsman home plan (ThePlanCollection: House Plan #161-1021)

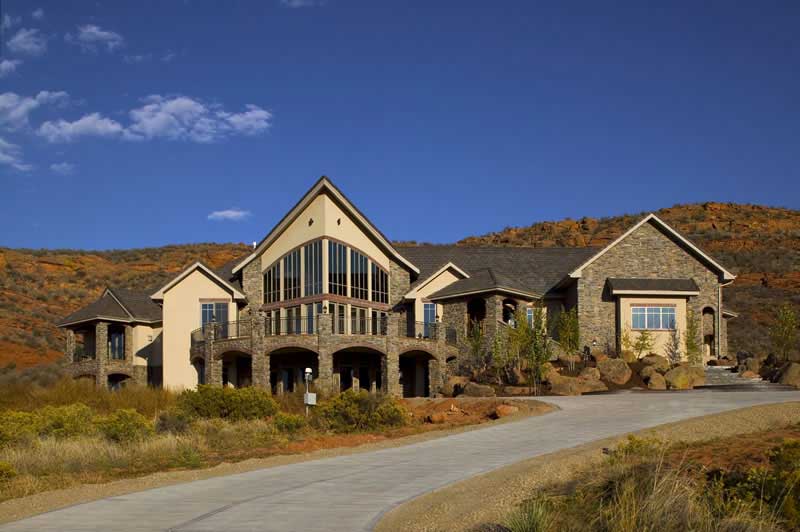

161-1021: Home Exterior Photograph-Right Side View
161-1021: Home Interior Photograph-Master Bathroom

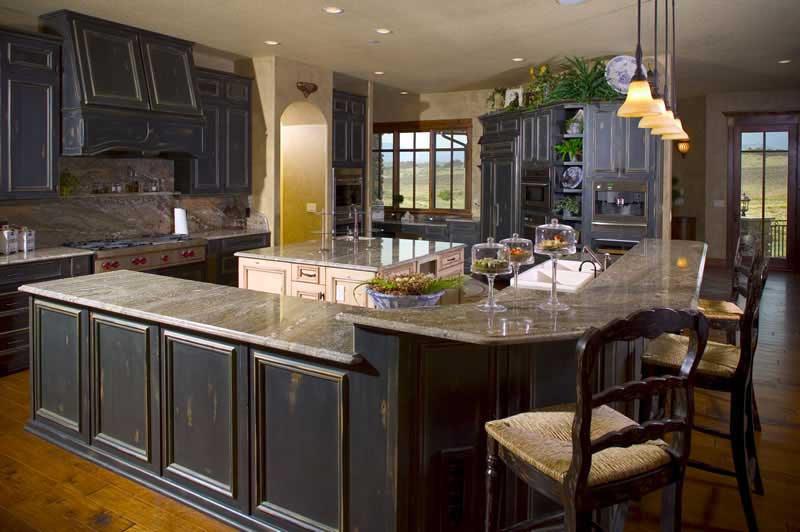

161-1021: Home Interior Photograph-Kitchen
161-1021: Home Interior Photograph-Great Room
CHALET HOMEPLAN OF RF

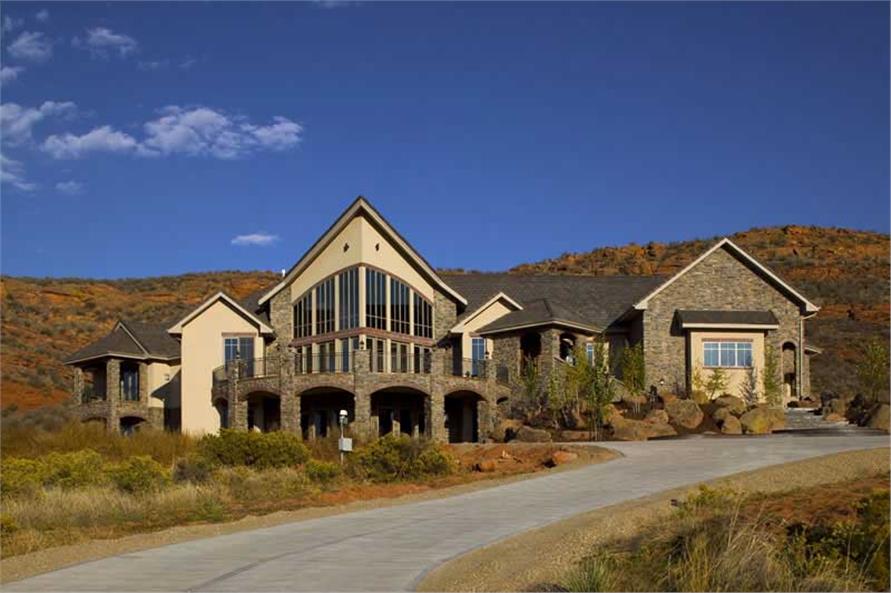

4-Bedroom, 8095 Sq Ft Craftsman House Plan - 161-1021 - Front Exterior
161-1021: Home Exterior Photograph-Right Side View
161-1021: Home Interior Photograph-Master Bathroom
161-1021: Home Interior Photograph-Kitchen
161-1021: Home Interior Photograph-Great Room
CHALET HOMEPLAN OF RF

About Plan # 161-1021

About Plan # 161-1021

8095 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
1 FLOOR 156' 9" WIDTH 91' 6" DEPTH 4 GARAGE BAY

This luxurious Craftsman-inspired home has 8095 square feet of living space. The 1-story floor plan includes 4 bedrooms. The house plan has great deck access to both the front and rear sides for this set of house plans. The floor plan has lots of living and dining areas and plenty of space to spread out and enjoy being in your home. Check out this luxury house plan's interior photos!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

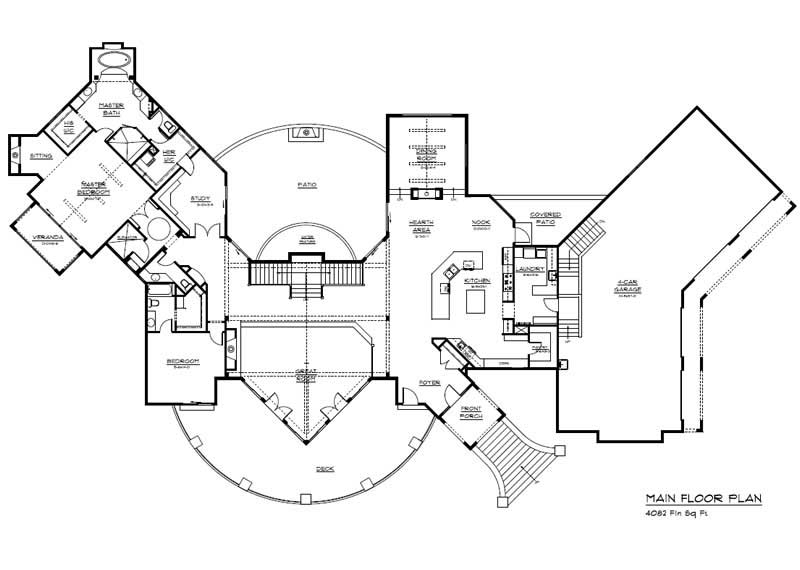

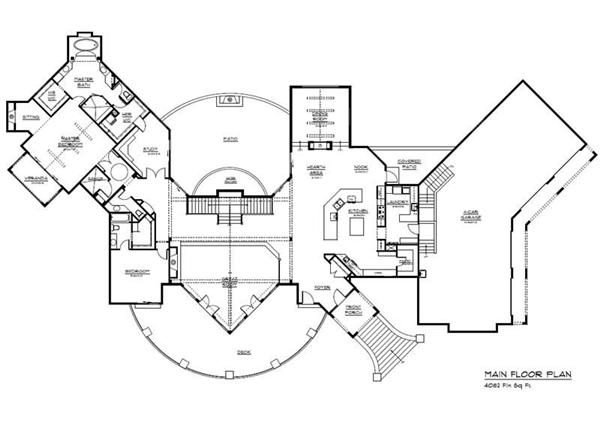

Home Plan: #161-1021 Floor Plan First Story - main level Main Level of Craftsman Plan #161-1021

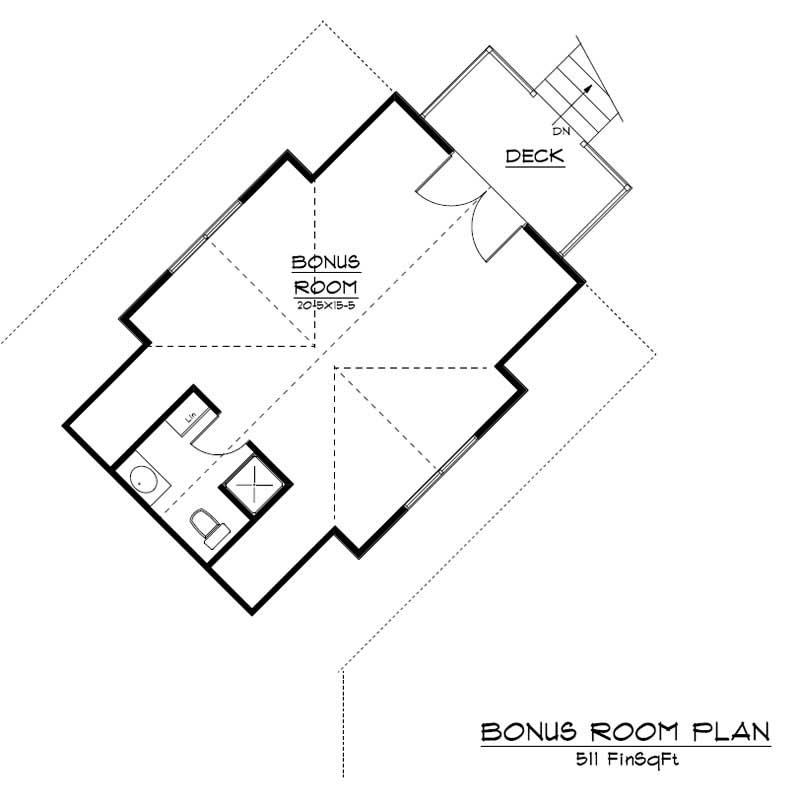

#161-1021 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #161-1021

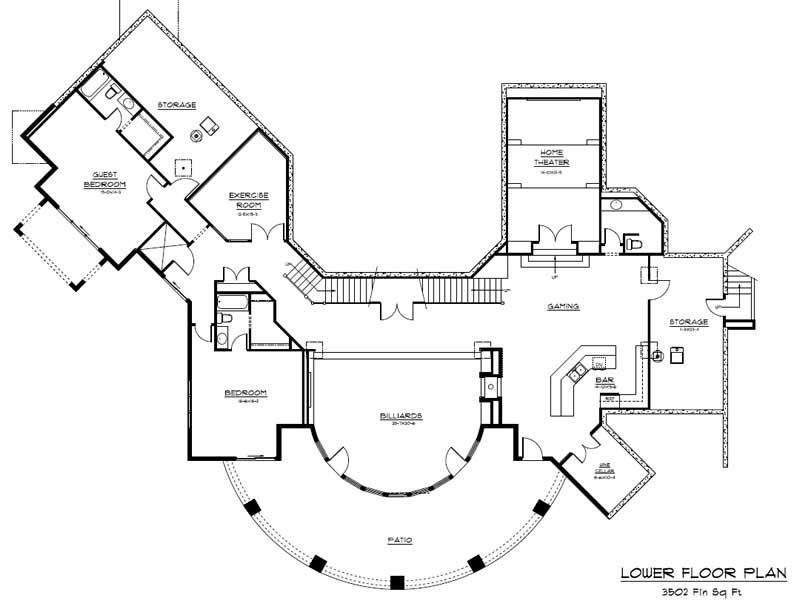

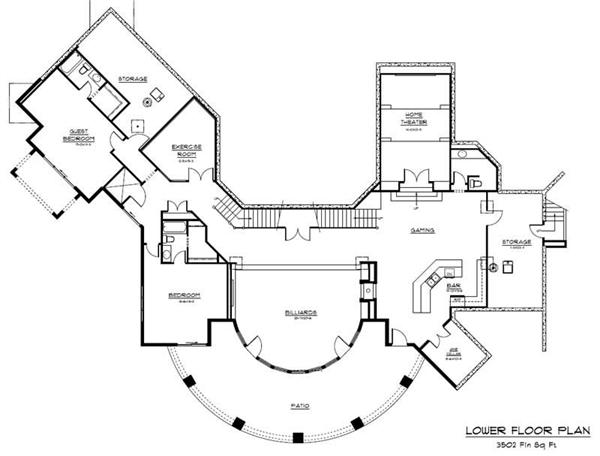

#161-1021 Floor Plan Basement - lower level Basement of Craftsman Plan #161-1021
