2-Bedroom, 691 Sq Ft Cottage Plan with Walk In Closet

Front elevation of Cottage home (ThePlanCollection: House Plan #153-2042)
2-Bedroom, 691 Sq Ft Cottage House Plan - 153-2042 - Front Exterior

About Plan # 153-2042

About Plan # 153-2042

691 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 24' 0" WIDTH 39' 0" DEPTH 0 GARAGE BAY

This lovely Cottage style home with Small House Plans influences (House Plan #153-2042) has 691 square feet of living space. The 1 story floor plan includes 2 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

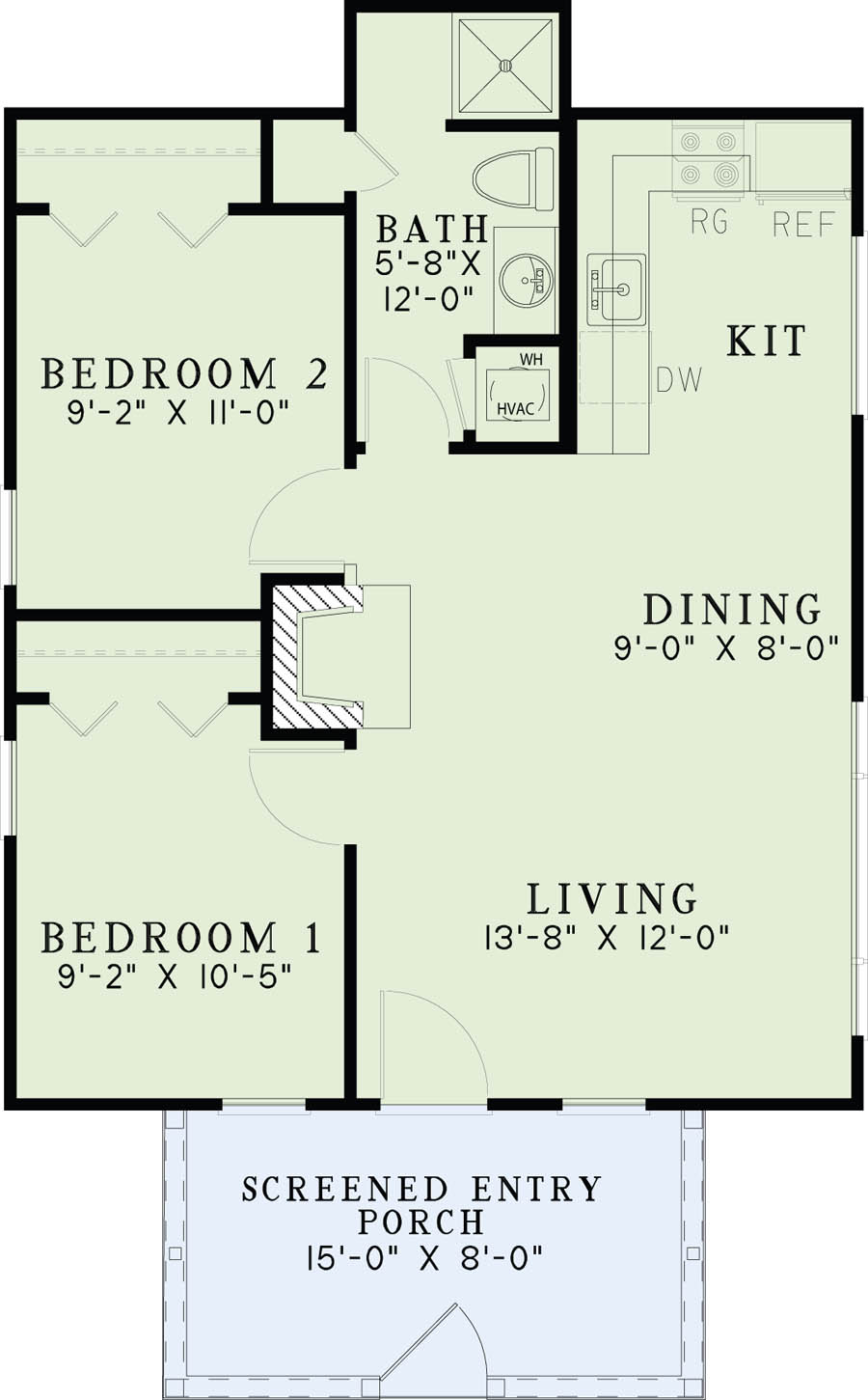

Home Plan: #153-2042 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #153-2042
Home Plan: #153-2042 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #153-2042
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-2042
Floors:
1
Bedrooms:
2
Full Baths:
1

Square Footage

Heated Sq Feet:
691
Main Floor:
691
Unfinished Sq Ft:

Dimensions

Width:
24' 0"
Depth:
39' 0"
Ridge Height:
16' 8"

Architectural Styles

Cottage
Small House Plans

Exterior Wall Material

Shakes
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

3/12
7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Fireplace
Open Floor Plan
Storage

Garage Type

Detached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.
