4-Bedroom, 5640 Sq Ft Ranch Plan with Kitchen Island
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 5640 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 83' 7" WIDTH | 32' 10" DEPTH | 3 GARAGE BAY |
This beautiful luxury ranch house plan has an aura of rustic charm, with the comforts of a luxurious estate. A country kitchen works hard with abundant counter space and an island cook top while it effortlessly accesses the nook and gracious dining room. A nearby den is also an ideal study. The great room is announced through columns and arches where you'll love how the fireplace warms this space, as natural light pours in from the connected sun room. The master suite is situated for privacy, appointed with an arched window, soothing bath with a step-up tub, and ample closet space. The lower level furnishes three family bedrooms, a recreation area, and a wet bar.
Each plan set includes the following:

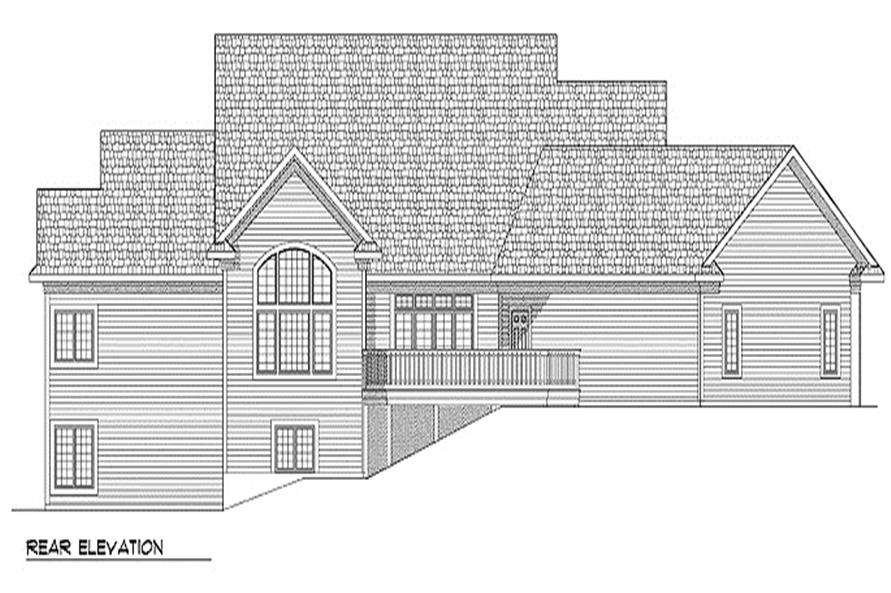

- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

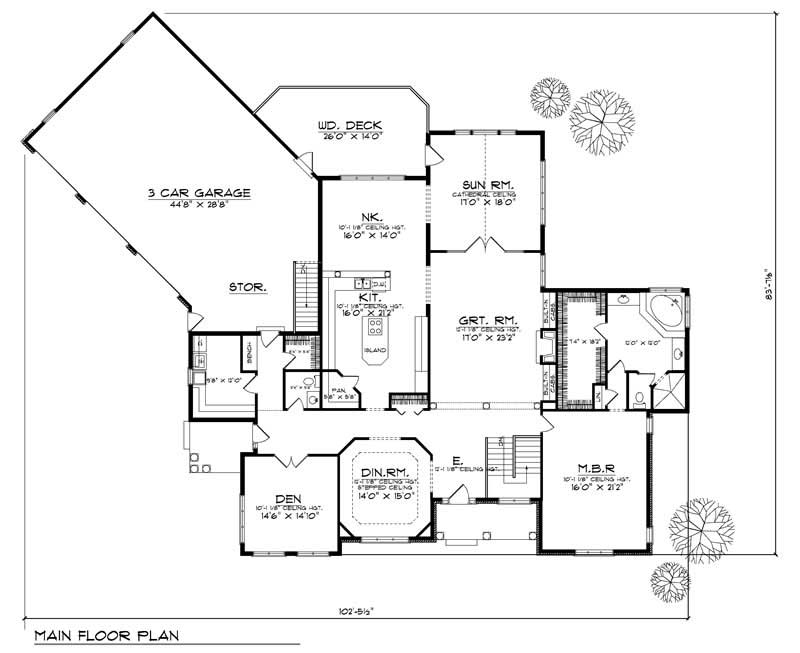

Home Plan: #101-1230 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1230]( "MAIN FLOOR PLAN")

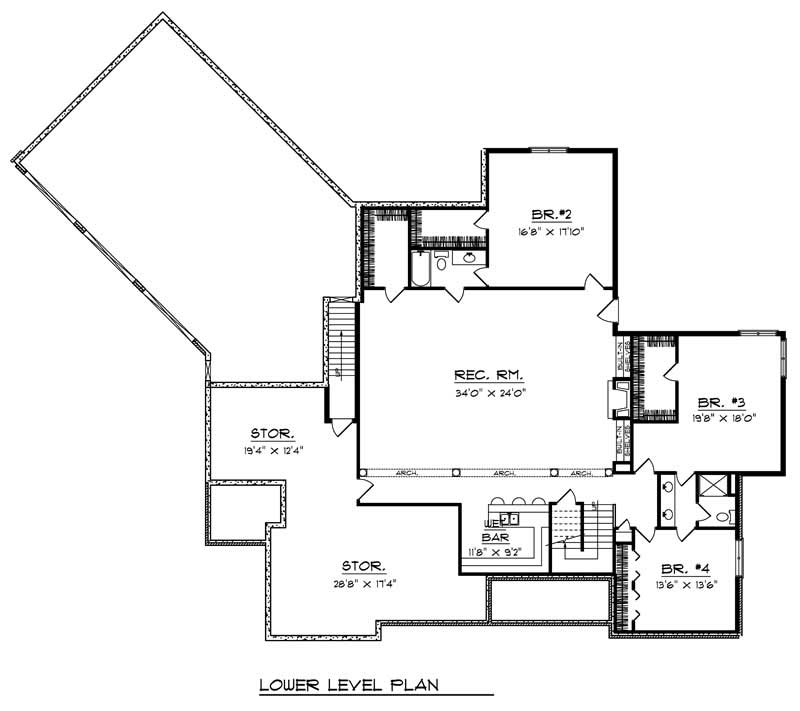

#101-1230 Floor Plan Second Story
-
basement
![Floor Plan Second Story of Ranch Plan #101-1230]( "BASEMENT FLOOR PLAN")
Home Plan: #101-1230 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1230]( "MAIN FLOOR PLAN")
#101-1230 Floor Plan Second Story
-
basement
![Floor Plan Second Story of Ranch Plan #101-1230]( "BASEMENT FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 101-1230
Floors:
1
Bedrooms:
4
Full Baths:
2
Garage :
3
Square Footage
Heated Sq Feet:
5640
Main Floor:
3260
Unfinished Sq Ft:
Lower Floor:
2380
Dimensions
Width:
83' 7"
Depth:
32' 10"
Architectural Styles
Country
Ranch
Southern
Traditional
Exterior Wall Material
Brick
Stucco
Roof Pitch
8/12
Ceiling Height
10 Foot Ceiling
Special Feature
Fireplace
Dining Room
Garage Type
Attached Garage
Side Entry
Exterior Wall Framing
2x6
Building Lot Type
Down Site
Kitchen Features
Peninsula/Eating Bar
Porches and Exterior Features
Covered Front Porch
Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom
PRICING OPTIONS
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
