4-Bedroom, 4923 Sq Ft Contemporary Plan with Nook/Breakfast Area

Main image for house plan # 19023

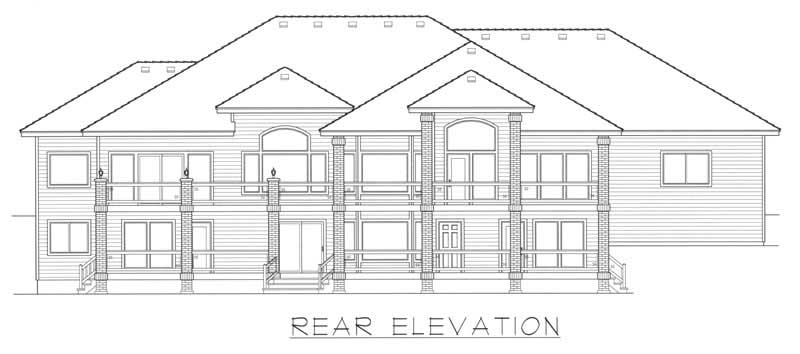

House Plan RDI-2724R1-DB Rear Elevation

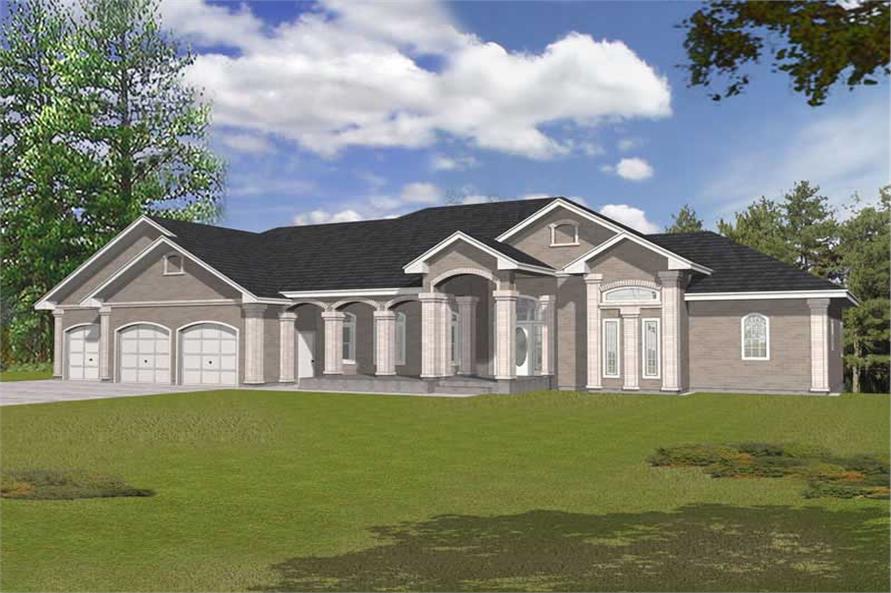

4-Bedroom, 4923 Sq Ft Contemporary Home Plan - 162-1047 - Main Exterior
House Plan RDI-2724R1-DB Rear Elevation

About Plan # 162-1047

About Plan # 162-1047

4923 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 95' 0" WIDTH 65' 0" DEPTH 3 GARAGE BAY

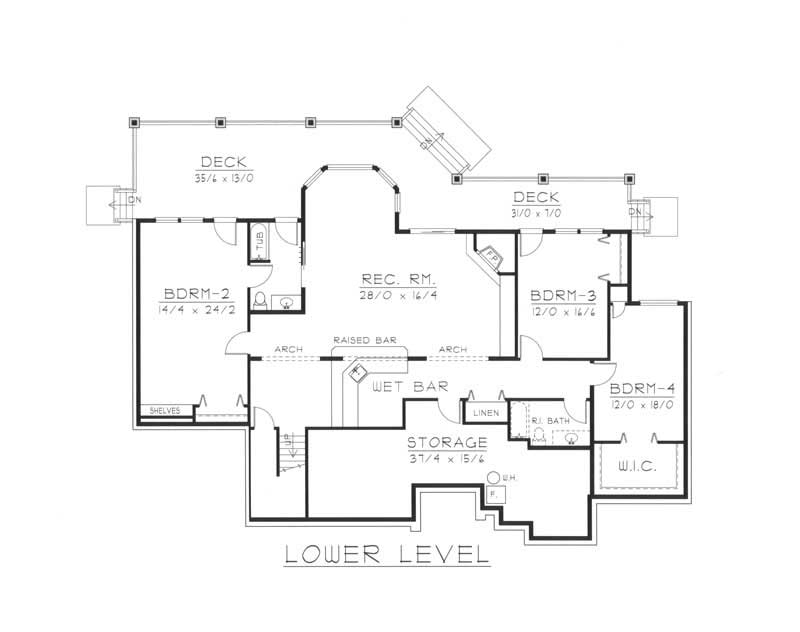

House Plan RDI-2724R1-DB is a great way to fit all the luxurious amenities in a neighborhood lot. All the rooms are large and spacious and the main floor has nine foot high ceilings with raised and vaulted rooms. The master suite is comfortably big and the master bath features a lavish spa. The kitchen enjoys plenty of storage and counter space. The basement is finished with a rec room, bar, plenty of storage, and three more bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes cabinet elevations, stair detail, wall section and notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

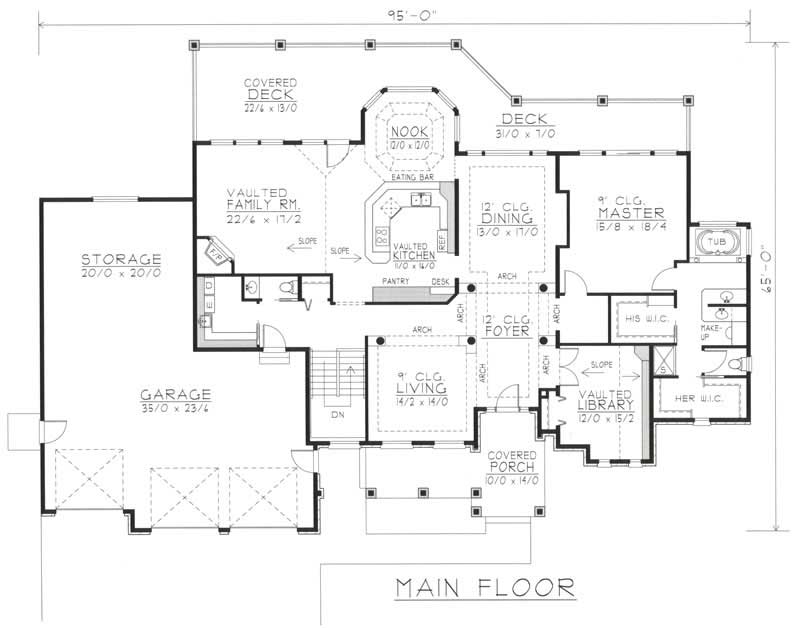

Home Plan: #162-1047 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1047
#162-1047 Floor Plan Second Story - second Floor Plan Second Story of Contemporary Plan #162-1047
Home Plan: #162-1047 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1047
#162-1047 Floor Plan Second Story - second Floor Plan Second Story of Contemporary Plan #162-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 162-1047
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
4923
Main Floor:
2724
Unfinished Sq Ft:
Lower Floor:
2199
Garage :
1260

Dimensions

Width:
95' 0"
Depth:
65' 0"
Ridge Height:
24'6' 0"

Architectural Styles

Contemporary
European
Ranch

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Hip

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

One full printed set with a license to build one home. Generally, we advise customers to purchase a package with more than one set as it is illegal to make copies of a set, and you typically need multiple sets to complete construction of your home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
