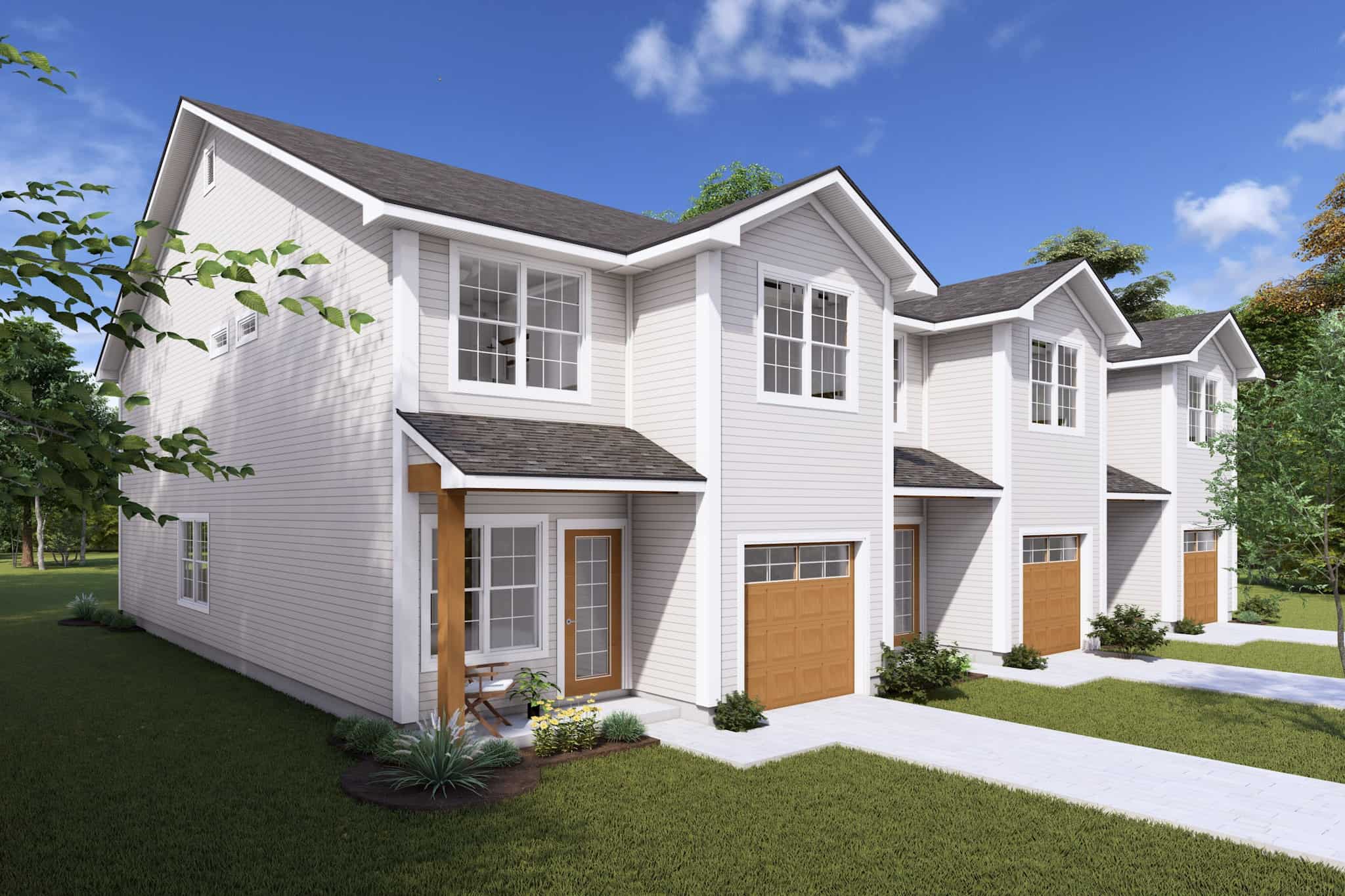

Cottage Triplex Plan with Matching 3-Bedroom, 2.5 Bathroom Units
Related House Plans
| 5559 SQUARE FEET | 9 BEDROOMS | 6 FULL BATH | 3 HALF BATH |
| 2 FLOOR | 66' 0" WIDTH | 50' 0" DEPTH | 3 GARAGE BAY |
Standing as a testament to extraordinary architectural design, the 3-unit Cottage style home exudes excellence and genuineness, creating the perfect residence for families. Featuring a 2-story floor plan with 5,559 living sq ft (1,853 living sq ft per unit), it offers an array of excellent amenities:
- 3 Bedrooms per unit
- 2.5 Baths per unit
- 1 Car-Garage per unit
- Living Room, Study Room, Media Room, Kitchen with Walk-in Pantry
- Open Floor Plan
Each plan set includes the following:

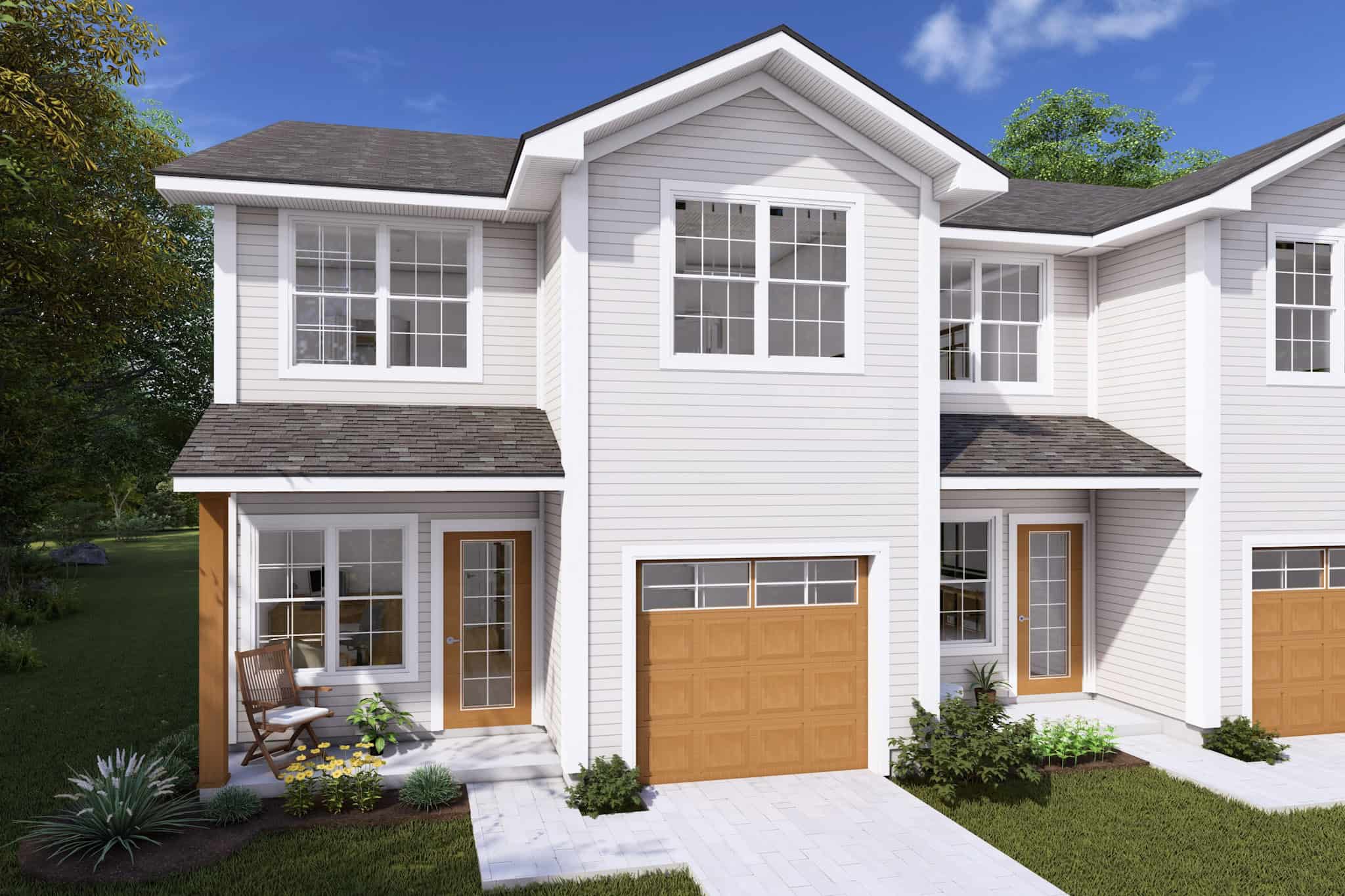

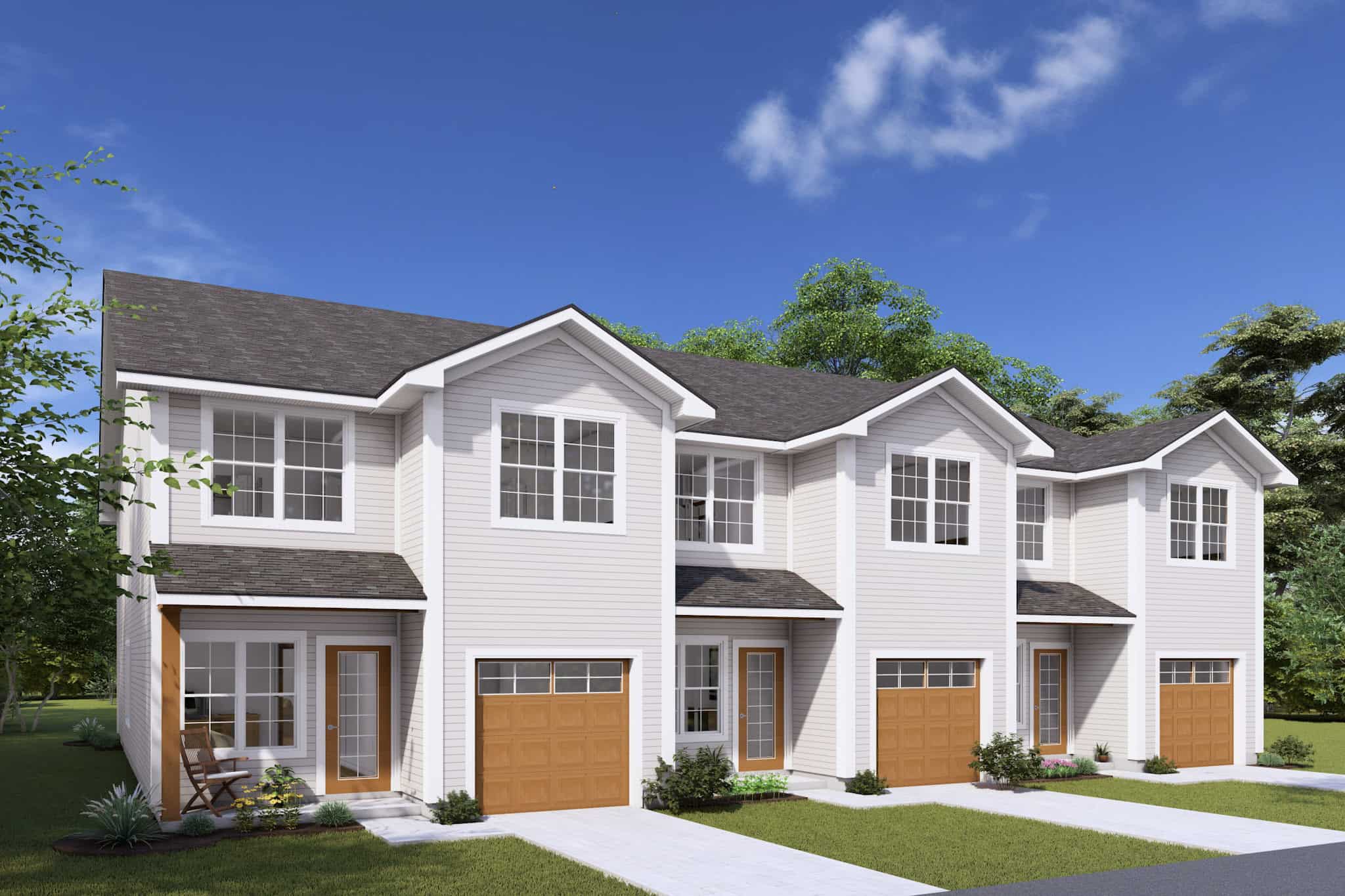

- Front elevation and construction notes

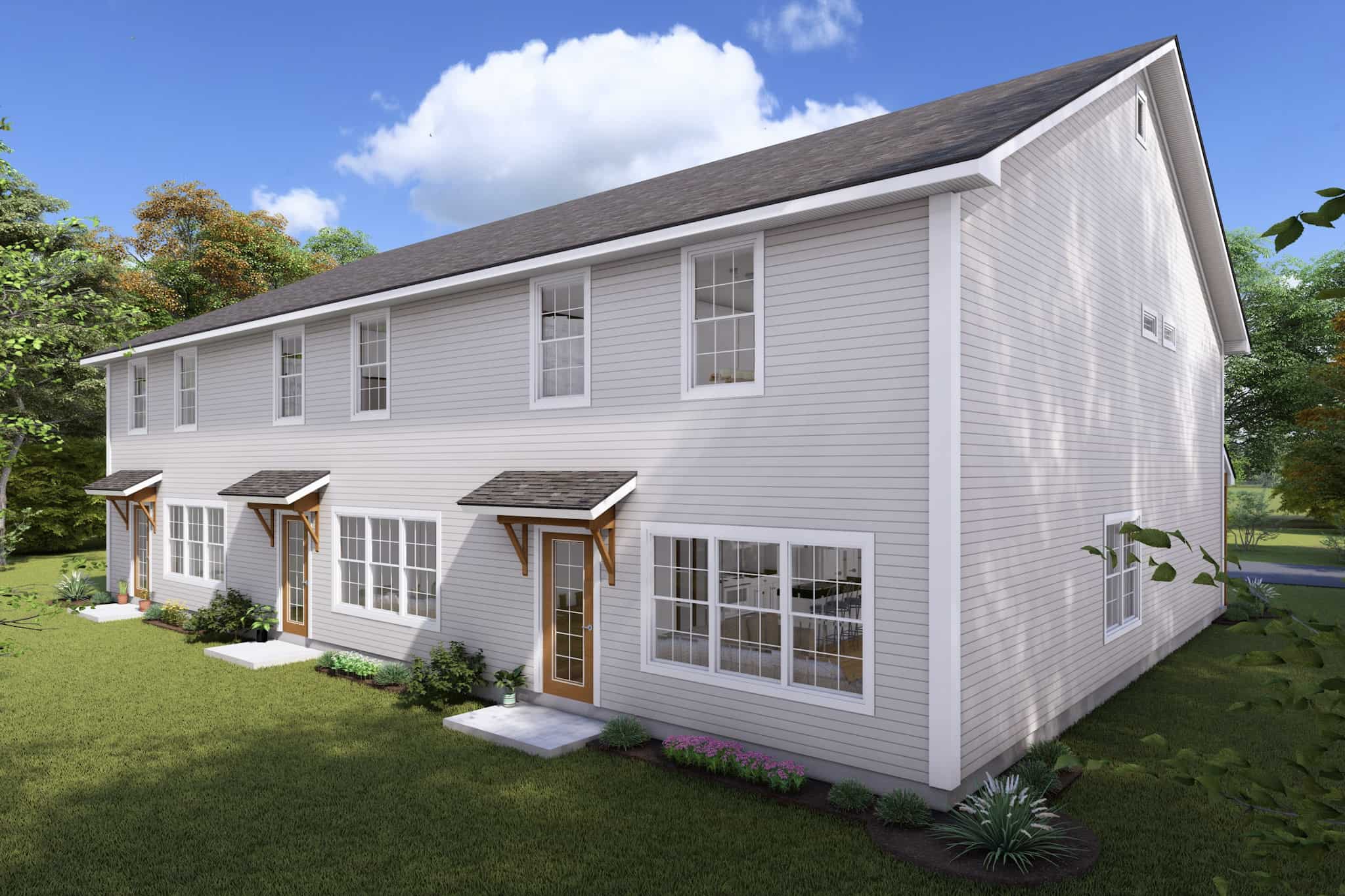

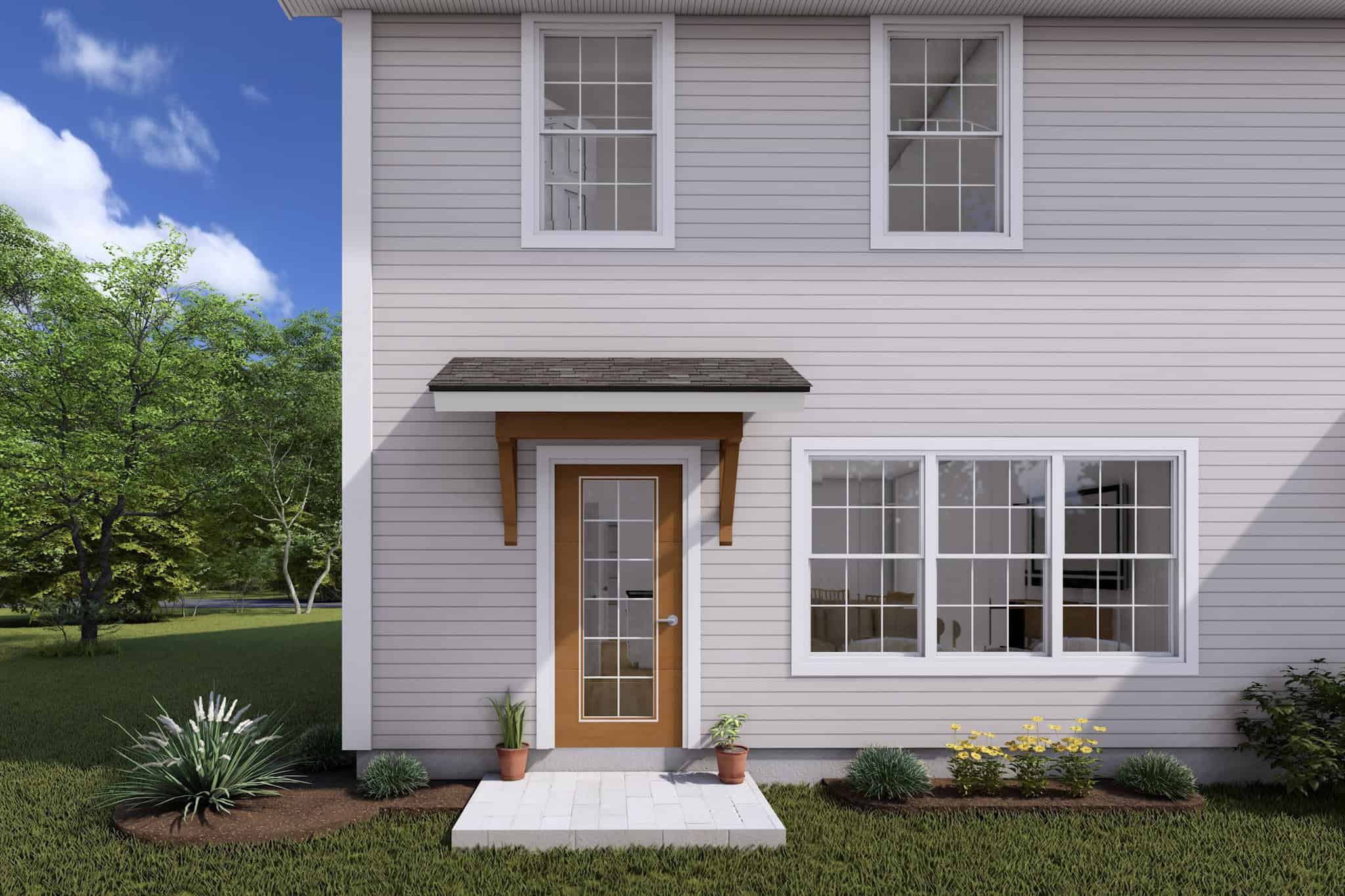

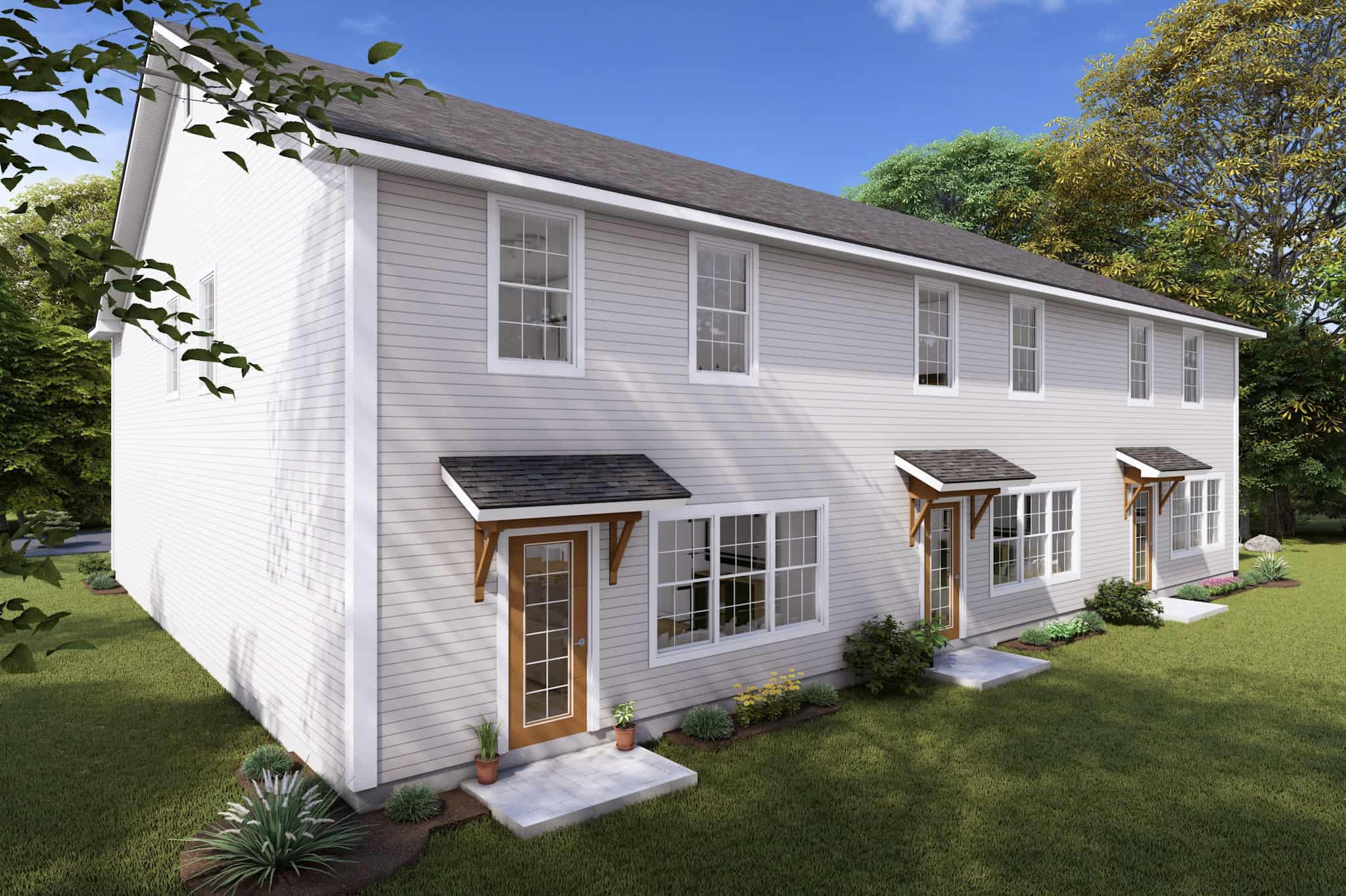

- Rear and side elevations

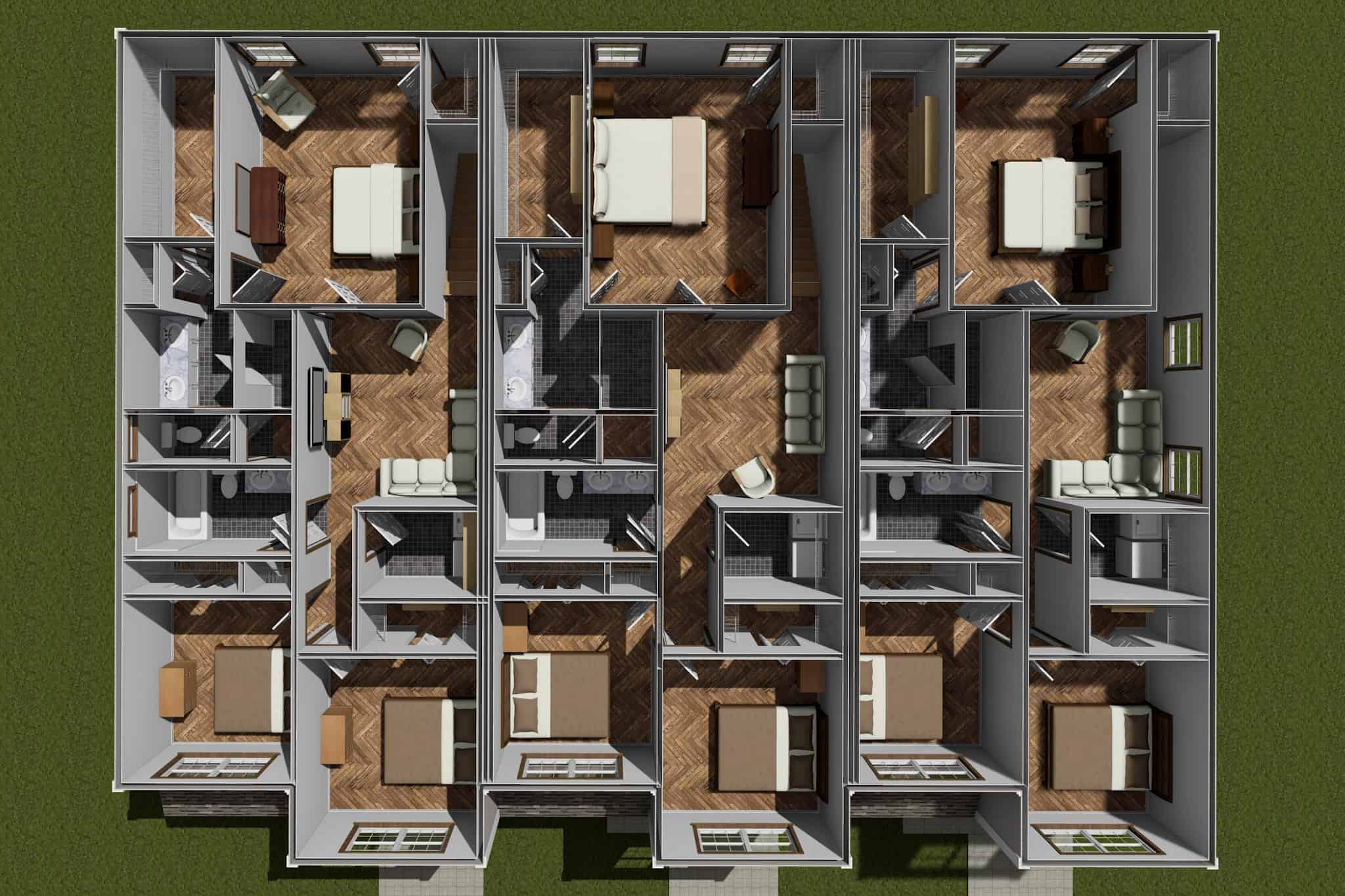

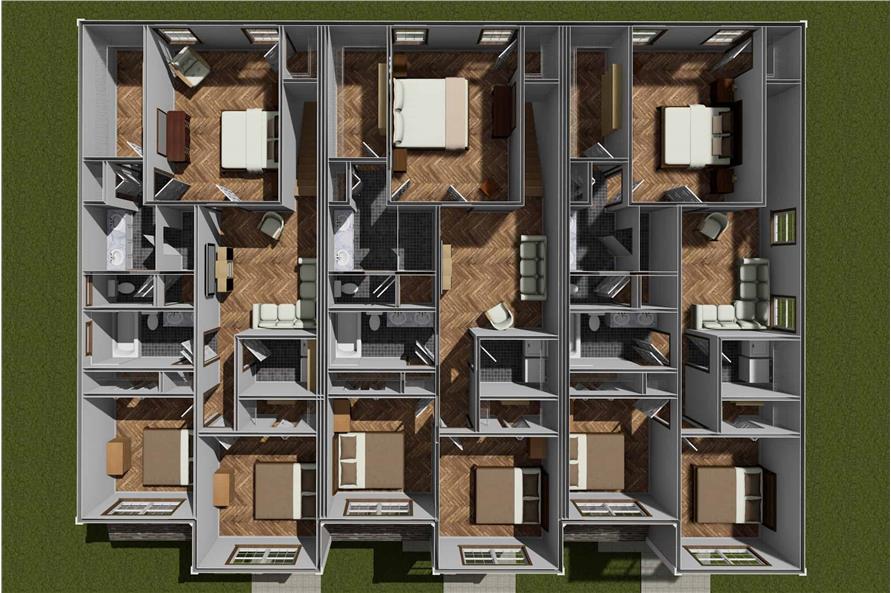

- Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)

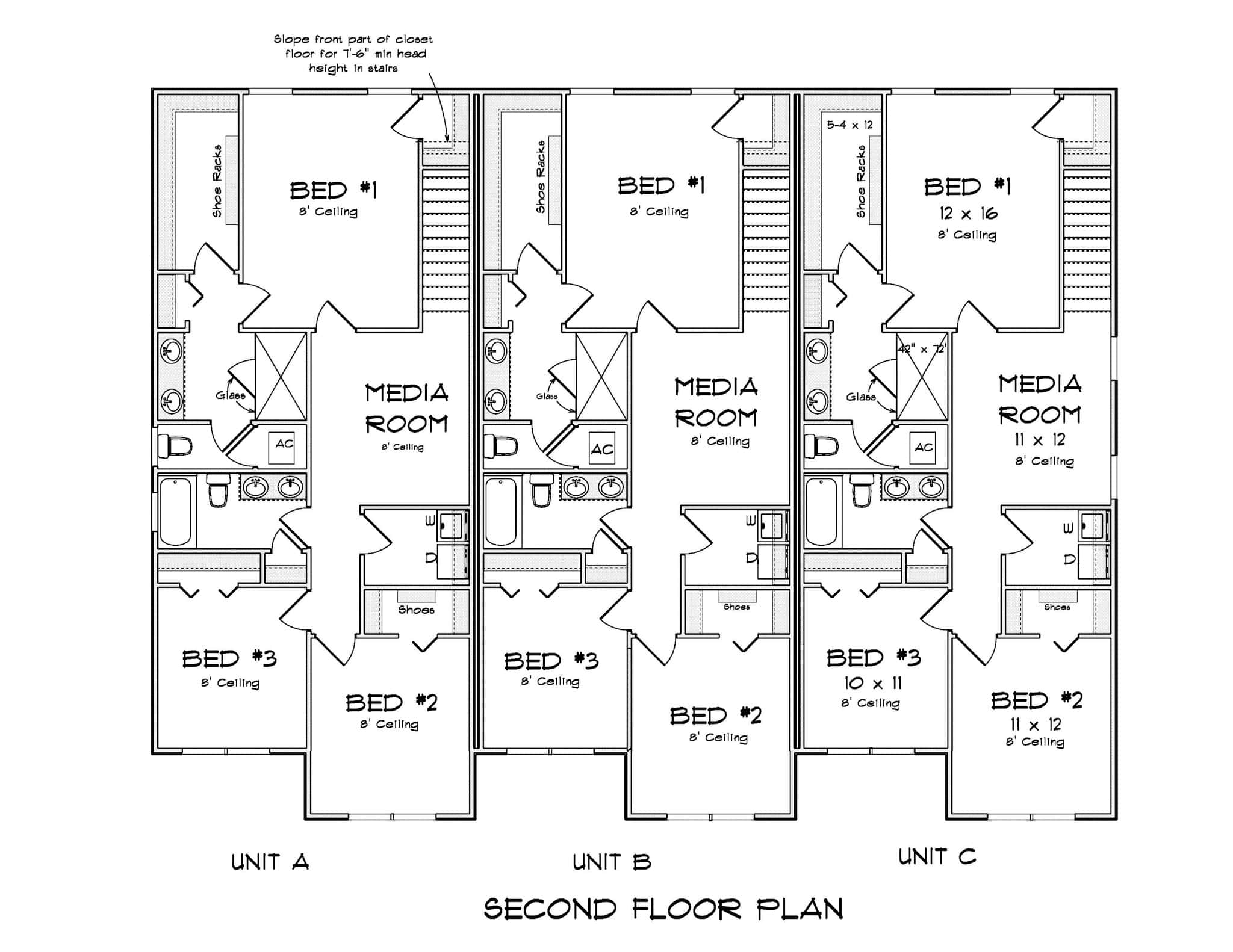

- Second-floor plan (if applicable) with the same info as shown on first-floor plan
- Typical wall section
- Typical foundation details

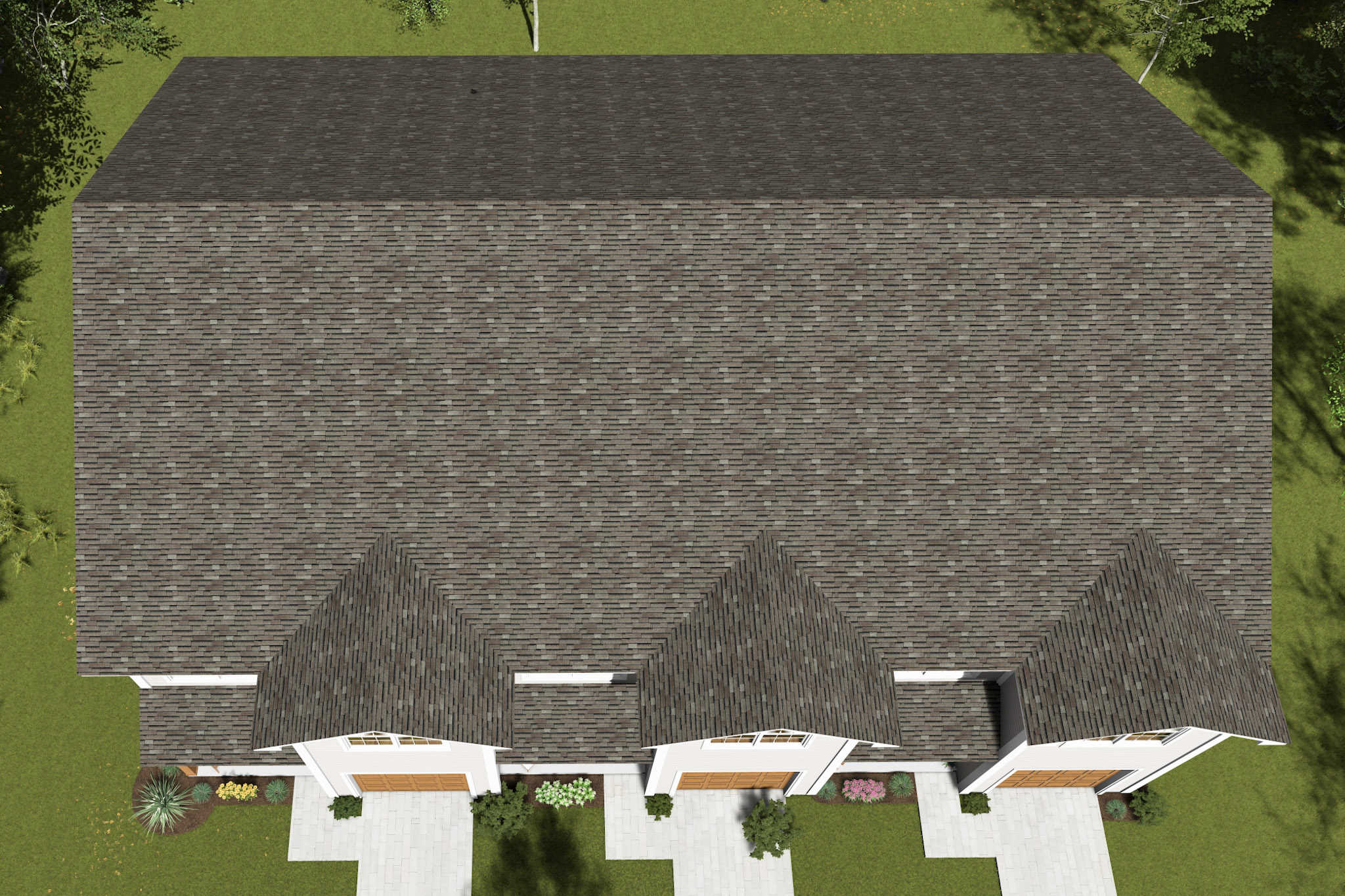

- Roof plan showing roof pitches, ridges & valleys.
- Foundation plan
- Full building section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

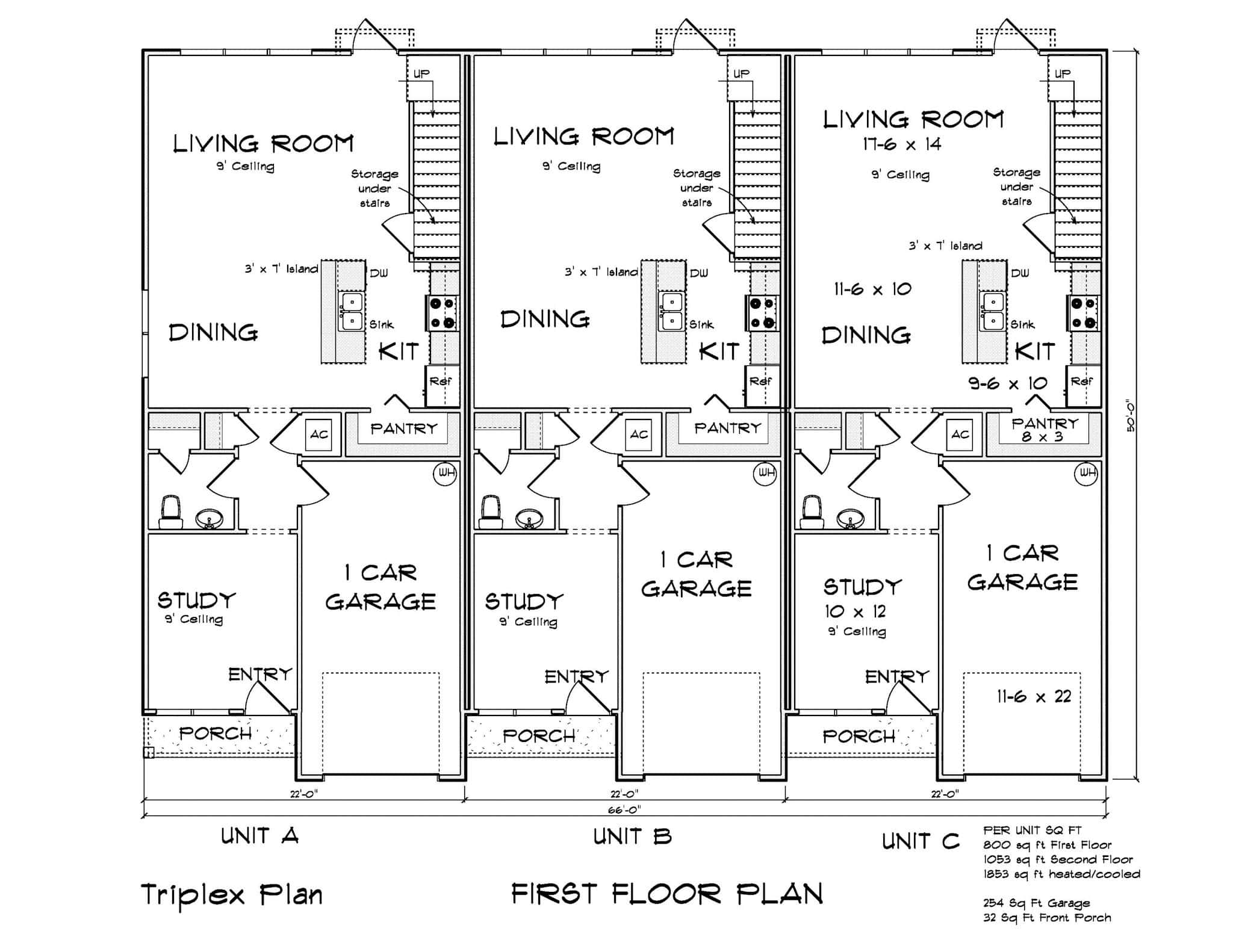

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer

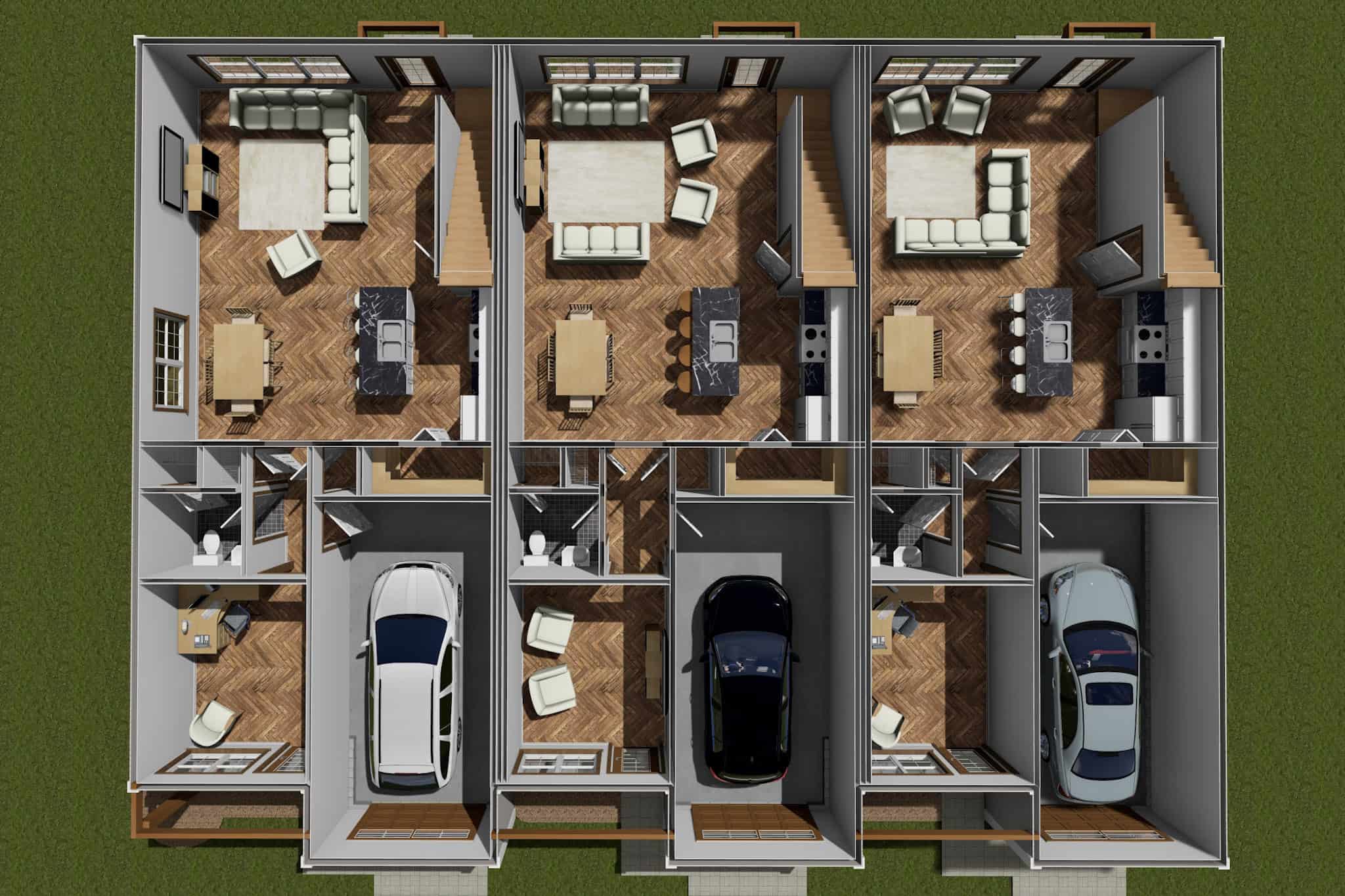

This multi-family plan has three identical units. Each unit has 1,853 living square feet, 3 bedrooms, 2.5 baths, and 1 garage space.
Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
