5-Bedroom, 4811 Sq Ft Luxury Plan with Sundeck

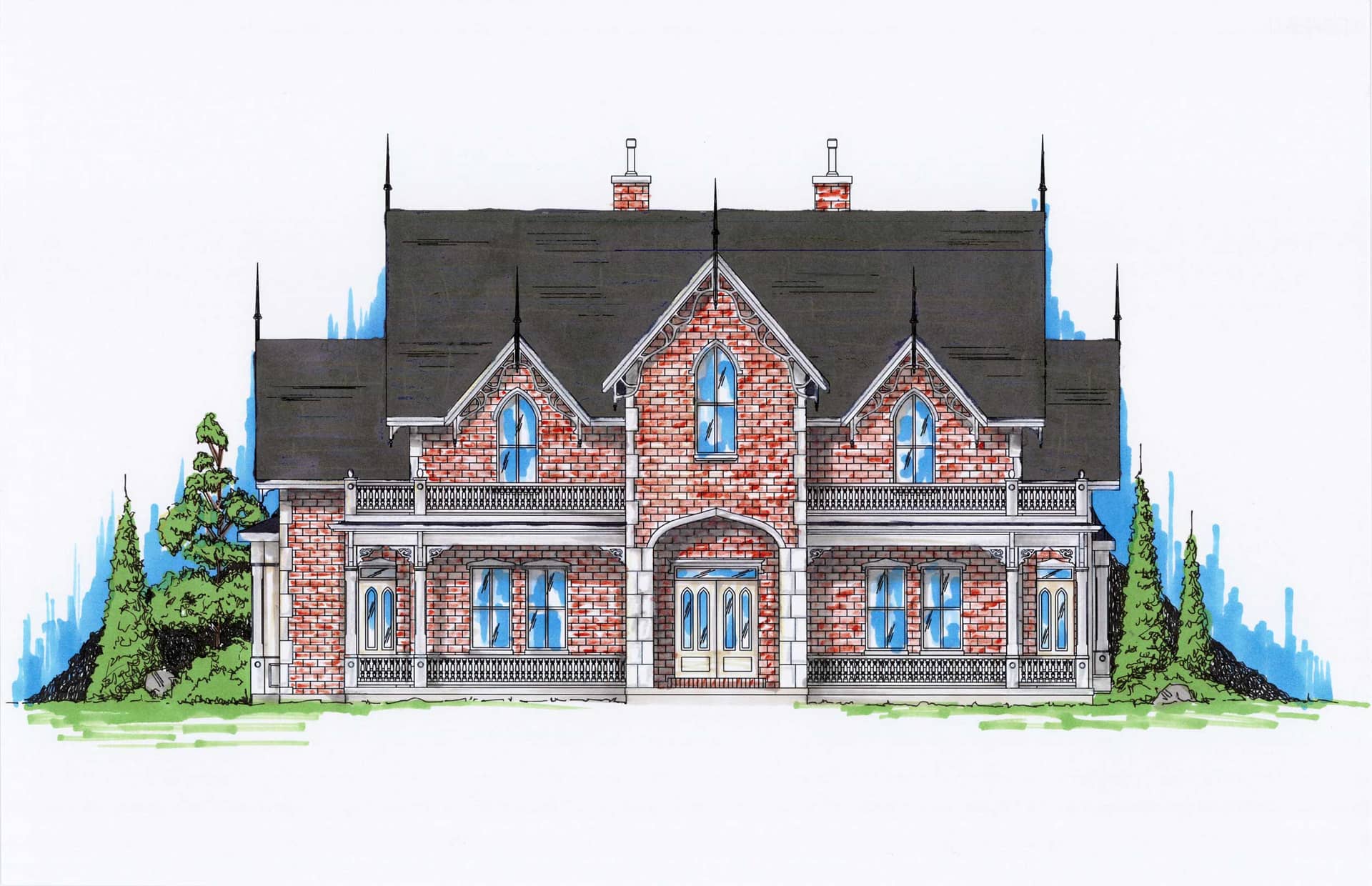

Color Rendering of this house plan

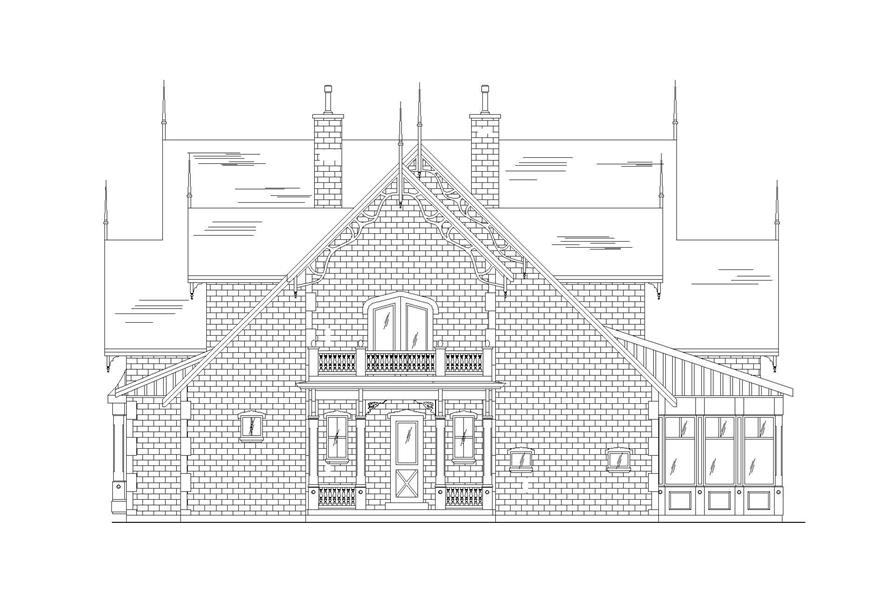

Home Plan Rear Elevation

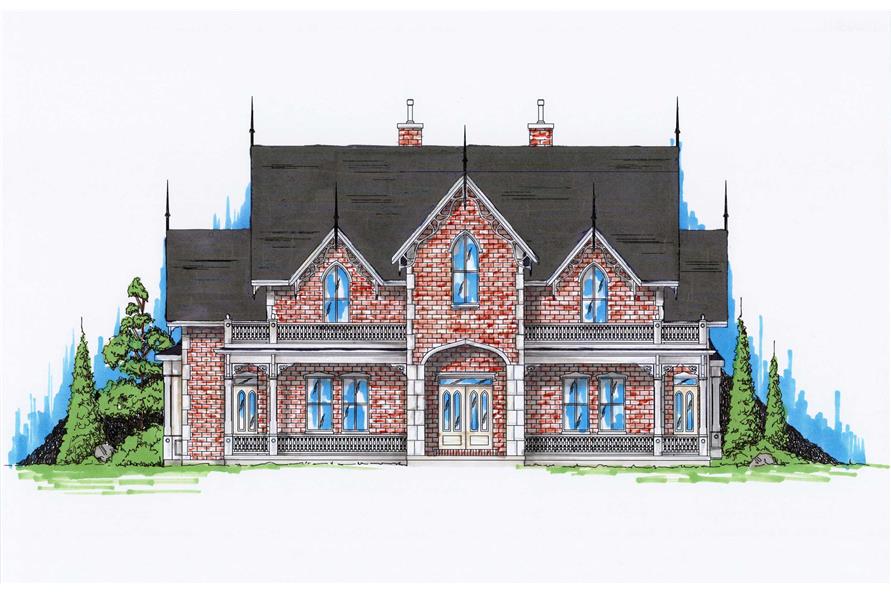

5-Bedroom, 4811 Sq Ft Luxury House Plan - 135-1008 - Front Exterior

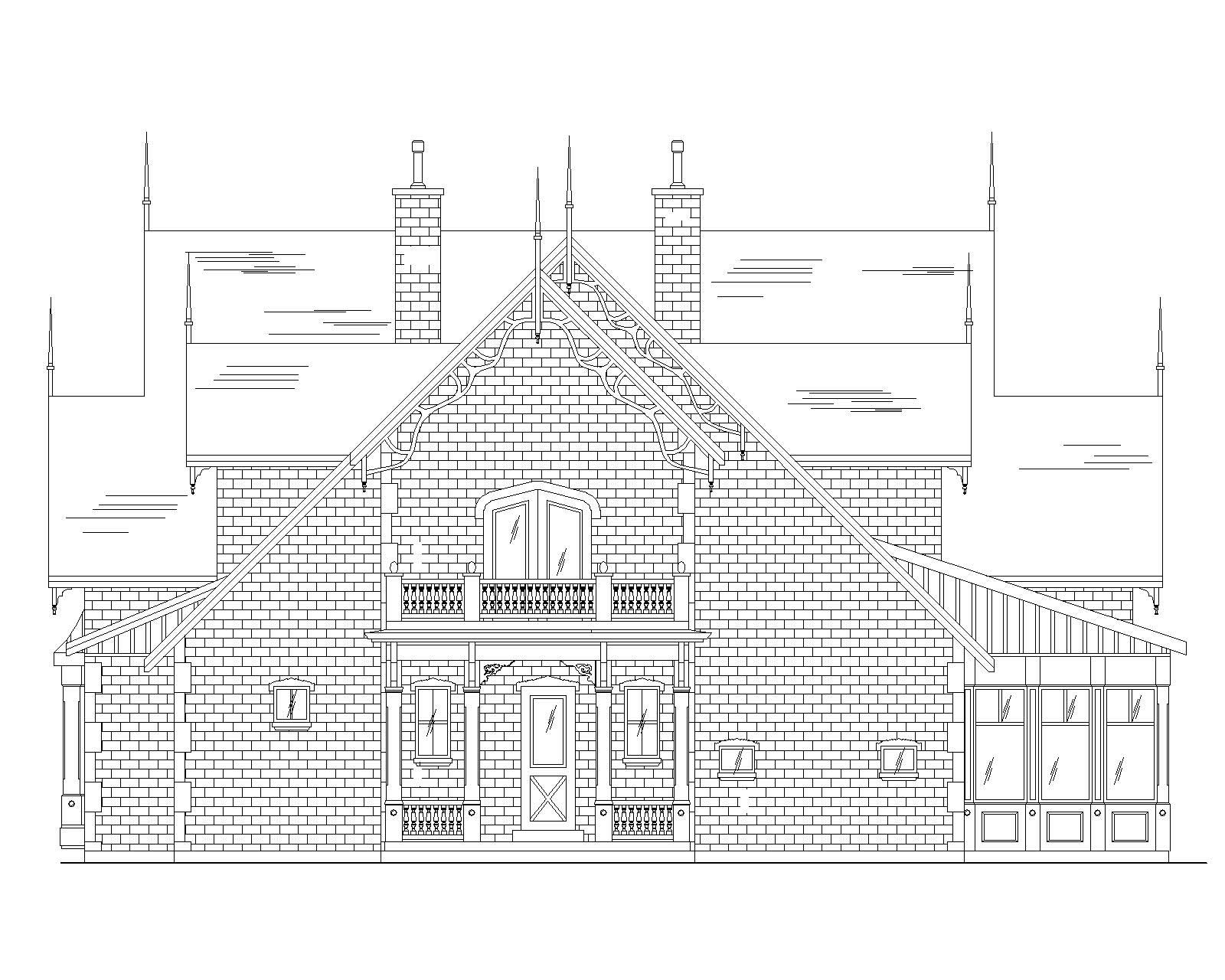

Home Plan Rear Elevation

About Plan # 135-1008

About Plan # 135-1008

4811 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 60' 4" WIDTH 69' 3" DEPTH 0 GARAGE BAY
Victorian plans look elegant in any size but this one goes above and beyond. The porch and deck on the front of the home have a great design with a split in the middle to add another dimension to its grandeur.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

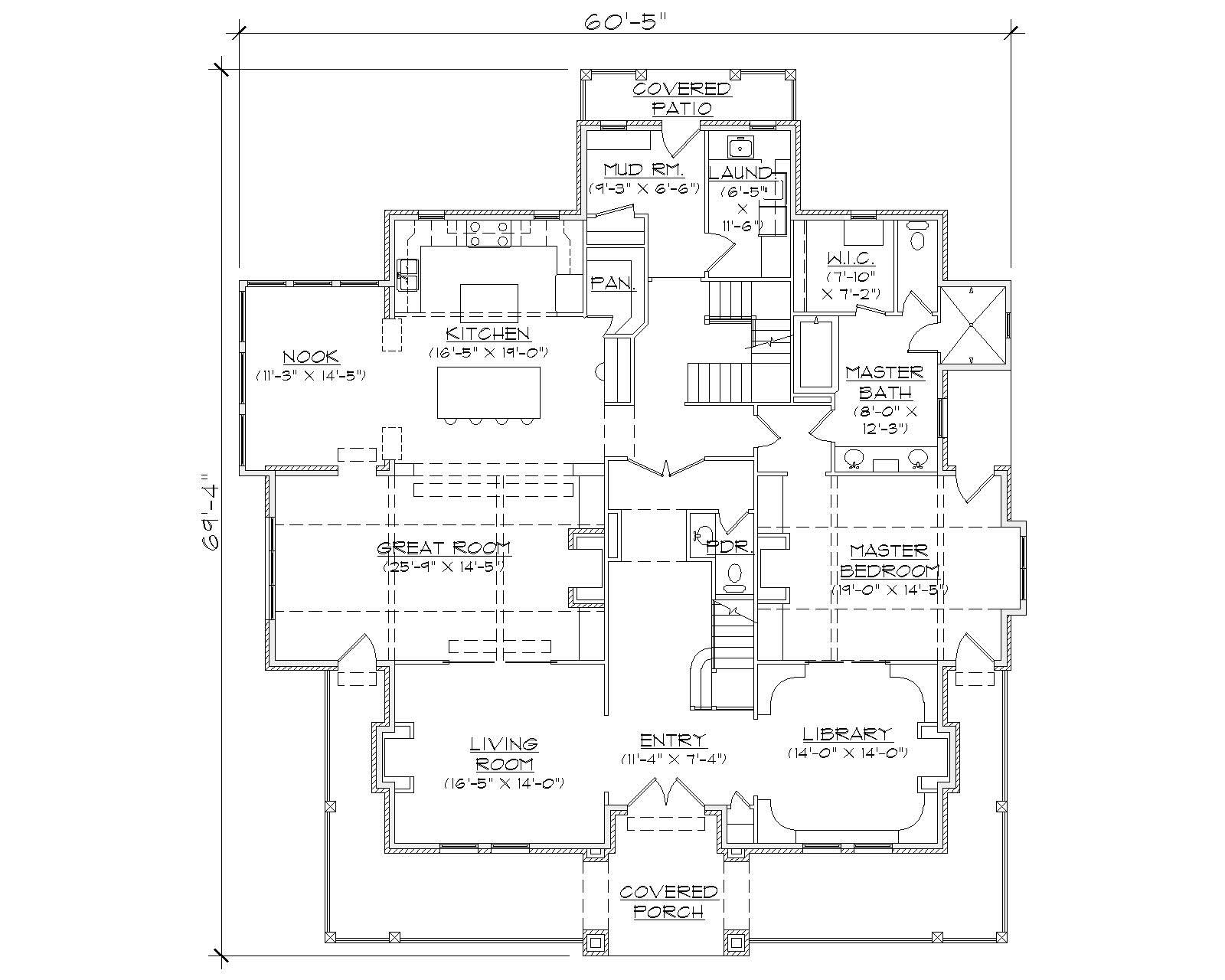

Home Plan: #135-1008 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #135-1008

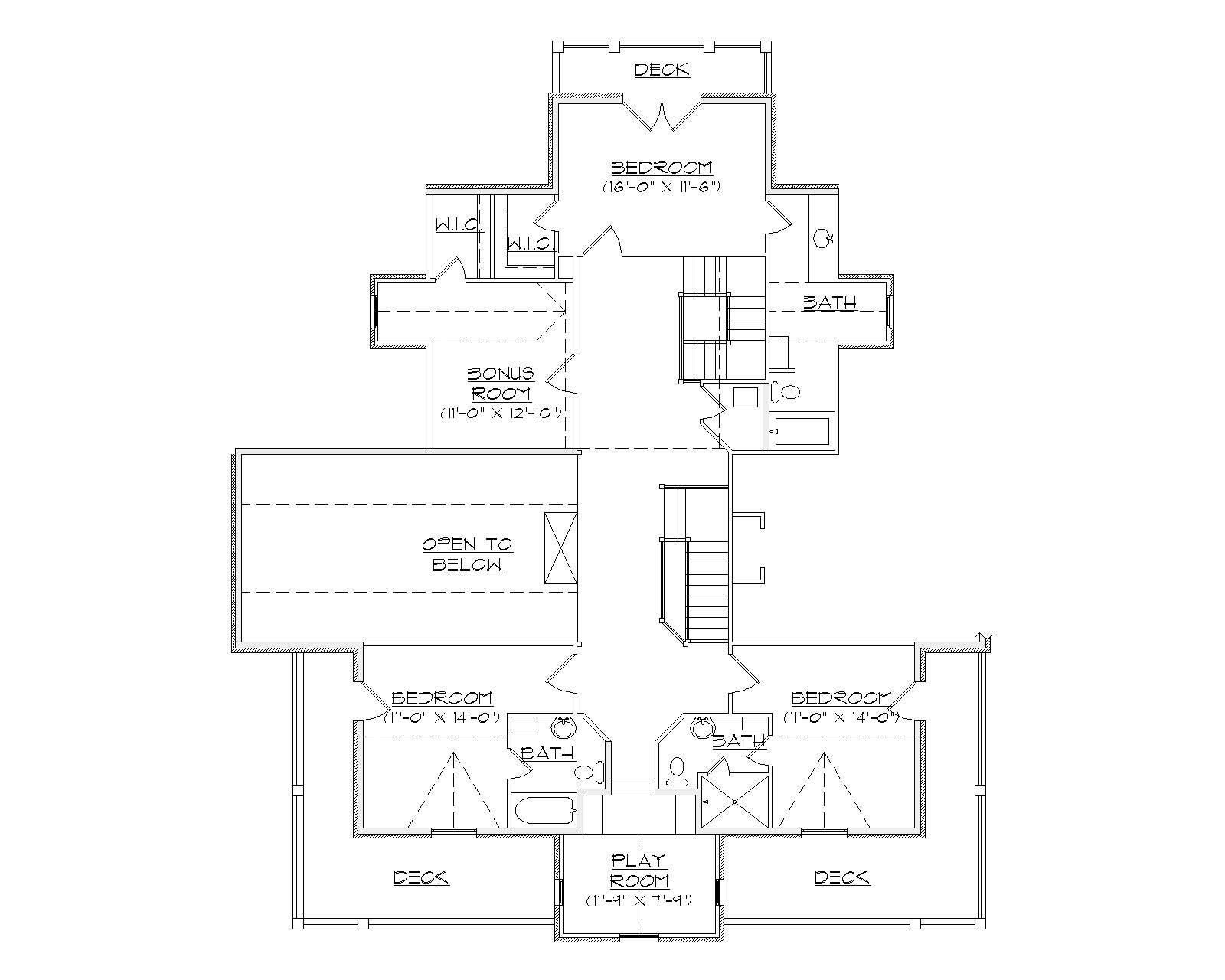

#135-1008 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #135-1008

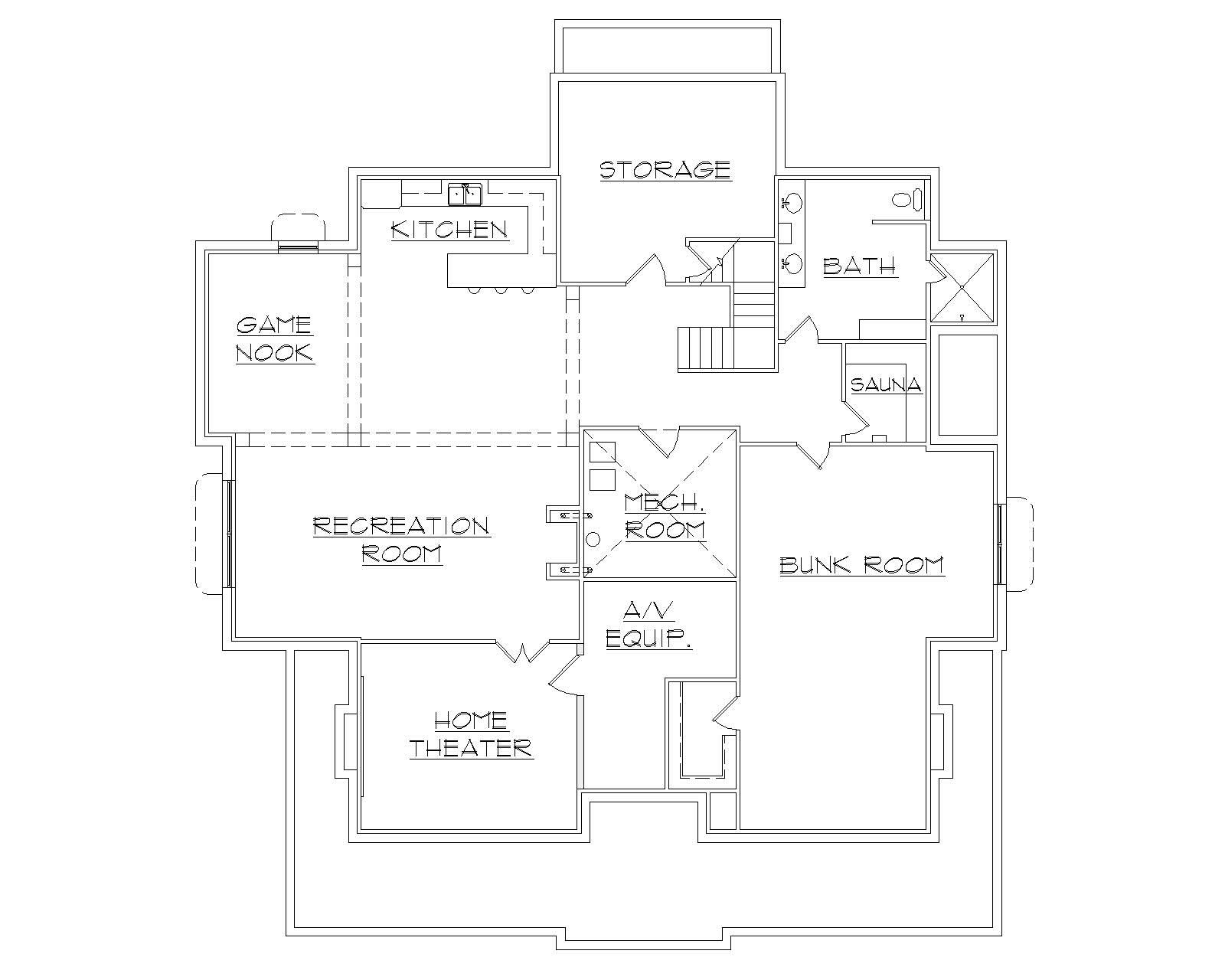

#135-1008 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #135-1008
Home Plan: #135-1008 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #135-1008
#135-1008 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #135-1008
#135-1008 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #135-1008
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1008
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
4811
Main Floor:
2762
Upper Floor:
2049
Unfinished Sq Ft:
Lower Floor:
2629

Dimensions

Width:
60' 4"
Depth:
69' 3"
Ridge Height:
35'3"' 0"

Architectural Styles

Luxury
Victorian

Exterior Wall Material

Brick

Roofing Type

Gable

Roof Pitch

14/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Bonus Room
Fireplace
Game Room
Home Theater
Storage

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Rear Porch
Wrap Around Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
