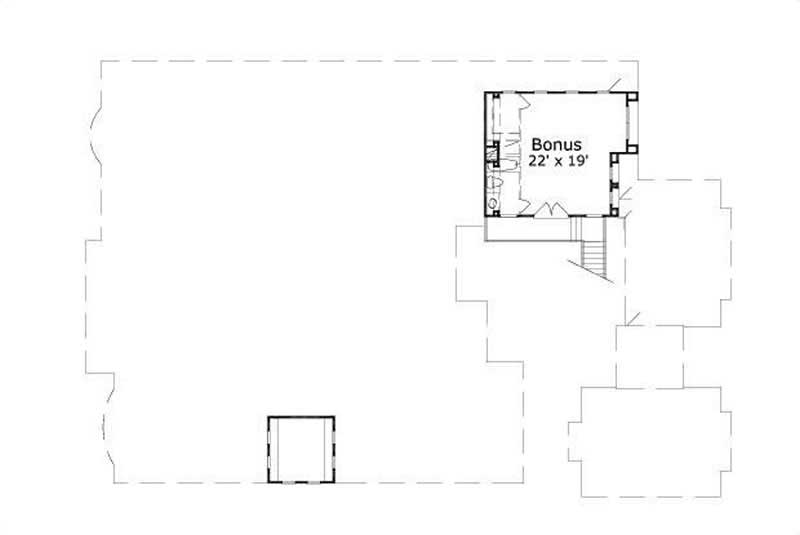

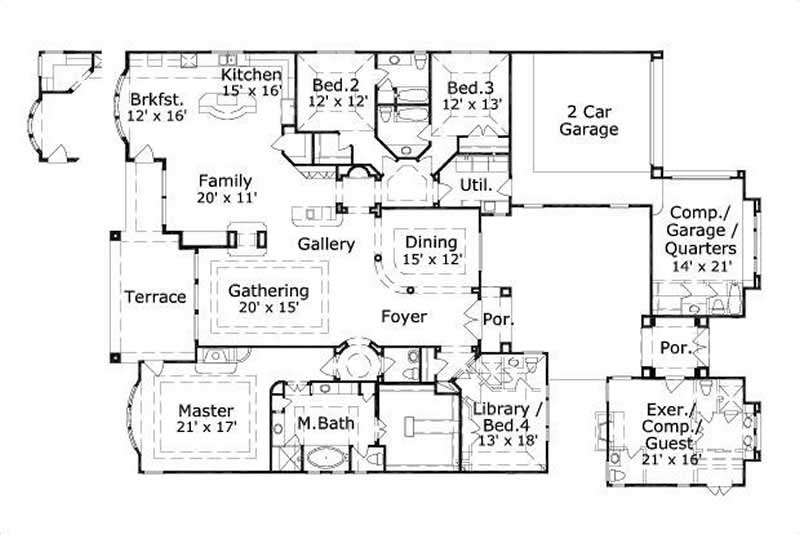

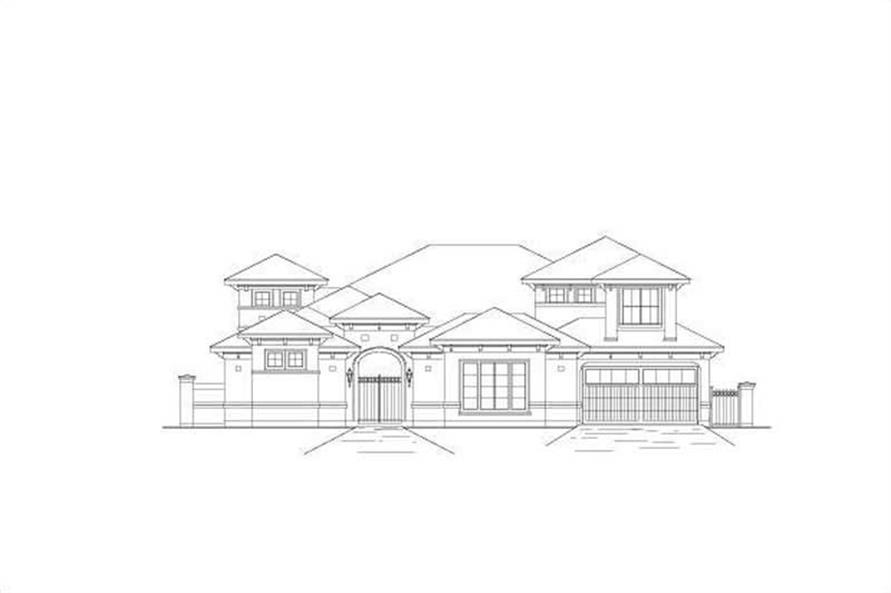

Home plan number 020423.1-01 is a two story, Mediterranean style home with a total square footage of 4,751. There are 5 bedrooms and 4 bathrooms, along with a straight in, front loading, 2 car garage. The master bedroom includes a sitting area. Plan number 020423.1-01 has a covered rear porch. Special feaetures include a bonus room, casita, gym, quarters, entry courtyard, portico and a tile roof. Other features include unfinished storage, butler pantry, computer alcove and a home office.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
