5-Bedroom, 4403 Sq Ft Coastal Plan with Peninsula/Eating Bar

Mediterranean homeplans color rendering.

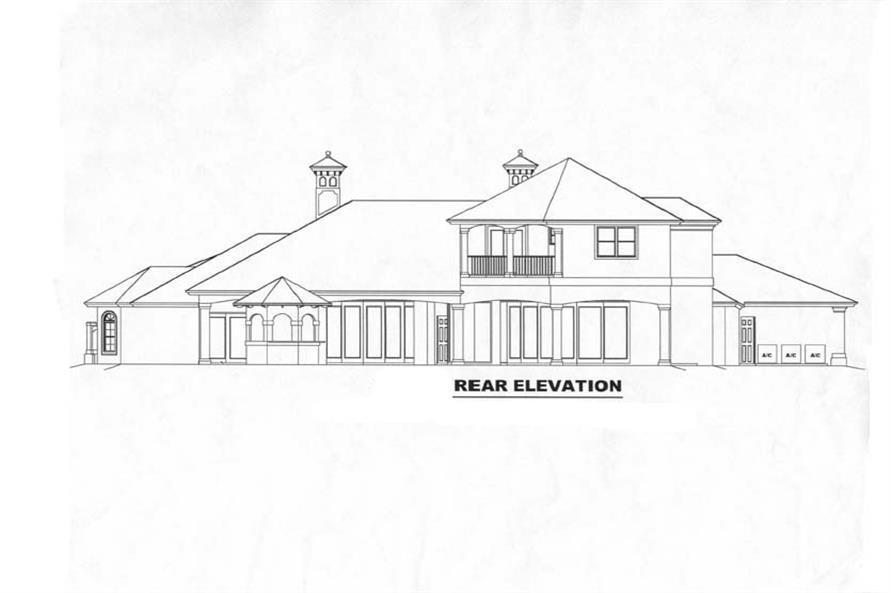

175-1058: Home Plan Rear Elevation

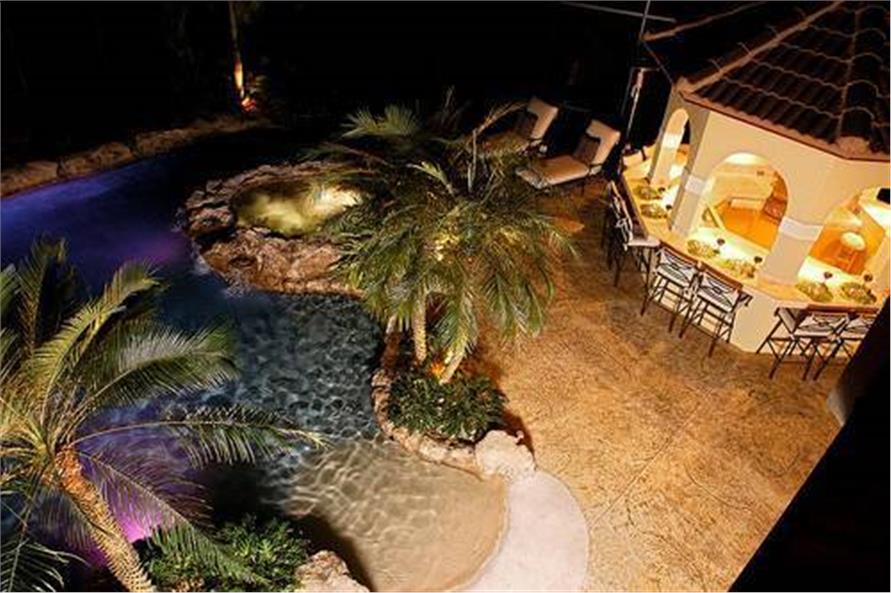

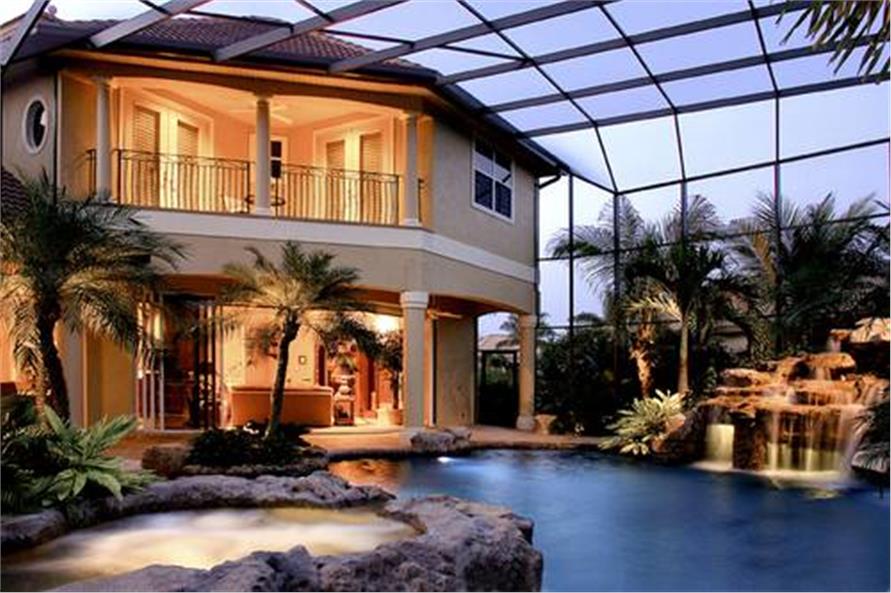

175-1058: Home Exterior Photograph-Pool

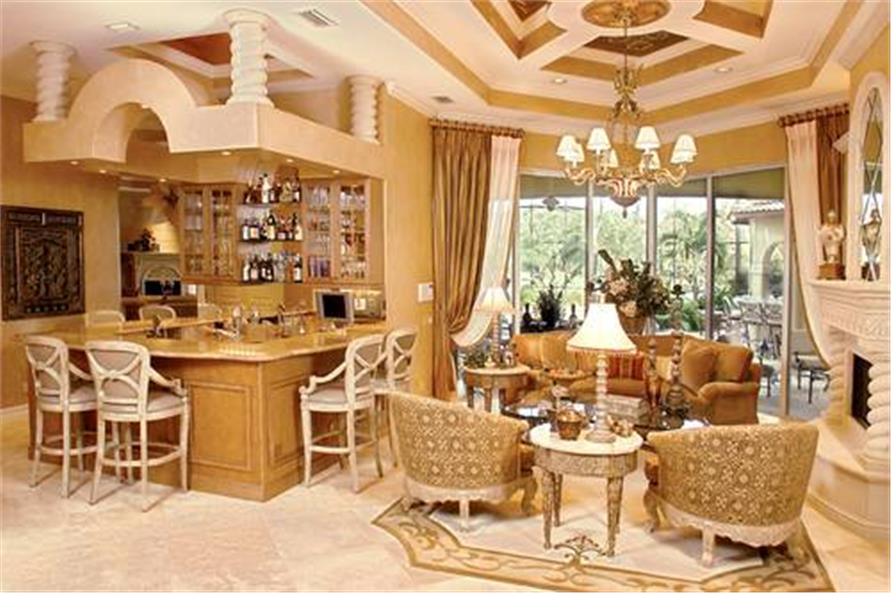

175-1058: Home Interior Photograph-Living Room

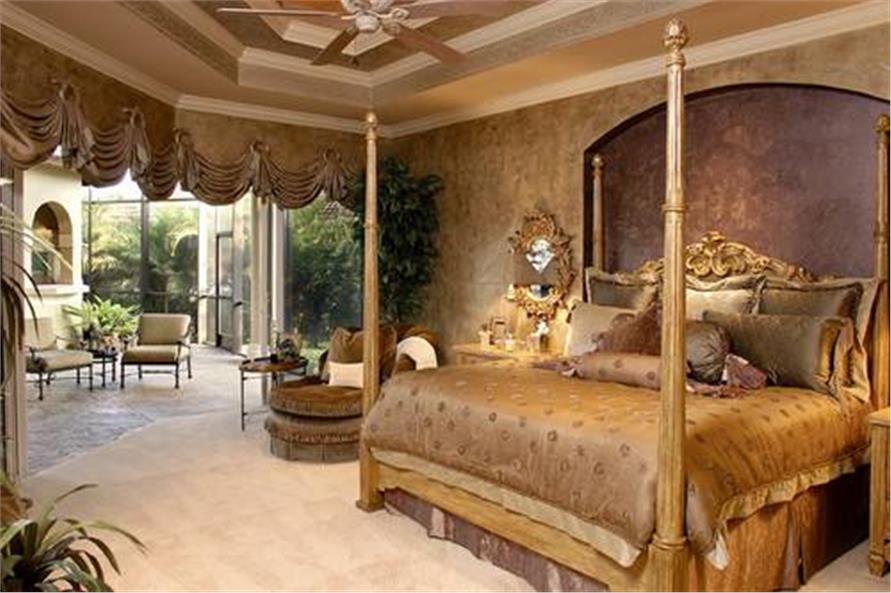

175-1058: Home Interior Photograph-Master Bedroom

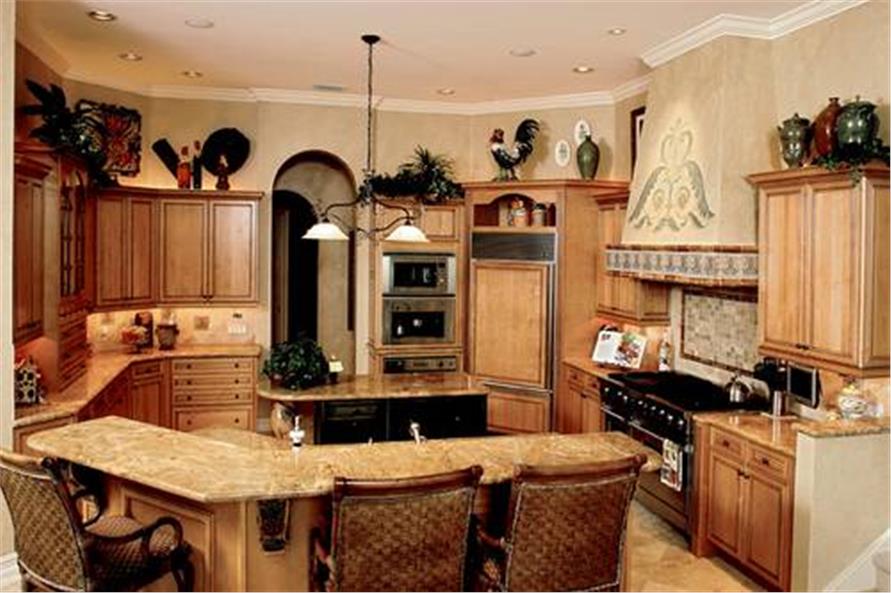

175-1058: Home Interior Photograph-Kitchen
175-1058: Home Plan Other Image-Pool

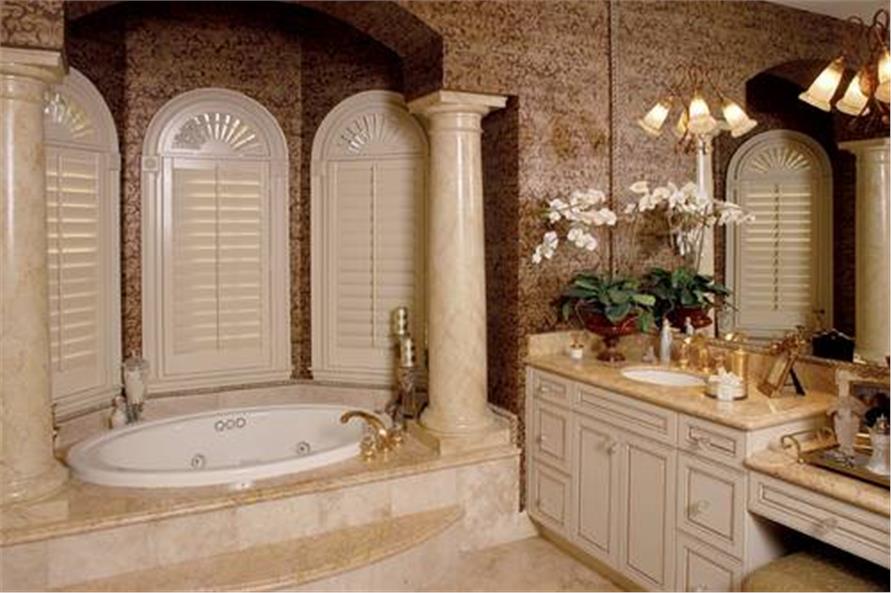

175-1058: Home Plan Other Image-Master Bathroom
5-Bedroom, 4403 Sq Ft Coastal House Plan - 175-1058 - Front Exterior
175-1058: Home Plan Rear Elevation
175-1058: Home Exterior Photograph-Pool
175-1058: Home Interior Photograph-Living Room
175-1058: Home Interior Photograph-Master Bedroom
175-1058: Home Interior Photograph-Kitchen
175-1058: Home Plan Other Image-Pool
175-1058: Home Plan Other Image-Master Bathroom

About Plan # 175-1058

About Plan # 175-1058

4403 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 115' 7" WIDTH 91' 7" DEPTH 3 GARAGE BAY

This Mediterranean house plan has won the 2003 Pinnacle Awards for Product Design of the Year and Two Aurora Awards in 2003. Varying roof planes of colorful tile surfaces, precast rope columns, and large picture windows, makes a dramatic first impression that is unrivaled. This home overflows with character and detail, from the creative ceiling designs to the multiple walls of shimmering glass. Space for formal entertaining is shared between the dinning room and the elegant living room, accented by the zero corner sliding glass doors, and the casual wet bar with trayed ceiling. The living room is impressive with its centered fireplace and built-in shelving. Down the hall, on either side of the built-in art niche, you will find 2 oversized bedrooms with their own private baths. A step saving kitchen works well with the cozy dinette and its beautiful section of mitered glass, or the enormous family room with warming fireplace and built-in entertainment center. From the family room, living room, or the master suite, open your expansive double pocket sliding glass doors to access your entertainment sized lanai and pool area. Take full advantage of your charming gazebo with outdoor kitchen, when entertaining friends poolside. Just past the study you will find the elegant master suite, with double door entry, high ceilings, and intimate sitting area. Separated by a pocket door are the exercise room and master bath. The exercise room comes equipped with its own wet bar, and large fixed glass window to make use of all the natural light. In the master bath you will find His and Her walk-in closets, sit down vanity, whirlpool tub, and oversize walk-in shower with glass block and mitered glass to view your private outdoor garden. Upstairs bedrooms 4 and 5 complete this plan. Each bedroom has its own bath and a splendid view of the pool and spa area from the covered lanai. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

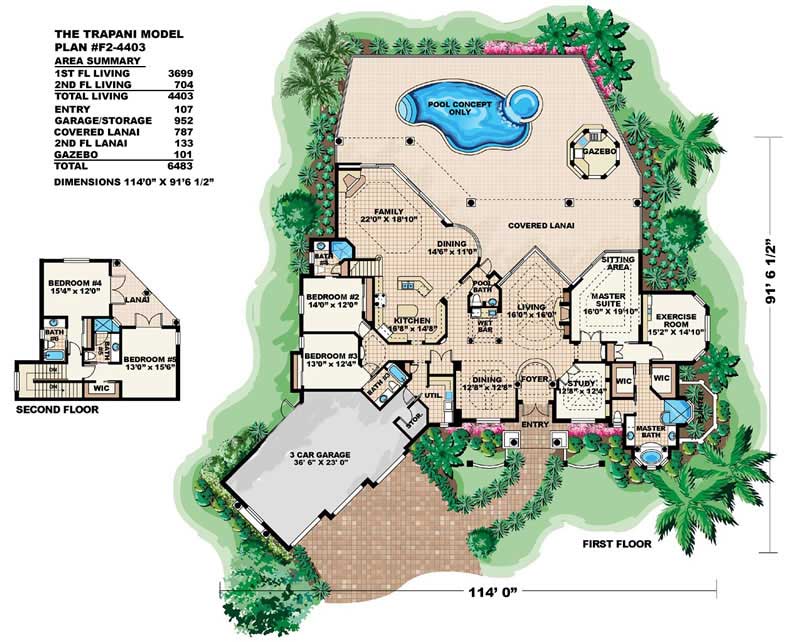

Home Plan: #175-1058 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #175-1058
Home Plan: #175-1058 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #175-1058
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1058
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
4403
Main Floor:
3699
Upper Floor:
704
Unfinished Sq Ft:
Bonus Room:
133
Garage :
952

Dimensions

Width:
115' 7"
Depth:
91' 7"
Ridge Height:
34' 0"

Architectural Styles

European
Mediterranean
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
California Style
In-Law Suite

Exterior Wall Material

Vinyl Siding

Roofing Material

Tiles

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
8 Foot Ceiling

Special Feature

In Home Gym
Fireplace
Dining Room
Bonus Room
Family Room
Main Level Laundry
Library
Loft
Split Bathroom
Storage
Den
Vaulted Ceilings
Balcony

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x6
Concrete

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Rear Porch
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
