5-Bedroom, 4330 Sq Ft Traditional Plan with Walk-in Pantry

Traditional home plan – computer photo-realistic front elevation (House Plan #175-1135)
5-Bedroom, 4330 Sq Ft Traditional Home Plan - 175-1135 - Main Exterior

About Plan # 175-1135

About Plan # 175-1135

4330 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 68' 8" WIDTH 81' 2" DEPTH 2 GARAGE BAY

This lovely Traditional style home with Country influences (Plan #175-1135) has 4330 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

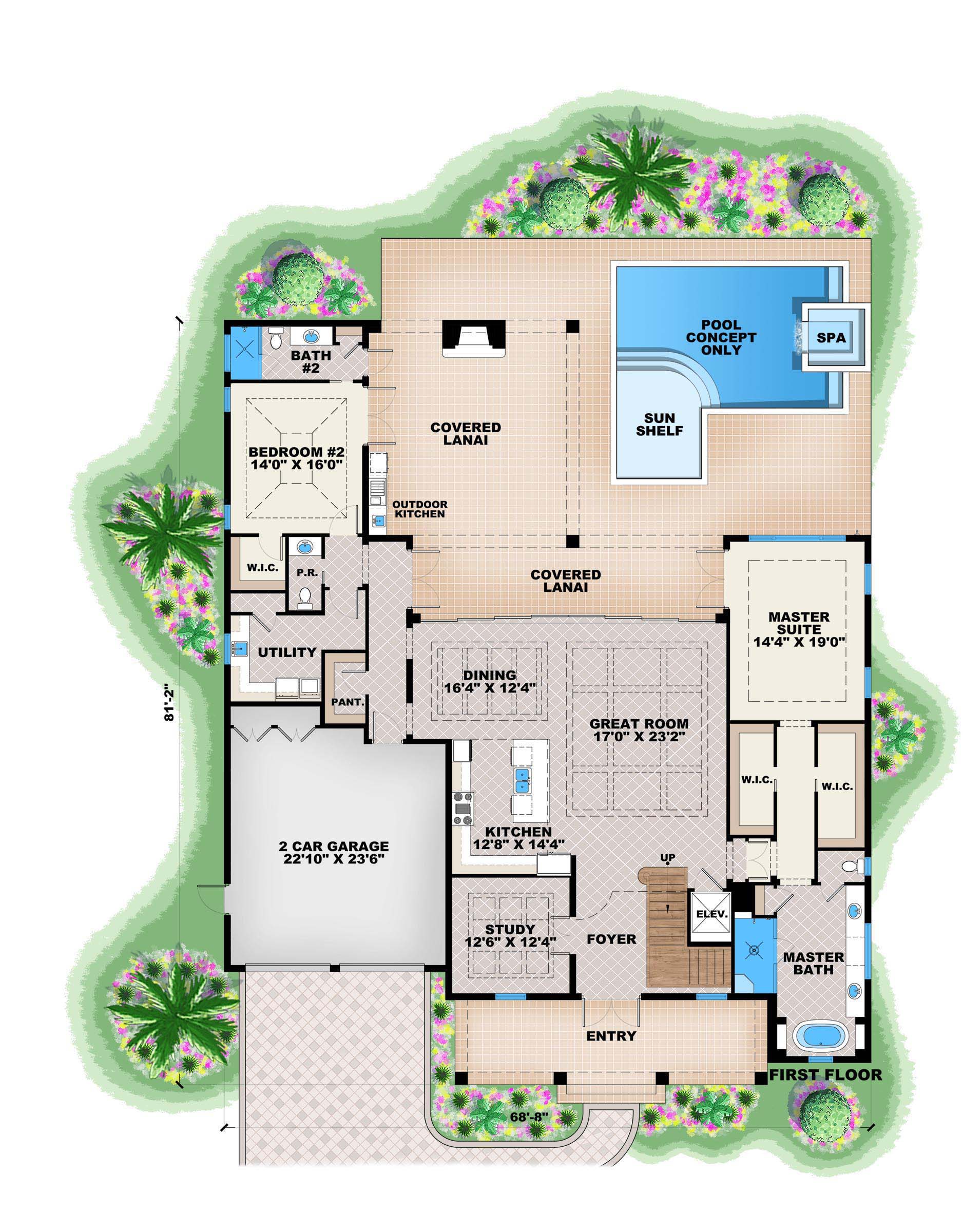

Home Plan: #175-1135 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #175-1135

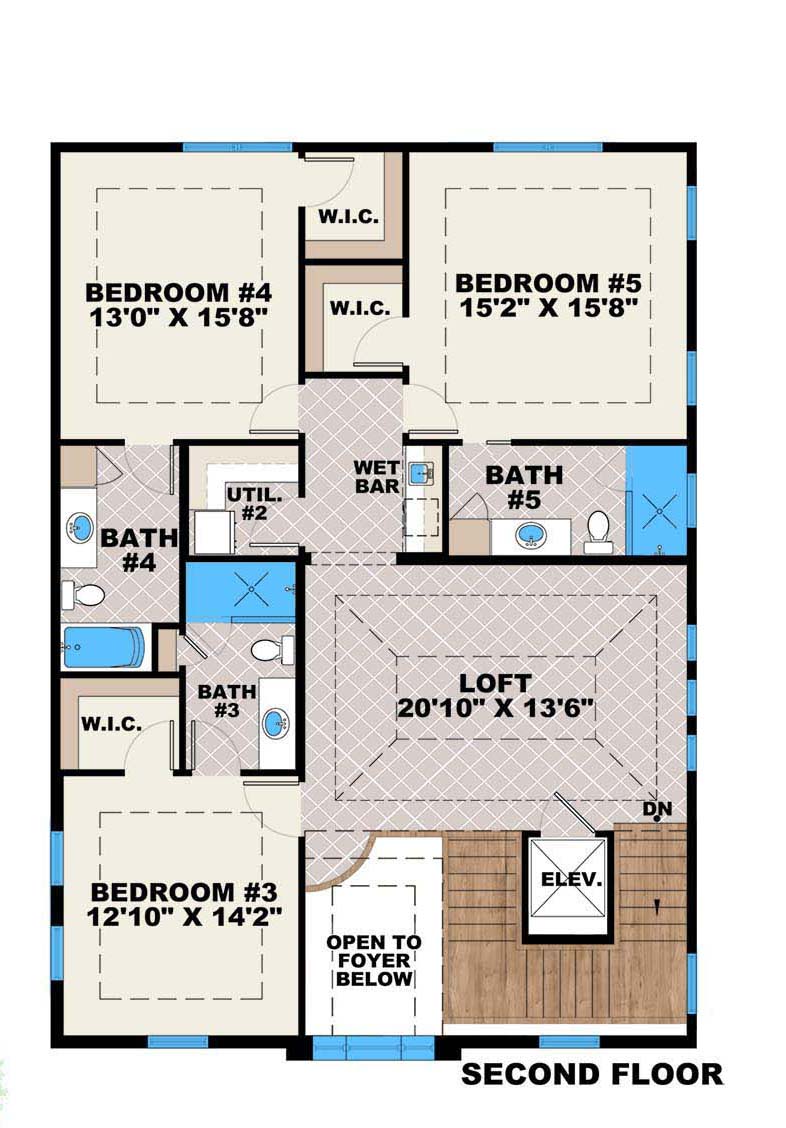

#175-1135 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #175-1135
Home Plan: #175-1135 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #175-1135
#175-1135 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #175-1135
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1135
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
4330
Main Floor:
2853
Upper Floor:
1477
Unfinished Sq Ft:
Garage :
613
Porch :
785

Dimensions

Width:
68' 8"
Depth:
81' 2"
Ridge Height:
36' 0"

Architectural Styles

Colonial
Country
Farmhouse
Georgian
Traditional
Transitional

Exterior Wall Material

Stucco

Roofing Type

Gable
Hip

Roofing Material

Metal
Tiles

Roof Pitch

4/12
6/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling
12 Foot Ceiling

Special Feature

Balcony
Dining Room
Elevator
Family Room
Fireplace
Home Office
Library
Loft
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage
Swimming Pool
Vaulted Ceilings
Workshop

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6
Concrete

Building Lot Type

View Lot

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

This plan will still need to be engineered by a local engineering company and truss drawings done as well for most locations.  This includes all of Florida.

This plan is not for sale for use in the following areas without written consent of the designer:  Collier County, Florida, Lee County, Florida

Lower level: CMU    Upper level: 2x6 framing


PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
