4-Bedroom, 4128 Sq Ft Coastal Plan with Eat-In Kitchen

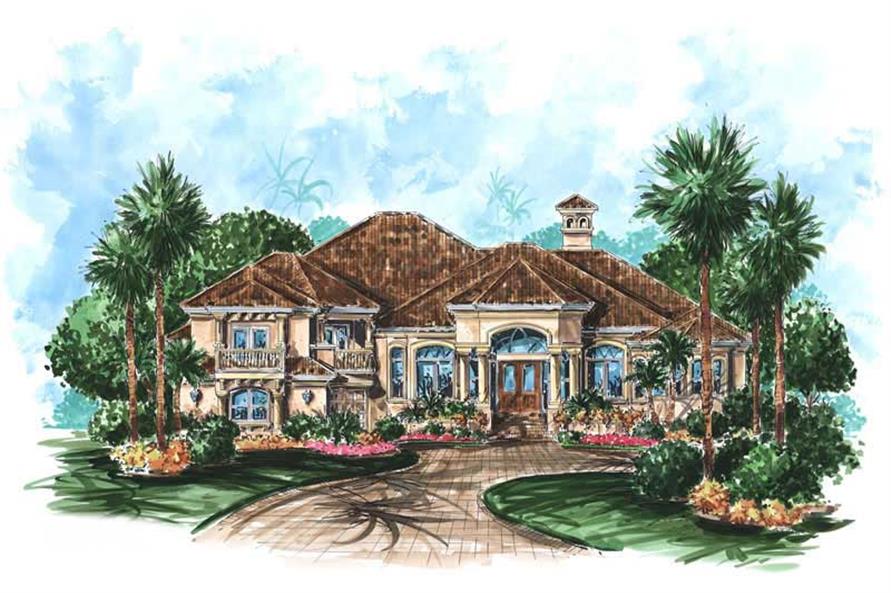

Mediterranean house plans color front elevation.

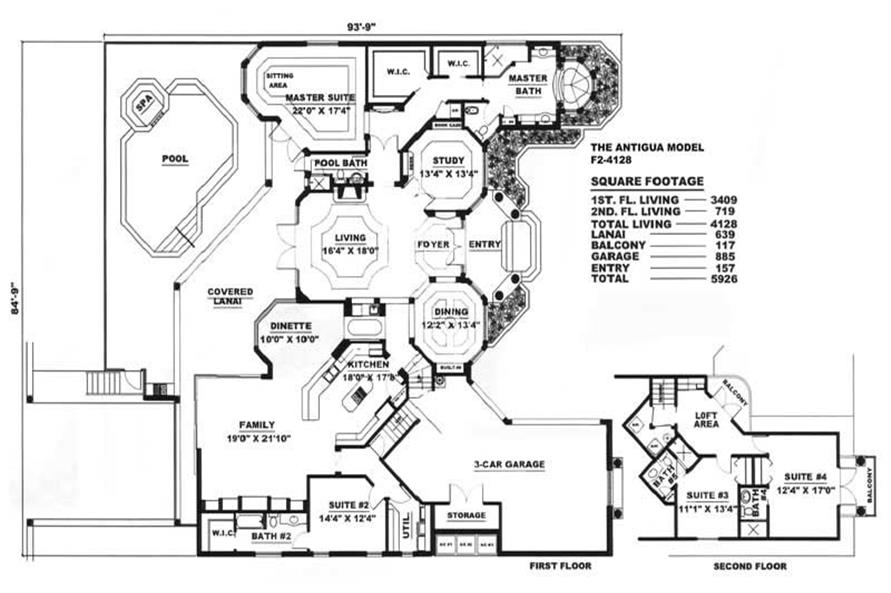

FLOOR PLAN
4-Bedroom, 4128 Sq Ft Coastal House Plan - 175-1047 - Front Exterior
FLOOR PLAN

About Plan # 175-1047

About Plan # 175-1047

4128 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 84' 9" WIDTH 76' 9" DEPTH 3 GARAGE BAY

This beautiful 2-story home is fully appointed with 4 bedroom suites, each with its own bath, including a spacious master suite with sitting area and walk-in-closets. The stately study and open, formal dining room blend seamlessly into the grand living room equipped with a built-in fireplace and wet bar. The gourmet kitchen and inviting family room offer expansive views through the rear sliding glass doors and mitered glass walls to a wonderful view of the tropical pool and spa deck just beyond the covered lanai. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1047
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4128
Main Floor:
3412
Upper Floor:
719
Unfinished Sq Ft:
Garage :
884

Dimensions

Width:
84' 9"
Depth:
76' 9"
Ridge Height:
33' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Luxury
Mediterranean
Spanish

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Balcony
Den
Dining Room
Family Room
Fireplace
Home Office
Library
Loft
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Master Suite Features

Main Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
