Cabins, Contemporary House Plans - Home Design RDI-2302R1-DB # 18897

About House Plan #162-1049

4012

Sq Ft

4

Bedrooms

3

Baths

1

Half Baths

3

Cars

1

Stories

85' 6'

Width

57

Depth

From$1500What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

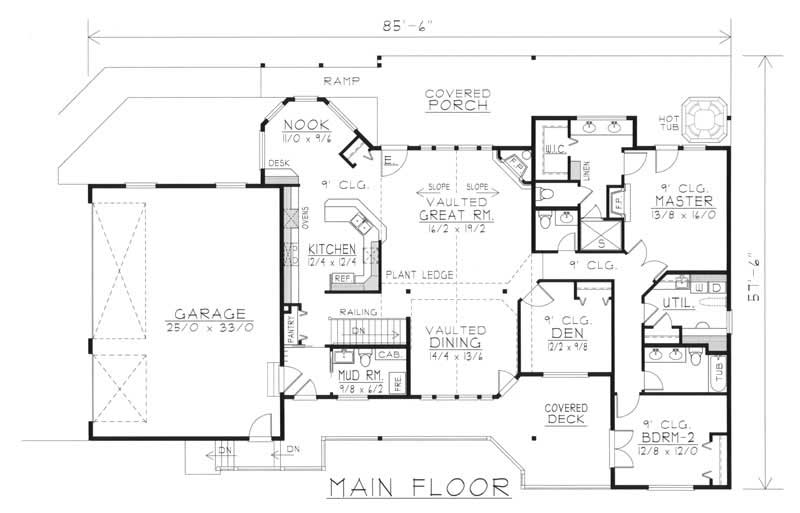

Main Floor Plan

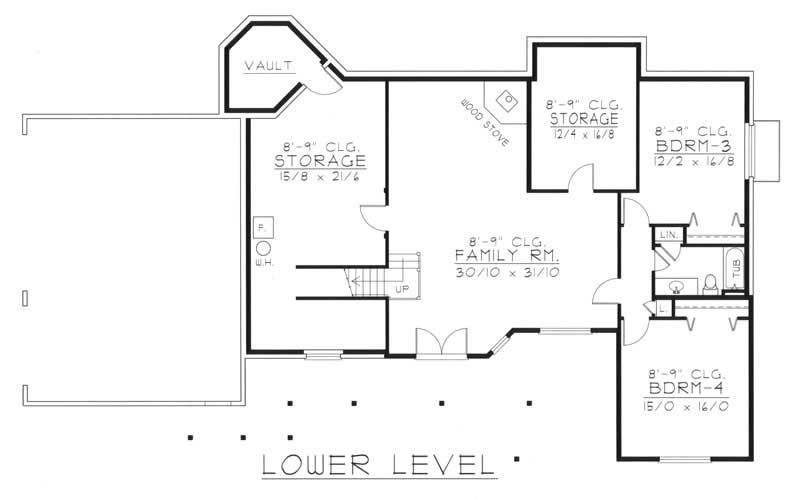

Basement Floor Plan

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

Home Plan RDI-2302R1-DB is an open Northwestern design that's perfect for bringing the outdoors in. Large windows and covered decks adorn the exterior and bring light to the interior. A special feature in this plan is the ceiling detail. 9' ceilings throughout the home leap to a vault in the great and dining rooms. The lower level houses a family room, and two more bedrooms, all the while conserving that precious storage space.

Home Details

Summary

Plan #:162-1049

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:1

Garage:

Square Footage

Heated Area:4012 Sq. Ft.

First Floor:2302 Sq. Ft.

Unheated Area:

Basement:1710 Sq. Ft.

Garage:869 Sq. Ft.

Dimensions

Width:85' 6''

Depth:57' 6''

Ridge Height:24'8' 0''

Architectural Styles

Contemporary Cabin

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

12/126/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining RoomFamily Room

Garage Type

Attached GarageSide Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior Elevations

Floor Plans

Foundation Plan

Roof Framing Plan

Building Sections

Wall Sections

Stair Detail

Cabinet Elevations

Notes

Electrical Layout

Door & Window Sizes

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
