4-Bedroom, 3920 Sq Ft Coastal Plan with Sitting Area

Main image for house plan # 9554

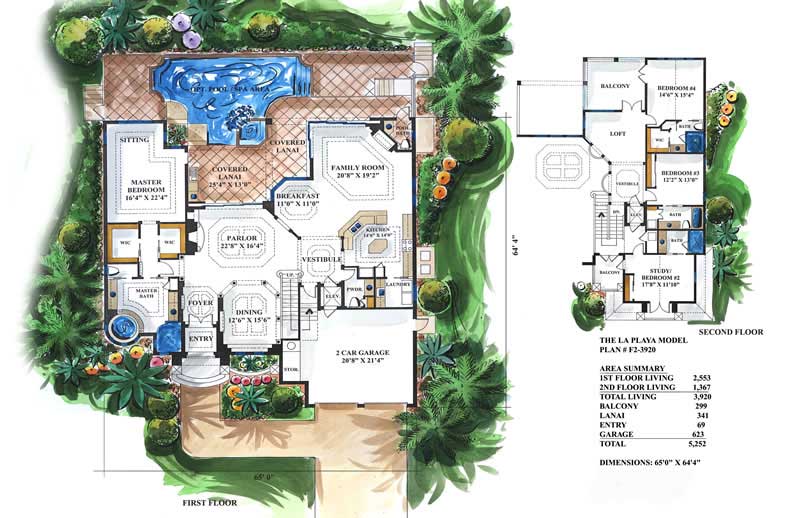

FLOOR PLAN
4-Bedroom, 3920 Sq Ft Coastal House Plan - 175-1043 - Front Exterior
FLOOR PLAN

About Plan # 175-1043

About Plan # 175-1043

3920 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 65' 0" WIDTH 64' 4" DEPTH 2 GARAGE BAY

This home plan is an elegant, 4 bedroom Mediterranean design, featuring all the necessities for a family oriented lifestyle under 4000 square feet. Its impressive front fae includes cascading roof planes, cantilevered balconies, and the meticulous use of keystone and wrought iron. The grand entry has tall mahogany doors that open to the foyer. The dining room, surrounded by a colonnade, has a built-in buffet with a double tier arch above it. The spacious master suite features a bath with a circular spa, rotunda ceiling design and an oversized walk-in shower. The upstairs has three large bedroom suites that are accessible to the front and rear balconies. This home also offers an adequate sized loft and vestibule that is open to the parlor. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1043
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
2

Square Footage

Heated Sq Feet:
3920
Main Floor:
2553
Upper Floor:
1367
Unfinished Sq Ft:

Dimensions

Width:
65' 0"
Depth:
64' 4"
Ridge Height:
623' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Mediterranean
Spanish

Exterior Wall Material

Stucco

Roof Pitch

6/12

Special Feature

Dining Room

Garage Type

Attached Garage

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
