4-Bedroom, 3609 Sq Ft Florida Style Plan with Nook/Breakfast Area

This image shows the Mediterranean style of these house plans.
4-Bedroom, 3609 Sq Ft Florida Style House Plan - 175-1069 - Front Exterior

About Plan # 175-1069

About Plan # 175-1069

3609 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 64' 10" WIDTH 79' 10" DEPTH 2 GARAGE BAY

This spacious 4-bedroom home has an open layout that is great for entertaining. The kitchen and dinette overlook the pool area, and the family room features zero-corner sliders which enable the room to be opened up to encompass the lanai as one huge area. You will find the master suite and study downstairs, and 3 bedrooms and 2 baths upstairs. A balcony from bedroom #4 overlooks the pool and lanai and bedroom #2 has a charming Juliet balcony. To add to all of this, the oversized 2-car garage has plenty of room for extra storage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

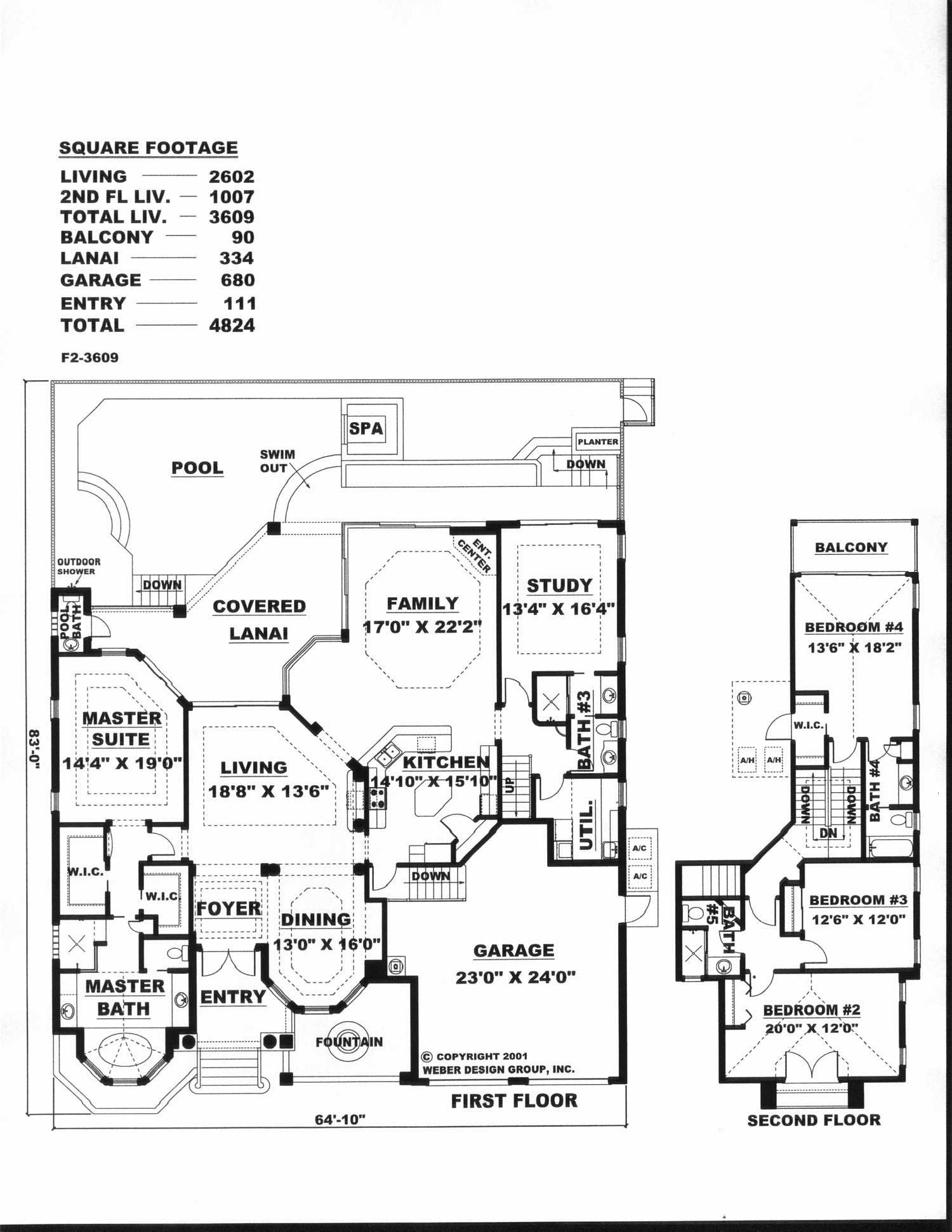

Home Plan: #175-1069 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #175-1069
Home Plan: #175-1069 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #175-1069
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1069
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3609
Main Floor:
2602
Upper Floor:
1007
Unfinished Sq Ft:
Garage :
680

Dimensions

Width:
64' 10"
Depth:
79' 10"
Ridge Height:
29' 0"

Architectural Styles

Florida Style
Mediterranean

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Home Office
Library
Loft
Main Level Laundry
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Lanai
Covered Rear Porch
Screened in Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!
