5-Bedroom, 3478 Sq Ft European Plan with Master Bathroom

Main image for house plan # 8172

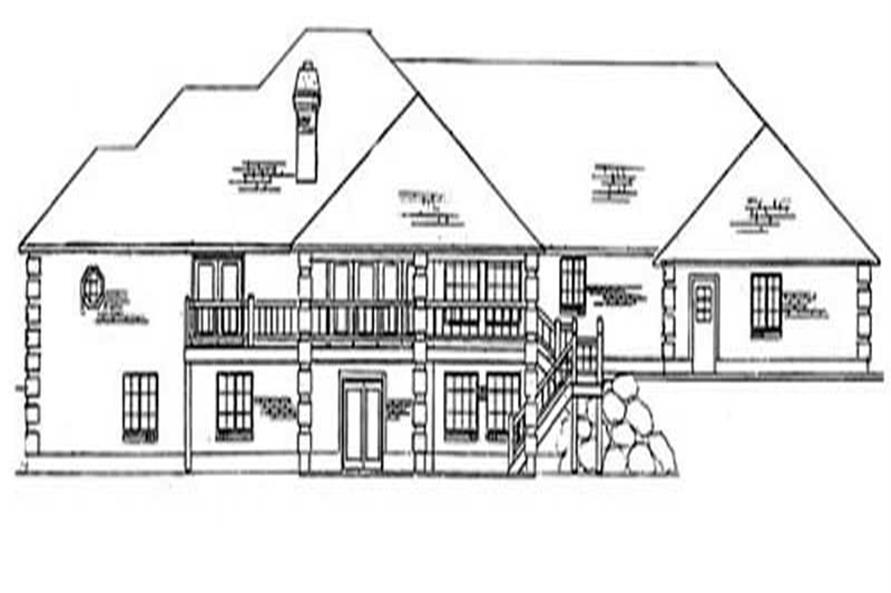

REAR ELEVATION

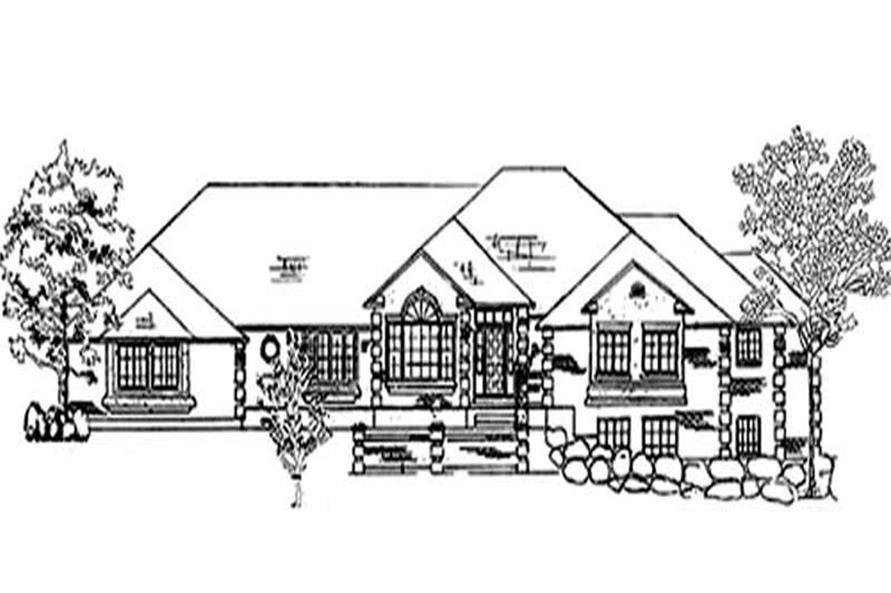

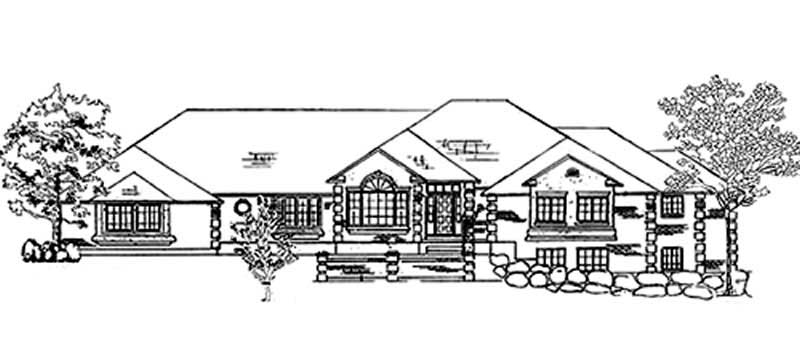

5-Bedroom, 3478 Sq Ft European House Plan - 135-1345 - Front Exterior
REAR ELEVATION

About Plan # 135-1345

About Plan # 135-1345

3478 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 107' 0" WIDTH 60' 0" DEPTH 3 GARAGE BAY

This is a two story home that has a side sloped lot just waiting to be built on.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

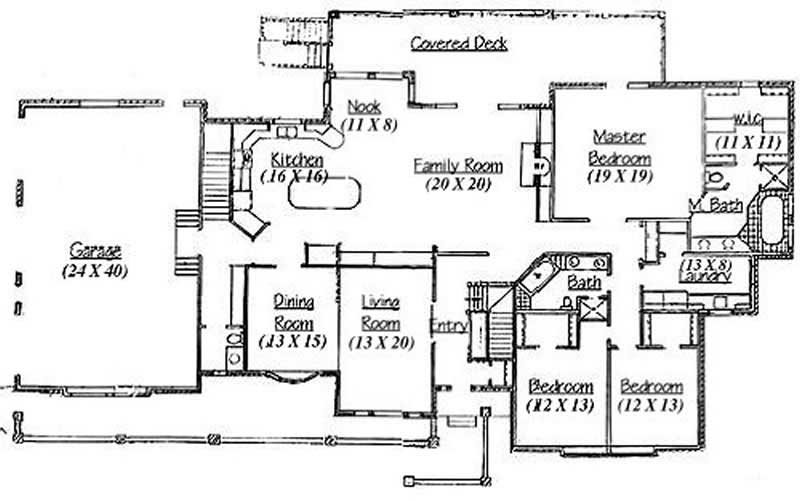

Home Plan: #135-1345 Floor Plan First Story Floor Plan First Story of European Plan #135-1345
Home Plan: #135-1345 Floor Plan First Story Floor Plan First Story of European Plan #135-1345
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1345
Floors:
1
Bedrooms:
5
Full Baths:
4

Square Footage

Heated Sq Feet:
3478
Main Floor:
3478
Unfinished Sq Ft:
Lower Floor:
3478

Dimensions

Width:
107' 0"
Depth:
60' 0"

Architectural Styles

European
French

Exterior Wall Material

Stucco

Roofing Type

Mansard

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage

Fireplaces

One Fireplace

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
