3-Bedroom, 3230 Sq Ft Contemporary Plan with Main Floor Master

Color Rendering of this house plan
3-Bedroom, 3230 Sq Ft Contemporary House Plan - 145-1596 - Front Exterior

About Plan # 145-1596

About Plan # 145-1596

3230 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 119' 0" WIDTH 38' 0" DEPTH 3 GARAGE BAY
The Chateau is a Contemporary Ranch with a side entry garage and a hip roof. The living room and family room have a small wall dividing them but the kitchen opens to both. There is a basement with only support beams to allow you to design it however you want.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

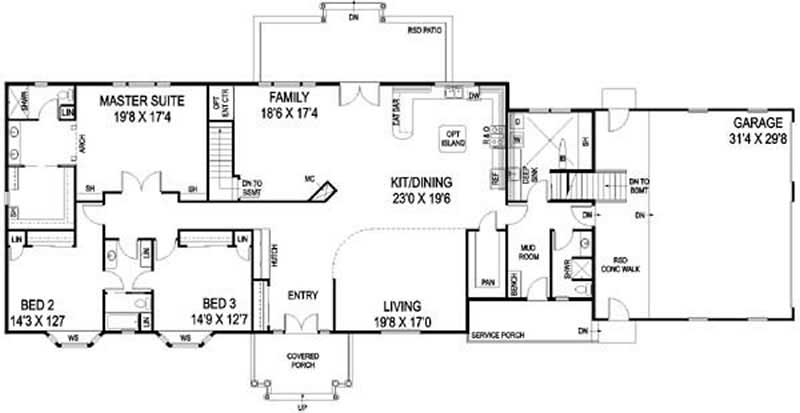

Home Plan: #145-1596 Floor Plan First Story - first story Floor Plan First Story of Contemporary Plan #145-1596

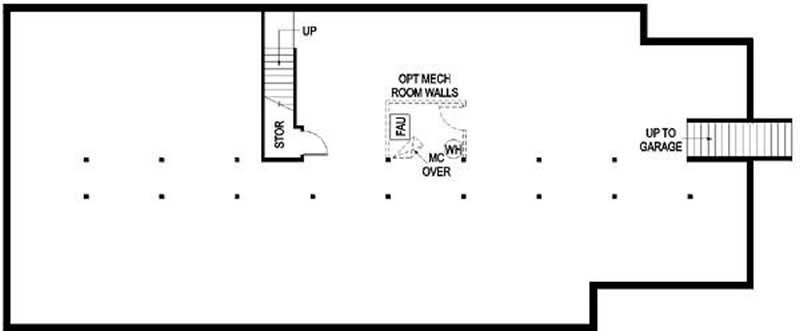

#145-1596 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #145-1596
Home Plan: #145-1596 Floor Plan First Story - first story Floor Plan First Story of Contemporary Plan #145-1596
#145-1596 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #145-1596
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 145-1596
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
3230
Main Floor:
3230
Unfinished Sq Ft:
Lower Floor:
3288
Garage :
990

Dimensions

Width:
119' 0"
Depth:
38' 0"
Ridge Height:
21'6"' 0"

Architectural Styles

Contemporary
Ranch

Exterior Wall Material

Brick

Roofing Type

Hip

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Main Level Laundry
Mud Room

Garage Type

Side Entry

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
