Traditional Duplex with 3 Bedrooms, 1499 Sq Ft Per Unit

Multi-Unit house design (ThePlanCollection: Plan #108-2027)

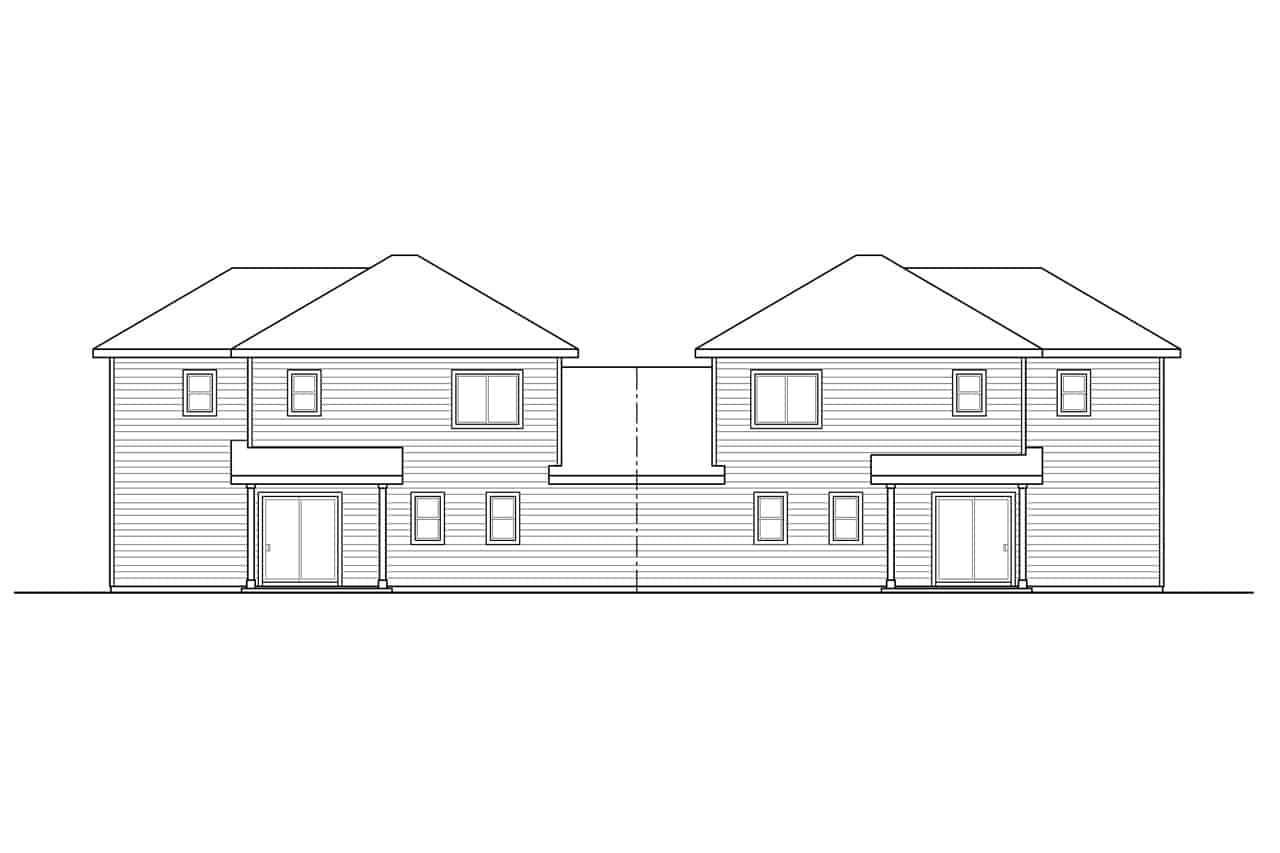

108-2027: Home Plan Rear Elevation

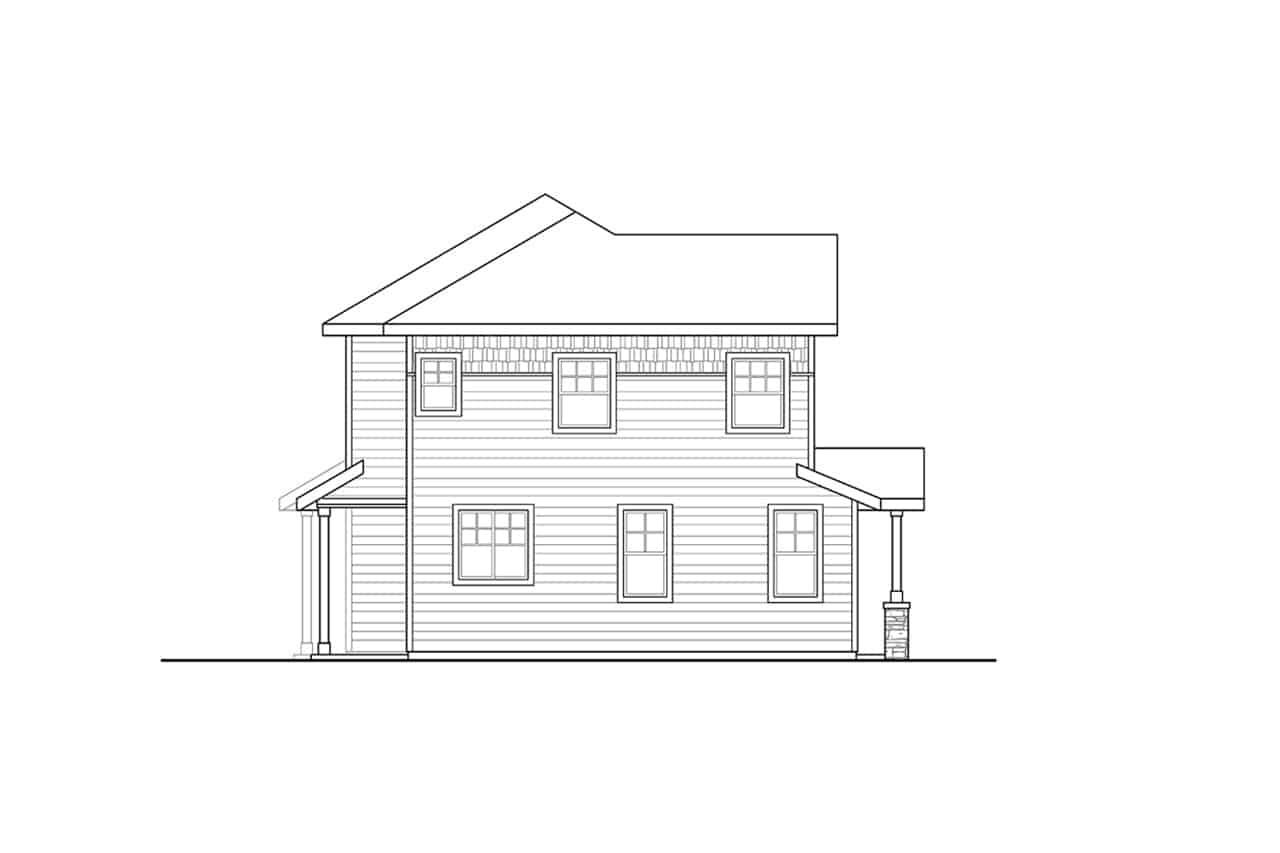

108-2027: Home Plan Left Elevation

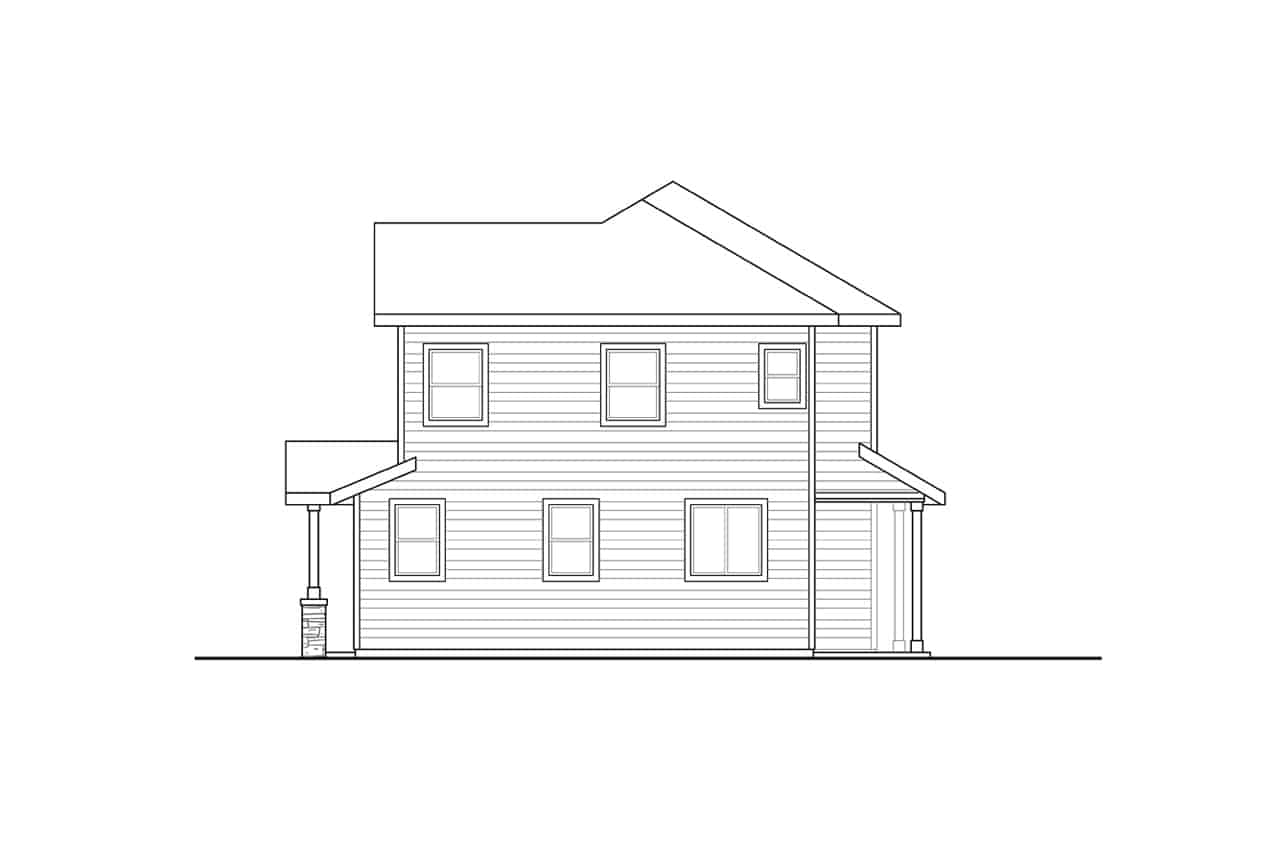

108-2027: Home Plan Right Elevation
6-Bedroom, 2998 Sq Ft Multi-Unit Home - Plan #108-2027 - Main Exterior

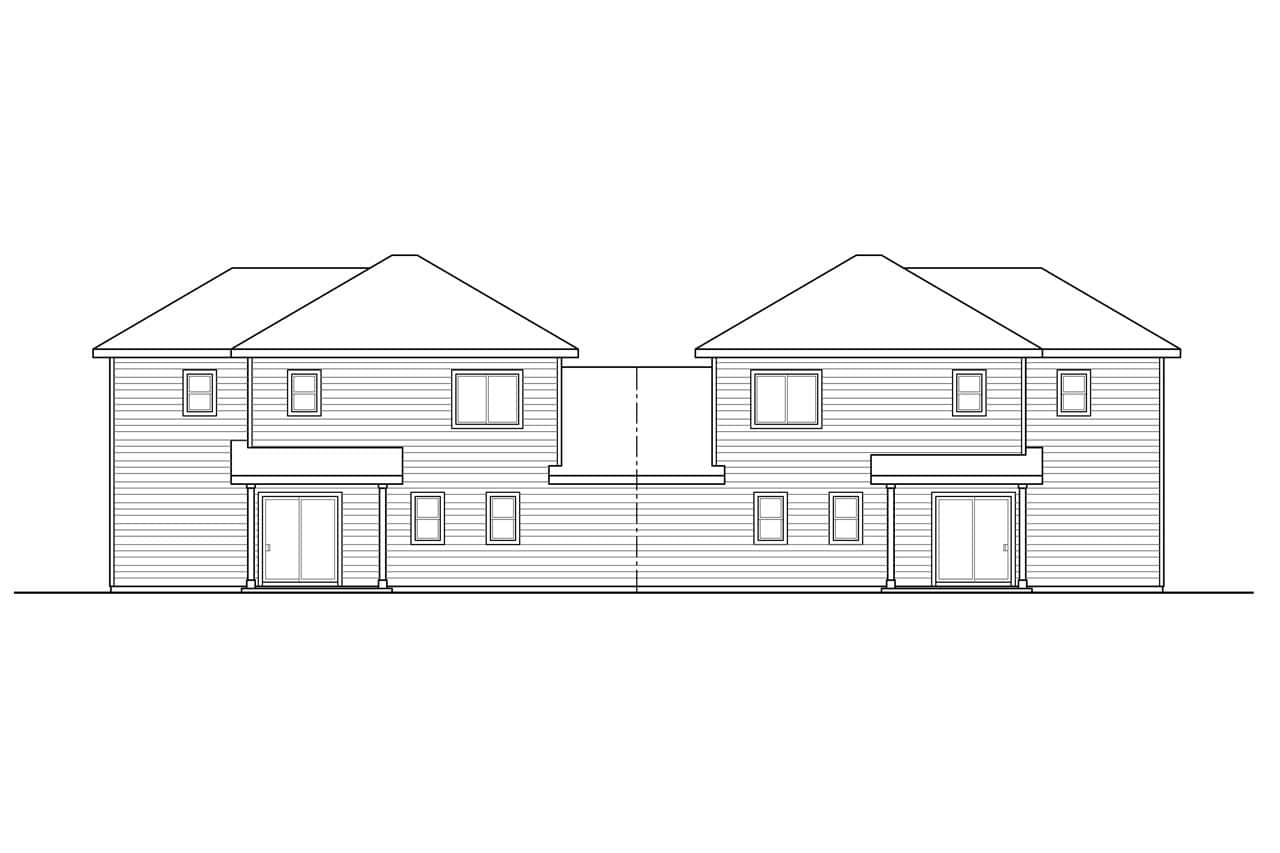

108-2027: Home Plan Rear Elevation

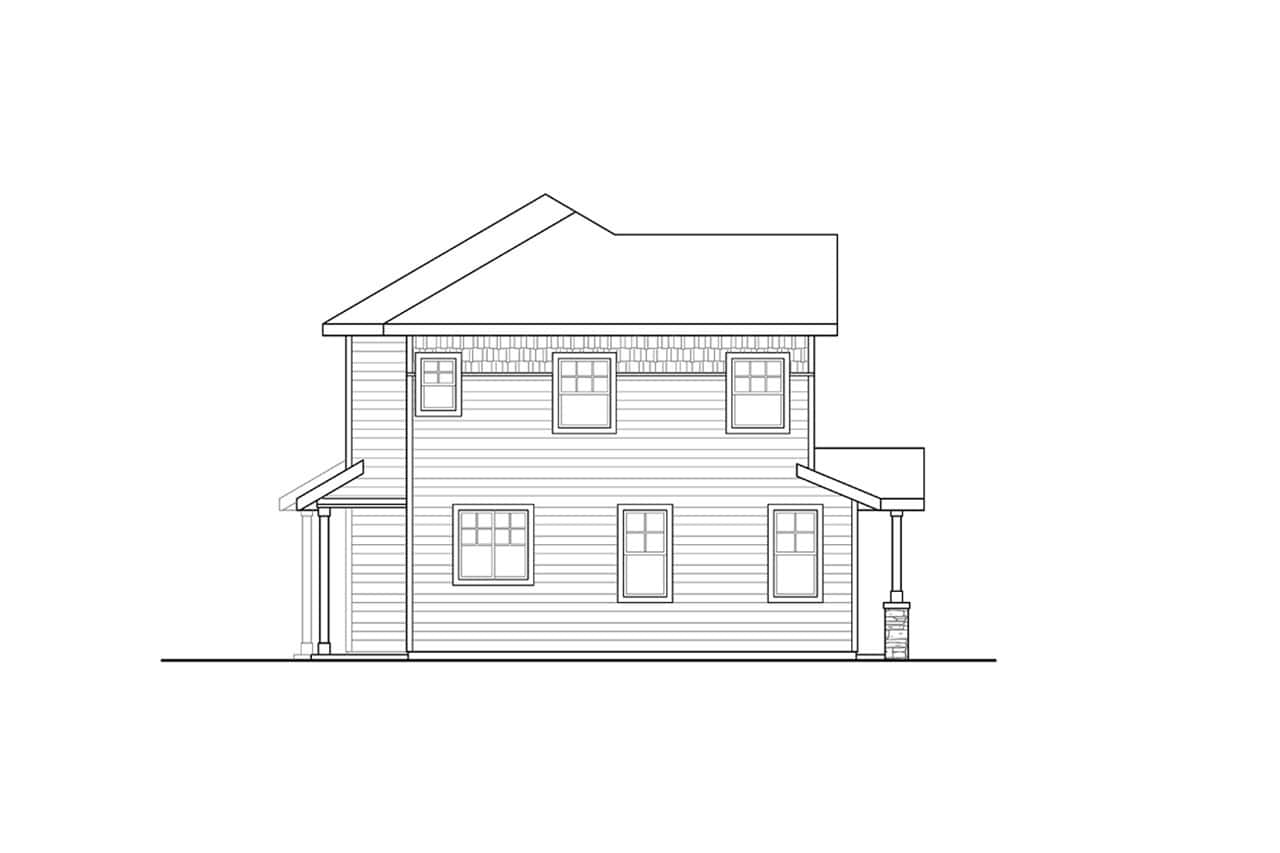

108-2027: Home Plan Left Elevation

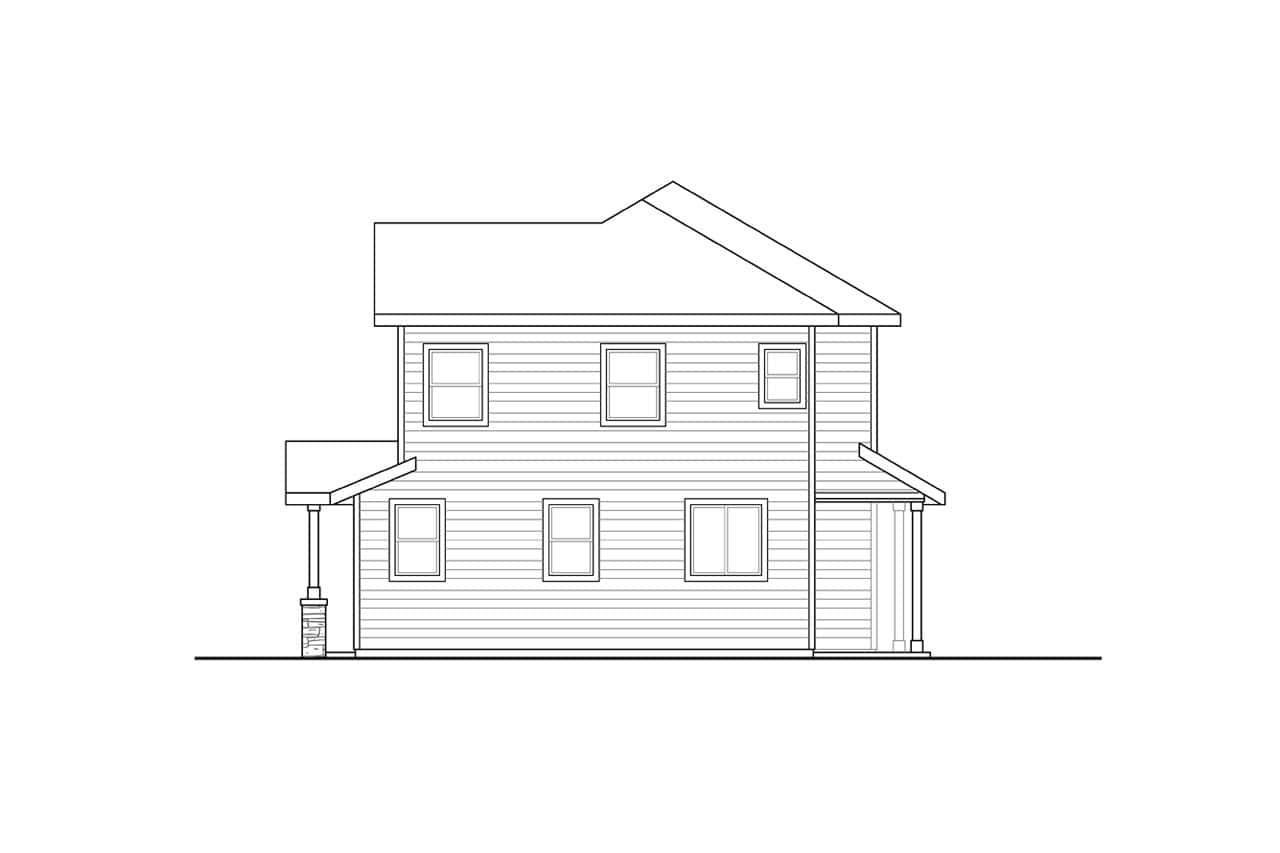

108-2027: Home Plan Right Elevation

About Plan # 108-2027

About Plan # 108-2027

2998 SQUARE FEET 6 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 84' 0" WIDTH 34' 6" DEPTH 4 GARAGE BAY

This traditionally styled duplex features gorgeous details and everything you need to feel at home. The well-designed 2-story home's floor plan has 1499 square feet of heated and cooled living space per unit (667 square feet on the main level and 832 square feet on the upper level) with 3 bedrooms, 2.5 baths, and a 2-car garage per unit. You’ll surely appreciate the open layout and great features of the home:

• Vaulted ceiling in the master (owners') bedroom
• Main level laundry room
• Breakfast bar peninsula in the kitchen
• Private covered patio off the kitchen
• Extra storage space in the garage

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

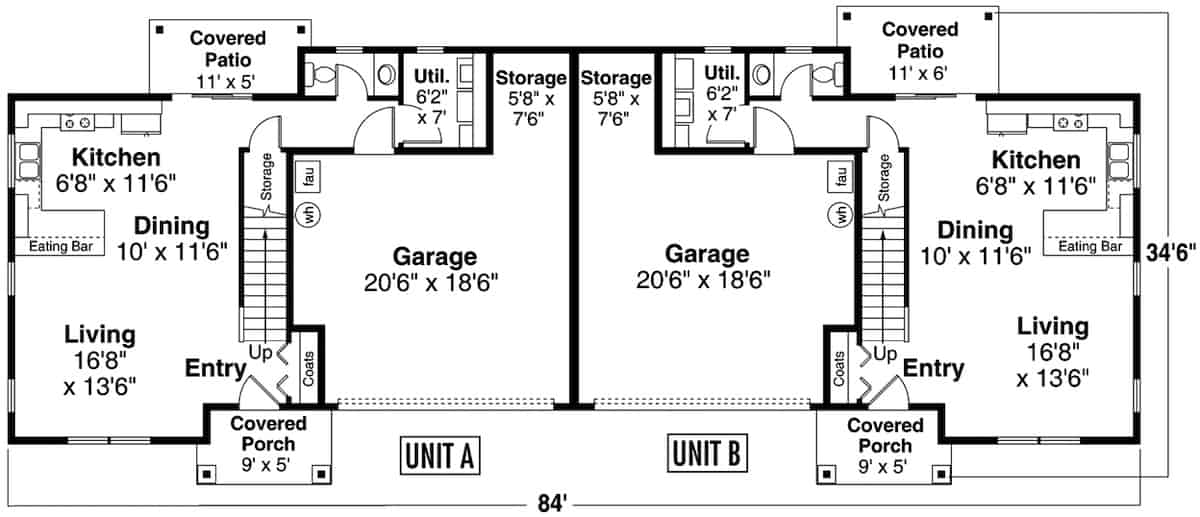

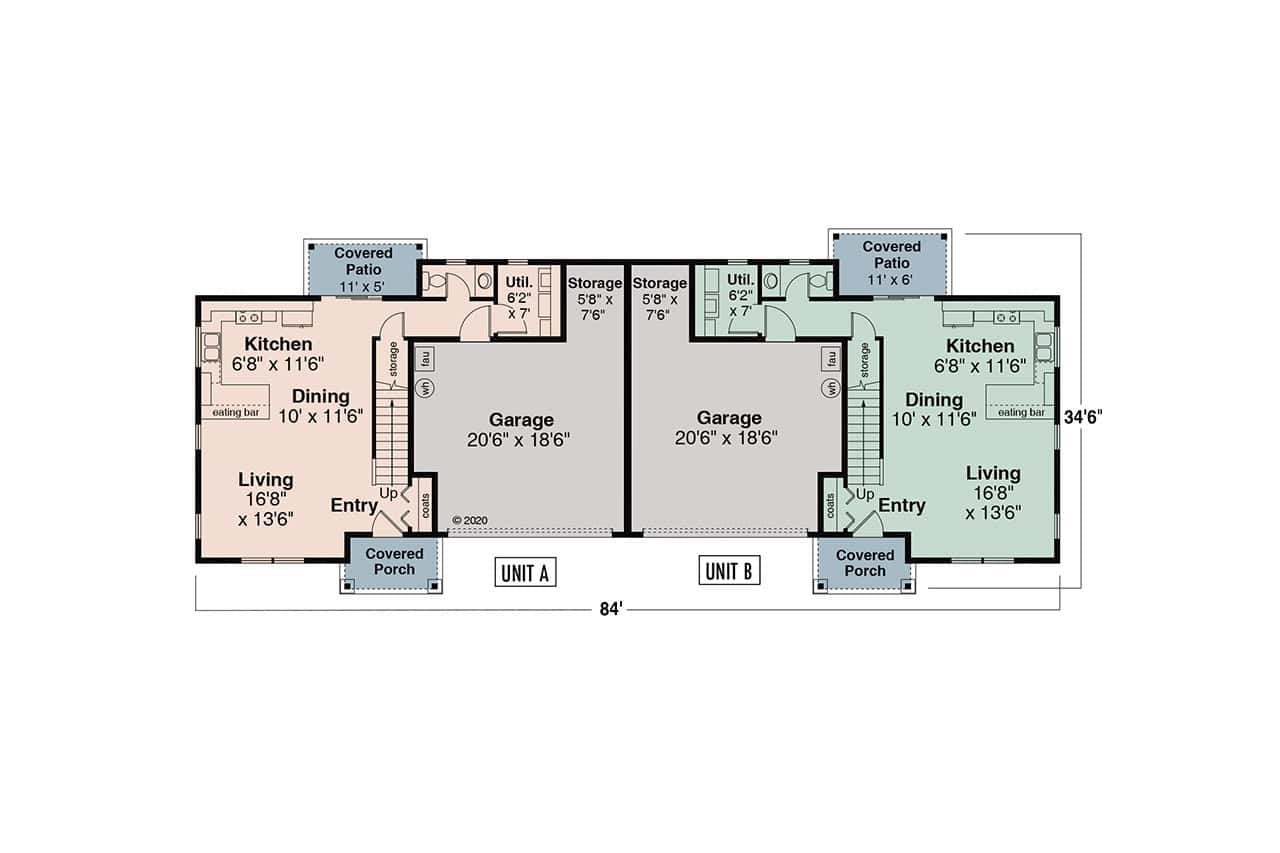

Home Plan: #108-2027 Floor Plan First Story - main level Main Level of Multi-Unit Plan #108-2027

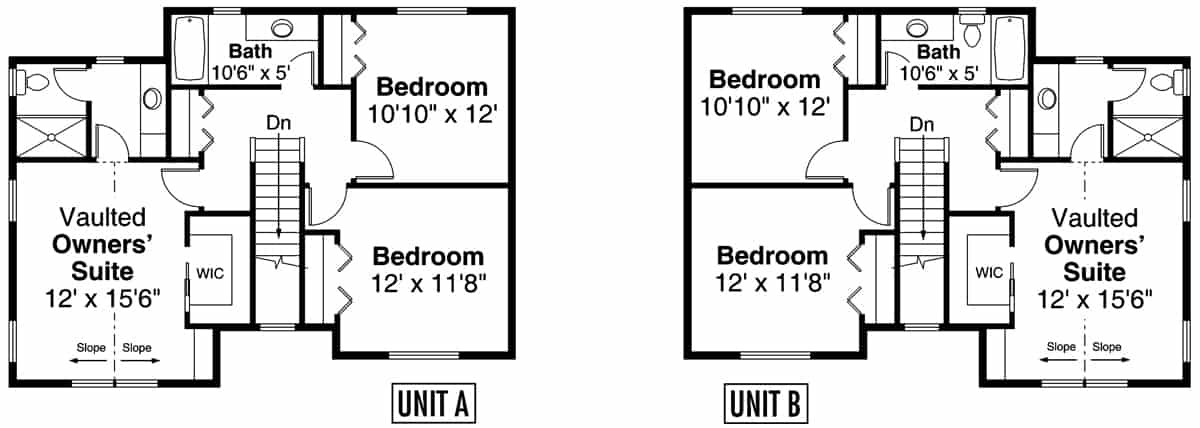

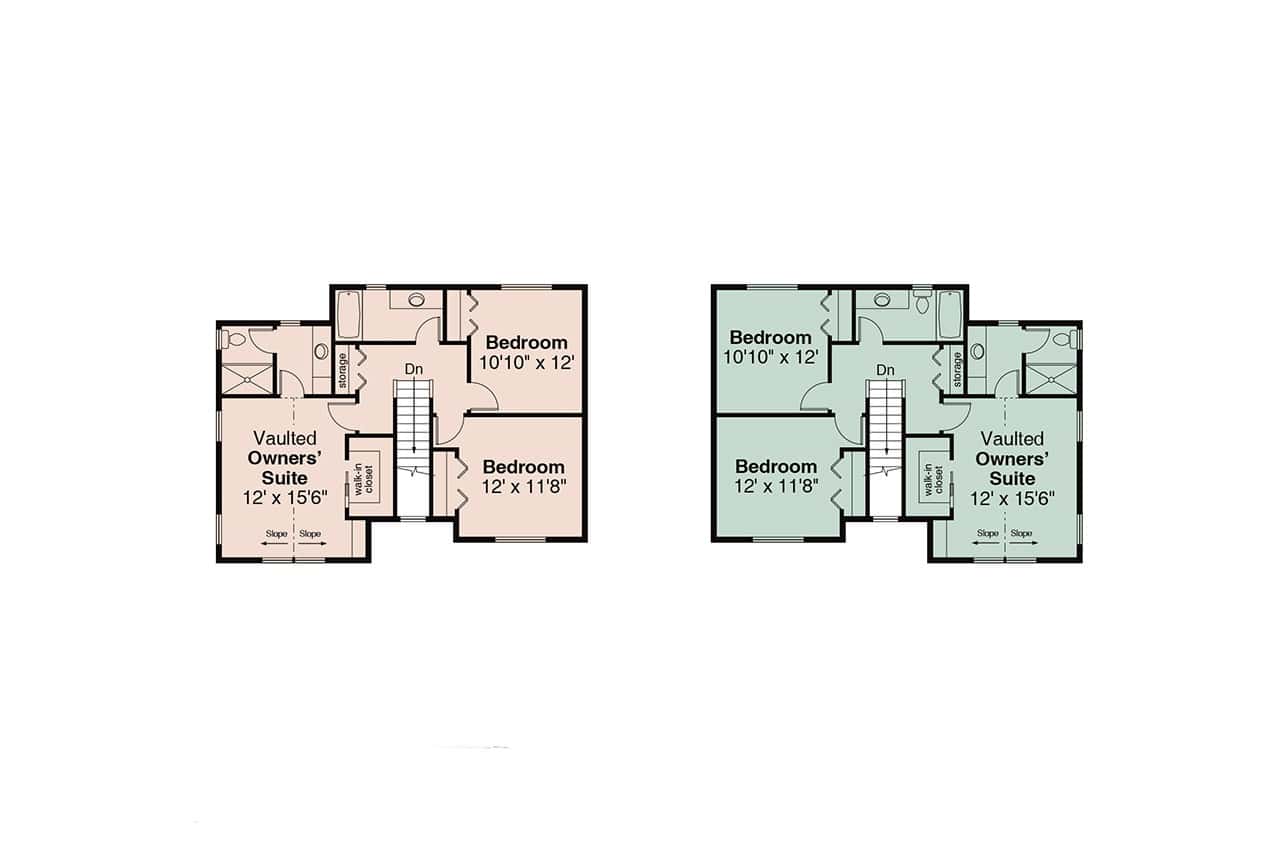

#108-2027 Floor Plan Second Story - upper level Upper Level of Multi-Unit Plan #108-2027
Home Plan: #108-2027 Floor Plan First Story - main level Main Level of Multi-Unit Plan #108-2027
#108-2027 Floor Plan Second Story - upper level Upper Level of Multi-Unit Plan #108-2027
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-2027
Floors:
2
Bedrooms:
6
Full Baths:
4
Half Baths:
2
Garage :
4

Square Footage

Heated Sq Feet:
2998
Main Floor:
1334
Upper Floor:
1664
Unfinished Sq Ft:
Garage :
858

Dimensions

Width:
84' 0"
Depth:
34' 6"
Ridge Height:
26' 11"

Architectural Styles

Colonial
Country
Duplex/Multi-Unit
Traditional

Exterior Wall Material

Vinyl Siding
Wood Siding
Shakes

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

The office will be closed from October 10-17, 2022 PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.
