3-Bedroom, 2897 Sq Ft Mediterranean Plan with Second Floor Master

Main image for house plan # 18754
3-Bedroom, 2897 Sq Ft Mediterranean House Plan - 107-1017 - Front Exterior

About Plan # 107-1017

About Plan # 107-1017

2897 SQUARE FEET 3 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 62' 0" WIDTH 75' 6" DEPTH 3 GARAGE BAY

This is a great home plan for Florida or coastal living.  The master bedroom is spacious and separate from the other bedrooms for privacy.  The three-car garage has lots of storage.  This is a perfect house plan for empty nesters.  Including unheated areas the total under roof SF is 3866.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

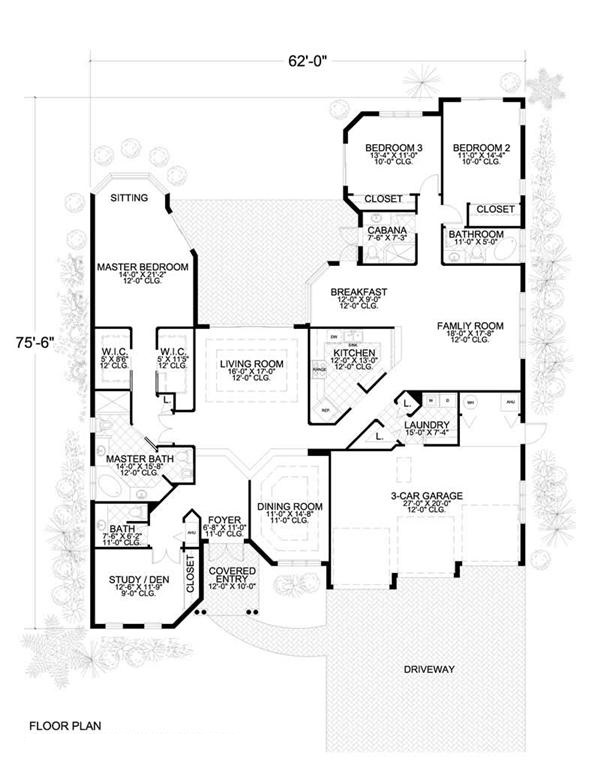

Home Plan: #107-1017 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #107-1017
Home Plan: #107-1017 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #107-1017
