Farmhouse Duplex with 4 Total Bedrooms, 2775 Total Sq Ft

Front elevation of Multi-Unit home (ThePlanCollection: House Plan #157-1005)
4-Bedroom, 2775 Sq Ft Multi-Unit Home Plan - 157-1005 - Main Exterior

About Plan # 157-1005

About Plan # 157-1005

2775 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 50' 0" WIDTH 60' 0" DEPTH 2 GARAGE BAY

The first floor, divided into two distinct units, has 1807 living square feet and includes the elders’ apartment on one side, and the young family’s common areas on the other side — living room, dining room, and kitchen. The second floor, with 968 living sq ft, includes three bedrooms and a family bathroom. The house also includes a two-car garage. Parents and children can therefore live under the same roof and be completely autonomous.

Each plan set includes the following:

  • Exterior elevations
  • Foundation plan
  • Floor plans
  • Cross sections
  • Staircase section
  • Roof truss drawings
  • Specifications
  • Construction details
  • Size of structural elements (posts, beams, concrete pads, etc.)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

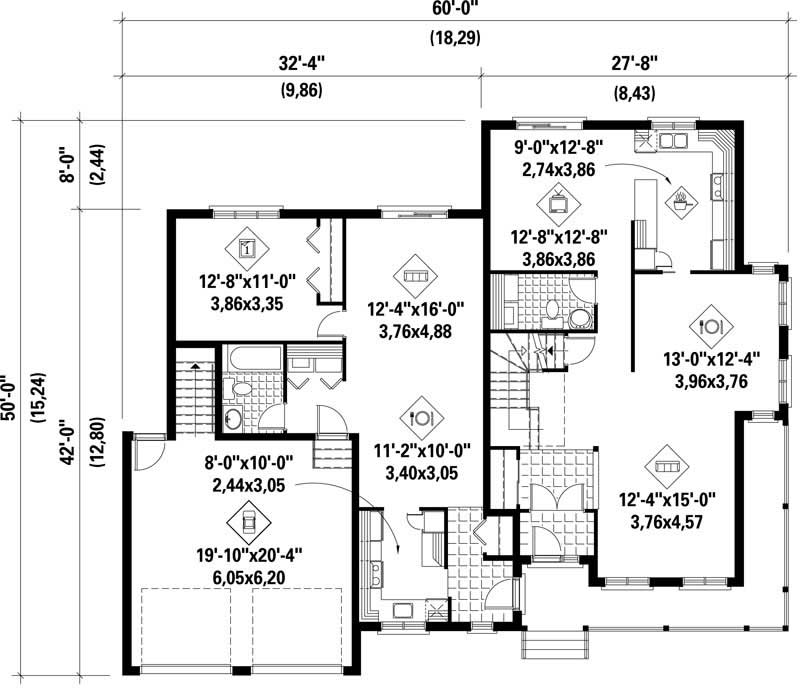

Home Plan: #157-1005 Floor Plan First Story - main level Floor Plan First Story of Multi-Level Plan #157-1005

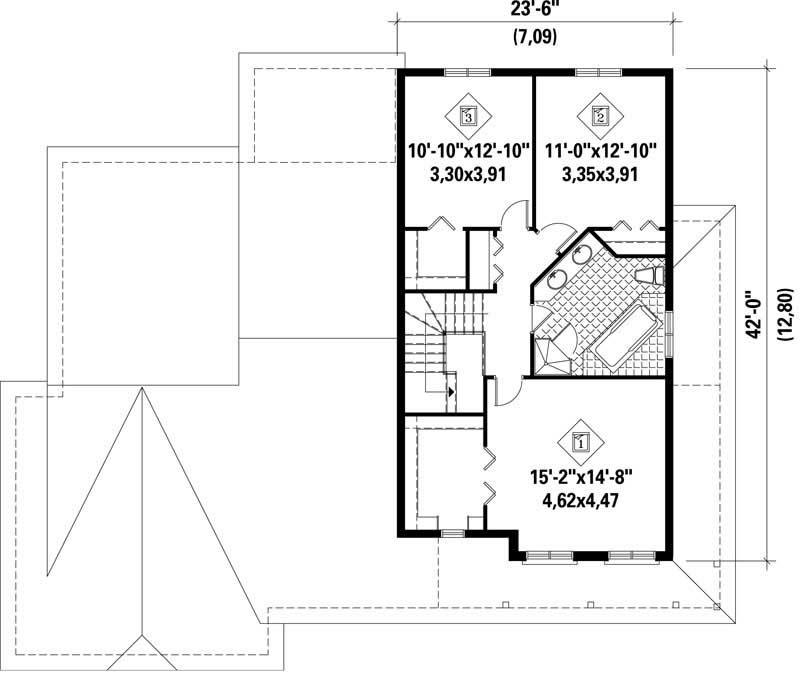

#157-1005 Floor Plan Second Story - second level Floor Plan Second Story of Multi-Level Plan #157-1005
