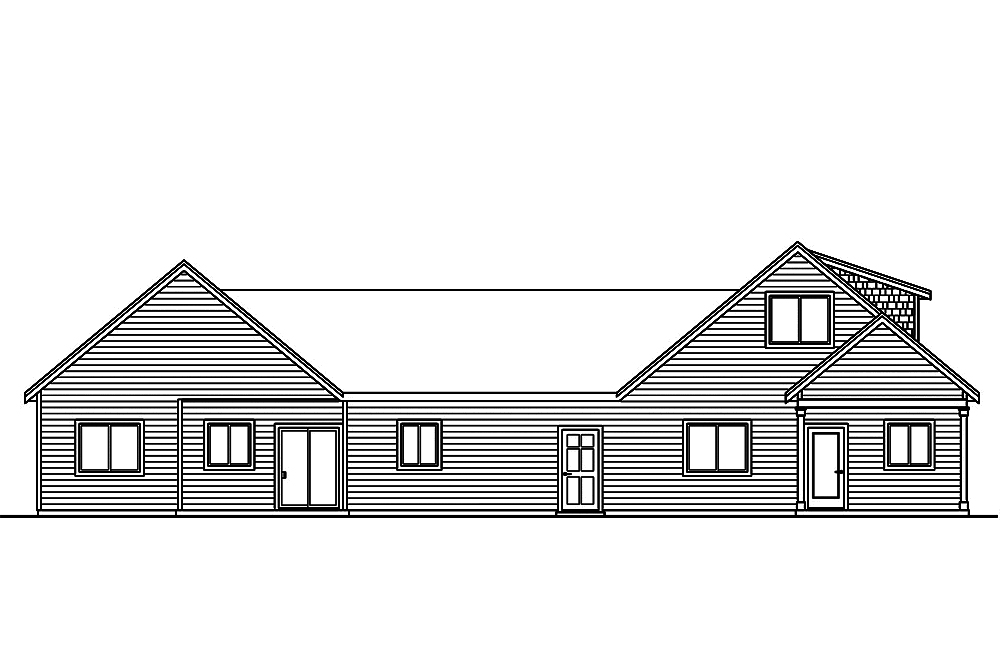

108-1852: Home Plan Rear Elevation

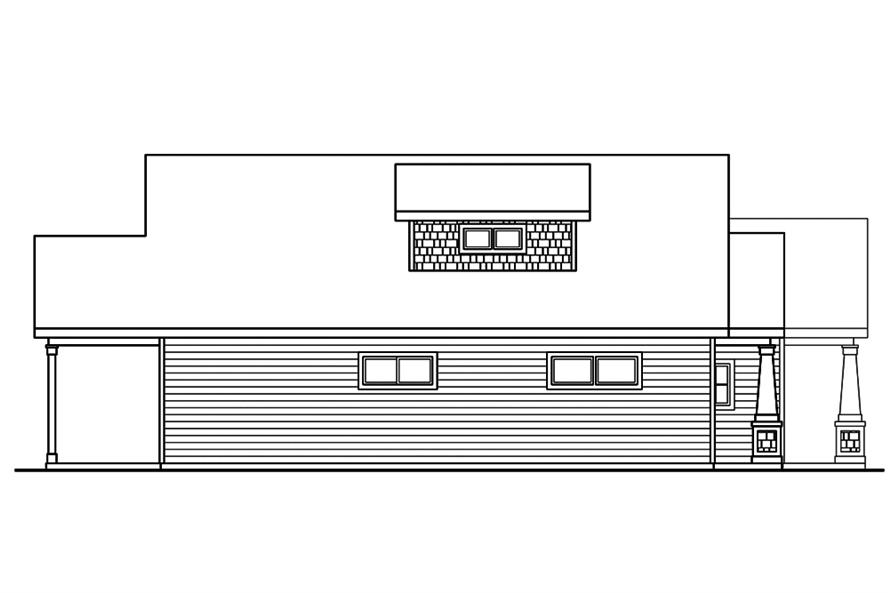

108-1852: Home Plan Left Elevation

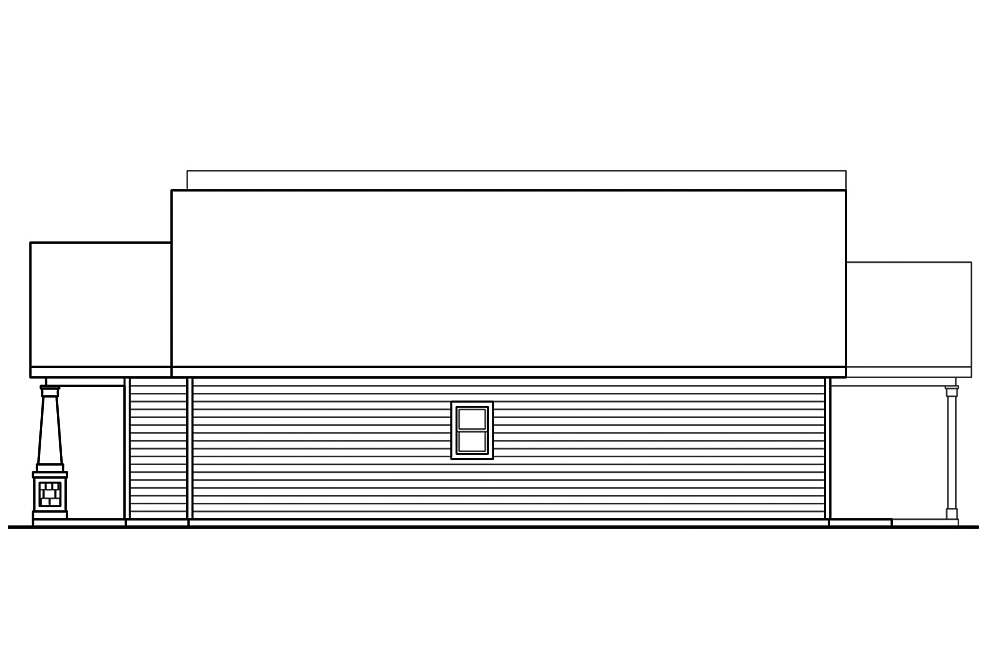

108-1852: Home Plan Right Elevation
5-Bedroom, 2770 Sq Ft Multi-Unit House Plan - 108-1852 - Front Exterior
108-1852: Home Plan Rear Elevation
108-1852: Home Plan Left Elevation
108-1852: Home Plan Right Elevation

About Plan # 108-1852

About Plan # 108-1852

2770 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 77' 0" WIDTH 58' 0" DEPTH 3 GARAGE BAY

This duplex with Craftsman influences has two unique units. Unit A is 1.5 stories with 1647 square feet of living space, three bedrooms, 2.5 baths and a 395 square foot 2-car garage. Unit B is one level with 1123 square feet of living space, two bedrooms, 1 full bathroom, and a 284 square foot 1-car garage.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

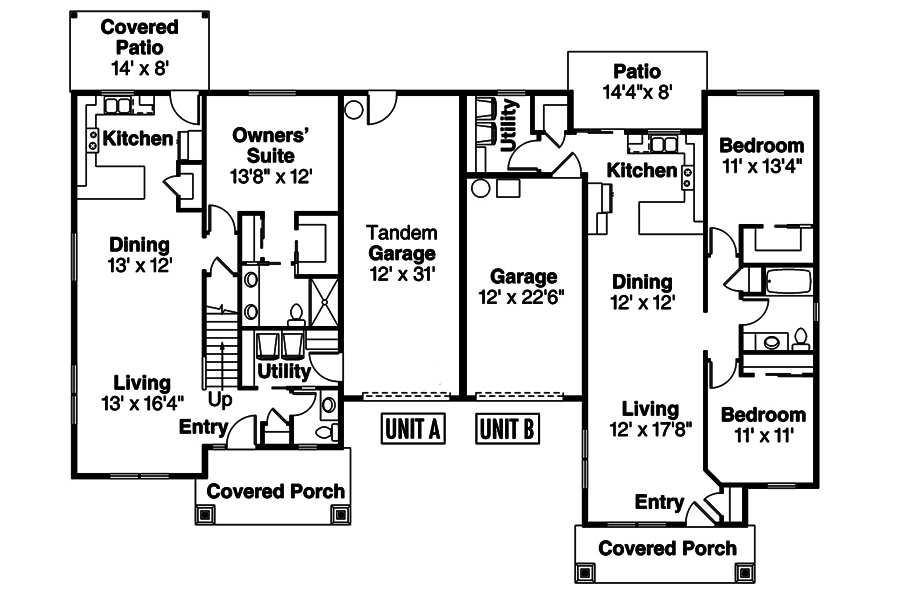

Home Plan: #108-1852 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #108-1852

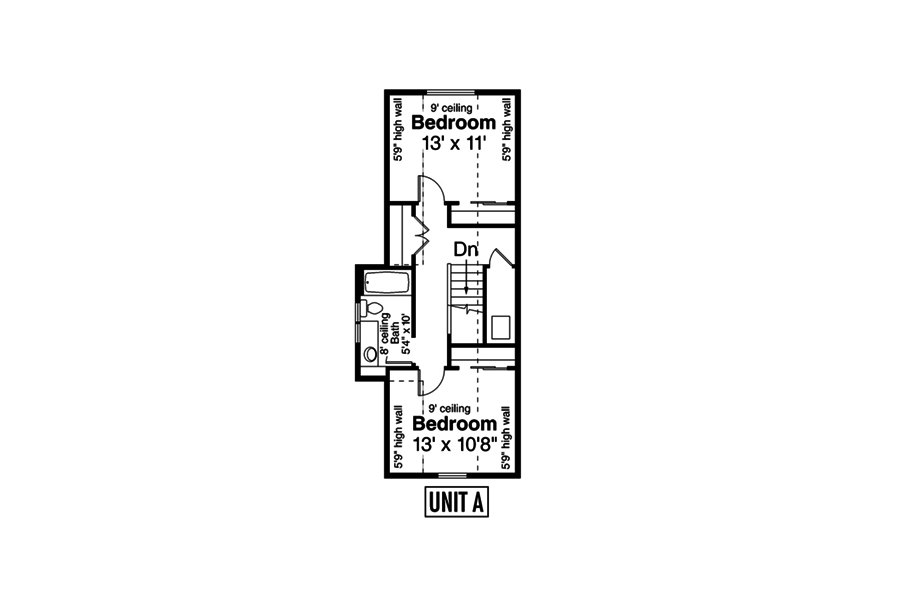

#108-1852 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #108-1852
Home Plan: #108-1852 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #108-1852
#108-1852 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #108-1852
