4-Bedroom, 2717 Sq Ft Colonial Plan with Second Floor Master

Main image for house plan # 9864

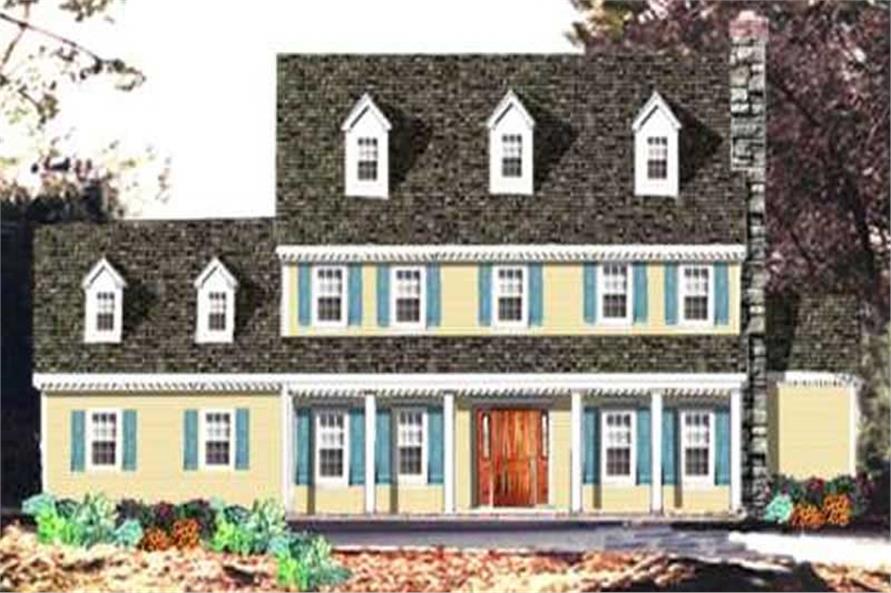

4-Bedroom, 2717 Sq Ft Colonial House Plan - 105-1062 - Front Exterior

About Plan # 105-1062

About Plan # 105-1062

2717 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 41' 0" DEPTH 2 GARAGE BAY
This home's traditional Colonial-style facade features a columned front porch, shuttered windows and five enchanting dormers. Inside, the foyer opens into the formal dining room and living room with a fireplace. The two-story kitchen serves the dinette over a handy island snack bar. The Great Room boasts a volume sloping ceiling. The main-floor master suite enjoys a private terrace and a bath with a dual-sink vanity, a walk-in closet and a garden whirlpool tub. Upstairs, three additional bedrooms share the full hall bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

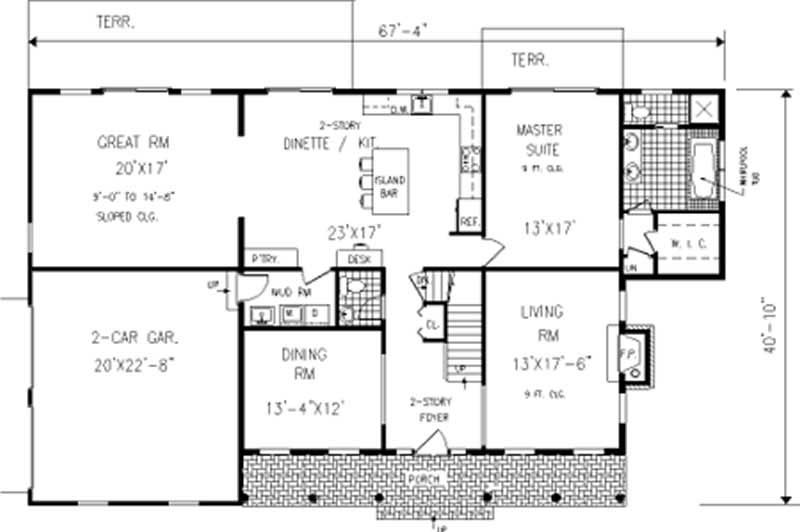

Home Plan: #105-1062 Floor Plan First Story - first Floor Plan First Story of Colonial Plan #105-1062

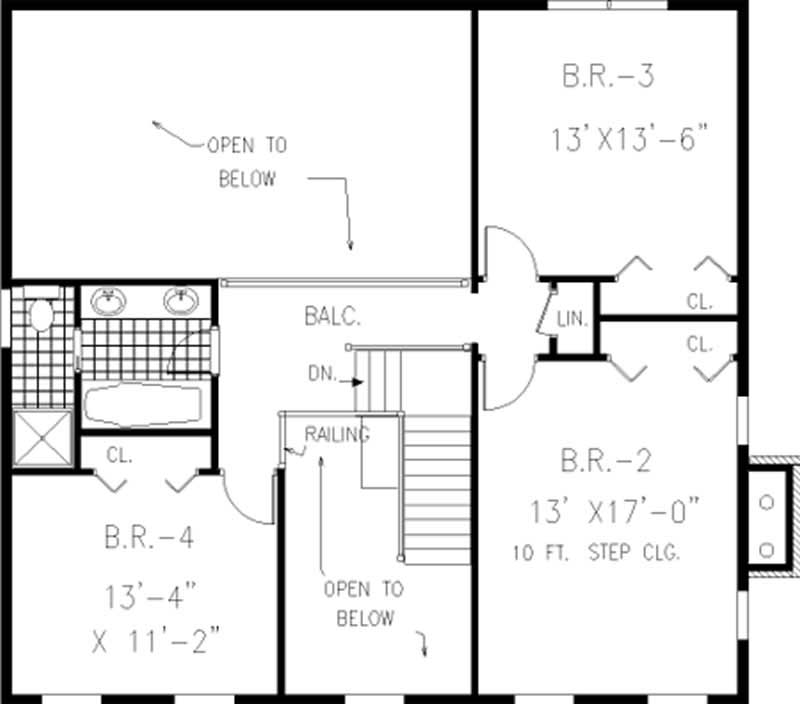

#105-1062 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #105-1062
Home Plan: #105-1062 Floor Plan First Story - first Floor Plan First Story of Colonial Plan #105-1062
#105-1062 Floor Plan Second Story - second Floor Plan Second Story of Colonial Plan #105-1062
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1062
Floors:
2
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2717
Main Floor:
1862
Upper Floor:
855
Unfinished Sq Ft:
Garage :
467

Dimensions

Width:
68' 0"
Depth:
41' 0"

Architectural Styles

Colonial
Country

Exterior Wall Material

Wood Siding

Special Feature

Dining Room
Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
